SCM Nova S 520

Product Information

• Features
  • Two speed powered table adjustment
  • Mechanical digital readouts
  • Four feed speeds
  • Micrometric adjustment
  • Choice of HSS, TERSA or XYLENT cutter blocks
• Description

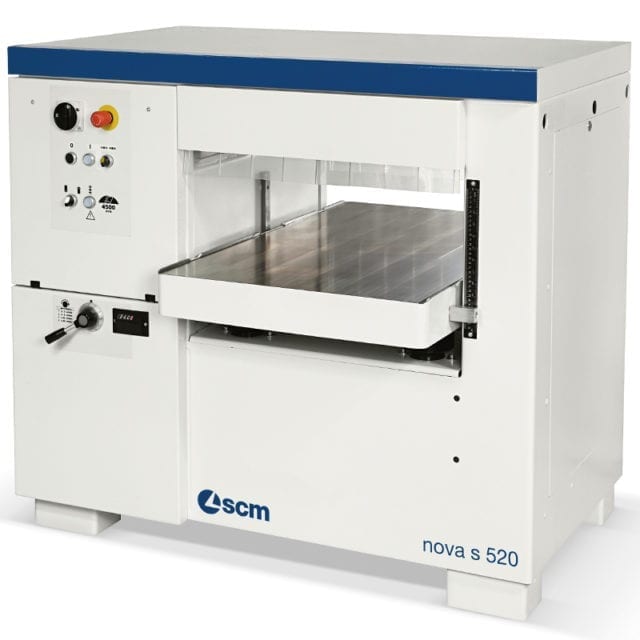

  The SCM Nova S 520 is a dedicated thickness planer with two speed powered table adjustment supported by 4 steel lead screws. The exact thickness can be precisely set using the numerical readout with micrometric adjustment. As standard the machine is fitted with a rigid steel feed roller, but can be configured with sectional feed roller for machining multiple pieces at once.

  As with all SCM thickness planers there is a choice of cutter blocks. The standard 4 knife HSS cutter block can upgraded to TERSA system or XYLENT spiral insert knife system for exception finish and reduced noise.

• Specification
  • Surfacing width capacity 520 mm
  • Thicknessing capacity 3.5 - 300 mm
  • Working length, min. 220 mm
  • Thicknessing table length 900 mm
  • Cutterblock diameter 120 mm
  • Cutterblock type High Speed Steel (HSS)
  • Number of knives 4
  • Feed speed(s) 5/ 8/ 12/ 18 m/min
  • Extraction outlet(s) 1 x 150 mm
  • Motor 7 kW (9.5 HP)
  • Power 3 phase
• Literature
  • Nova range Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
