SCM Minimax AD 21

Single Head Multiborer

Full details of SCM Minimax AD 21

Configure your machine

Adjustment, clamping & fences

Power *

- +

more information

  • Features
    • Manual adjustment of the horizontal and vertical boring unit position
    • Boring unit locking at 45°
    • N. 2 upper pneumatic clamping cylinders for the hold-down during boring operations
    • Height-adjustment of the boring unit by means of hand wheel and mechanical digital readout

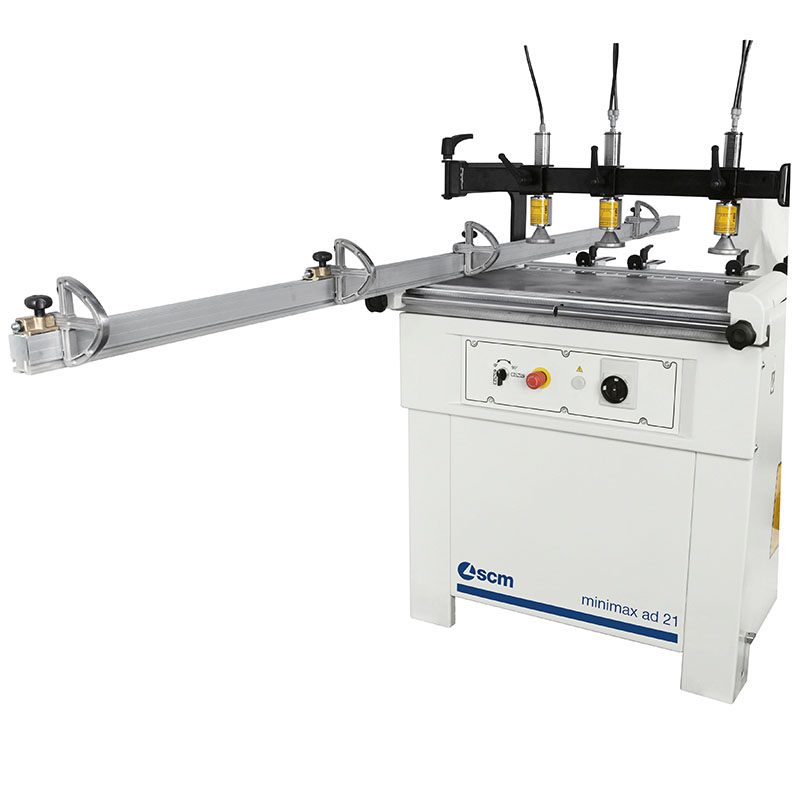

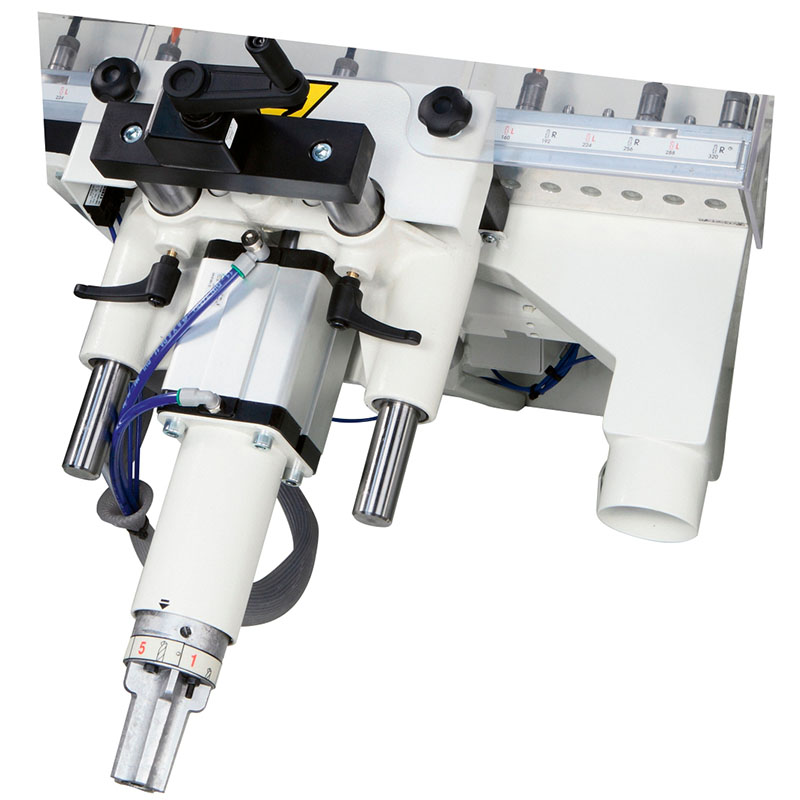

    • Boring depth adjustment from 0 to 60 mm by means of 5 positions revolver WITH DEVICE TO AUTOMATICALLY CHANGE THE VERTICAL/HORIZONTAL DEPTH TO AVOID THE CHIPPING OF THE PANEL

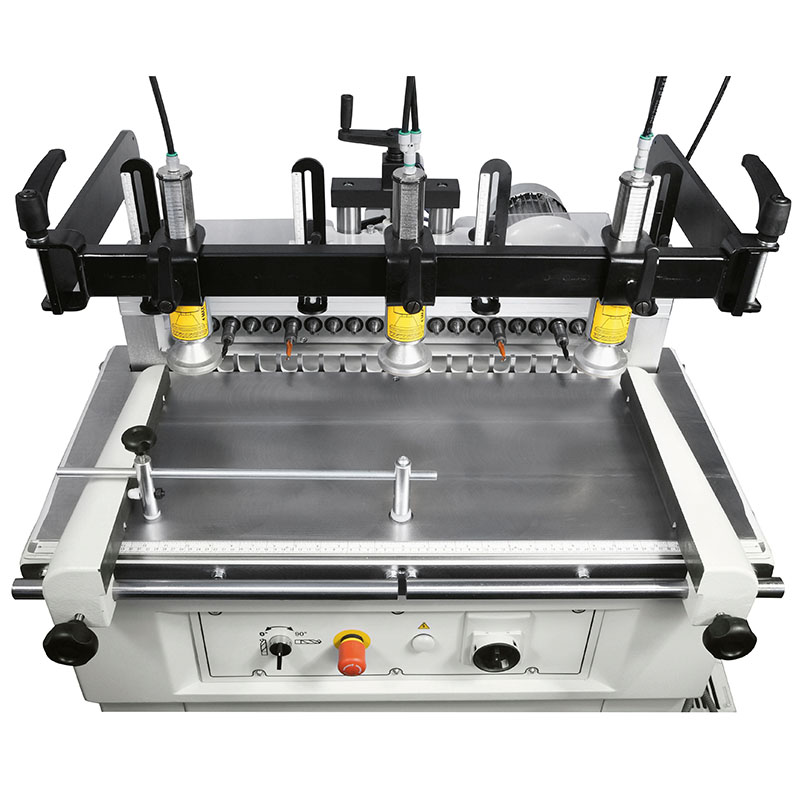

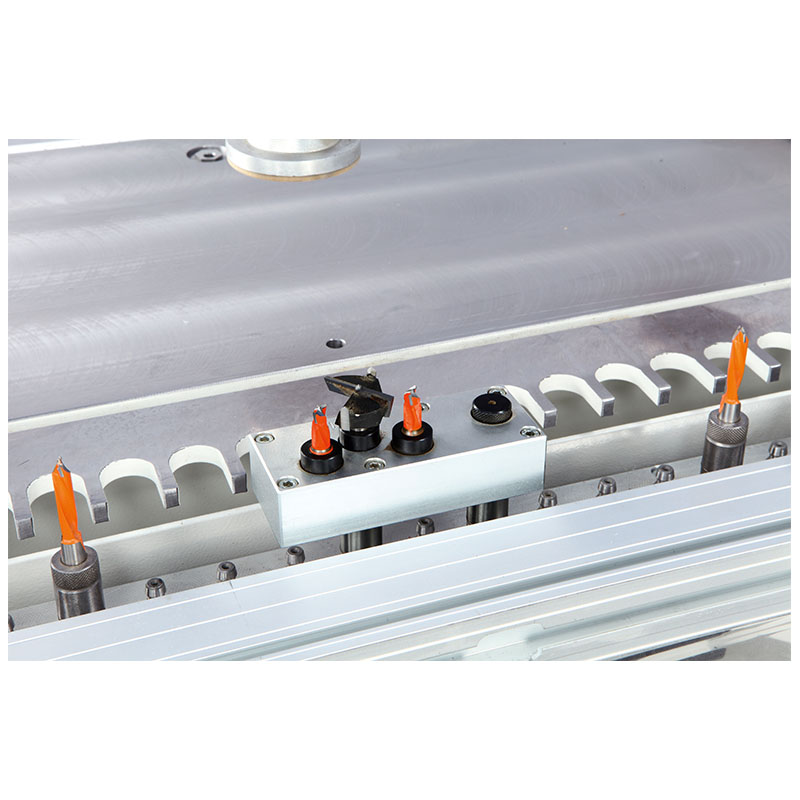

    • Boring unit with n. 21 spindles preset for quick change adaptors and n. 5 drilling bit-holder bushes diameter 10 mm
    • Rear stops for the maximum precision of the horizontal and vertical assembling bores
    • Lateral fence (length 3000 mm) with retractable stops for large dimensions panels
    • Adjustable lateral stops complete with metrical reading bar
    • Mechanical gauge for the lateral fences positioning
    • Down stroke adjustment of the boring speed
    • Dust extraction system integrated in the boring head, to leave the machine clean
  • Description

    Single head multiple boring machine with 21 spindles ideal for craftsmen and professional workshops. Drilling head made from single-piece aluminium casting, to guarantee absence of vibrations. The boring unit runs on two rectified cylindrical guides which guarantee stability and precision. The machine is equipped with a mechanical revolver with 5 different boring depth adjustments. The new dust extraction system is incredibly efficient, and leaves the machine surprisingly clean! The mechanical gauge guarantees fast and precise positioning of the lateral fences. For increased versatility, the quick-change chucks can be fitted with various types of bits for different operations, like boring hinges locations. All controls are ergonomically positioned on the front of the machine. This includes the switch which sets the boring head at a 45° angle, allowing for an immediate changeover between operations. For perfect boring of large panels, the machine has a long 3000 mm fence with a scale and retractable stops. The fence is quickly mounted and removed easily.

  • Specification
    • Number of spindles 21
    • Spindle centre to centre 32 mm
    • Tool diameter, max. 40 mm
    • Boring centre to centre 640 mm
    • Height of horizontal boring position, max. 60 mm
    • Spindle speed 2800 rpm
    • Panel thickness, min. - max. 10 - 85 mm
    • Panel width under bridge, max. 833 mm
    • Boring head stroke, max. 70 mm
    • Table dimensions 905 x 372 mm
    • Extraction outlet(s) 1 x 80 mm
    • Compressed air 6 - 8 bar
    • Working height 900 mm
    • Motor 1.8 kW
    • Power 3 phase
