SCM DMC SD 60

Wide Belt Sander

Full details of SCM DMC SD 60

Configure your machine

- +

more information

  • Features
    • Two or three head combinations
    • Dedicated planning head available
    • Powered automatic table adjustment
    • Digital readout of working thickness
    • Natural rubber feed belt
    • Floating rubber coated pressure rollers
    • Electronic oscillation of sanding belts
    • Safety cut off device at infeed
    • Ammeter of main motor loading
    • Compact design
  • Description

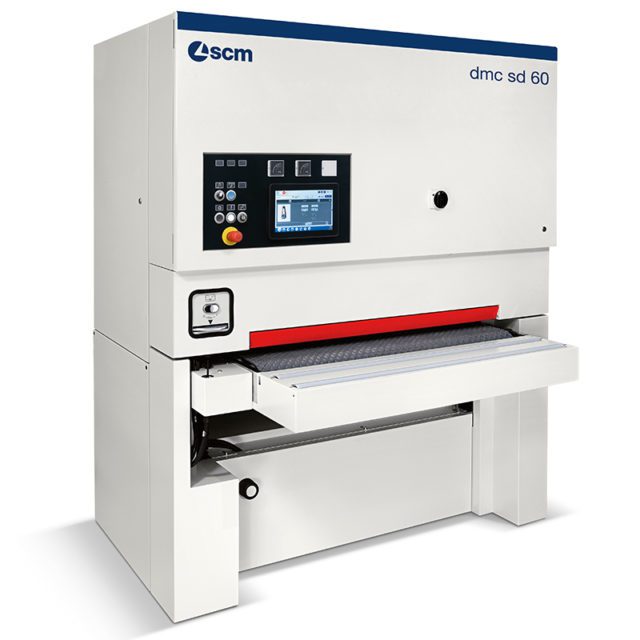

    The SCM DMC SD 60 is a versatile, heavy duty wide belt sander available in working widths of 1100 and 1350mm with either a single or twin head configuration (M2 model), or triple head configuration (M3 model).

    A choice of roller and combination roller/ pad head sequences allow the SD 60 to finish to two or three grit sizes in a single pass. A choice of rubber coated rollers and grooved steel rollers with diameters between 120 to 320mm further hone the sanders ability for both calibration and finishing work.

    DMC has a long history of sanding innovation and experience. Engineers have developed three pre-configured option packs to set the machine up for the highest level of finishing when working with solid timber, veneered panels and painted materials.

    For heavy duty calibration operations the SCM SD 60 is available with a dedicated “HPL” planning head featuring a spiral knife block. After planning the workpiece can be finished with a further one or two grits depending on the head configuration.

    For more information or to arrange a working demonstration contact a member of our team.

  • Specification
    • Head type Roller/ Combination (roller & pad)
    • Working width 1100/ 1350 mm
    • Working thickness 4 - 170 mm
    • Contact roller diameter 120/ 320 mm
    • Contact roller type Rubber or Steel
    • Sanding belt length 2150 mm
    • Feed belt speed 4.5/ 9 m/min
    • Motor Various
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
