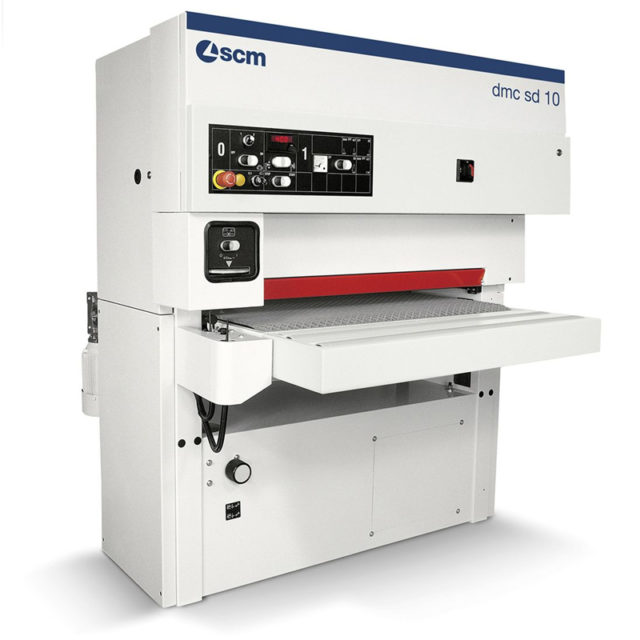

SCM DMC SD 10

Wide Belt Sander

Full details of SCM DMC SD 10

Configure your machine

- +

more information

  • Features
    • Single combination head
    • Powered automatic table adjustment
    • Digital readout of working thickness
    • Natural rubber feed belt
    • Floating rubber coated pressure rollers
    • Electronic oscillation of sanding belts
    • Safety cut off device at infeed
    • Ammeter of main motor loading
    • Compact design
  • Description

    The SCM DMC SD 10 is ideal for woodworking and joinery firms looking for a compact calibrating and finishing sander. Equipped with a single combination head (roller and pad), the machine can be set to calibrate and or finish in one pass.

    Setting is simple and intuitive with powered automatic table positioning; offer the workpiece up to the machine and it will detect the thickness and set itself accordingly. The feed belt is made from natural rubber with a diamond shaped tread for maximum traction. Floating rubber-covered pressure rollers positioned in front and behind the sanding head ensure the workpiece is secure throughout the sanding process.

    A range of options allow the machine to be tailored with increased motor powers, optional rubber or steel calibrating roller, infeed and outfeed support rollers, pneumatic roller/ pad selection and oscillating belt cleaner.

  • Specification
    • Head type Combination (roller & pad)
    • Working width 950 mm
    • Working thickness 4 - 170 mm
    • Contact roller diameter 120 mm
    • Contact roller type Rubber or Steel
    • Sanding belt length 1525 mm
    • Feed belt speed 4.5/ 9 m/min
    • Motor Various
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
