Houfek BULDOG 7

Product Information

• Features
  • Fixed table height with powered movement to sanding heads
  • Any combination of up to 3 sanding heads
  • Ammeters for each sanding unit
  • Two feed speeds to feed belt
  • 3 infeed and two outfeed pressure rollers
  • Programmable adjustment of sanding head roller and/ or pad
  • Infrared sensor for control of sanding belt oscillation
  • Electronic measuring and positioning of sanding heads with digital display
  • Electronic calibration of sanding heads depending on abrasove belt grit size
  • Workpiece thickness sensor for automatic measuring and positioning of sanding heads
  • Automatic feed belt and sanding belt tracking
• Description

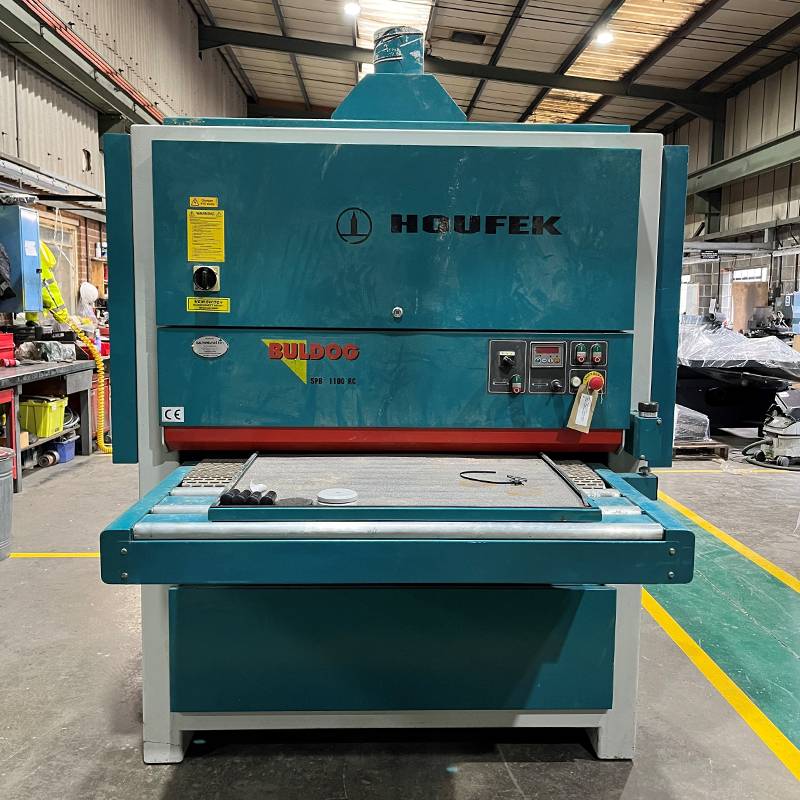

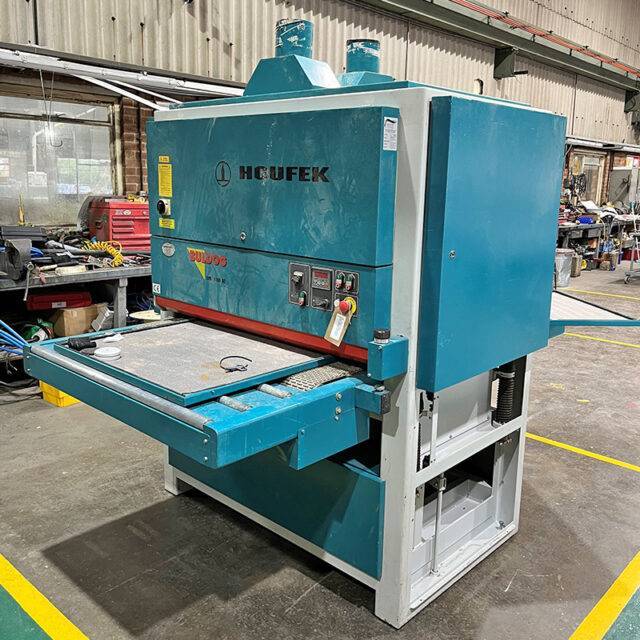

  The Houfek BULDGOG 7 is engineered for high accuracy high production environments. Equipped with a fixed table height and adjustable sanding heads the machine can be put in a continual feeding line without variation of the working height. The BULDOG range offers a wide variety of head options including single roller or combination roller and pad for up to three working heads as well as the option for combined top and bottom finishing. Further options for crossbelt sanding, CNC control, vacuum beds etc can be combined for your ultimate specification.

• Specification
  • Head combination R/ R/ C - roller/ roller/ combination
  • Working width 910/ 1100/ 1350 mm
  • Working thickness 3 - 160 mm
  • Contact roller diameter 200/ 240 mm
  • Contact roller, 1st, rubber hardness Various
  • Sanding belt length 2620 mm
  • Sanding belt speed, infinitely variable 3 - 18 m/min
  • Feed belt speed, infinitely variable 3 - 15 m/min
  • Motor Various
  • Power 3 phase
