Altendorf F25 (Type 4)

Sliding Table Panel Saw

Full details of Altendorf F25 (Type 4)

Configure your machine

- +

more information

  • Features
    • DIGIT X rip fence
    • Manual rise/ fall/ tilt
    • Scoring saw unit
    • LED illumination to scoring saw unit

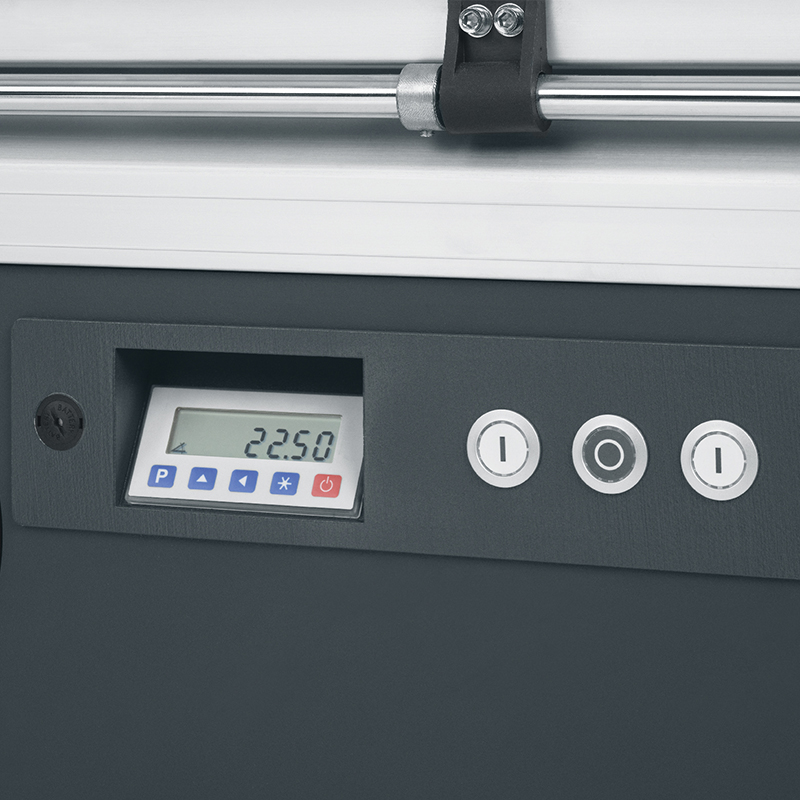

    • Electronic digital readout to tilt angle
    • Rip fence with manual fine adjustment
    • Crosscut mitre fence
  • Description

    The New Altendorf F 25 does everything a sliding table saw needs to do in very little space – all with characteristic Altendorf quality. Whether it’s in your first own workshop, for everyday use in industrial manufacturing or as a high-performance second machine – the F 25 does it all while saving space, making it all the more productive. Materials such as wood-board materials, solid wood, wood-like materials or extruded profiles can be easily processed thanks to the best precision, simple handling and excellent cutting quality. The saw aggregate, which can be tilted on one side, also makes angular cuts possible. The smooth-running sliding table is based on the Altendorf system and like the digital height and tilt display, is part of the standard design. A machine for beginners and pros alike.

    The F 25’s extremely torsion-resistant machine frame is the basis for accurately repeatable, high-quality work on the sliding table saw. The precise tilting of the saw unit is guaranteed for life by large segments. The sliding table is intercepted by another stop at the cutting line. This is the only way to achieve a perfect cut.

  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 104 mm
    • Sliding table length 3200 mm
    • Rip fence capacity 1410 mm
    • Blade tilt 0 - 46°
    • Blade speed 4200 rpm
    • Height adjustment Manual with hand wheel
    • Tilt adjustment Manual with hand wheel
    • Rip fence adjustment Manual
    • Crosscut-mitre fence capacity 3400 mm
    • Extraction outlet(s) Top 80 mm, bottom 120 mm
    • Machine weight 450 kg
    • Table height 910 mm
    • Motor, main 5.5 kW (7.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
