Houfek Maxx 4

Product Information

• Features
  • Calibrating, deburring, finishing, edge rounding, oxide skin removal
  • Configure with roller, discs and brushes
  • Powered table height adjustment with digital measuring
  • Infinitely variable feed speed
  • Automatic feed belt tracking
  • Internal LED lighting
  • Glazed side door for viewing sanding area
• Description

  The Houfek Maxx range of wide belt sanders have been specifically developed for dry processing metal laser-cut/ water-jet cut/ punched/ machined parts. Customisable head configurations allow each machine to be specified for a range of applications including calibrating, deburring, finishing, edge rounding and oxide skin removal in a single pass.

  The Maxx 4 model is available in working widths from 400 to 1300mm with single or twin roller heads (R), single or twin disc heads (D) and finishing brush (B). Standard features include motorised table height adjustment, digital measuring of table position, rubber pressure rollers, automatic feed belt tracking, pressure safety switch, internal LED lighting and glazed side access door for easy viewing.

  Unit R – unit with sanding belt

  • motor 11 kW ( 15HP) 1100mm, 15 kW (20HP) 1350 mm
  • length of sanding belt 2200 mm
  • rubbered roller D= 120 mm, 60Sh
  • optical sensor control of abrasive belt oscillation
  • automatic star/delta switch
  • ammeter for motor of sanding unit
  • abrasive belt speed 18 m/s
  • main motor pneumatic disc brake

  Unit  D – disc sanding unit

  • motor 4 kW ( 5,5HP)
  • disc diameter 115 mm in two rows
  • number of discs: width 1100 mm – 19pcs, width 1350 – 22pcs
  • speed 1000 RPM
  • oscillation 20, 40, 60, 80, 100 mm
  • ammeter for motor of disc unit
  • motorized height adjustment with digital display
  • Note sanding heads not included and specified separately

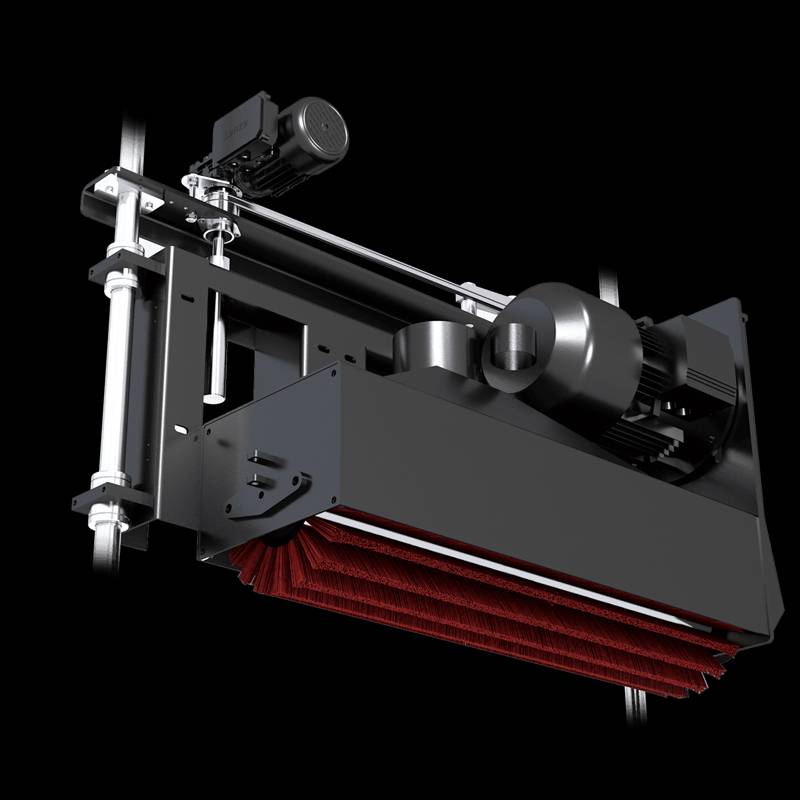

  Unit  B – drum brush unit

  • motor 7.5 kW (10HP)
  • roller diameter 150 – 300 mm
  • shaft diameter 60 mm
  • speed 1440 m/min
  • oscillation 20 mm with switch OFF possibility
  • ammeter for motor of brush unit
  • motorized height adjustment with digital display
  • Note sanding heads not included and specified separately
• Specification
  • Head combination R/ D/ B - roller/ disc/ brush
  • Working width 400/ 800/ 1100 mm
  • Working thickness 0.5 - 160 mm
  • Contact roller diameter 120 mm
  • Sanding belt length 2200 mm
  • Sanding belt speed 18 m/sec
  • Feed belt speed, infinitely variable 0.1 - 10 m/min
  • Motor Various
  • Power 3 phase
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
