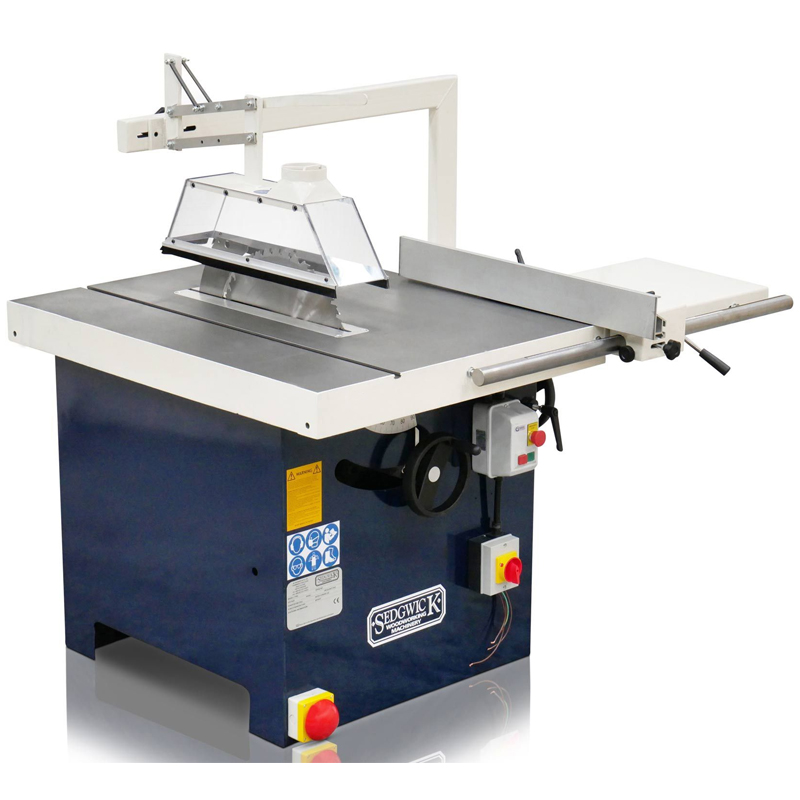

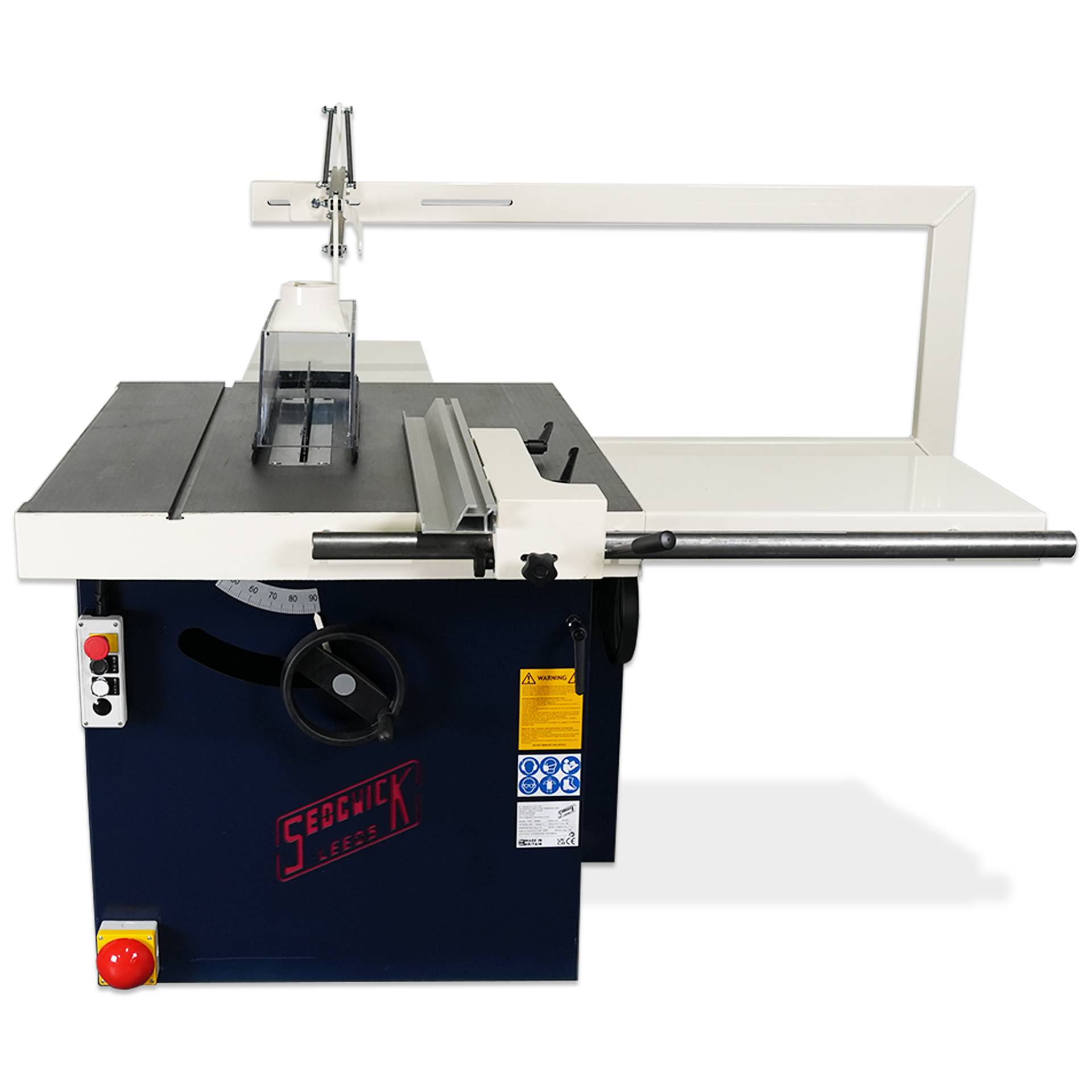

Sedgwick TA450

Sawbench

To get a quote or for further information please contact us on:

Email us
  • Features

    • Manufactured in the UK
    • Large capacity depth of cut
    • Rise, fall and tilt
    • Heavy cast iron table
    • Rigid fence with high and low positions
    • No-volt release and overload protection
    • Overhead crown guard with extraction
  • Description

    Ease of operation – The backbone of a joinery workshop is its sawbench. It should be powerful, accurate, reliable and simple and safe to operate. The Sedgwick TA450 is designed with this in mind, and offers outstanding value for money. Its strength is in its construction, precision engineering, and our insistence on using only the best quality components.

    Construction – A large cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, rise and fall, and tilt mechanisms. The spindle is powered by a high efficiency IE2 industrial rated motor via a three belt drive, and features large diameter saw flanges for blade stability. It runs in ‘sealed for life’ bearings mounted in a cast iron housing, and requires only minimal maintenance. Rise and fall and tilt mechanisms are square thread screws operated by handwheels at the front and side of the machine. Both are easily accessible.

    Versatility – The rip fence is aluminium section, allowing for two working positions (ripping and angled ripping) and for movement fore and aft in relation to the sawblade. It is fixed to a heavy duty cast iron mounting bracket for rigidity, and has integral micro adjustment. The assembly runs on a nylon roller, gliding easily across the beds, and is supported by a 40mm diameter solid steel bar for rigidity, which gives 915mm capacity from the sawblade (an optional RH extension table is available to increase this to 1220mm).

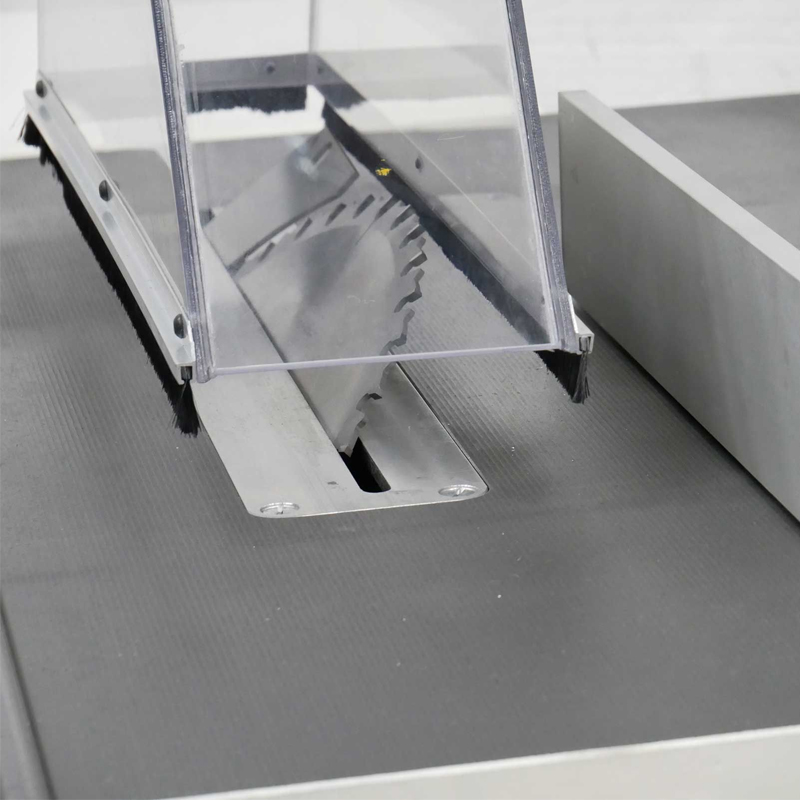

    Safety Features – Polycarbonate overhead sawguard with 105mm dia Extraction Outlet , Electro-magnetic Braked Motor, Thermal overload no volt release protection, Lock off emergency stop, Button, Lock off emergency foot switch, Lockable isolator

  • Specification

    • Maximum blade diameter 450 mm
    • Table size 600 x 350 mm
    • Saw to fence capacity 915 mm
    • Maximum depth of cut 155 mm
    • Blade tilt 0 - 45°
    • Spindle diameter 30 mm
    • Spindle speed 3000 rpm
    • Table height 855 mm
    • Extraction outlet diameter 1 x 105 mm, 1 x 125 mm
    • Motor 5.5 kW
    • Power 3 phase
  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
