SCM Nova SI X

Sliding Table Panel Saw

Full details of SCM Nova SI X

Configure your machine

- +

more information

  • Features
    • Two way tilting
    • Powered rise/ fall/ tilt adjustment
    • Scoring saw unit
    • “READY” electronic control
    • Overhead crown guard

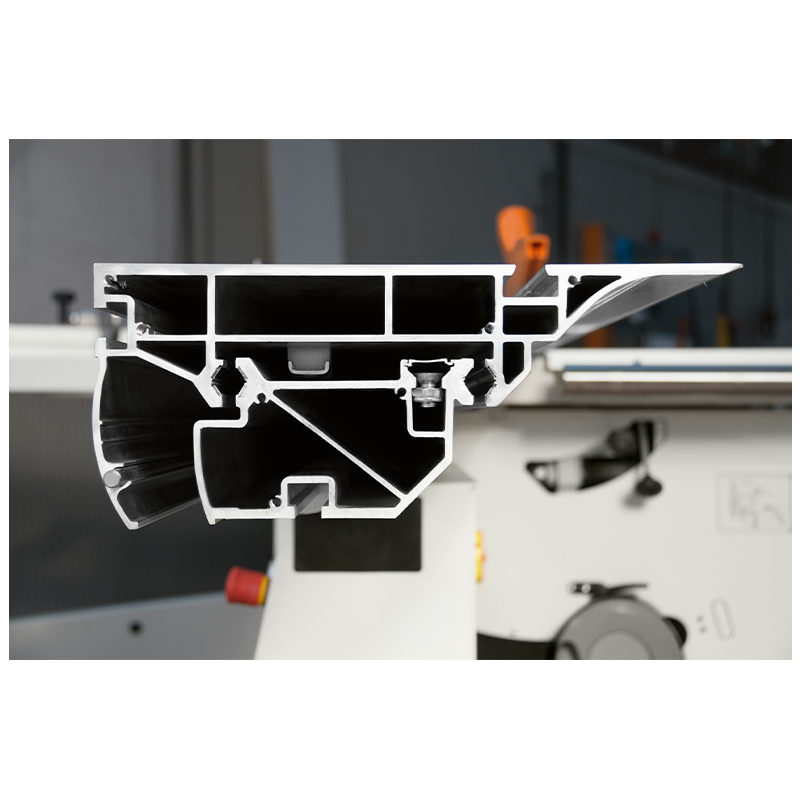

    • 10 year guarantee on carriage sliding system
    • Dedicated rip fence complete with "high rigidity" cast iron fence support, micrometric adjustment and cam locking system rectified steel round sliding bar, 45 mm diameter
    • Optional electronic digital readout to rip fence and crosscut fence stops
    • Option for powered programmable rip fence movement with or without eye-level control panel
  • Description

    The key feature with the SCM Nova SI X panel saw is the two-way tilting. The main saw unit and independent scoring saw unit can both tilt up to 45 degrees in both directions; right towards the rip fence, left towards the sliding table.

    As standard the machine features “READY” electronic control for adjustment of the powered rise, fall and tilt movement. Blade height can be also set in relation to the angle of tilt. Any combination of machine settings can then be stored in the 99 program memory.

    The next step up is the optional “READY 3” that adds powered rip fence movement. Topping the available options is the “READY 3 UP” providing all the functionality in combination with an eye-level control panel.

    The SCM Nova SI X is driven by a 7 kW main motor and independent 0.9 kW scoring saw motor. The standard sliding table length is 2600 mm with a 1270 mm rip fence. See the optional equipment for increasing the capacity to 3200mm for 10’ sheet processing.

  • Specification
    • Blade diameter, max. 400 mm
    • Cutting depth, max. 136 mm
    • Squaring stroke, max. 2600 mm
    • Rip fence capacity 1270 mm
    • Blade tilt - 46°/ +46°
    • Rip fence adjustment Manual
    • Extraction outlet(s) Available on request
    • Motor 7 kW (9.4 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
