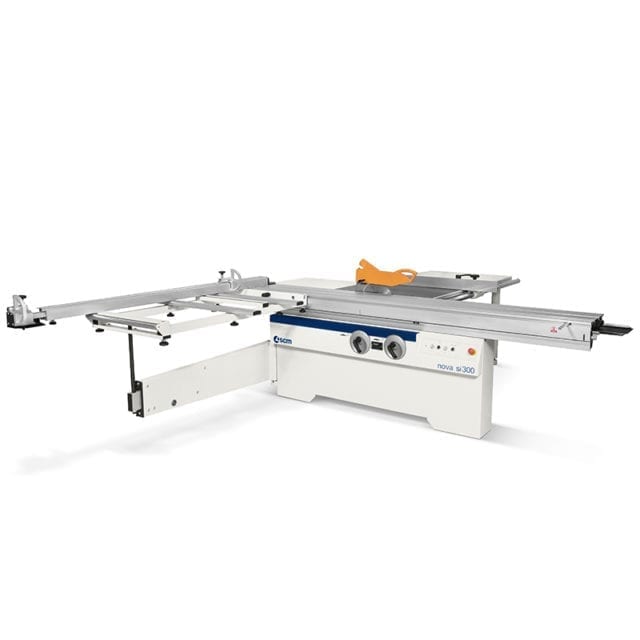

SCM Nova SI 300

Sliding Table Panel Saw

Full details of SCM Nova SI 300

Configure your machine

- +

more information

  • Features
    • Manual rise/ fall/ tilt adjustment
    • Scoring saw unit
    • Mechanical digital readout for saw tilt angle
    • Eccentric clamp
    • 10 year guarantee on carriage sliding system
    • Dedicated rip fence complete with "high rigidity" cast iron fence support, micrometric adjustment and cam locking system rectified steel round sliding bar, 45 mm diameter
    • Optional electronic digital readout to rip fence and crosscut fence stops
  • Description

    For sawing a full 10’ sheet the SCM Nova SI 300 features a 3200 mm sliding table and corresponding 1270 mm saw to rip fence capacity. Designed for reliable panel processing the Nova SI 300 features an anodized aluminium alloy carriage sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system. SCM are proud to guarantee the carriage sliding system for 10 years.

    Tilt, rise and fall adjustment of the main saw unit and independent scoring saw unit are conducted via ergonomically positioned handwheels mounted on the front side of the machine. Set up of the scoring saw unit is simple and effective – vertical and horizontal adjustments are carried out by the user-friendly mechanical levers resulting in precise and smooth movements and handy mechanical stops identify the set position.

    Further refine your SCM Nova SI 300 with optional table mounted start/ stop controls, electronic digital readout to rip fence position, increase (or decreased rip fence capacity) and increase motor power to name a few.

  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 100 mm
    • Squaring stroke, max. 3200 mm
    • Rip fence capacity 1270 mm
    • Blade tilt 0 - 45°
    • Rip fence adjustment Manual
    • Extraction outlet(s) Available on request
    • Motor 5 KW (7 HP)
    • Power 3 phase
