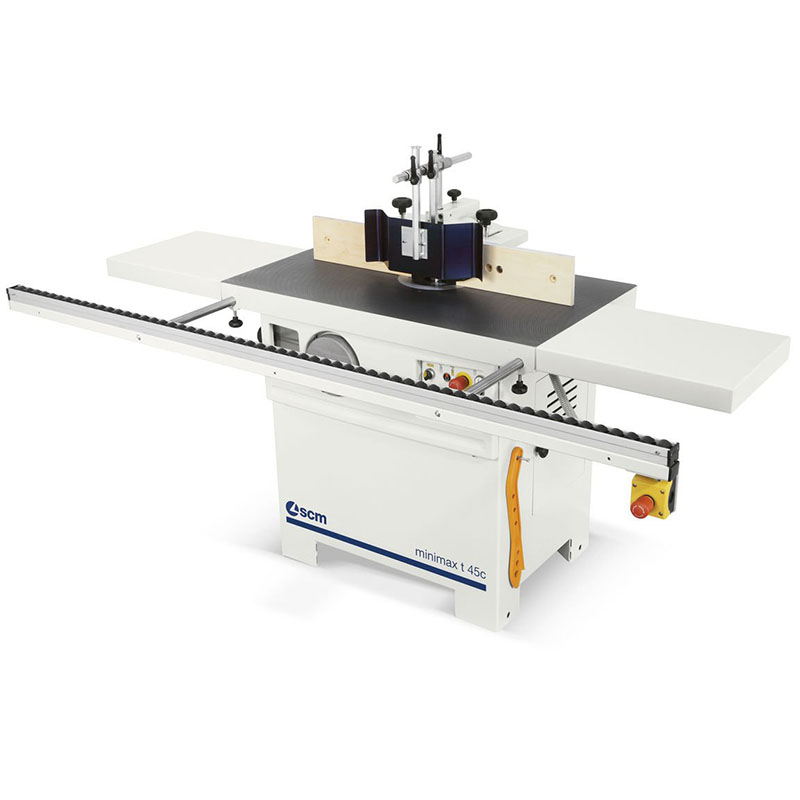

SCM Minimax T 45C

Spindle Moulder

To get a quote or for further information please contact us on:

Email us
  • Features

    • Optional hood
    • Precise and safe
    • Vertical and horizontal pressers
  • Description

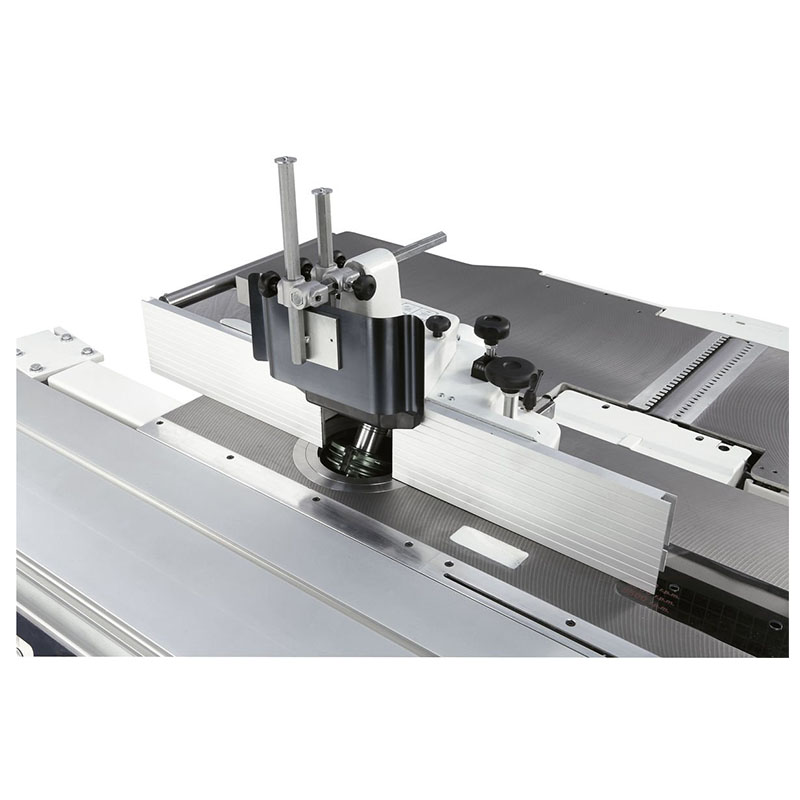

    Versatility and ease of use of the spindle moulders, ideal for DIY woodworkers and craftsmen. The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micro-metric adjustment complete with vertical and horizontal pressers.

    As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and re-positioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.

    The table extensions at out feed and in feed (options) and the telescopic front support with support rollers make easier the machining of large dimensions work pieces.

  • Specification

    • Max. useful spindle length 100 mm
    • Spindle moulder speed (a 50 Hz) 3500/ 7000/ 10,000 giri/min
    • Max. tool diameter when profiling 210 mm
    • Max. tool diameter lowered under the table at 90° 180 mm
    • Three-phase motors starting from 5 (6) kW
  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
