SCM Minimax ST 5ES

Product Information

• Features
  • Saw & spindle
  • 2250/ 2600/ 3200 mm table stroke
  • Mechanical digital readouts
  • Rise, fall, tilt adjustment

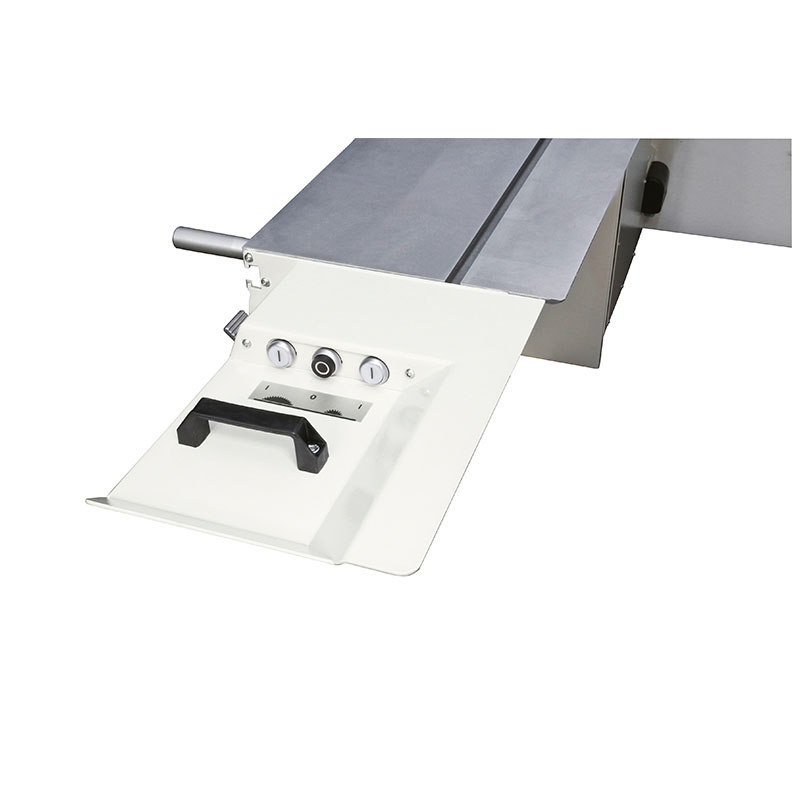

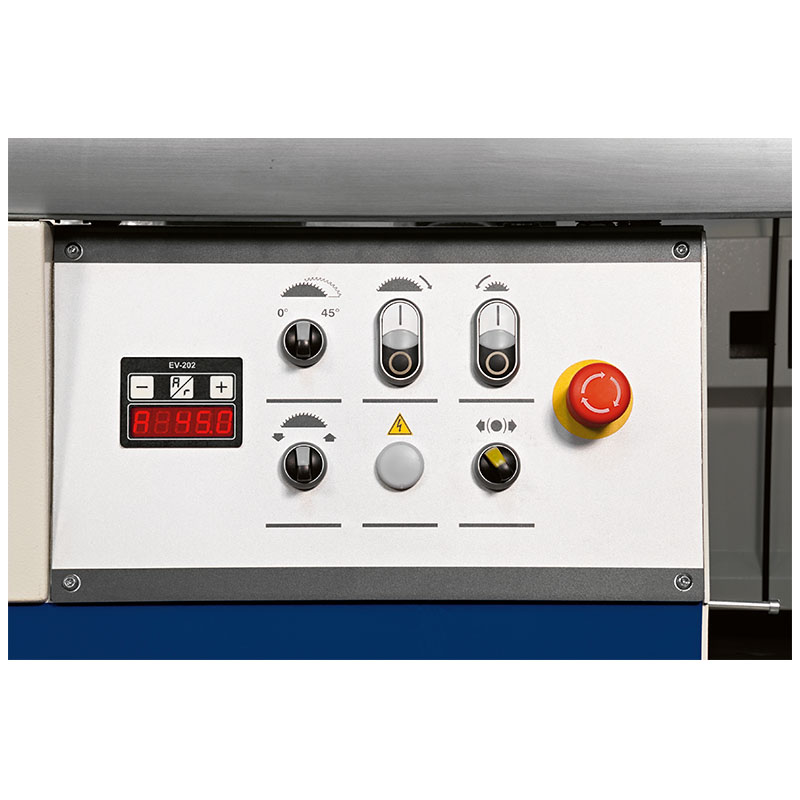

  • Manual controls
  • Crosscut mitre fence
  • Two flip over stops
  • Cast iron rip fence support
  • Adjustable spindle fence
• Description

  The SCM Minimax ST 5ES is a combination circular saw and spindle moulder in one machine.

  Circular Saw

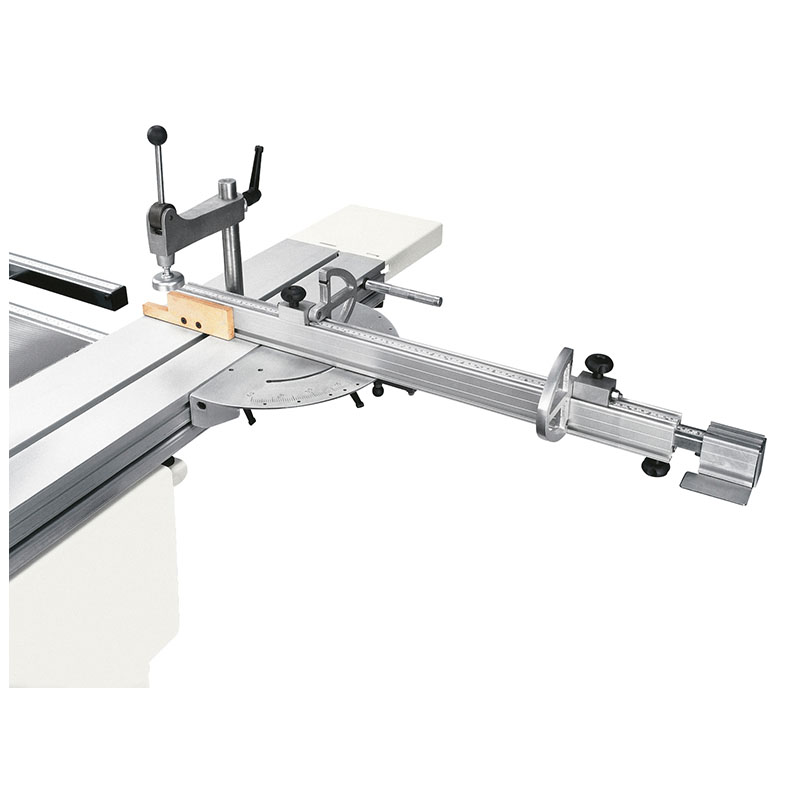

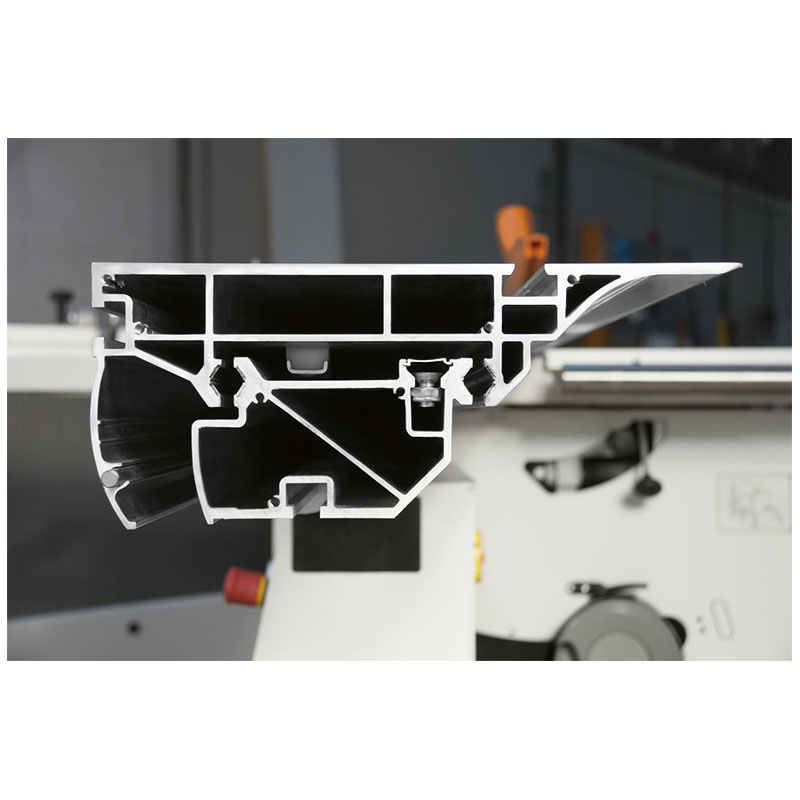

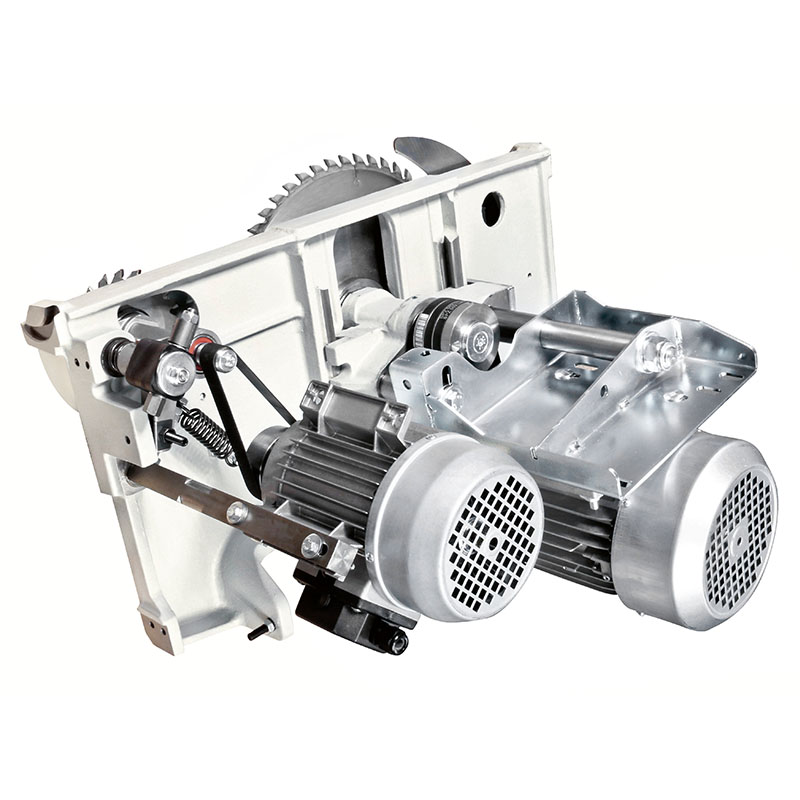

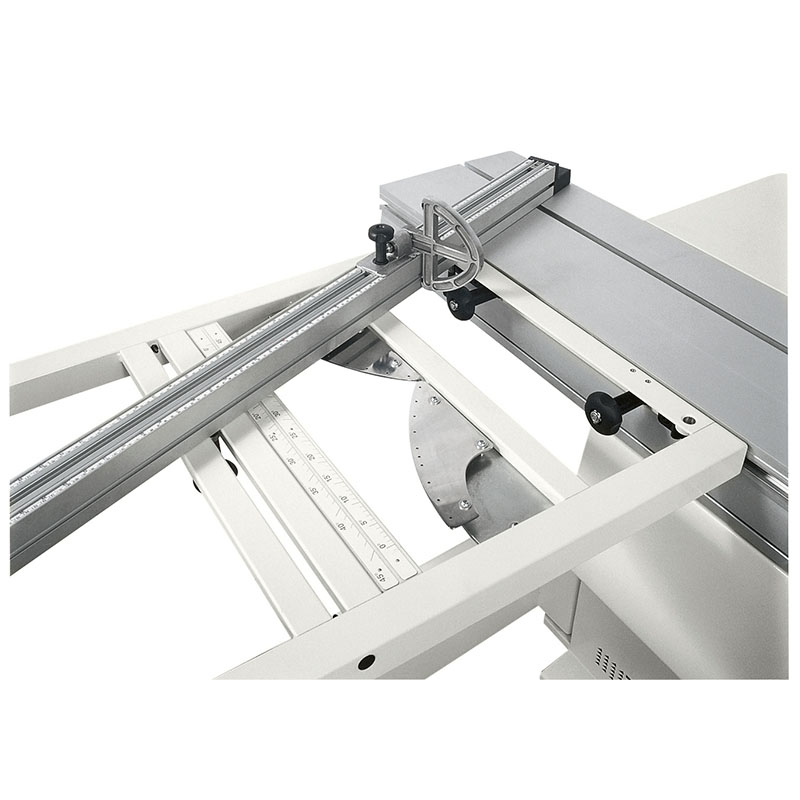

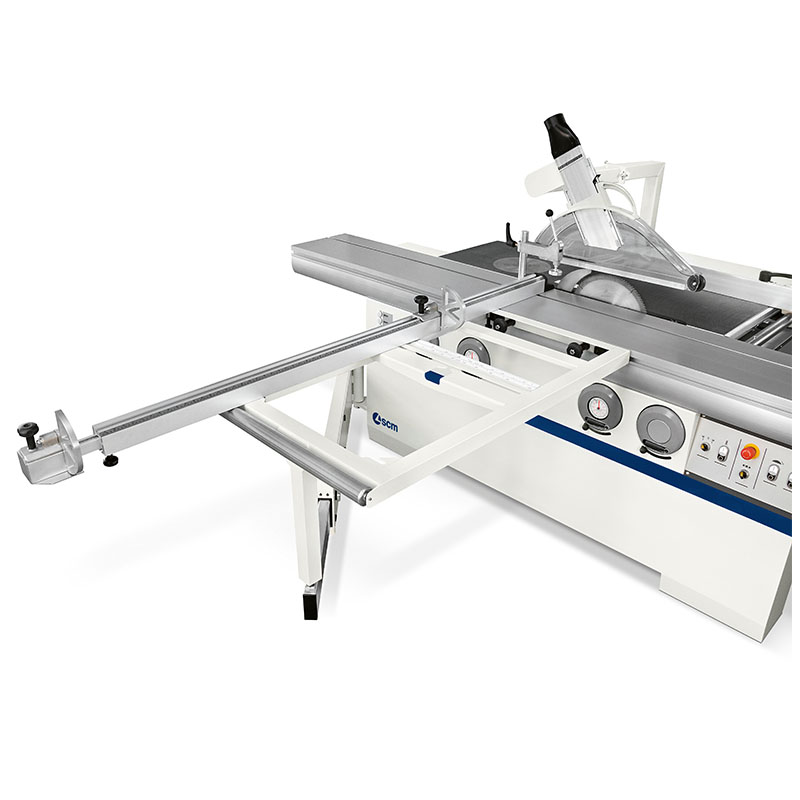

  The ST 5ES includes a dedicated scoring saw unit with independent motor as standard. The machine features a 360 mm wide 2250 mm long aluminium sliding table. The large 1200 x 650 mm squaring frame features an idle roller for loading/ unloading panels, and a telescopic crosscut mitre fence with 2 flip turnover stops.

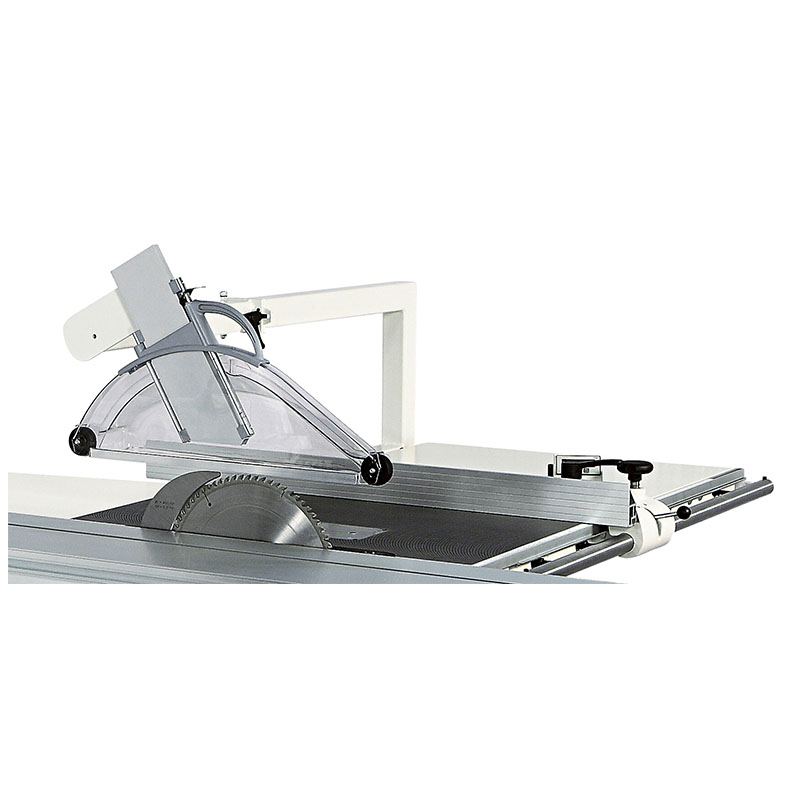

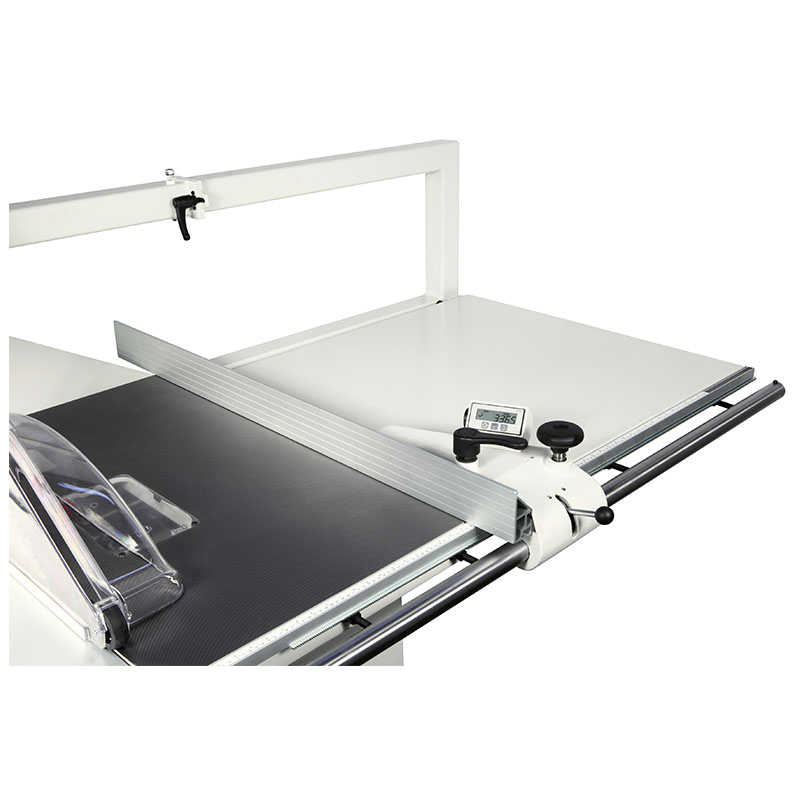

  Rip fence adjustment is smooth and precise with micrometric adjustment and cam-locking system. The main fence support is cast iron for high rigidity. The ST 5ES overhead protection for added operator comfort and improved dust extraction.

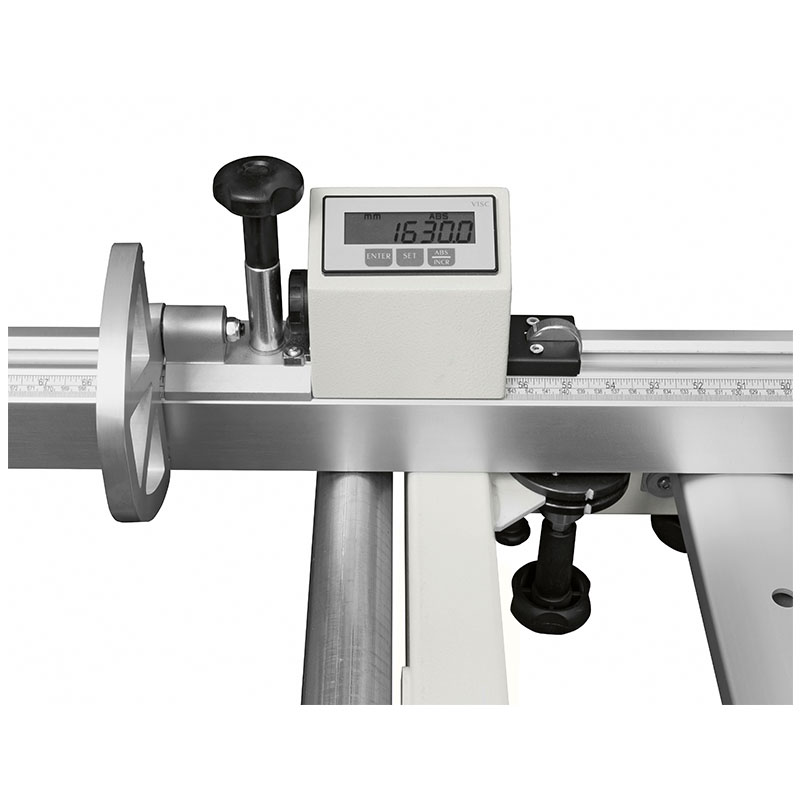

  The 350 mm maximum blade diameter with manual rise, fall and tilt adjustments has a projection of 117 mm at 90° and mechanical digital readouts as standard.

  The ST 5ES can be configured with optional increased table strokes and rip fence capacities for processing standard panel sizes. When cutting faced material the optional scoring unit is ideal for producing high quality results and is available as a belt driven unit or with independent motor.

  Spindle moulder

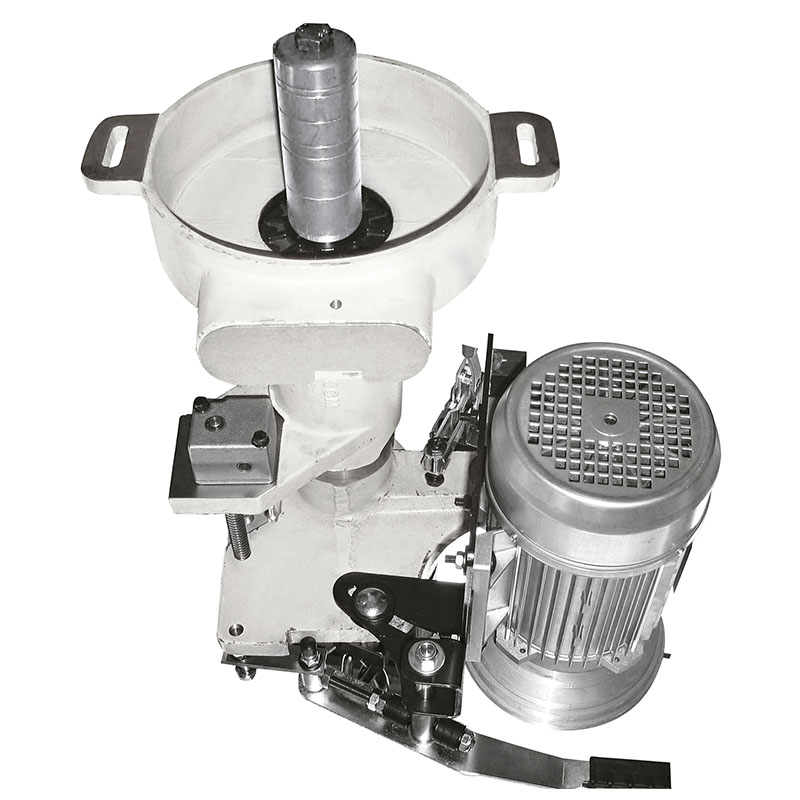

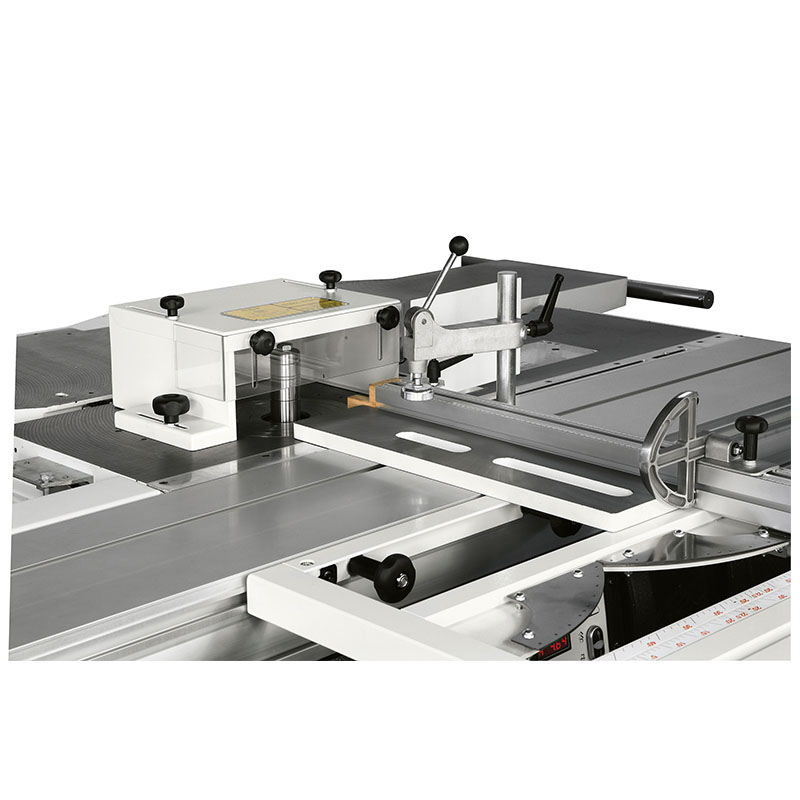

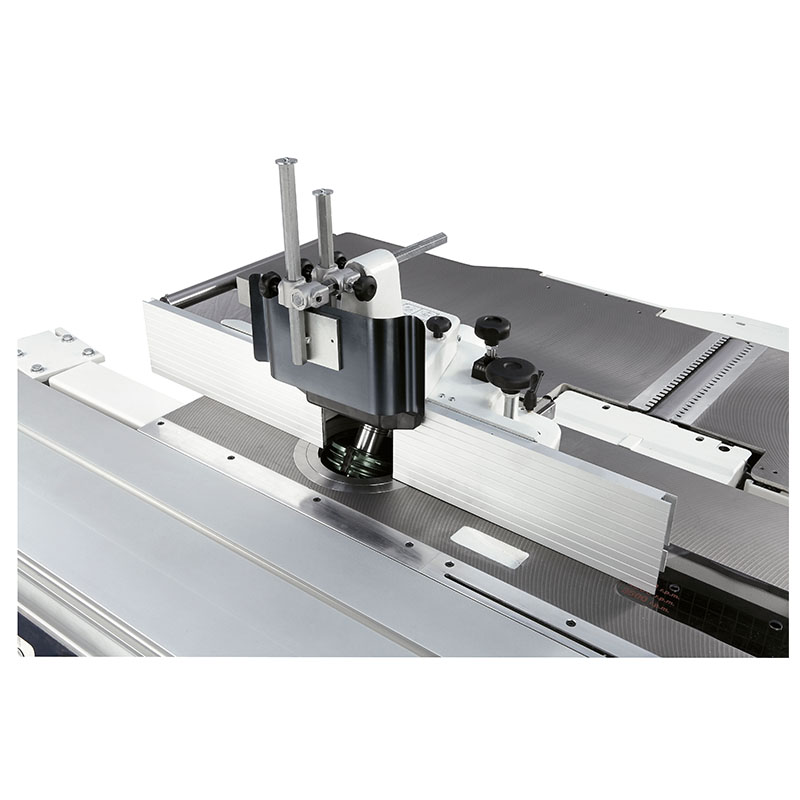

  Manual rise and fall spindle adjustment with mechanical readout for spindle height, reverse motor direction and LED speed indicators as standard. Adjustable spindle moulder fence with micrometric adjustment, vertical and horizontal pressures. As an option, the ST 4E can be configured with a spindle moulder fence with 3 controlled adjustments – the fence uses a rack guide and it is fitted with a mechanical digital readouts for precise, repeatable setting.

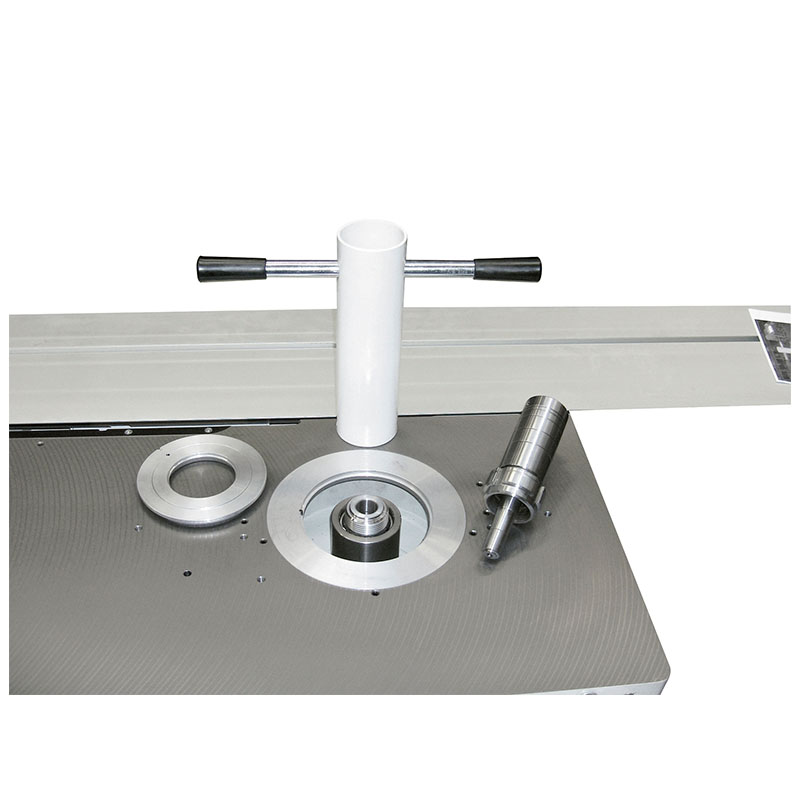

  The ST 5ES can be further configured with a number of options including tilting spindle, digital readouts for fence positions, tenoning table and more.

• Specification
  • Blade diameter, max. 350 mm
  • Cutting depth, max. 117 mm
  • Blade tilt 0 - 45°
  • Cast iron table size 1380 x 465 mm
  • Squaring stroke, max. 2250 mm
  • Rip fence capacity 900 mm
  • Rip fence adjustment Manual
  • Tool diameter, max. 240 mm
  • Tool diameter lowered under table, max. 240 mm
  • Useful spindle length, max. 125 mm
  • Spindle diameter 30 mm
  • Spindle speeds 3500/ 6000/ 8000/ 10000 rpm
  • Extraction outlet(s) 2 x 120 mm
  • Motor, main 2 x 5 kW (6.6 HP)
  • Motor, scoring unit 0.55 kW (0.75 HP)
  • Power 3 phase
• Literature
  • SCM Minimax Elite range Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
