SCM Minimax ST 3C

Combination Saw, Spindle

Full details of SCM Minimax ST 3C

Configure your machine

Scoring unit *

Sliding table *

Mitre fence *

Rip fence *

Extraction hood *

Spindle tilt *

Spindle tables & fences *

Spindle type *

Spare spindle

Motor

Safety *

- +

more information

  • Features
    • Saw & spindle
    • 1600/ 2250/ 2600 mm table stroke
    • Rise, fall, tilt adjustment
    • Manual controls
    • Crosscut mitre fence
    • Two flip over stops
    • Cast iron rip fence support
    • Adjustable spindle fence
  • Description

    A combination saw and spindle moulder in machine. The SCM Minimax ST 3C offers compact machining with professional capacity.

    Circular Saw

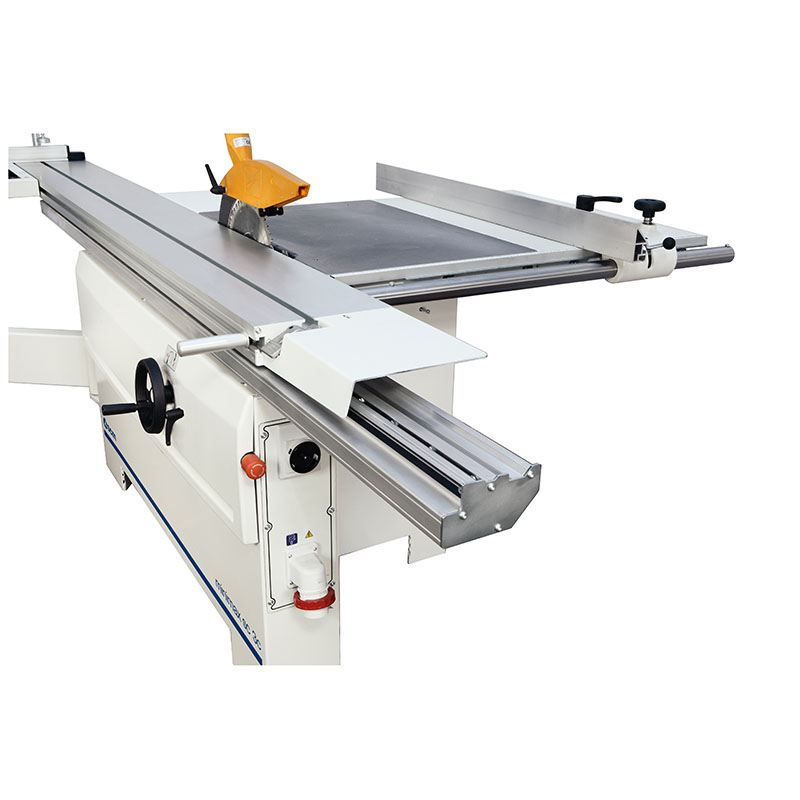

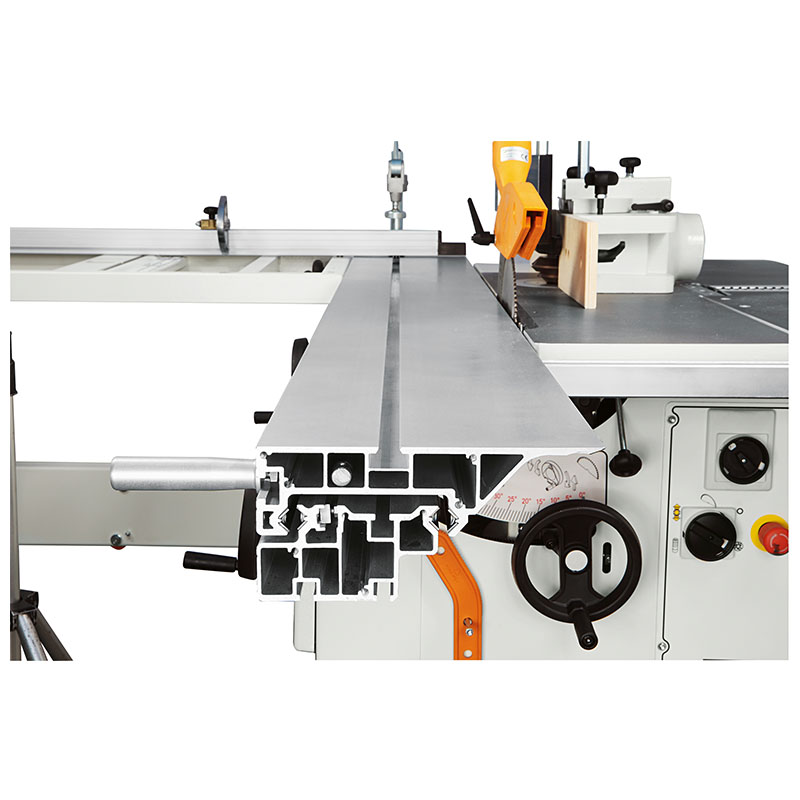

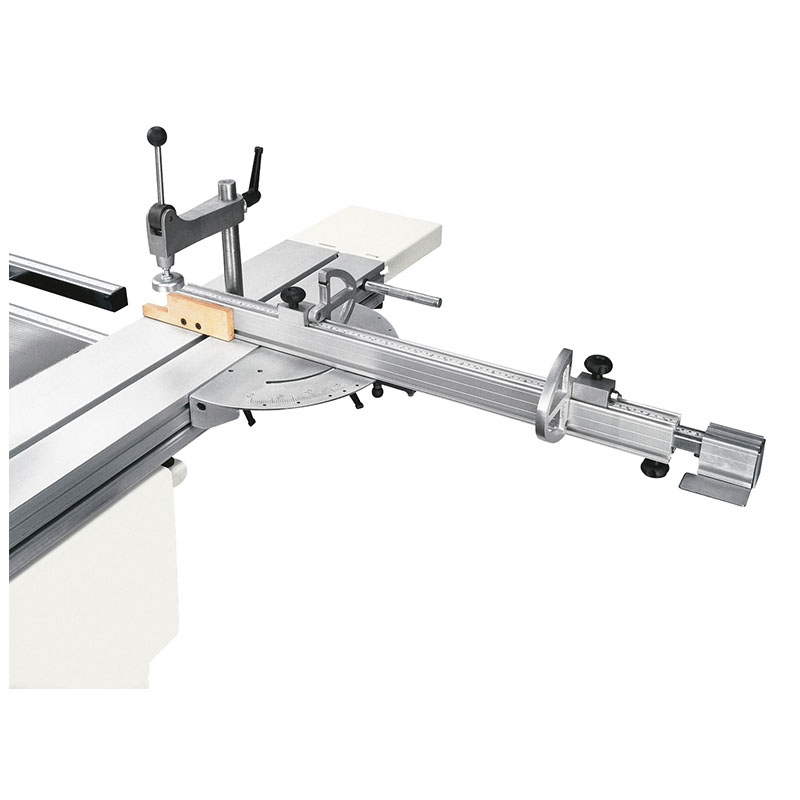

    The anodized aluminium sliding table with a 1600 mm stroke, slides next to the blade, thus ensuring better cutting precision. The 960 x 600 mm squaring frame features an eccentric clamp and crosscut mitre fence with two flip over stops.

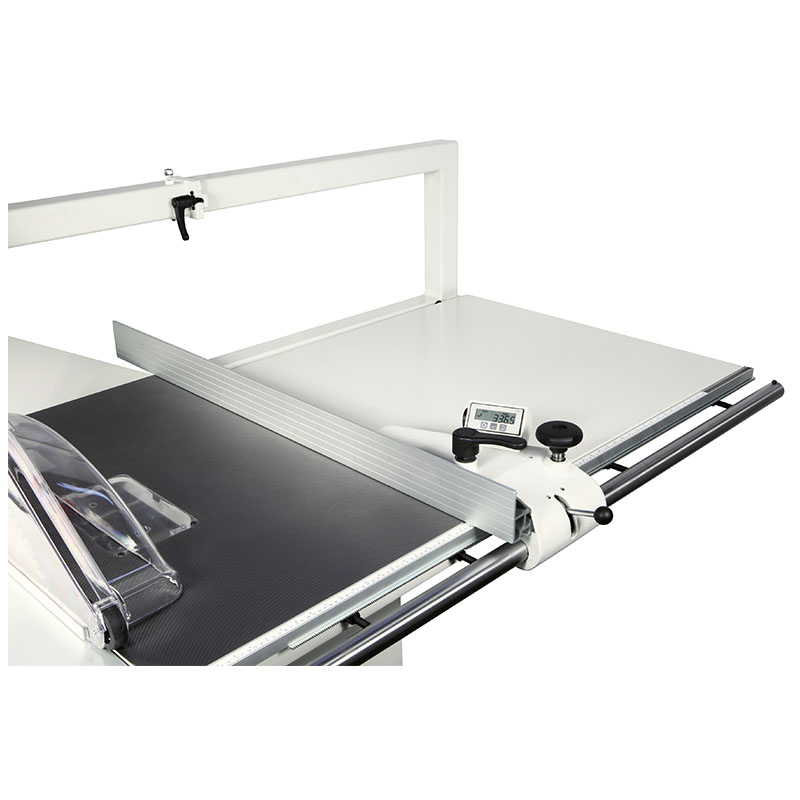

    Rip fence adjustment is smooth and precise with micrometric adjustment and cam-locking system. The main fence support is cast iron for high rigidity.

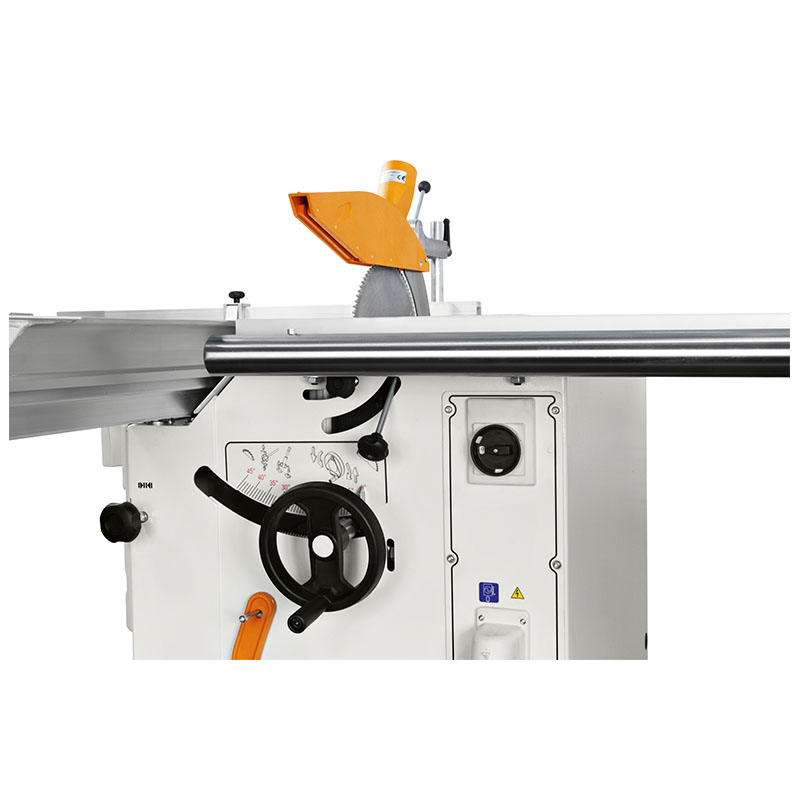

    With a 315 mm blade capacity and a maximum blade projection from table at 90° of 100 mm, the saw unit can be raised and tilted using convenient hand-wheels.

    Spindle moulder

    Manual rise and fall spindle adjustment. Adjustable spindle moulder fence with micrometric adjustment, vertical and horizontal pressures.

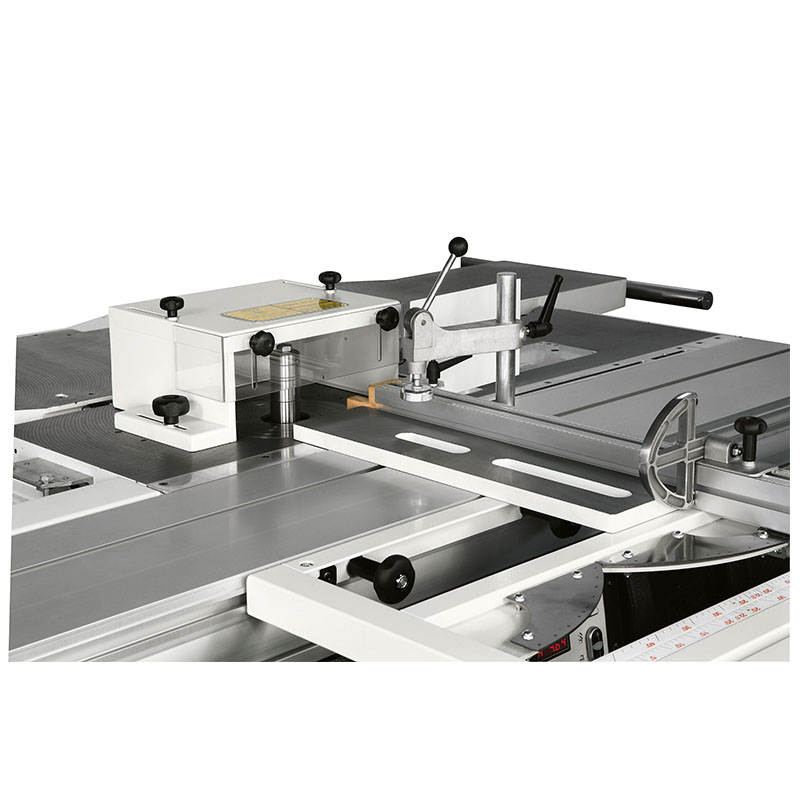

    The ST 3C can be configured with a number of options including tilting spindle, digital readouts for fence positions, tenoning table and more.

  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 100 mm
    • Blade tilt 0 - 45°
    • Cast iron table size 1115 x 430 mm
    • Squaring stroke, max. 1600 mm
    • Rip fence capacity 900 mm
    • Rip fence adjustment Manual
    • Tool diameter, max. 210 mm
    • Tool diameter lowered under table, max. 180 mm
    • Useful spindle length, max. 100 mm
    • Spindle diameter 30 mm
    • Spindle speeds 3500/ 7000/ 10000 rpm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 2 x 5 kW (6.6 HP)
    • Power 3 phase
