SCM Minimax SI 400ES

Sliding Table Panel Saw

Full details of SCM Minimax SI 400ES

Configure your machine

Sliding table *

Controls

Rip fence *

Crosscut fence

Powered movements *

Mitre fence *

Motor *

- +

more information

  • Features
    • Scoring saw unit
    • Optional powered fence and saw unit

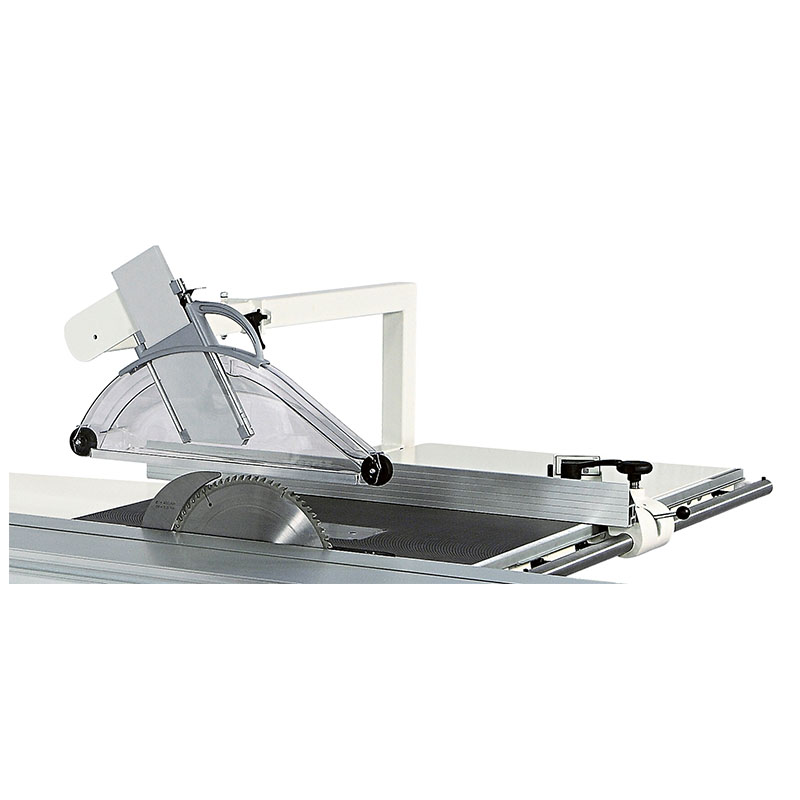

    • Overhead blade guard
    • Braked motor
    • Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side trunnions
    • Scoring unit with independent motor and external setting up

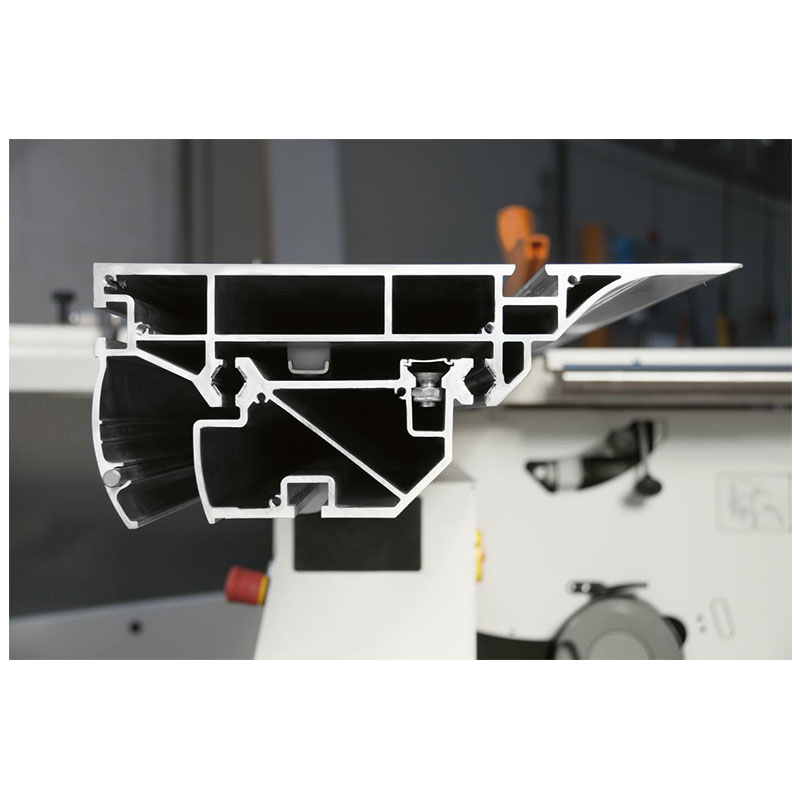

    • Anodized aluminium alloy carriage (dimensions 360 x 2600 mm) sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system

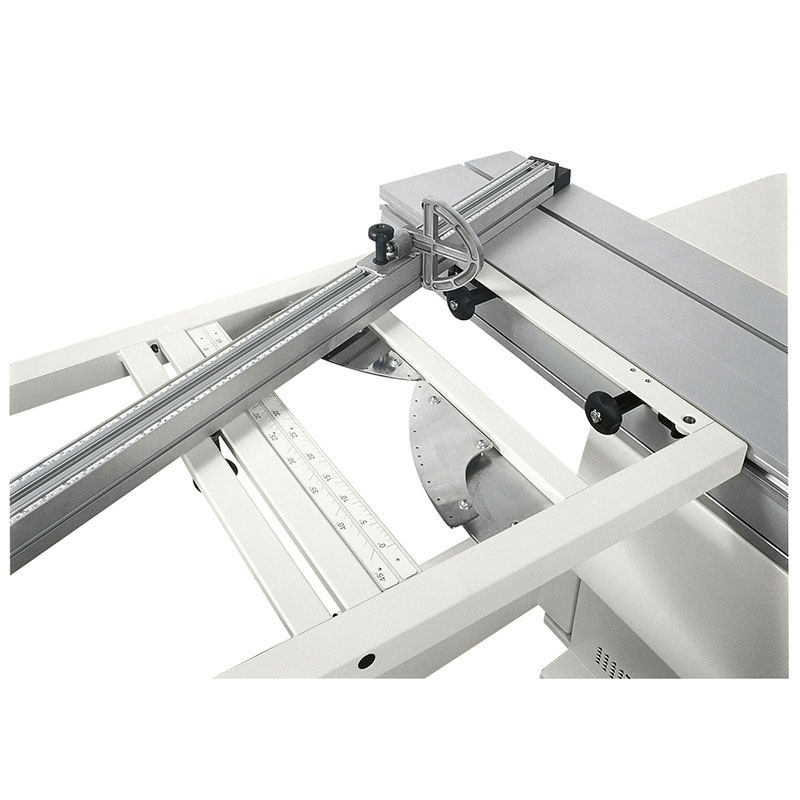

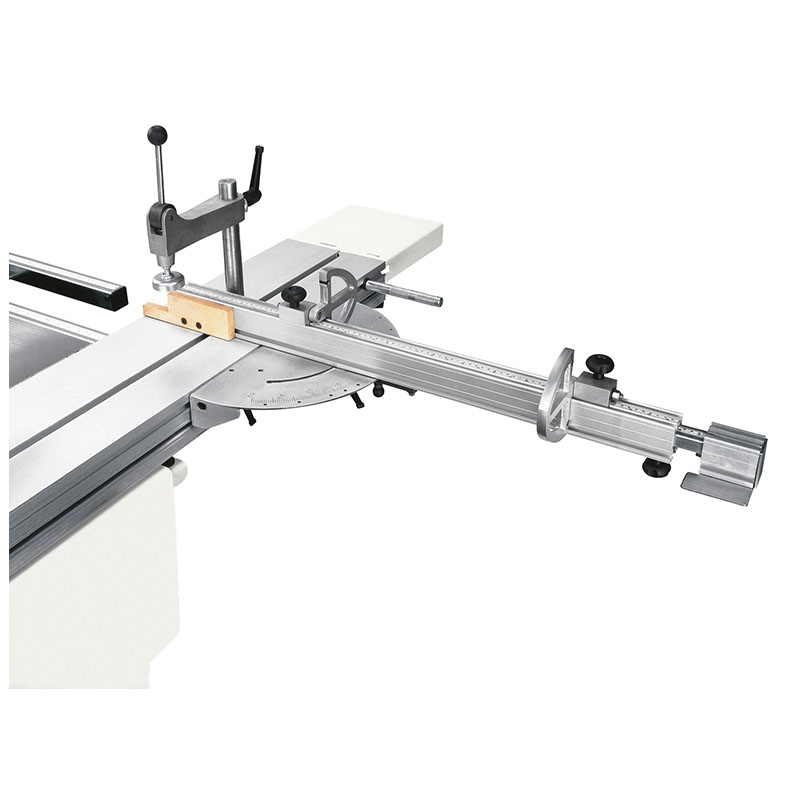

    • Squaring frame complete with telescopic fence, 2 crosscut flip over stops, eccentric clamp, swinging arm support, idle roller

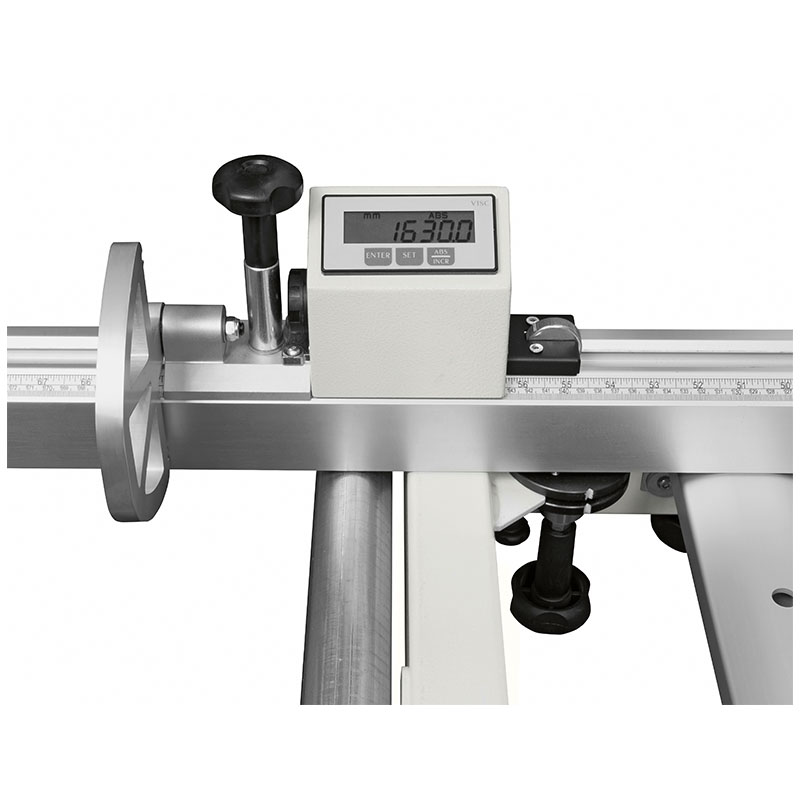

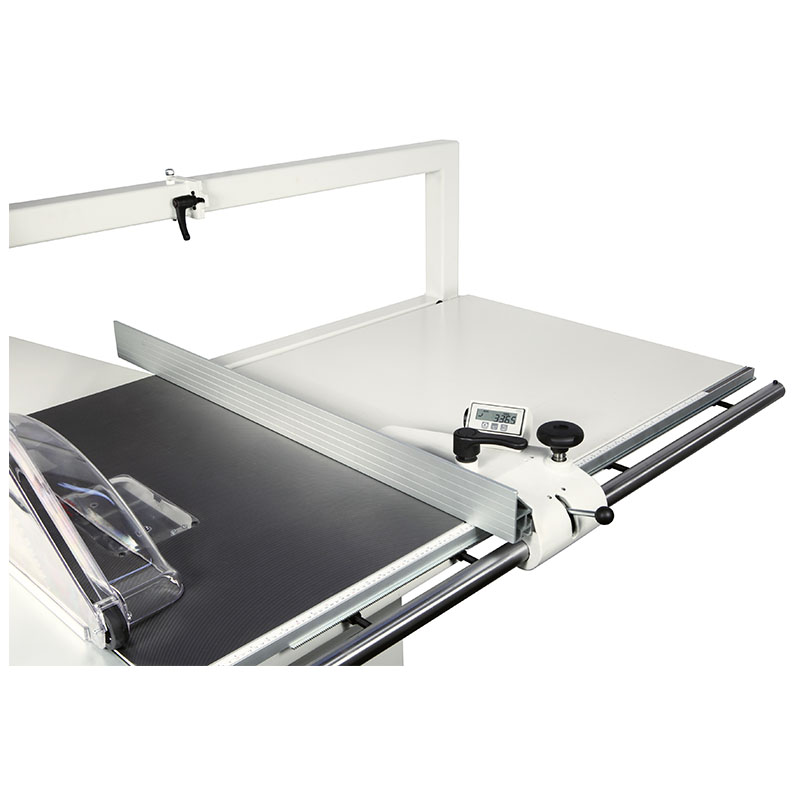

    • Dedicated saw parallel fence complete with "high rigidity" cast iron fence support, micrometric adjustment and cam locking system rectified steel round sliding bar , 45 mm diameter
    • Readout of sawblades tilt on the machine front side
  • Description

    Circular saw with tilting blade with professional performances, for a quality without compromises. Unique in the world in its category, with a cutting height of 136 mm. The cast iron saw unit with a rigid closed loop structure can accommodate a blade of 400 mm diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.

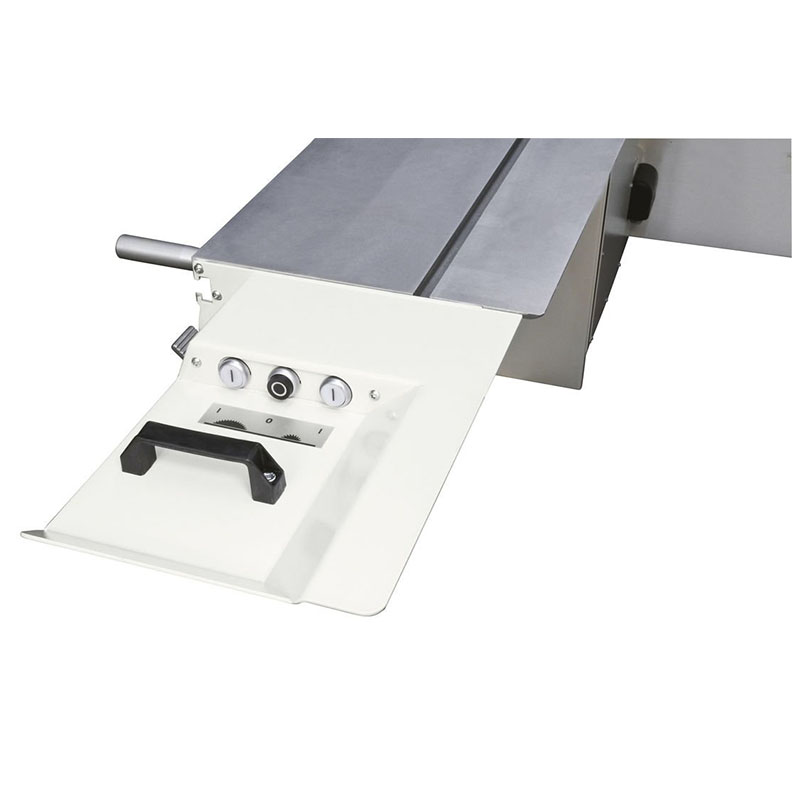

    Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminium riveting. Wide range of high-tech devices to make your Si 400es even more powerful and personalised, like the start/stop push buttons for the main blade and scoring blade integrated in the sliding carriage; very useful when machining large dimension work pieces that prevent an easy and safe access to the main machine control panel.

  • Specification
    • Blade diameter, max. 400 mm
    • Cutting depth, max. 136 mm
    • Squaring stroke, max. 2600/ 3200 mm
    • Rip fence capacity 1270 mm
    • Blade tilt 0 - 45°
    • Cast iron table size 940 x 560 mm
    • Rip fence adjustment Manual
    • Extraction outlet(s) 1 x 120 mm
    • Motor 5 kW (6.6 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
