SCM Minimax SI 4

Product Information

• Features
  • Tilting main blade (0° to 46°)
  • Cast-iron saw unit with dovetail lift system

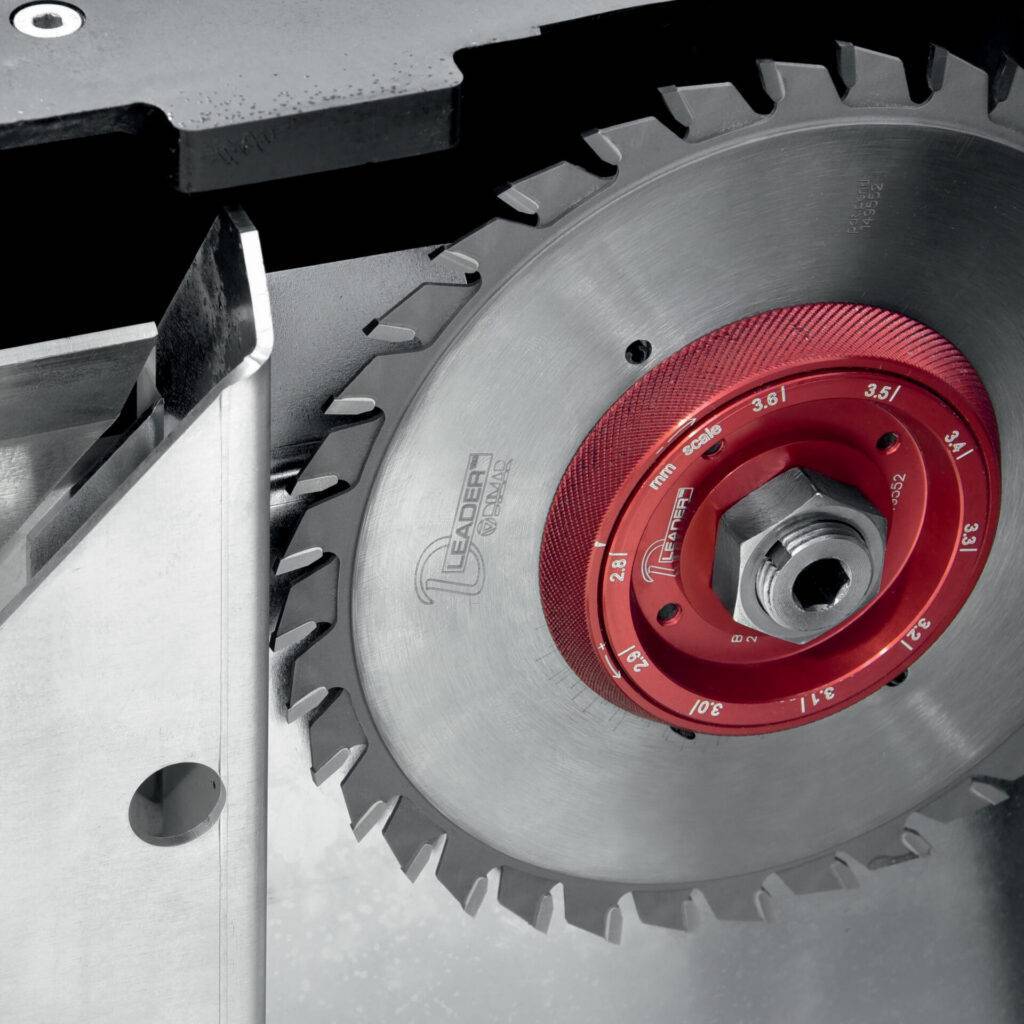

  • Optional scoring blade unit

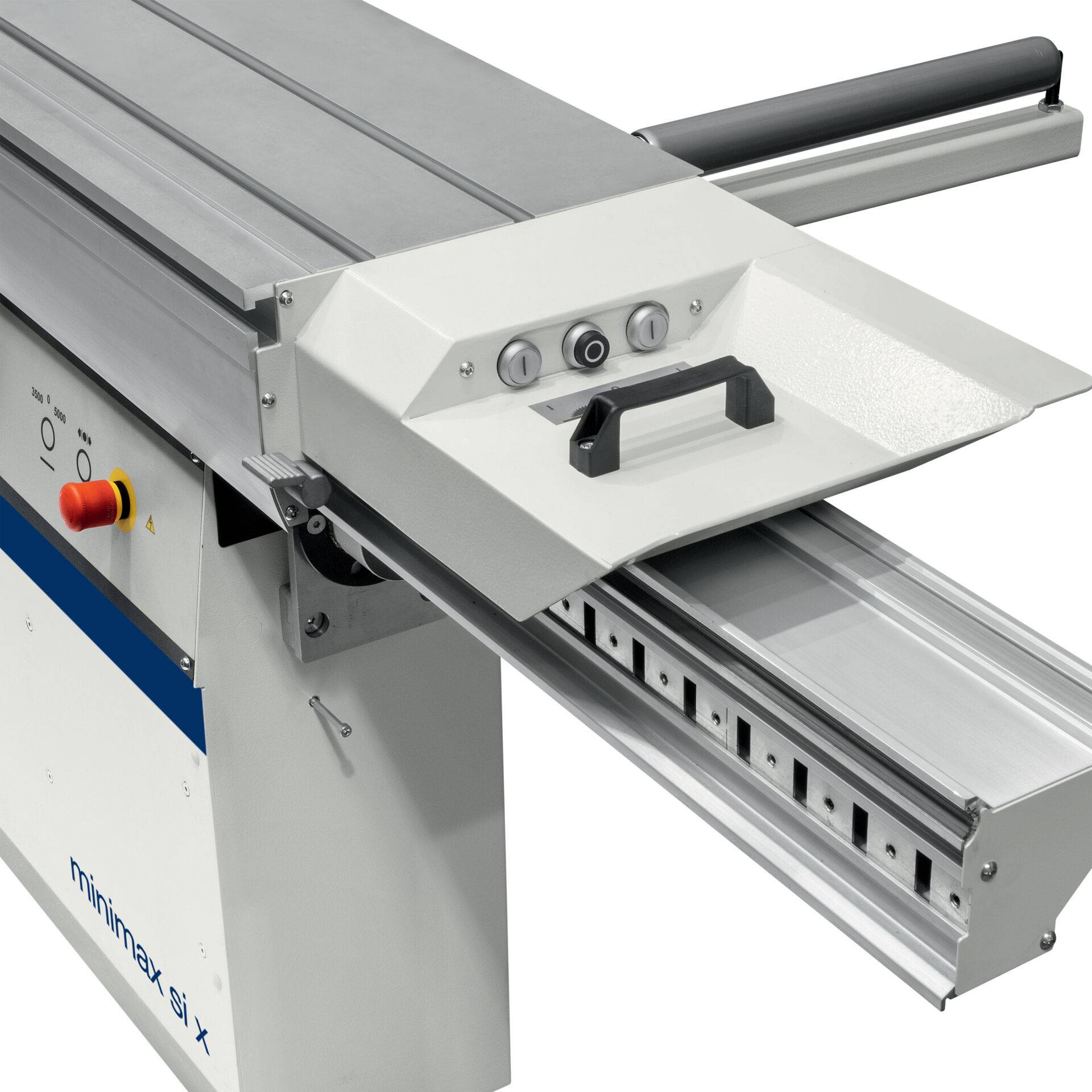

  • Sliding carriage options 2250 - 3800mm

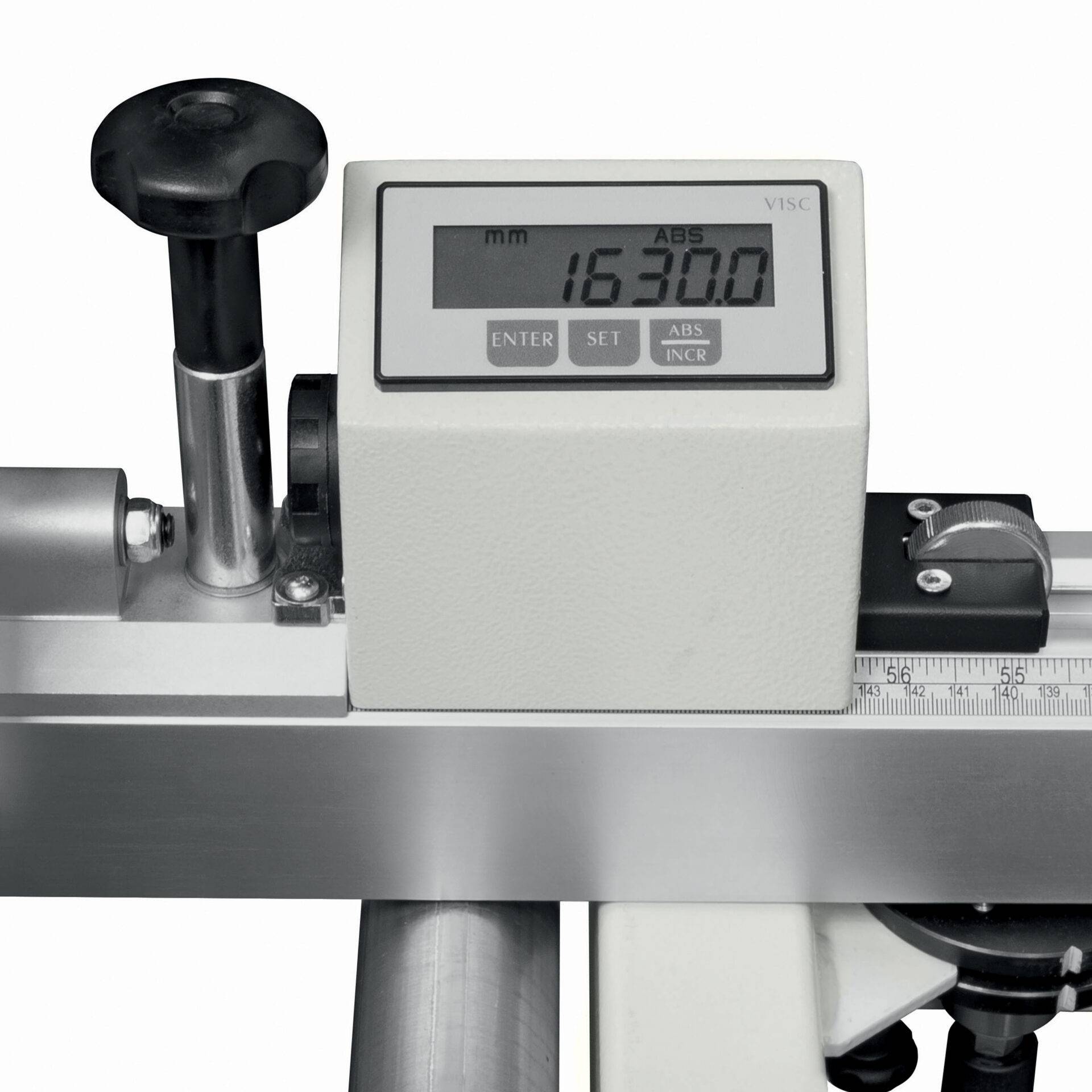

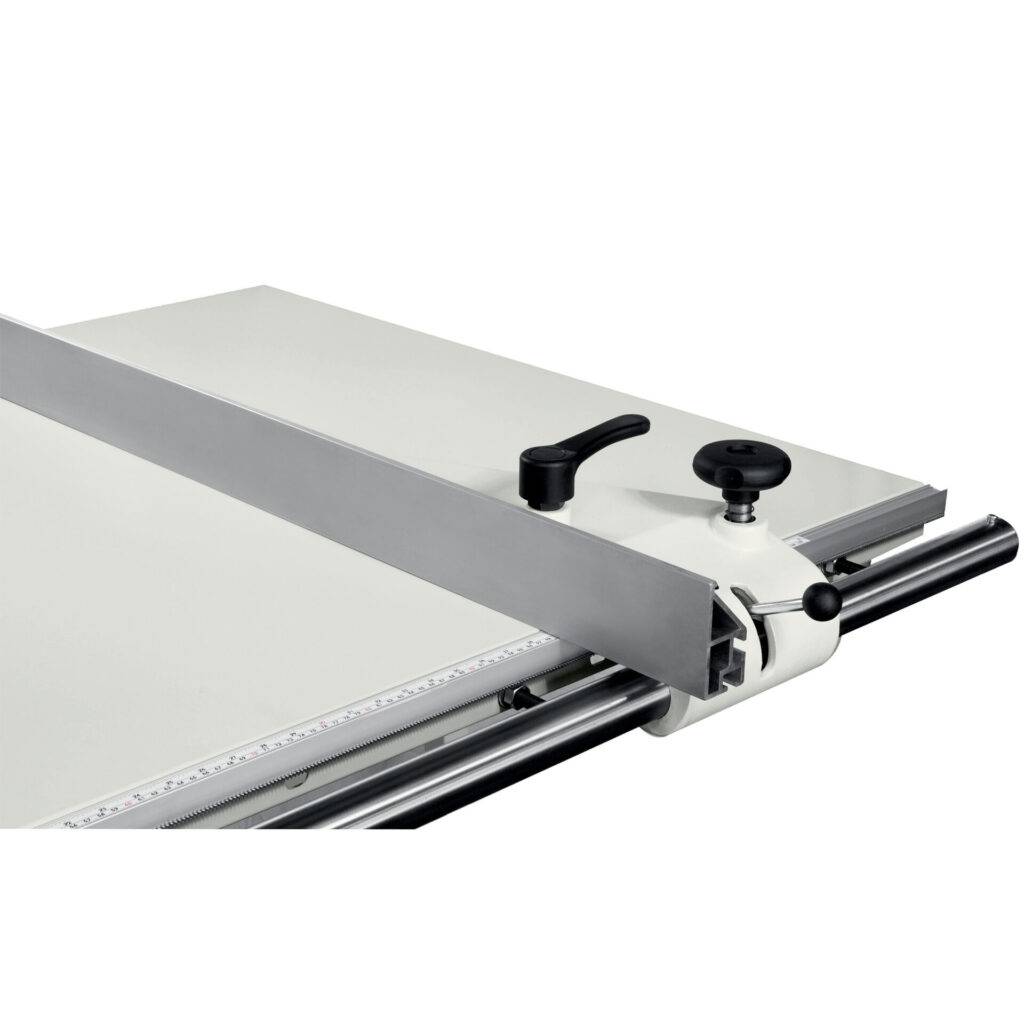

  • Rip fence with micrometric adjustment

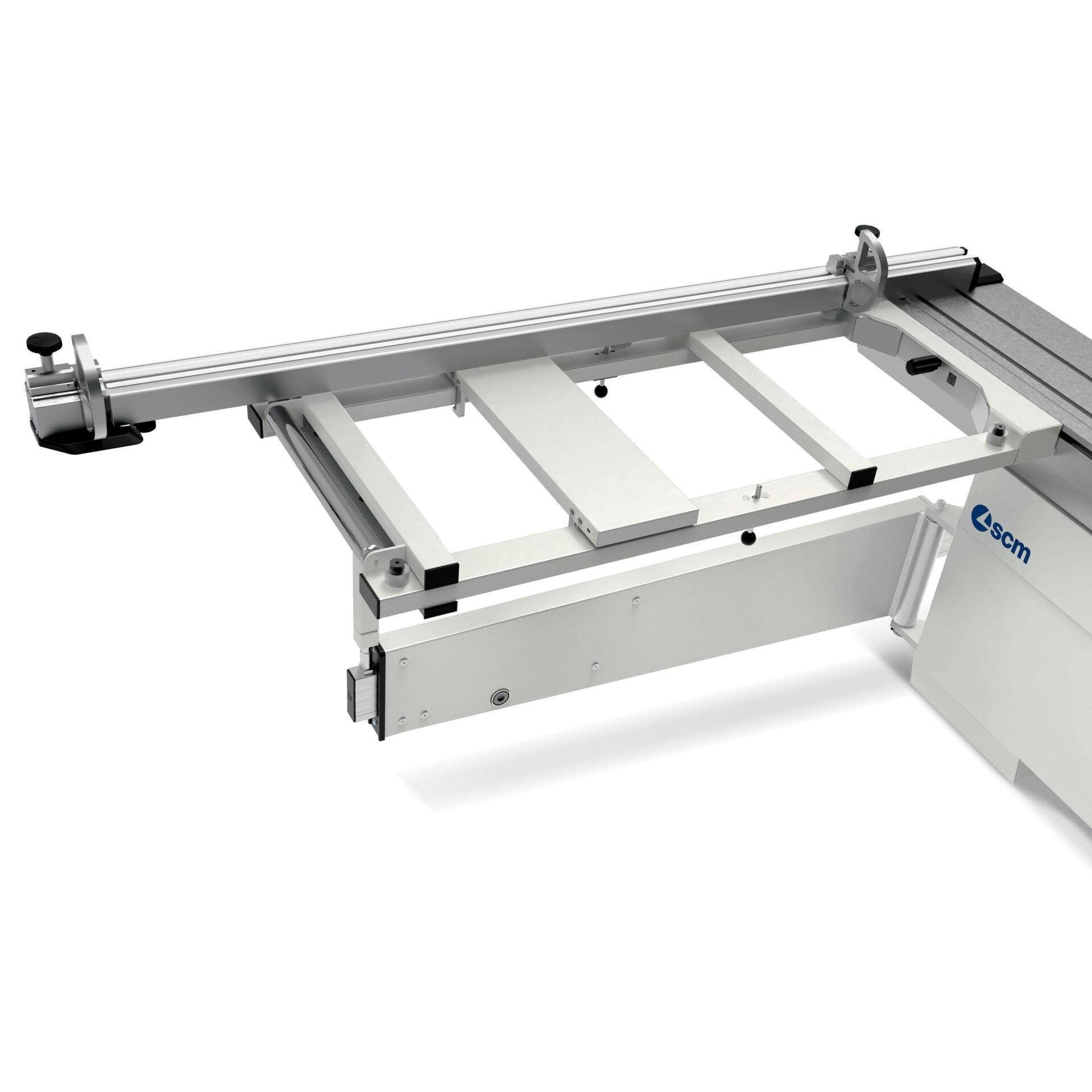

  • Large squaring frame
  • READY control system (optional) for motorised blade lift/tilt and automatic fence positioning
  • SCM Thundercut Optimizer App included
• Description

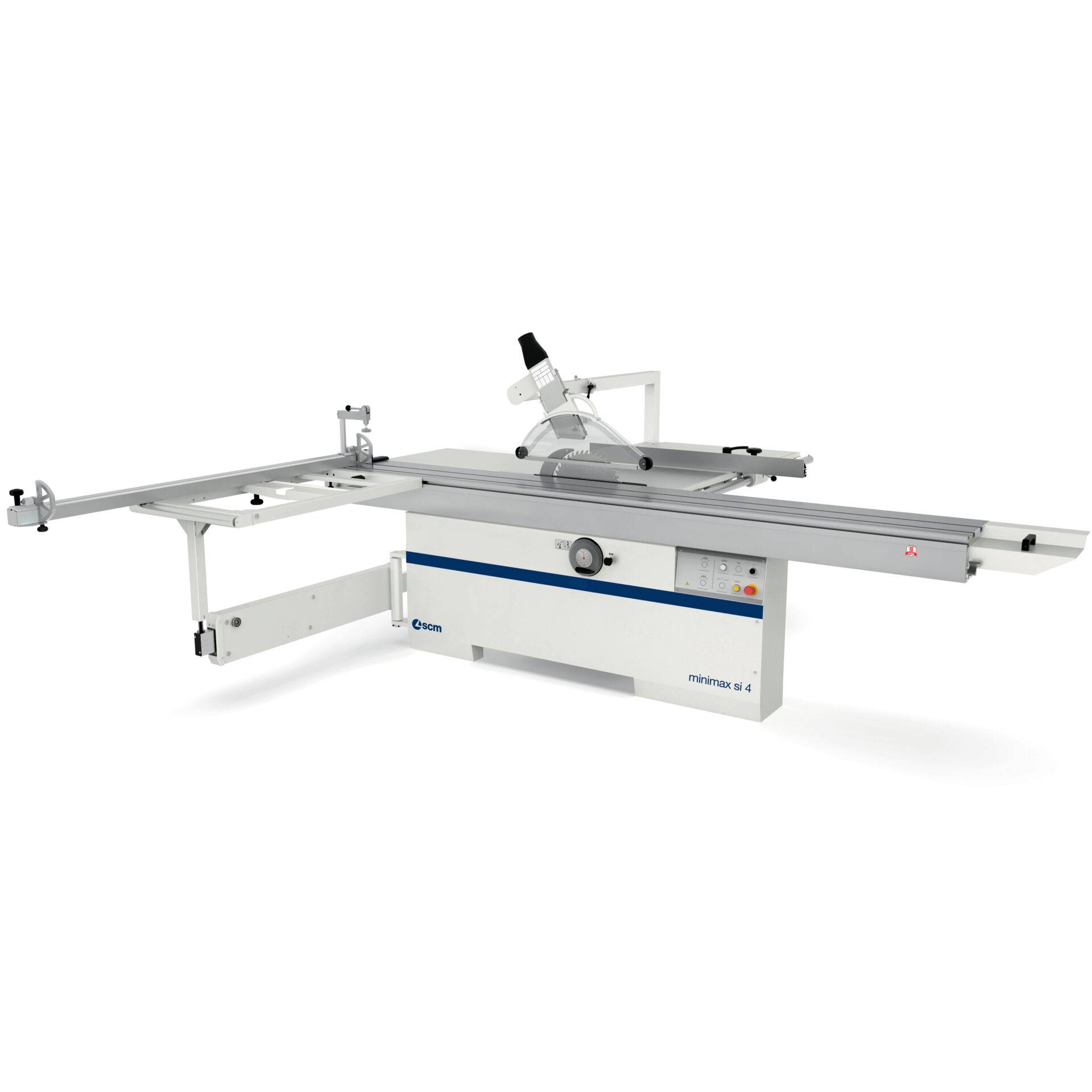

  The Minimax SI 4 is the latest generation circular saw from SCM, replacing earlier models including the SC 4E, SI 315es and SI 400es. Built around a heavy-duty cast-iron saw unit with dovetail lift system, the SI 4 ensures unmatched stability and accuracy even under continuous use.

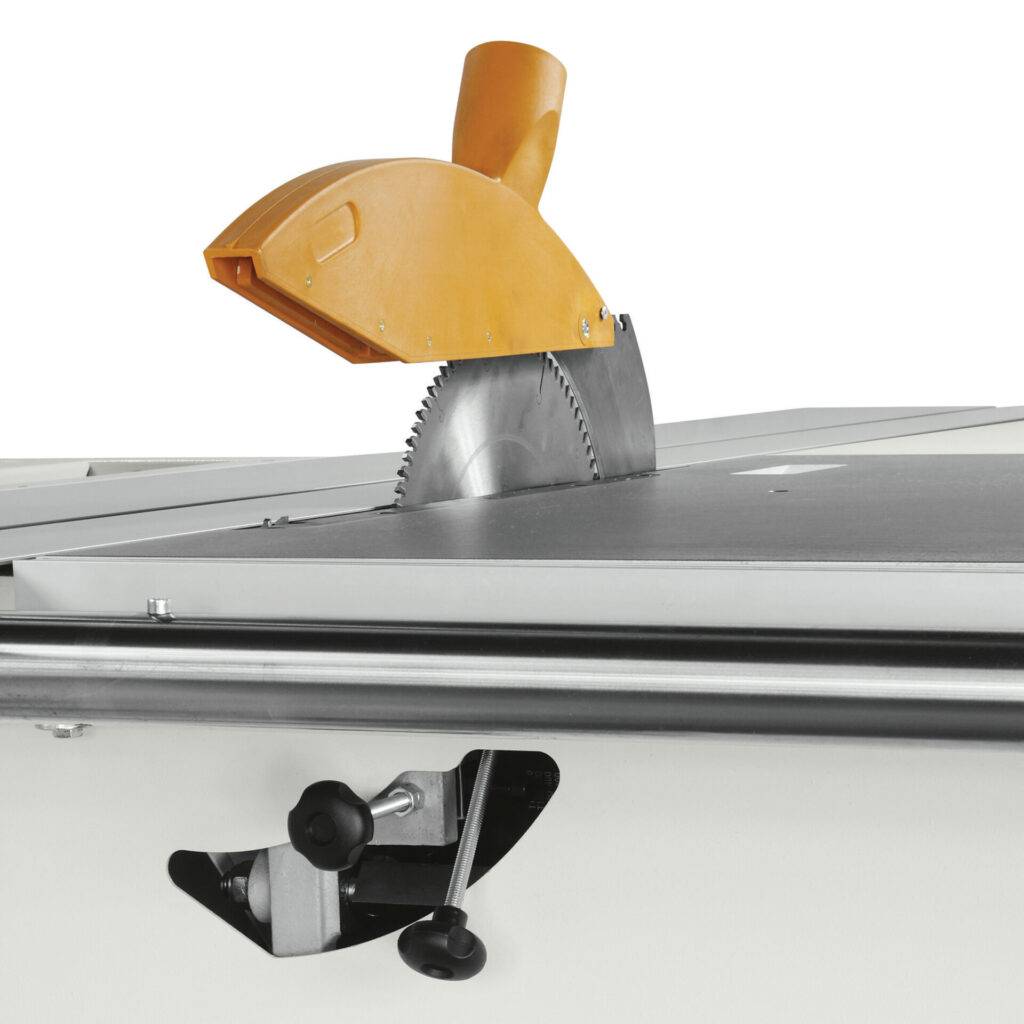

  Equipped with a tilting blade from 90° to 46°, the machine supports a wide range of cutting operations, while the precision sliding carriage guarantees smooth and reliable handling of large panels. The optional scoring blade unit allows perfect cuts on veneered or laminated boards, ensuring chip-free results.

  The machine can be configured with advanced options such as the READY electronic control system, powered rip fence, and expanded squaring frames to suit the specific needs of modern workshops.

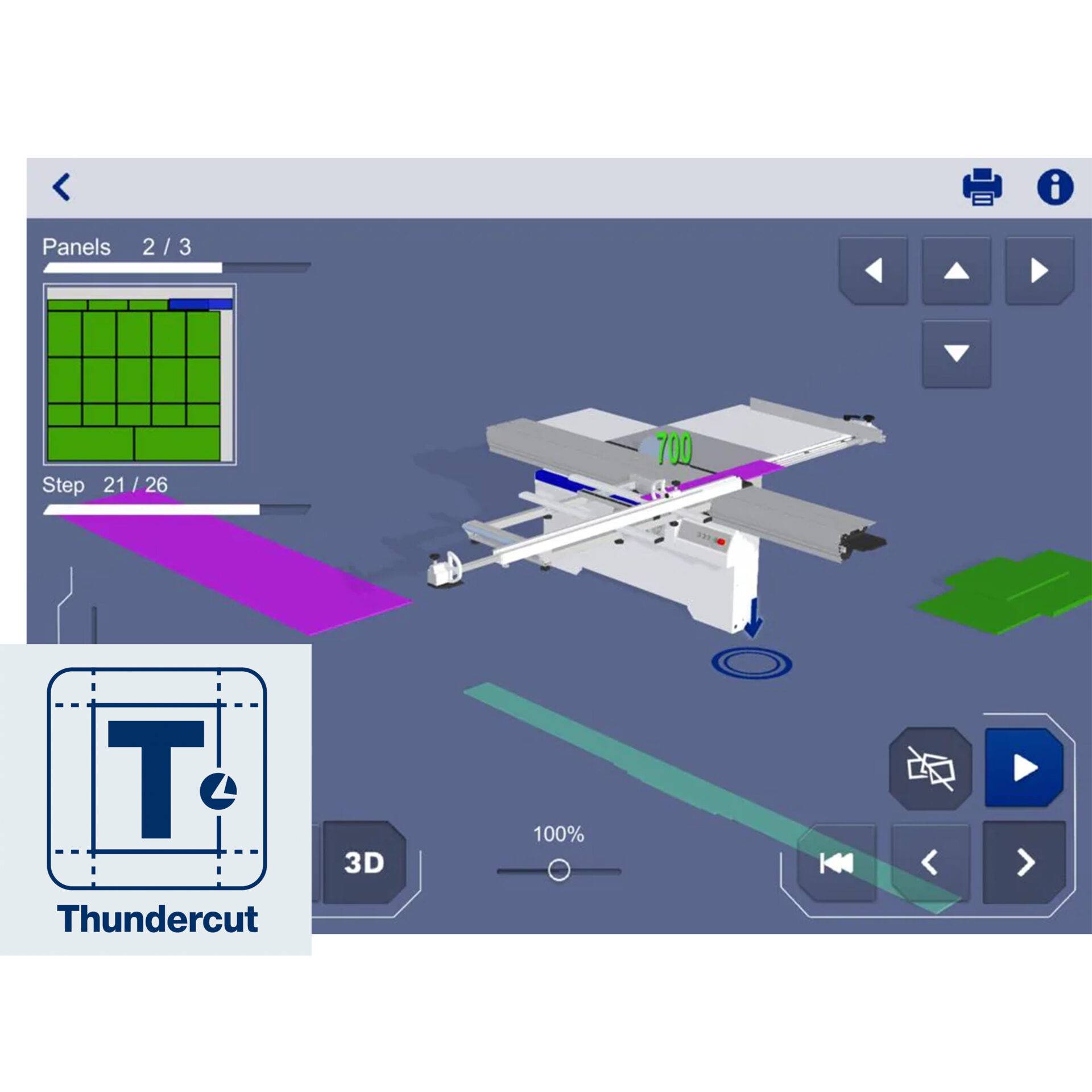

  Thanks to SCM’s Thundercut App, operators can optimise cutting lists directly on a tablet, reducing material waste and streamlining production. With a 10-year guarantee on the sliding carriage system, the SI 4 offers long-term reliability and confidence.

• Specification
  • Blade diameter, max. 315/ 400 mm
  • Cutting depth, max. 100/ 137 mm
  • Squaring stroke, max. 2250/ 2600/ 3200/ 3800 mm
  • Rip fence capacity 900/ 1270 mm
  • Blade tilt 0 - 46°
  • Cast iron table size 940 x 560 mm
  • Rip fence adjustment Manual/ Powered
  • Motor 5/ 7 kW
  • Power 3 phase
• Literature
  • SCM Minimax SI4 and SI X brochure Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
