SCM Minimax SC 2C

Sliding Table Panel Saw

Full details of SCM Minimax SC 2C

Configure your machine

Scoring unit *

Crosscut fence

Rip fence *

Extraction hood *

Mitre fence *

Motor *

Safety *

- +

more information

  • Features
    • Optional scoring saw unit

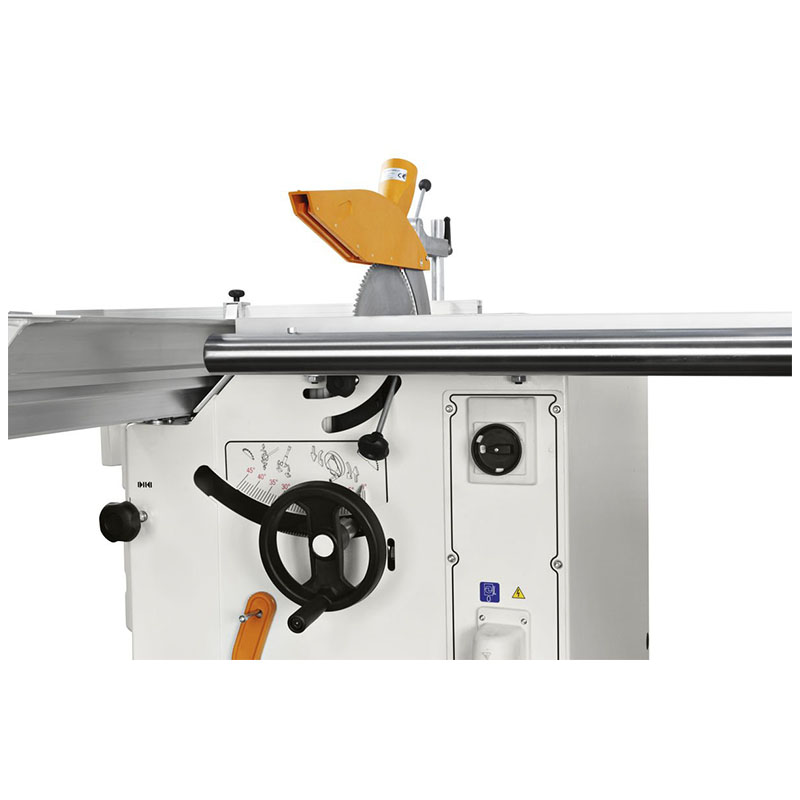

    • Manual rise/ fall/ tilt adjustment

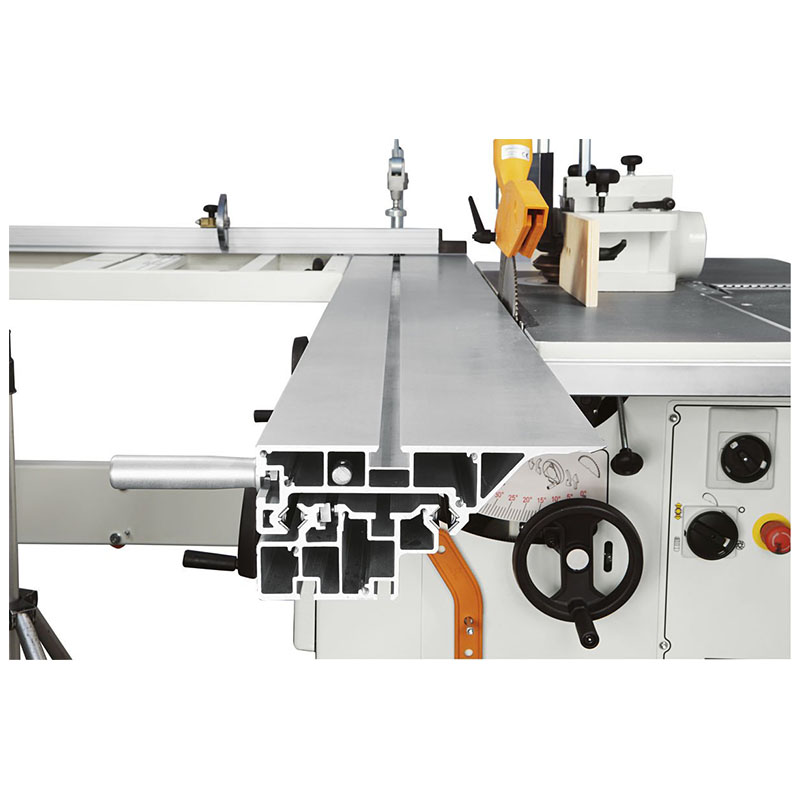

    • Extruded anodized aluminium sliding table, 270 mm wide
    • High precision hardened guideways
    • Squaring frame complete with telescopic fence, 1 retractable stop, eccentric clamp support
    • Optional adjustable scoring unit

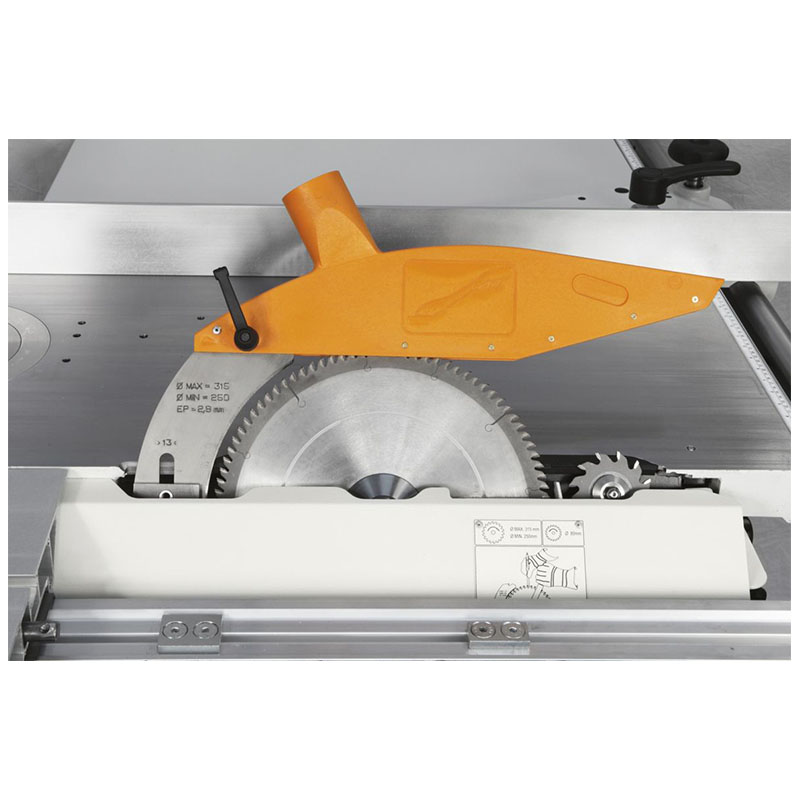

    • Saw unit for 315 mm maximum blade diameter with scoring blade option fitted
    • Dedicated saw parallel fence complete with "high rigidity" cast iron fence support, micrometric adjustment and cam locking system rectified steel round sliding bar , 45 mm diameter
  • Description

    The precise, cost-effective and compact circular saw with tilting blade, for D.I.Y. woodworkers and small joiners.
    A great step up from the standard American-style cabinet saw. Compact chassis, powerful 3.4hp motor, and 5.5′ sliding table. Will crosscut a standard 4×8 sheet on the slider or rip it lengthwise, using the rip fence to the right of the blade. Customers have put mobility kits on these and used them as jobsite machines. A proven performer.

    • Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade fitted.
    • New scoring unit that can easily be adjusted from outside the machine, supplied on request.
    • Easier, more precise cutting: a perfectly stable support is guaranteed, even for large workpieces, by the 270 mm wide sliding table with sliding system through steel spheres on hardened and calibrated steel guide ways.
    • Perfect parallel cuts thanks to the anodised aluminium parallel fence with support, quick locking device and micrometric adjustment.
  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 100 mm
    • Squaring stroke, max. 1600 mm
    • Rip fence capacity 900/ 1270 mm
    • Blade tilt 0 - 45°
    • Cast iron table size 1020 x 325 mm
    • Rip fence adjustment Manual
    • Extraction outlet(s) 1 x 120 mm
    • Motor 4 kW (5.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
