SCM Minimax F 52ES

Surface Planer

Full details of SCM Minimax F 52ES

Configure your machine

Cutterblock *

Surfacing table *

Drive *

- +

more information

  • Features
    • 2250 mm surfacing tables
    • Cast iron tables
    • Tilting fence
    • Choice of HSS, TERSA or XYLENT cutterblocks
  • Description

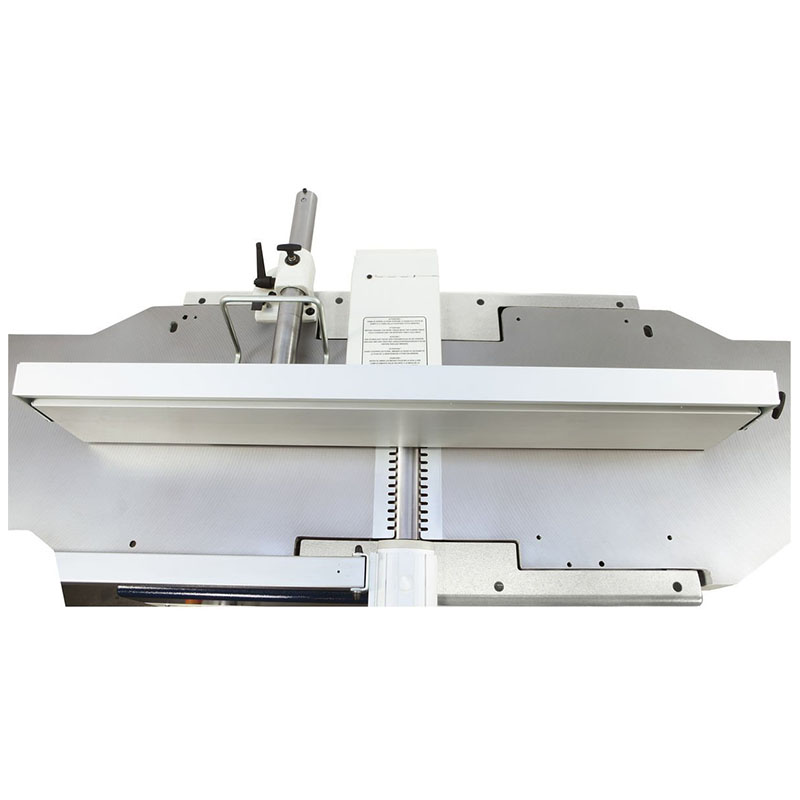

    The SCM Minimax F 52ES is a dedicated standalone surface planer designed for demanding craftsmen. With an over cast iron table length of 2250 mm, a large 1200 x 150 mm tilting fence provides ample material support.

    The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

  • Specification
    • Surfacing width capacity 520 mm
    • Surfacing table length, overall 2250 mm
    • Cutting depth infeed table adjustment 0 - 8 mm
    • Cutterblock diameter 120 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Fence size 1200 x 150 mm
    • Fence tilt 0 - 45°
    • Extraction outlet(s) 1 x 120 mm
    • Motor 5 kW (6.6 HP)
    • Power 3 phase
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
