SCM Minimax FS 41C

Planer Thicknesser

To get a quote or for further information please contact us on:

Email us
  • Features

    • 72 mm diameter cutter block as standard
    • Aluminium surfacing fences
  • Description

    The surfacing-thicknessing planer powerful and user friendly, for D.I.Y. woodworkers and craftsmen workshops.
    This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price.

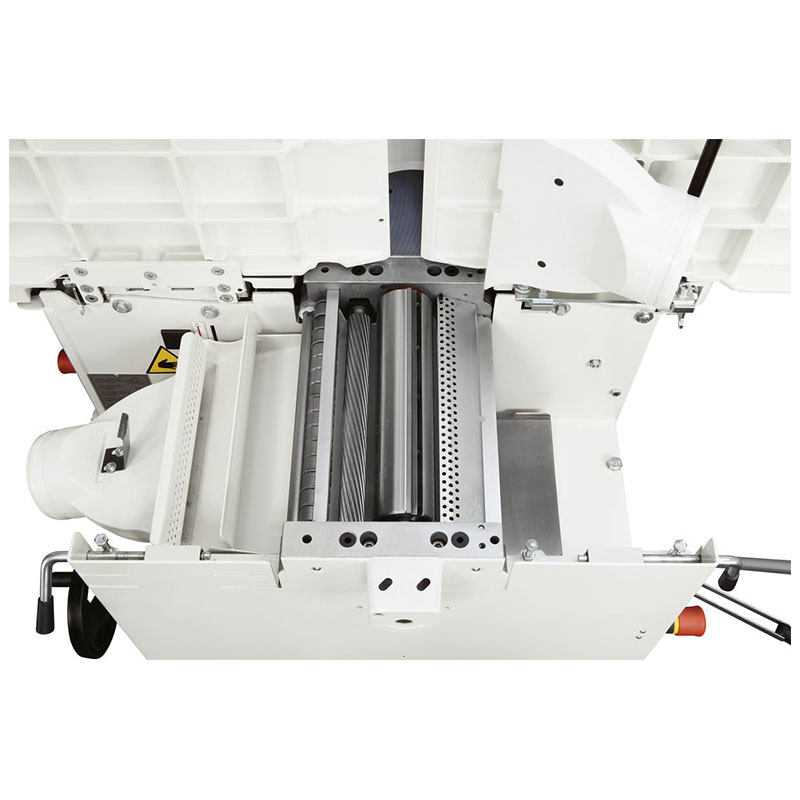

    The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

    Very high rigidity of the surfacing fences made of extruded aluminium with 1670 mm length. The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.



  • Specification

    • Cutterhead working width 410 mm
    • Max. stock removal 4 mm
    • Jointer table length 1800 mm
    • Planer table dimensions 410 x 605 mm
    • Planer feed speed 7 m/ min
    • Min. - Max. planer working height 1 - 230 mm
    • Single phase motor 4.8 Hp
    • Fence tilt 0 - 45 degrees
  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
