SCM Minimax FS 41ES

Planer Thicknesser

Full details of SCM Minimax FS 41ES

Configure your machine

Cutterblock *

Thicknessing table *

Surfacing table *

Drive *

- +

more information

  • Features
    • Mechanical readouts for table height
    • Long surfacing tables
    • Self braking motor
    • Simultaneous lift up surfacing tables
    • Adjustable feed roller pressure
    • Helicoidal infeed roller
    • Compact design
    • Manual table movement
    • Automatic star/ delta start
    • Choice of HSS, TERSA or XYLENT cutterblocks
    • Optional powered table movement with digital readout
  • Description

    The FS 41ES is the flag ship combination planer thicknesser in the SCM Minimax range, designed for professional craftsman looking for a compact cost effective, capable solution. The machine can be configured with optional powered table movement and digital readout for quick setting and ultimate precision when thicknessing.

    The pressure of the thicknesser feed roller to be adjusted according to the type of wood being machined.  The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel, maintains the perfect post-processing finishing. For maximum long lasting stability the cast iron thicknessing table is supported on 4 spindles with trapezoidal threads.

    The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

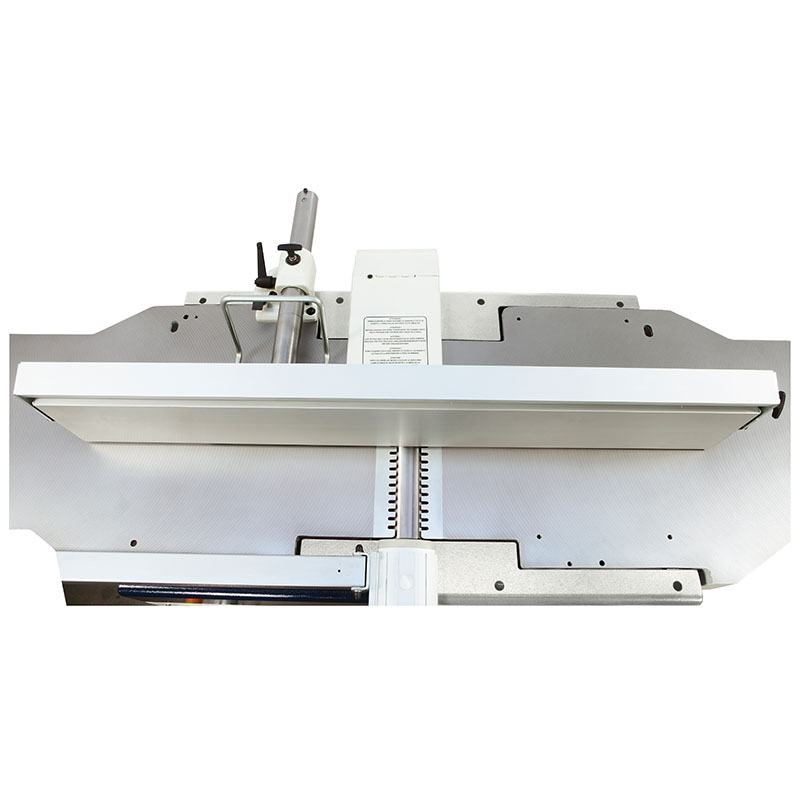

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

  • Specification
    • Surfacing width capacity 410 mm
    • Thicknessing depth, min. - max. 3 - 240 mm
    • Cutting depth infeed table adjustment 0 - 5 mm
    • Surfacing table length, overall 2200 mm
    • Thicknessing table length 775 mm
    • Cutterblock diameter 95 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Feed speed(s) 6 & 12 m/min
    • Fence tilt 0 - 45°
    • Extraction outlet(s) 1 x 120 mm
    • Motor 5 kW (6.6 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
