SCM Minimax CU 410ES

Combination Saw, Spindle, Planer, Thicknesser

Full details of SCM Minimax CU 410ES

Configure your machine

Sliding table *

Mitre fence *

Saw & spindle adjustment *

Cutterblock *

Tables & fences

Spindle type *

Spare spindle

Motor *

- +

more information

  • Features
    • Saw, spindle, planer & thicknesser

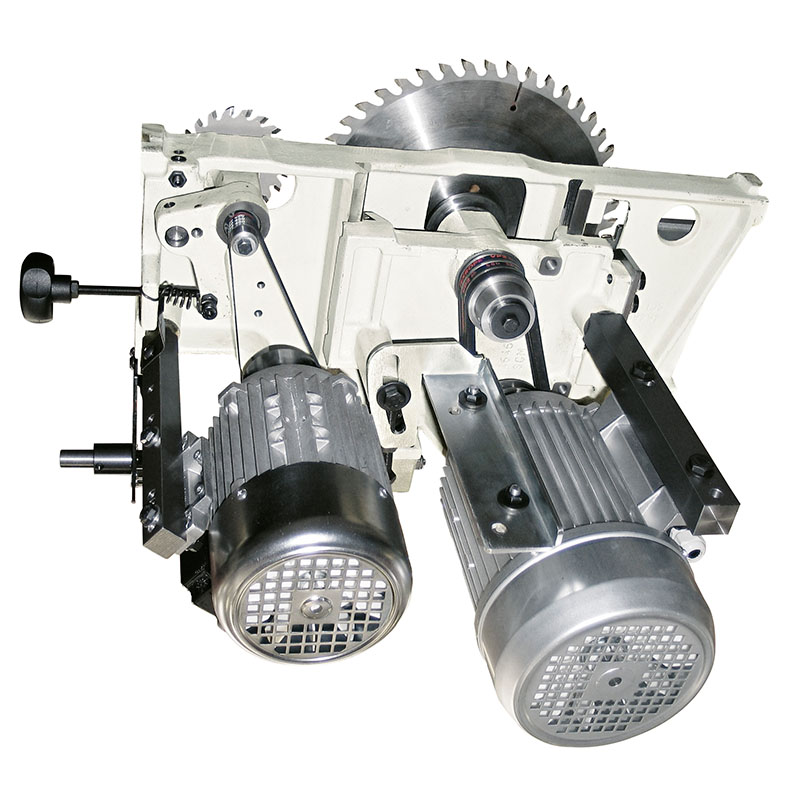

    • Scoring saw unit with independent motor
    • 2600/ 3200 mm table stroke
    • 410 mm planer width

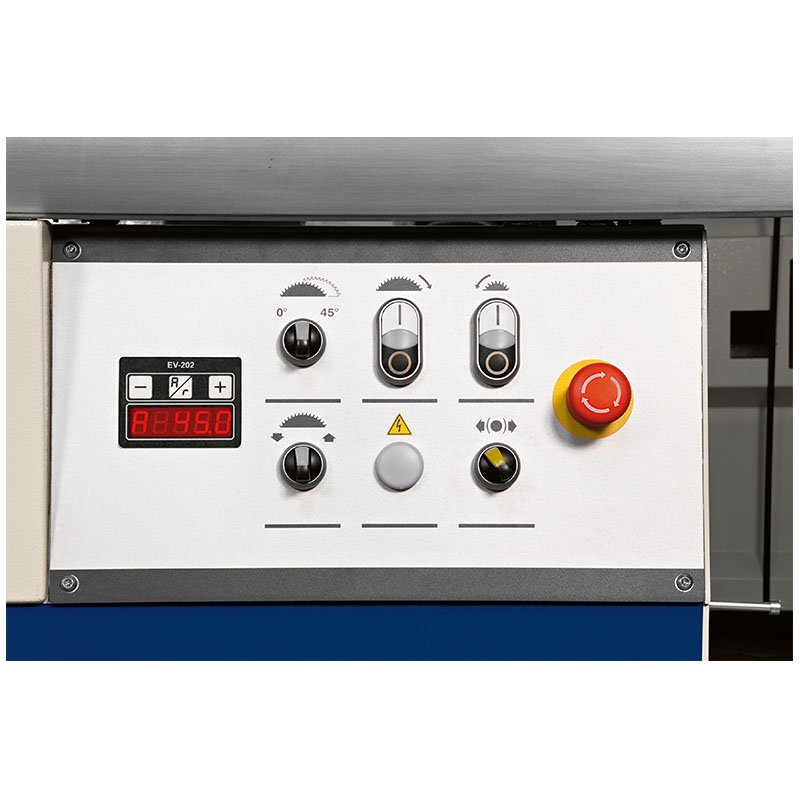

    • Mechanical digital readouts
    • Rise, fall, tilt adjustment
    • Manual controls

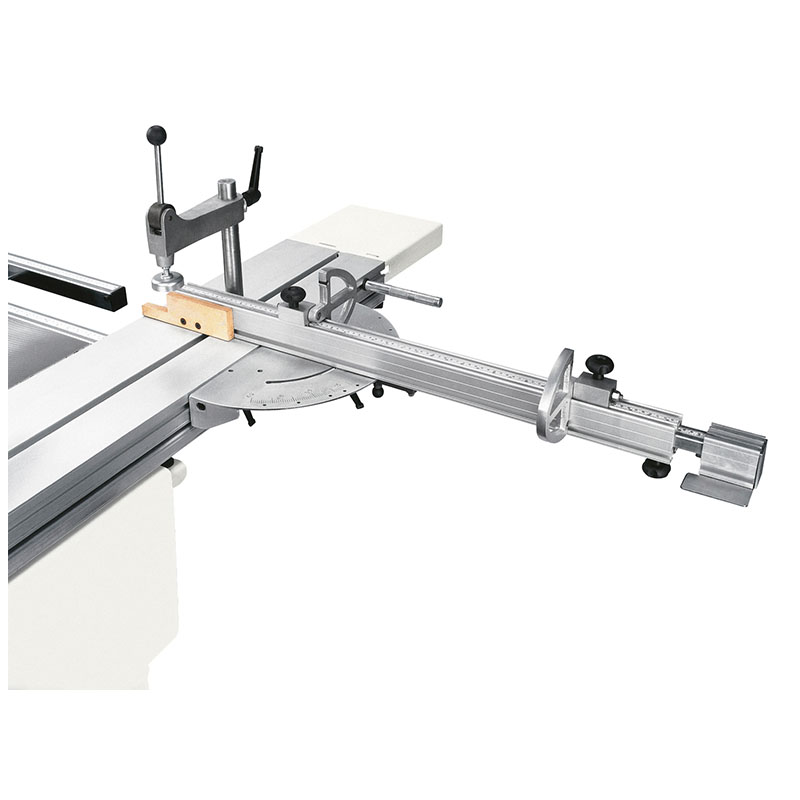

    • Crosscut mitre fence
    • Two flip over stops
    • Adjustable spindle fence
    • Self braking motors
  • Description

    The SCM Minimax C 410ES is a combination circular saw, spindle moulder and planer thicknesser in one machine. Mechanical digital readouts to the blade tilt, thicknessing table height and spindle moulder position keep work precise and repeatable.

    Planer Thicknesser

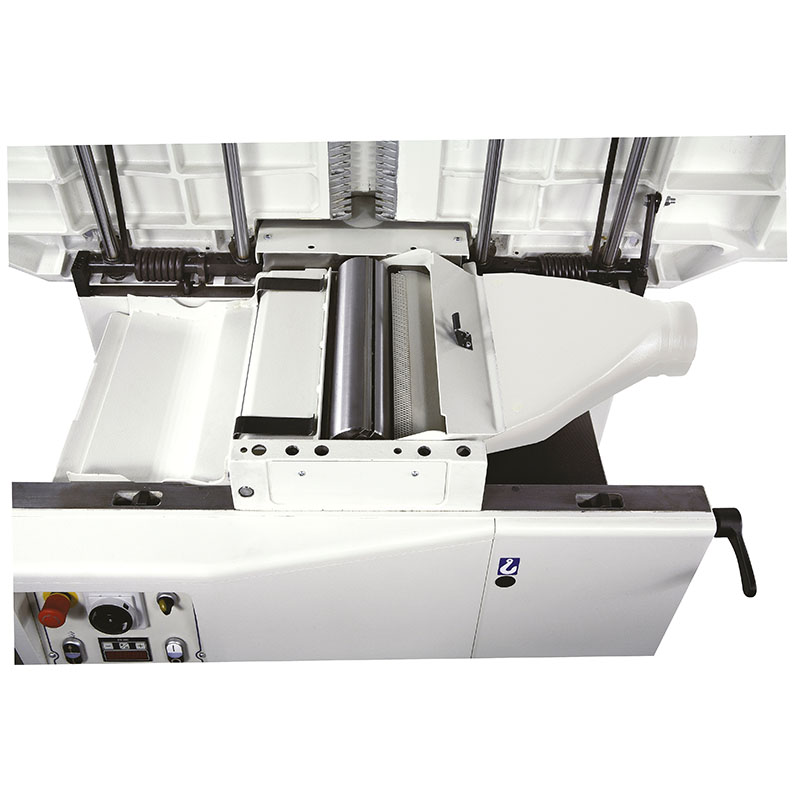

    The thicknessing table is manually adjusted, while the long 2200 mm surfacing tables provide support for the most demanding operations. The machine features. The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

    Circular Saw

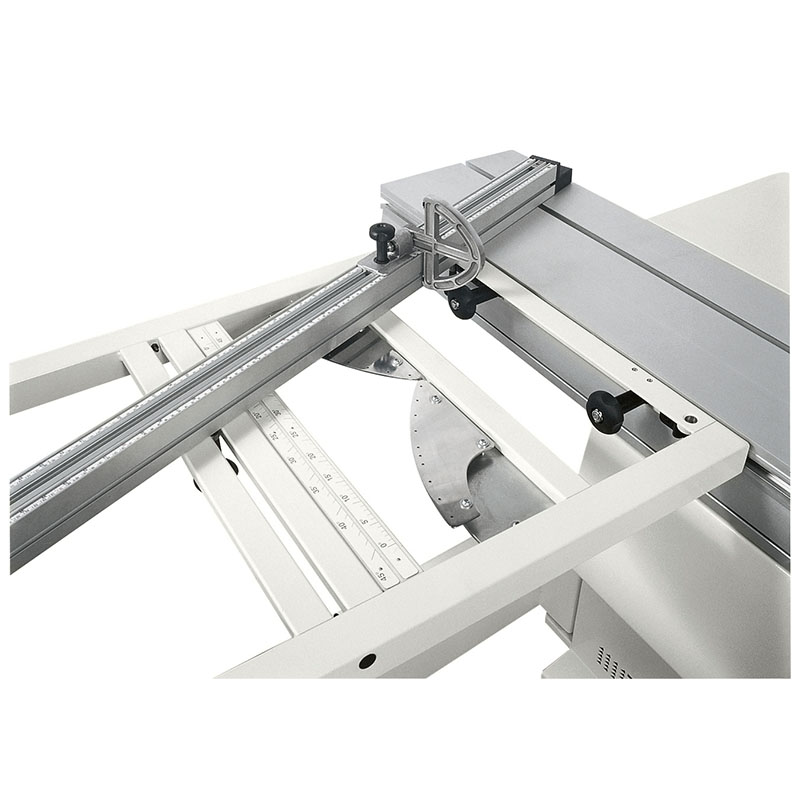

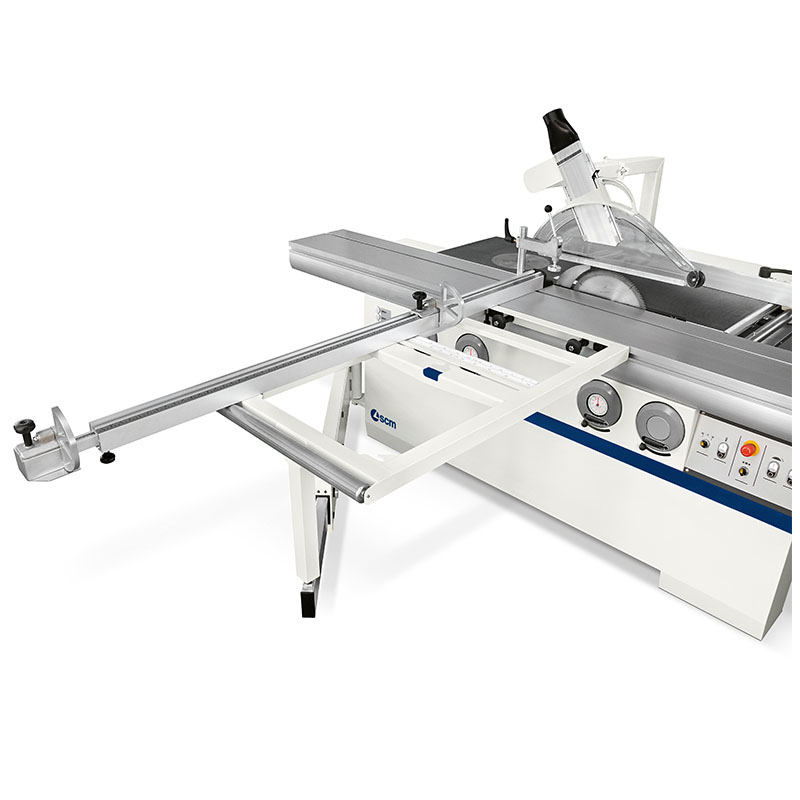

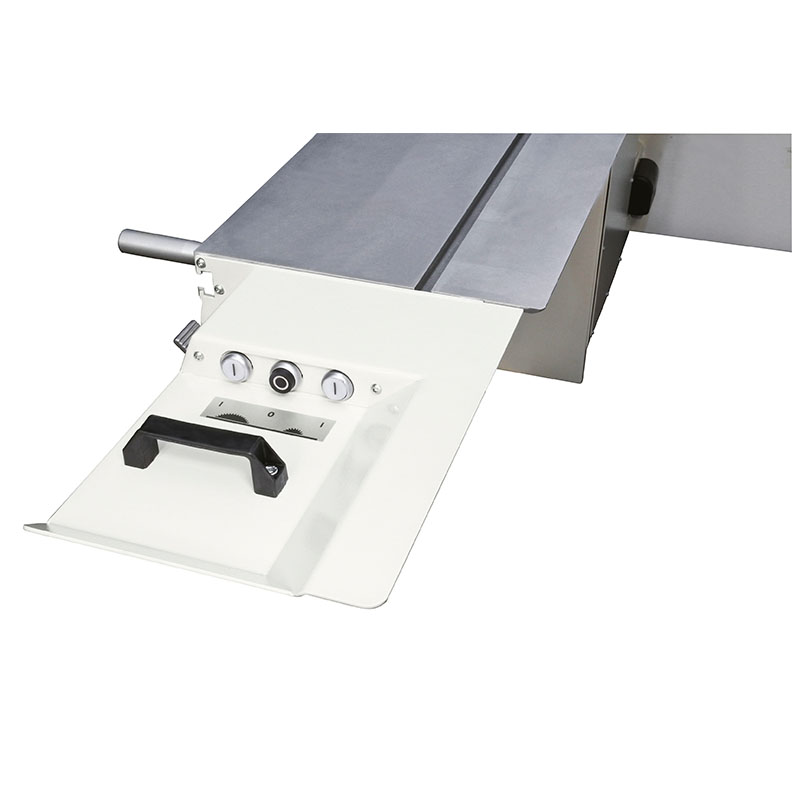

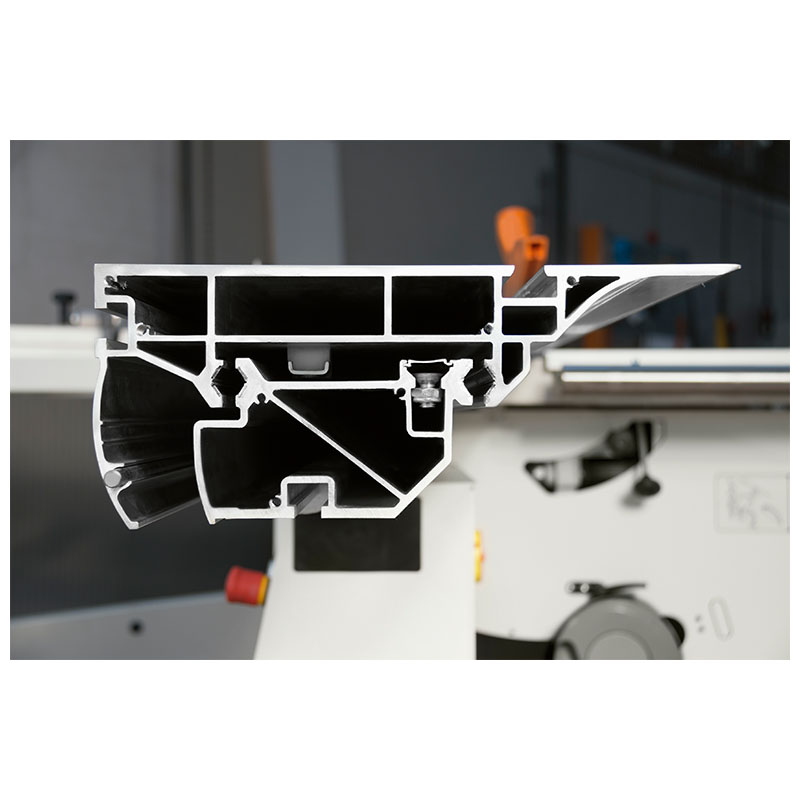

    The CU 410ES features a 360 mm wide 2250 mm long aluminium sliding table. The 1200 x 650 mm squaring frame includes a crosscut mitre fence with 2 flip over stops and eccentric clamp. A dedicated scoring saw unit with independent motor is included as standard.

    The 350 mm maximum blade diameter with manual rise, fall and tilt adjustments has a projection of 117 mm at 90°.

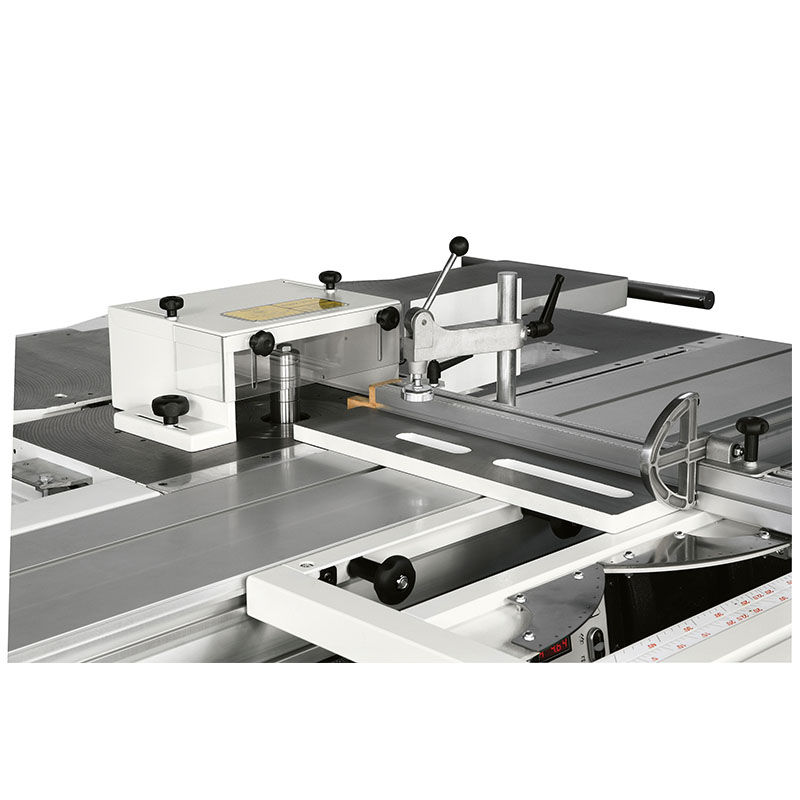

    Spindle moulder

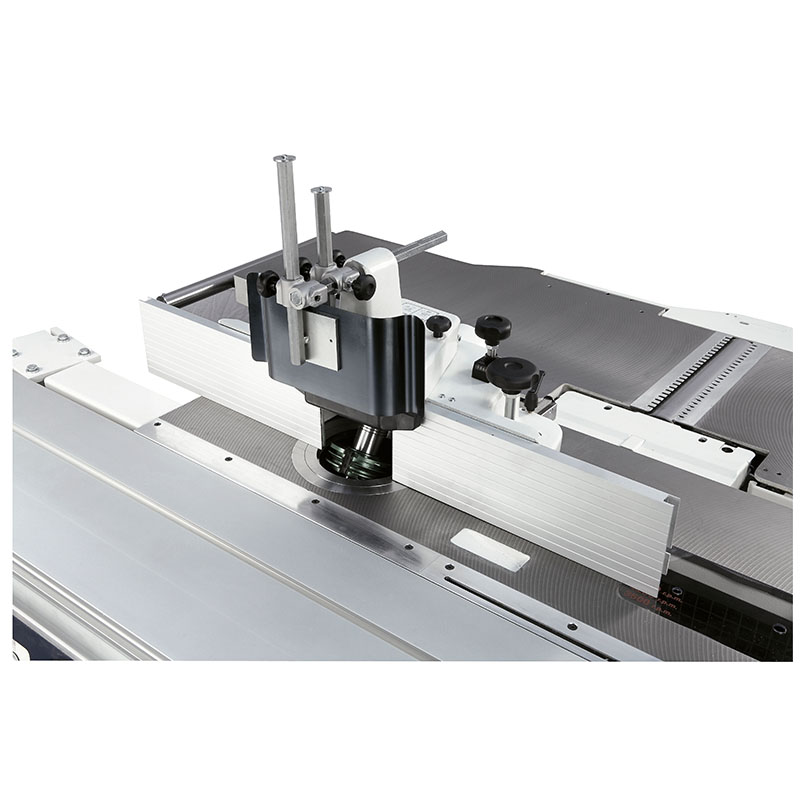

    Manual rise and fall spindle adjustment. Adjustable spindle moulder fence with micrometric adjustment, vertical and horizontal pressures. Also included is reverse spindle direction, and CD spindle speed indicators.

  • Specification
    • Blade diameter, max. 350 mm
    • Cutting depth, max. 117 mm
    • Blade tilt 0 - 45°
    • Cast iron table size 1380 x 465 mm
    • Squaring stroke, max. 2250 mm
    • Rip fence capacity 1000 mm
    • Rip fence adjustment Manual
    • Tool diameter, max. 240 mm
    • Tool diameter lowered under table, max. 240 mm
    • Useful spindle length, max. 125 mm
    • Spindle diameter 30 mm
    • Spindle speeds 3500/ 6000/ 8000/ 10000 rpm
    • Surfacing width capacity 410 mm
    • Thicknessing depth, min. - max. 3 - 240 mm
    • Cutting depth infeed table adjustment 0 - 5 mm
    • Surfacing table length, overall 2200 mm
    • Thicknessing table length 775 mm
    • Cutterblock diameter 95 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Feed speed(s) 6 & 12 m/min
    • Fence tilt 0 - 45°
    • Extraction outlet(s) 3 x 120 mm
    • Motor, main 3 x 5 kW (6.6 HP)
    • Motor, scoring 1 x 0.55 kW (0.75 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
