SCM Minimax CU 300C

Combination Saw, Spindle, Planer, Thicknesser

Full details of SCM Minimax CU 300C

Configure your machine

Scoring unit *

Sliding table *

Mitre fence *

Cutterblock *

Tables & fences

Spindle type *

Spare spindle

Motor *

- +

more information

  • Features
    • Saw, spindle, planer & thicknesser
    • 1600/ 2250/ 2600 mm table stroke
    • 300 mm planer width
    • Rise, fall, tilt adjustment
    • Manual controls
    • Crosscut mitre fence
    • Two flip over stops
    • Adjustable spindle fence
  • Description

    The SCM Minimax C 300C is a combination circular saw, spindle moulder and planer thicknesser in one machine. The highly configurable options available on the machine make it ideal for professional users wanting a compact workshop solution.

    Planer Thicknesser

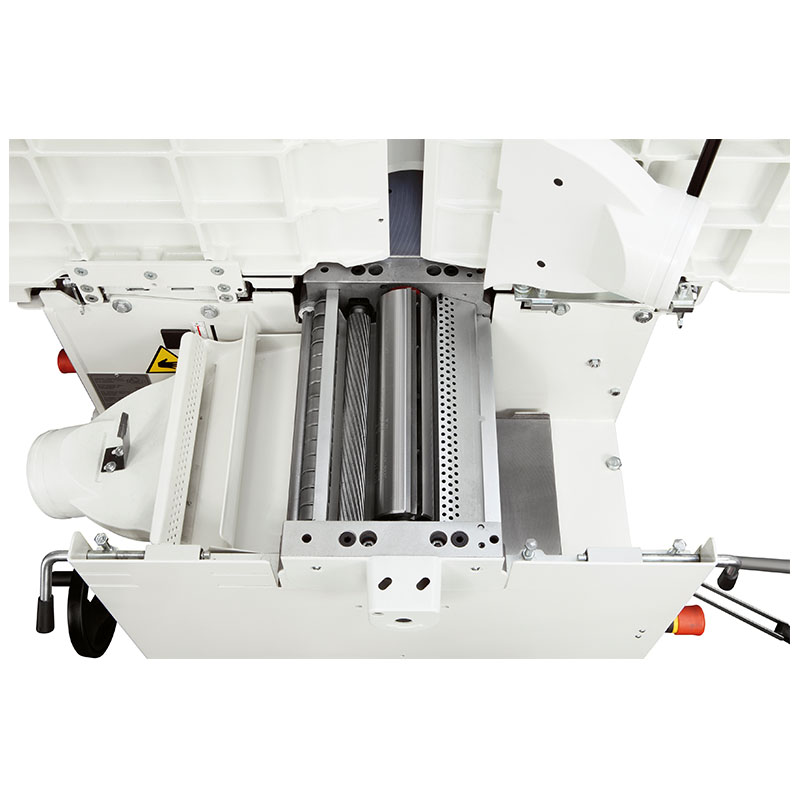

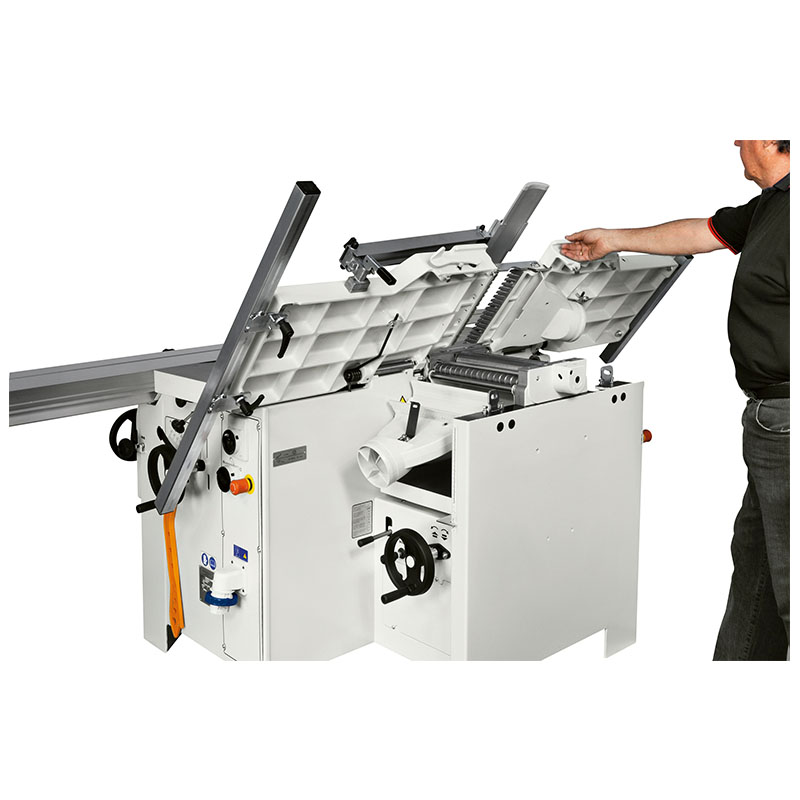

    The thicknessing table is manually adjusted, while the long 1510 mm surfacing tables open simultaneously at 90°, towards the centre of the machine. The machine features. The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

    Circular Saw

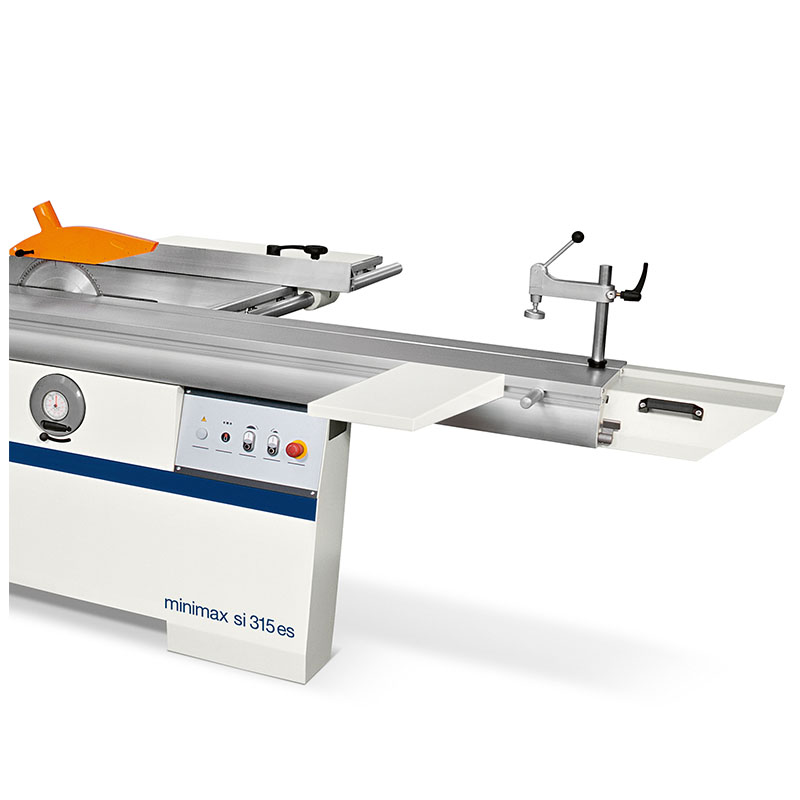

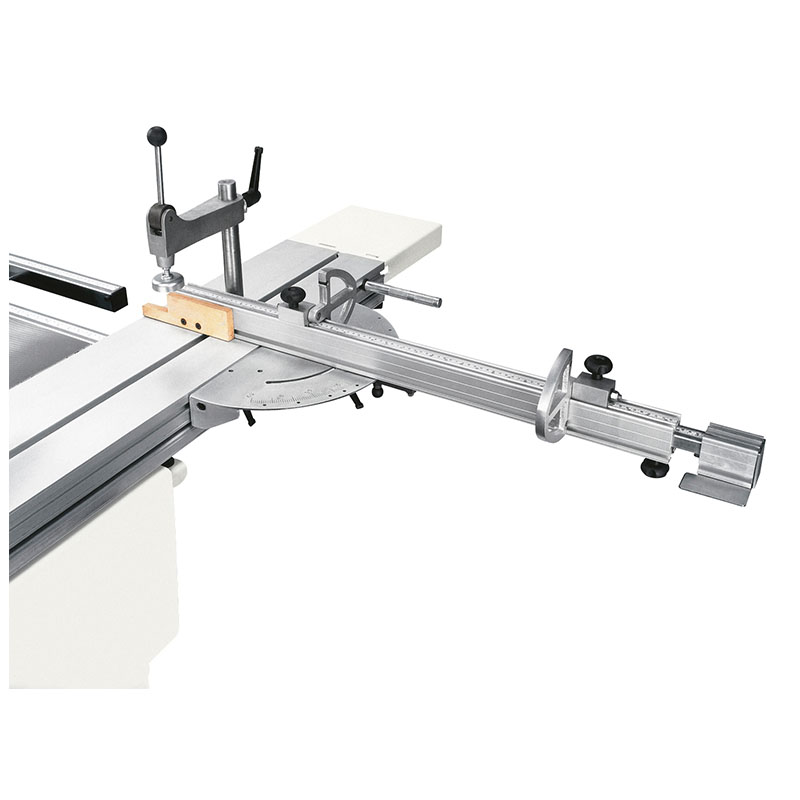

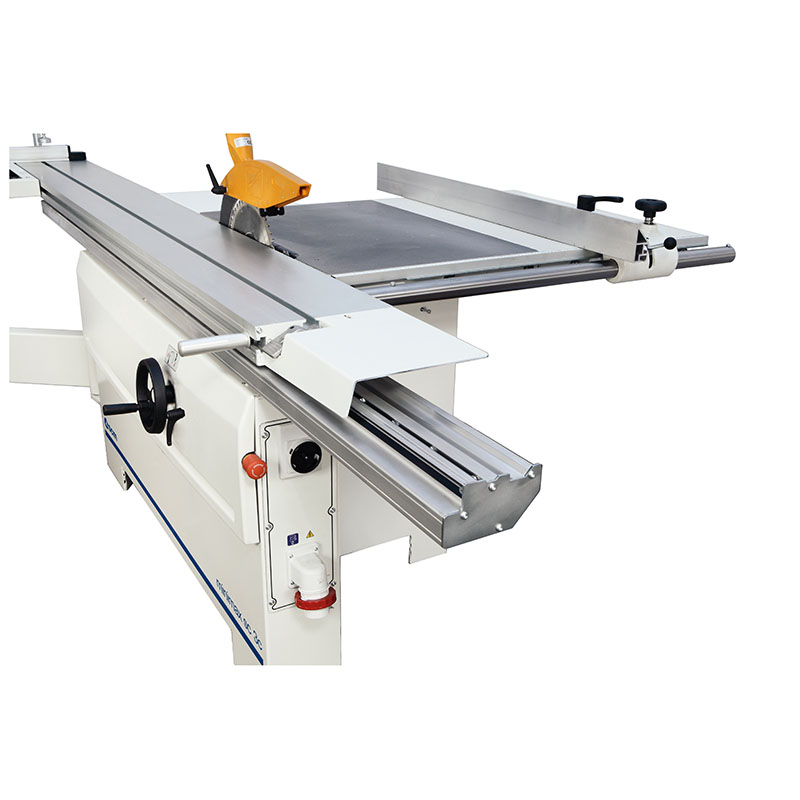

    The CU 300C features a 270 mm wide 1600 mm long aluminium sliding table. The 960 x 600 mm squaring frame includes a crosscut mitre fence with 2 flip over stops and eccentric clamp.

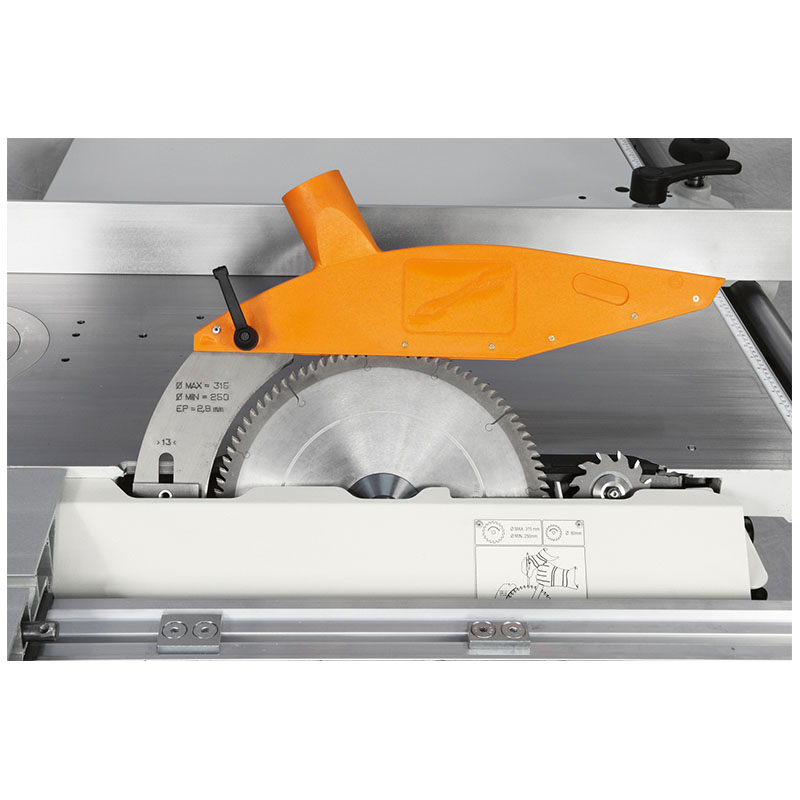

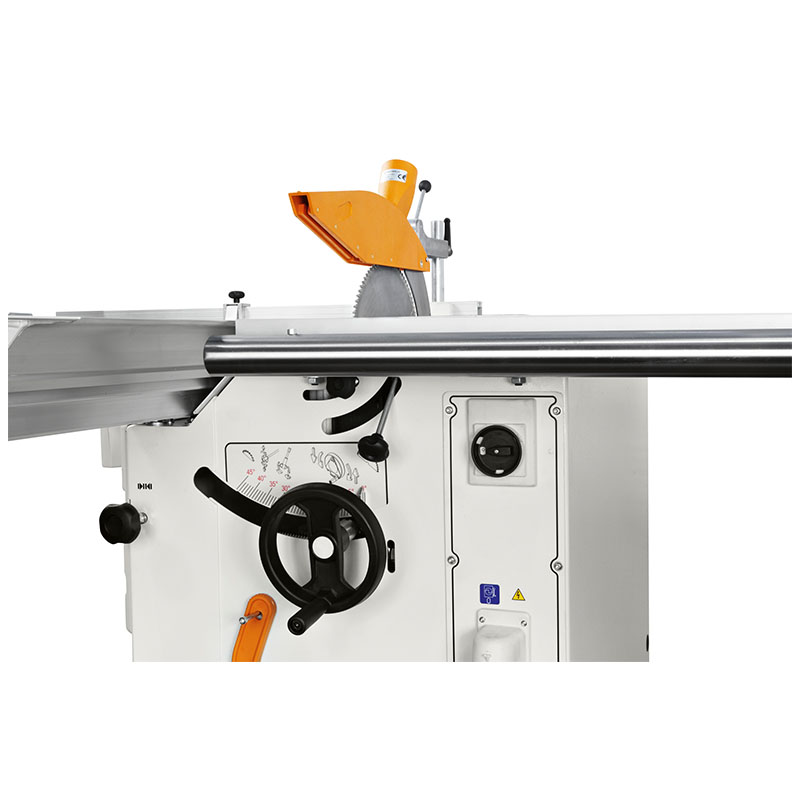

    The 315 mm maximum blade diameter with manual rise, fall and tilt adjustments has a projection of 100 mm at 90°.

    Spindle moulder

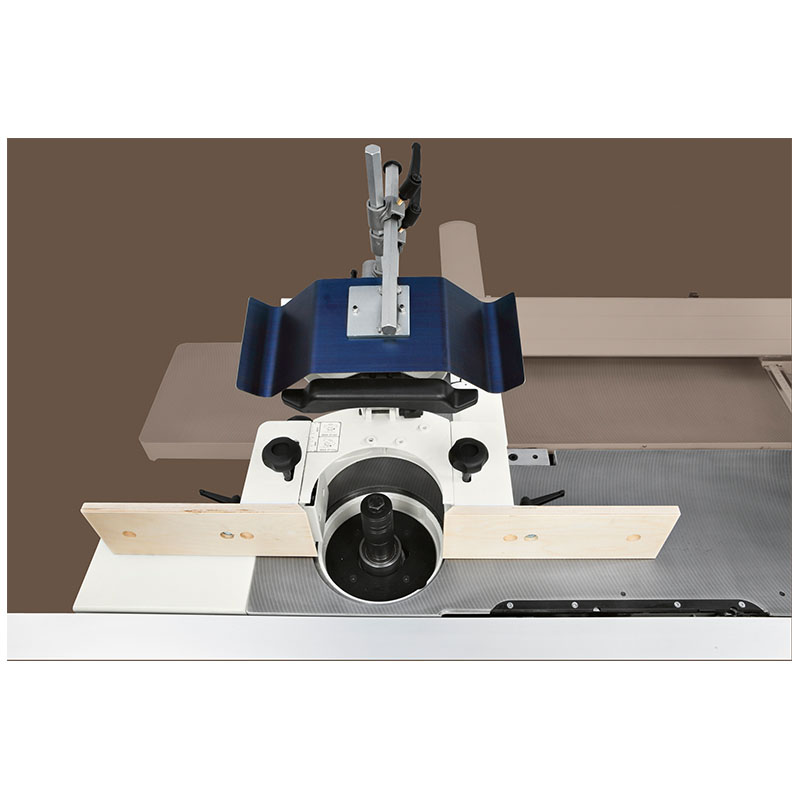

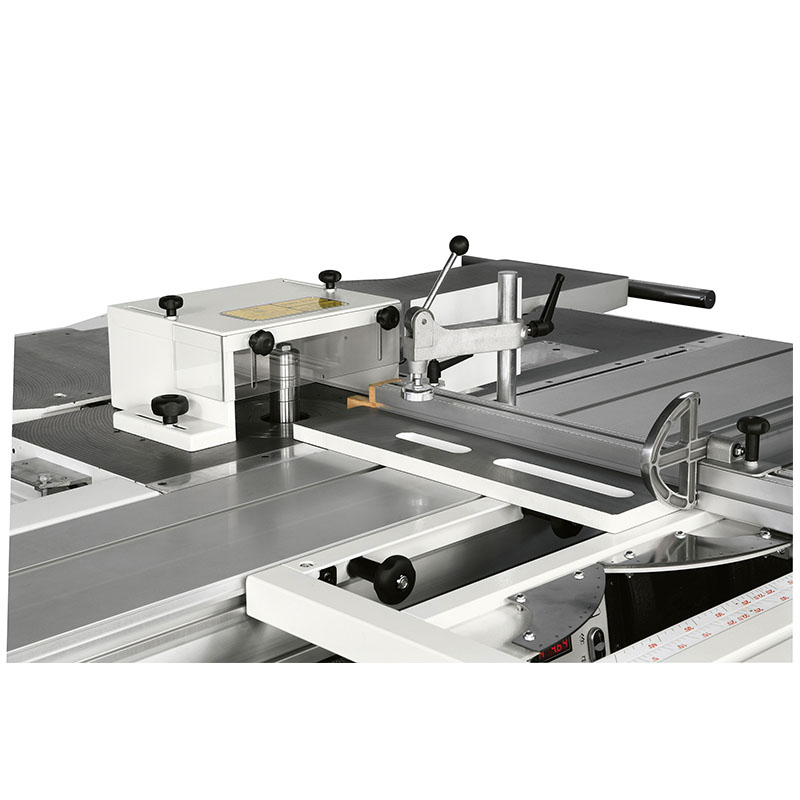

    Manual rise and fall spindle adjustment. Adjustable spindle moulder fence with micrometric adjustment, vertical and horizontal pressures.

  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 100 mm
    • Blade tilt 0 - 45°
    • Cast iron table size 1115 x 335 mm
    • Squaring stroke, max. 1600 mm
    • Rip fence capacity 820 mm
    • Rip fence adjustment Manual
    • Tool diameter, max. 210 mm
    • Tool diameter lowered under table, max. 180 mm
    • Useful spindle length, max. 100 mm
    • Spindle diameter 30 mm
    • Spindle speeds 3500/ 7000/ 10000 rpm
    • Surfacing width capacity 300 mm
    • Thicknessing depth, min. - max. 3 - 230 mm
    • Cutting depth infeed table adjustment 0 - 4 mm
    • Surfacing table length, overall 1510 mm
    • Thicknessing table length 585 mm
    • Cutterblock diameter 72 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 3
    • Feed speed(s) 7 m/min
    • Fence tilt 0 - 45°
    • Extraction outlet(s) 3 x 120 mm
    • Motor 3 x 5 kW (6.6 HP)
    • Power 3 phase
