SCM L’invincible SI 3 Blade Off

Product Information

• Features
  • Blade Off operator protection system
  • Eye-S 15" touch screen control
  • 2-axis scoring unit with automatic adjustment
  • Programmable inverter driven main blade speed
  • Squaring frame with CompeX device
  • Smart connectivity - industry 4.0 ready
  • Programmable rise/ fall/ tilt adjustment
  • Programmable rip fence movement
  • 10 year guarantee on carriage sliding system

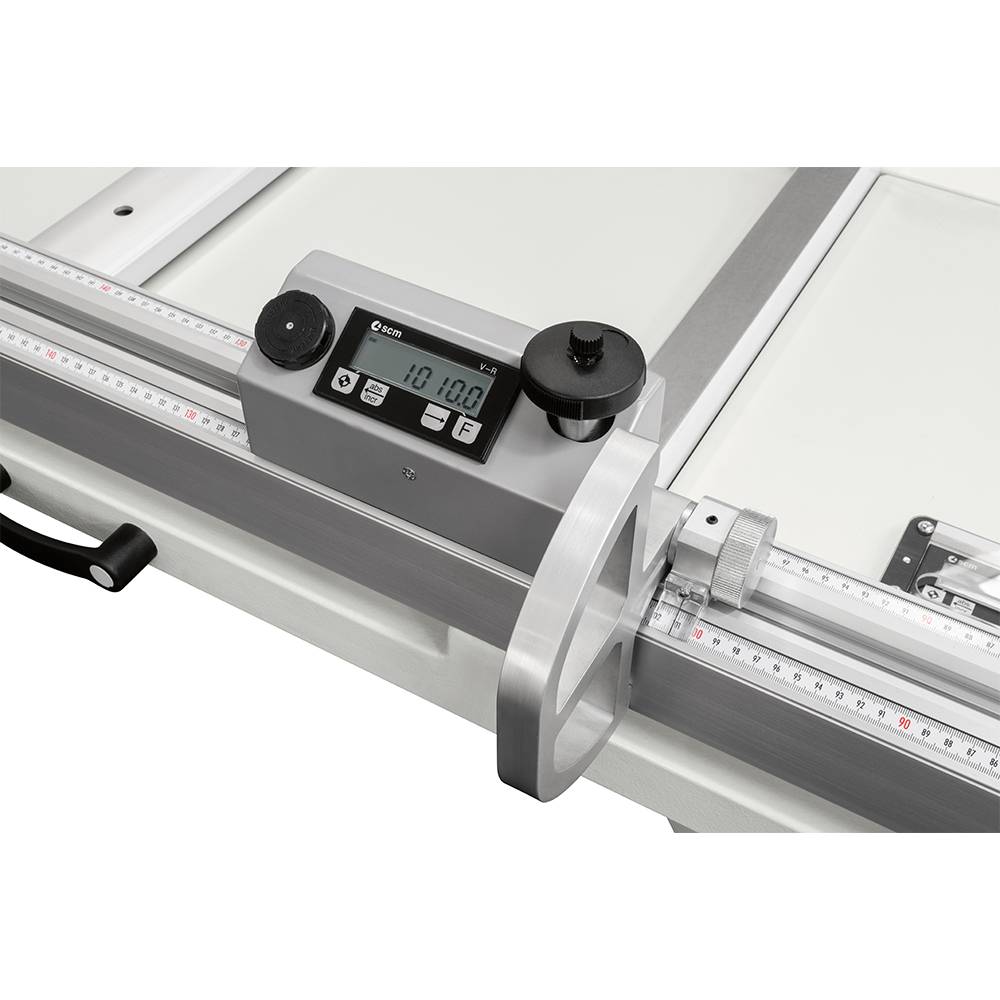

  • Optional electronic digital readout to crosscut fence positions
  • Arm support for squaring frame with sliding on ballbushing prismatic linear guides
• Description

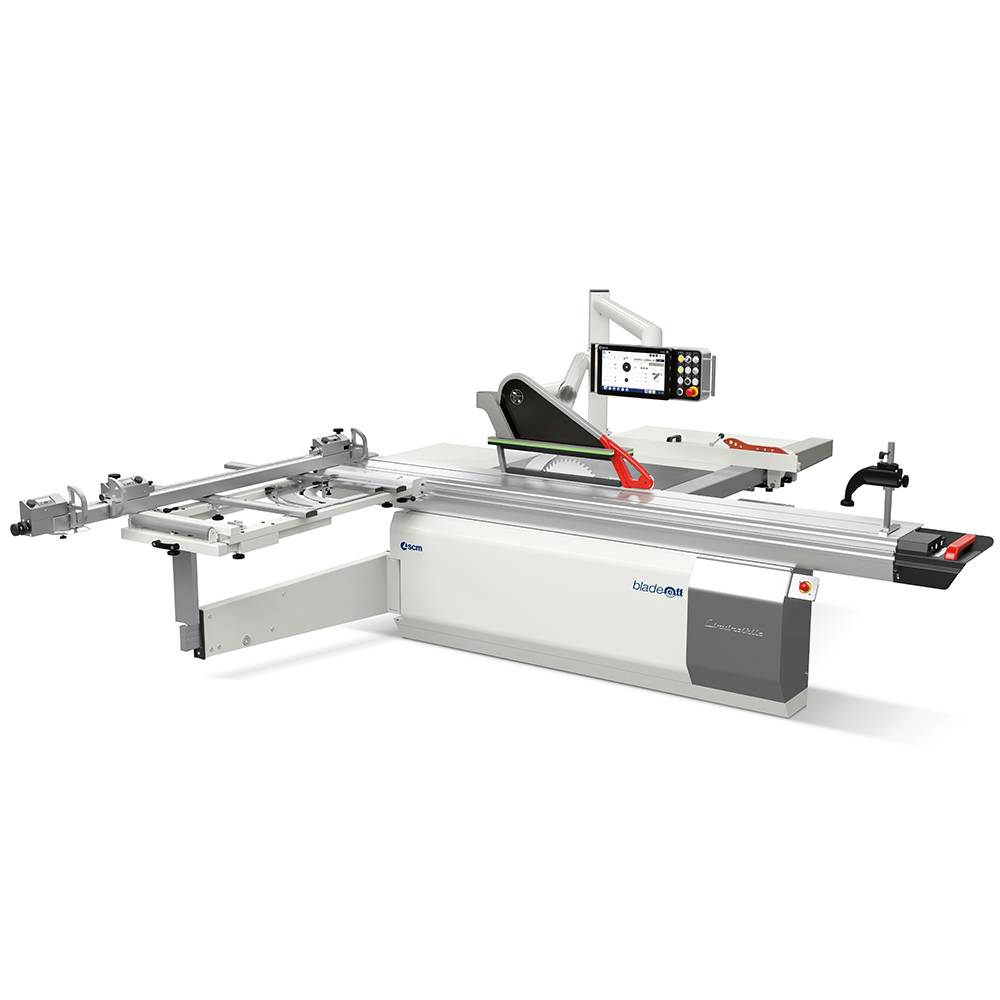

  The SCM L’invincibile SI 3 Blade Off offers more than just a woodworking solution—it provides a tailored experience, crafted with Italian creativity, technical precision, and decades of expertise. Designed for professionals who demand the best, this panel saw combines cutting-edge technology with unparalleled performance and safety.

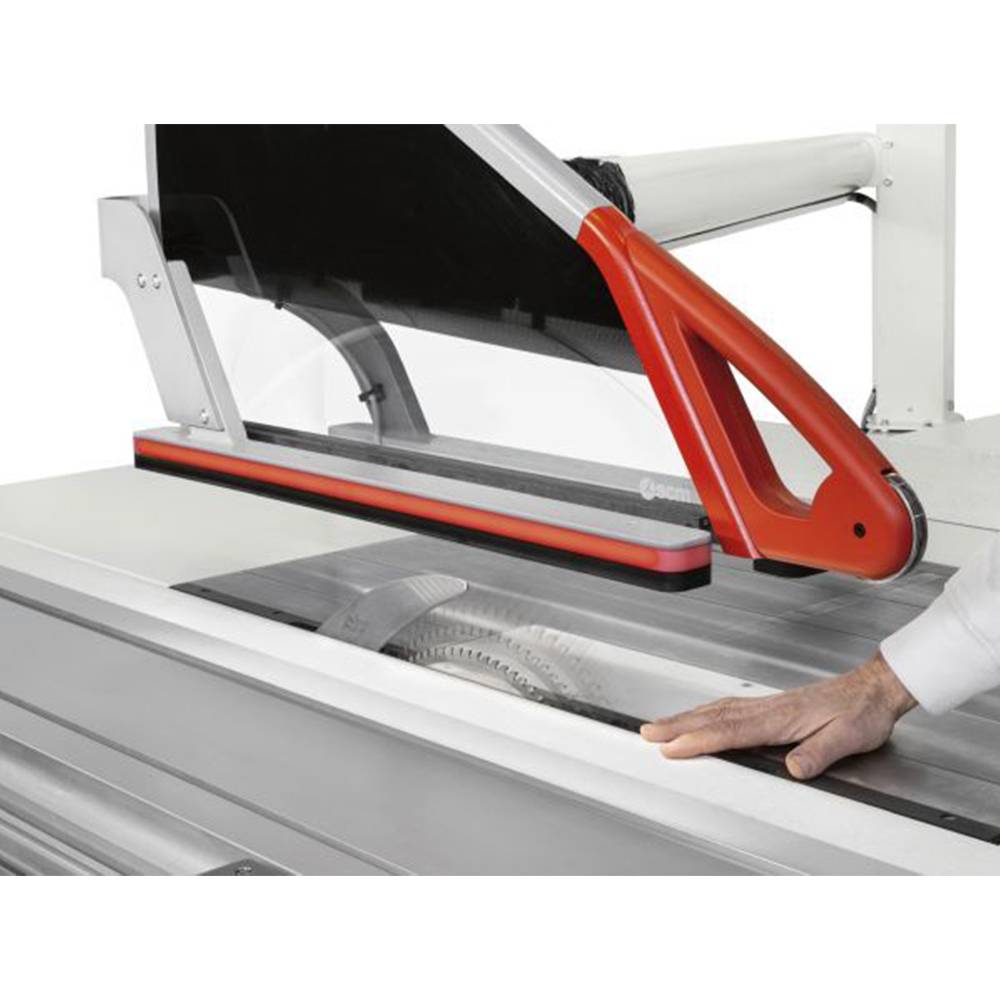

  Blade Off System:

  • Setting a new standard in safety, the Blade Off System offers advanced protection against accidental blade contact.
  • Smart Sensor Technology: Detects the presence of the human body and proactively activates before the operator enters the danger zone, ensuring continuous protection in all conditions.
  • Fast and Reliable Activation: Reacts within milliseconds to swiftly and non-destructively disengage the blade, even at high feed speeds of up to 2 m/s.
  • Seamless Reset: Rearm the system instantly without compromising the machine’s precision or performance.
  • Enhanced Safety Coverage: Intelligent sensors continuously monitor the area around the blade for all-around protection.
    With the Blade Off System, operators can work confidently, knowing safety is never compromised.

  “eye-S” Console:

  • Seamless connectivity with machines on the same network, Industry 4.0 ready.
  • Effortless sharing of work programs and tools database.
  • Real-time activity monitoring and usage reporting for optimized workflow.
  • Full compatibility with SCM Thundercut (optimizer/sequencer app).
  • Advanced self-diagnosis, tele-service, and troubleshooting tools to minimize downtime.

  Programmed Rip Fence:

  • Achieve quick and precise positioning with movement on a recirculating ball screw mechanism and sliding on linear guides.
  • Easily exclude the fence from the work area when not in use, enhancing versatility and efficiency.

  Sliding Carriage:

  • Guaranteed maximum cut quality over time, with no need for adjustment.
  • Engineered with SCM’s exclusive and patented arch-ground steel slideways, capable of supporting loads four times higher than conventional solutions.

  “eye-S” Console:

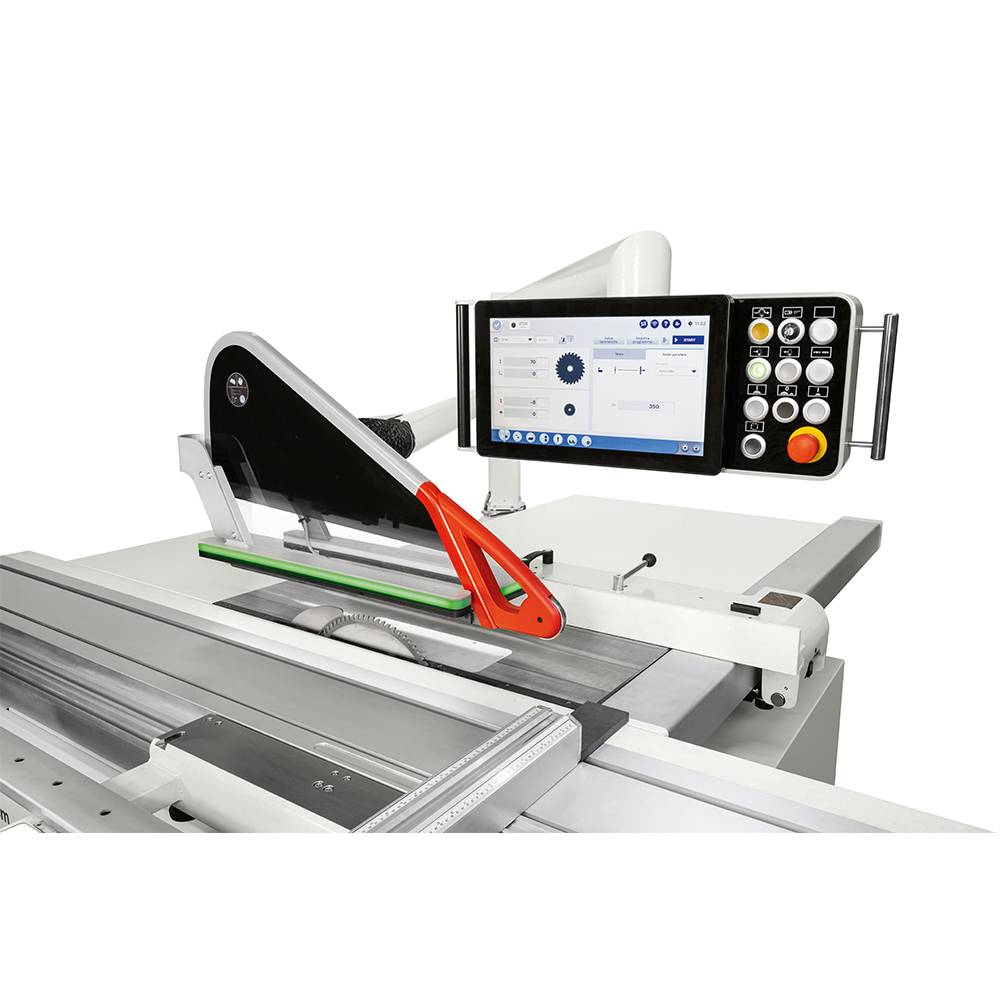

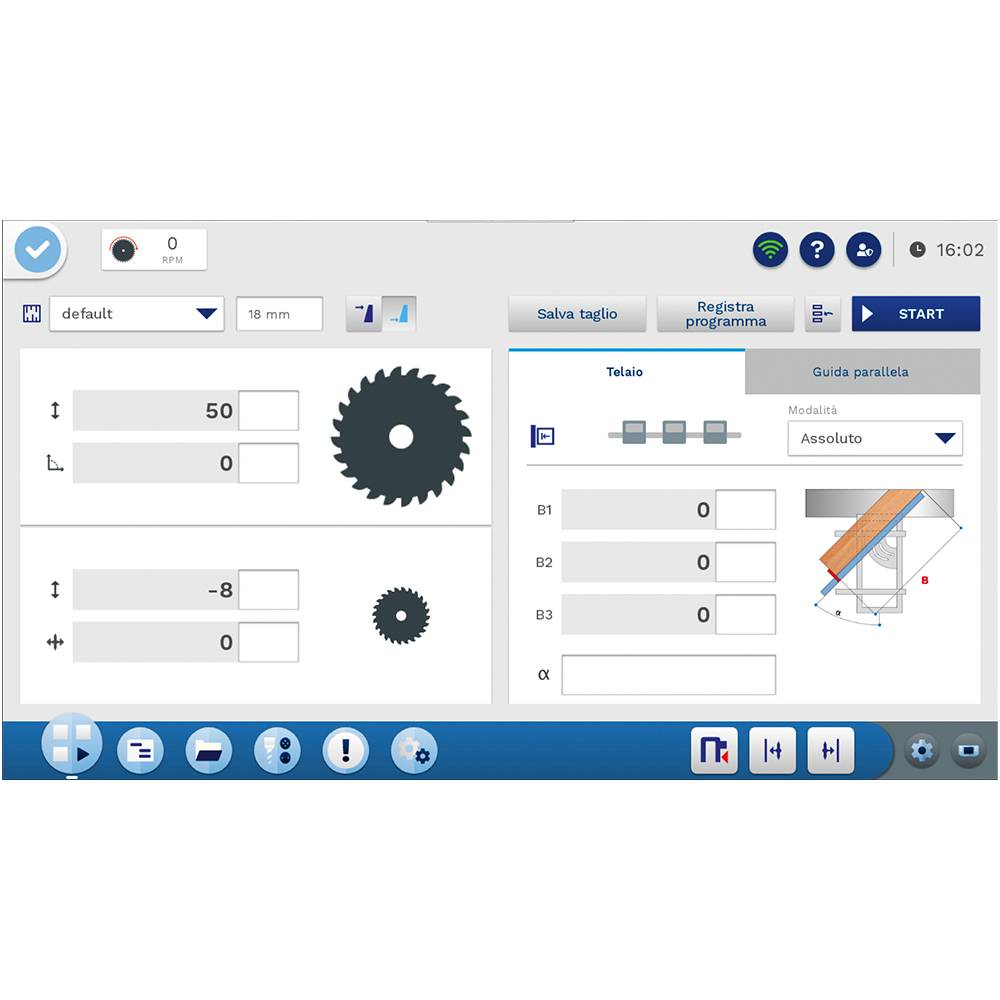

  • Take full control with the mobile control panel featuring a 15” color touchscreen display and the intuitive Maestro Active user interface.
  • Combines modern design with user-friendly functionality for an unmatched programming experience.

  Telescopic Swinging Arm:

  • Ensures smooth and fluid movement with its robust, large-dimension extrusion.
  • The squaring frame support glides effortlessly on prismatic linear guides with recirculating ball bearings, offering unparalleled precision and reliability.

  The SCM L’invincibile SI 3 Panel Saw, now equipped with the revolutionary Blade Off System, delivers the perfect balance of safety, performance, and innovation. Experience precision woodworking with complete confidence and peace of mind.

• Specification
  • Blade diameter, max. 400 mm
  • Cutting depth, max. 120 mm
  • Main blade speed Inverter driven, 3000 - 5000 rpm
  • Squaring stroke, max. 3200 mm
  • Rip fence capacity 1500 mm
  • Blade tilt 0 - 45°
  • Rip fence adjustment Powered CNC
  • Extraction outlet(s) 1 x 120, 1 x 100 mm
  • Motor 9 kW (12 HP)
  • Power 3 phase
• Literature
  • SCM Blade Off Brochure (ENGLISH) Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
