SCM Formula SR 650/ 750/ 900

Radial Arm Crosscut Saw

Full details of SCM Formula SR 650/ 750/ 900

Configure your machine

- +

more information

  • Features
    • Sliding carriage with spring return
    • Mechanical motor brake
    • Back dust collector
    • Cast-iron arm, column, pedestal and carriage
    • Interchangeable sliding ways
    • Carriage with 8 adjustable bearings
    • Column protection cover
    • Includes TCT sawblade
  • Description

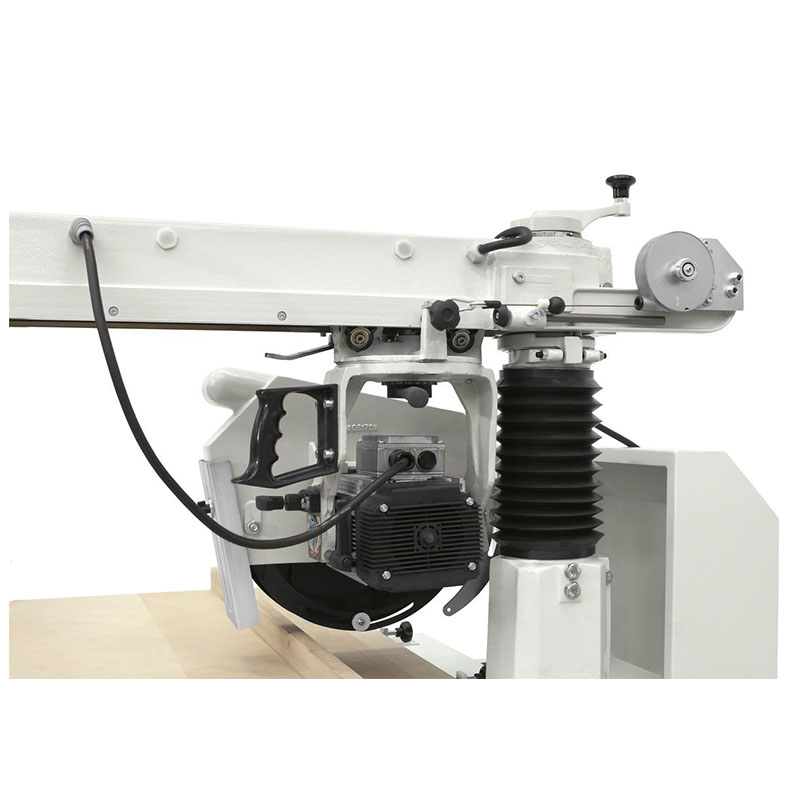

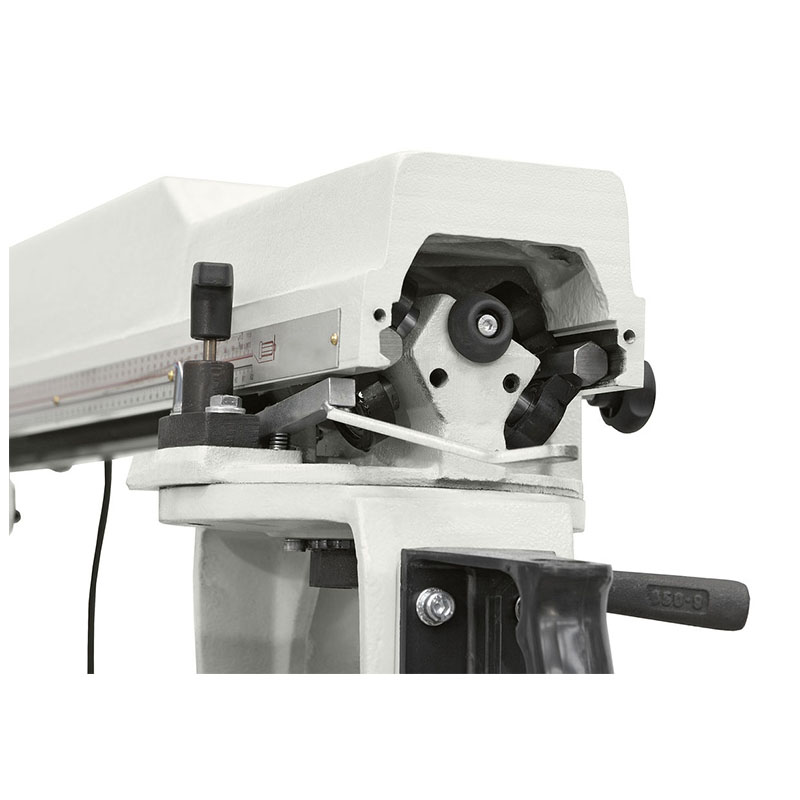

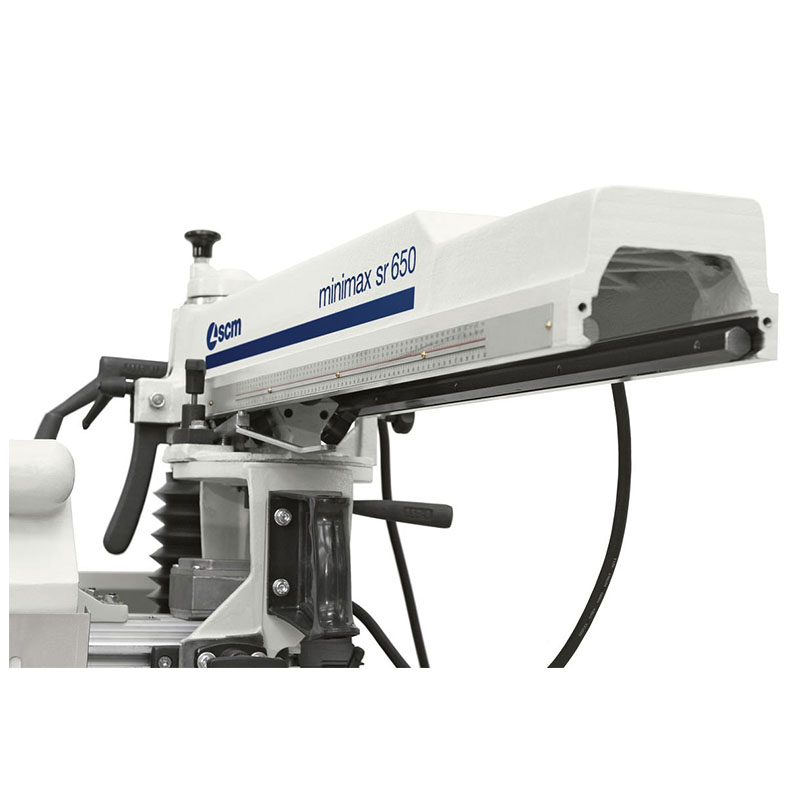

    The radial saws of the “formula” line with an heavy cast-iron structure are available with 650, 750 and 900 mm cross-cut capacity.

    Adaptability, versatility , cutting precision, easy maintenance make this product line a necessary machine for the daily use of each workshop. The cast iron structure provides the arm the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allows the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm.

    The 8 sliding bearings on the guides grant the best carriage smoothness and an optimal support for a perfect cutting result. The mechanisms of which the machine is equipped, as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time.

  • Specification
    • Blade diameter, max. 350 mm
    • Blade bore diameter 30 mm
    • Cutting depth, max. 100 mm
    • Cutting width, max. 640 mm (at 20 mm deep)
    • Horizontal radial arm swivel angle (+/-) 45°
    • Vertical head tilt angle (+/-) 45°
    • Motor 3 kW
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
