SCM Formula Clamp 2500

Universal Clamp

Full details of SCM Formula Clamp 2500

Configure your machine

- +

more information

  • Features
    • Hydraulic clamping cylinders
    • Quick and easy to set
    • Cast iron material supports
    • Simple beam positioning
  • Description

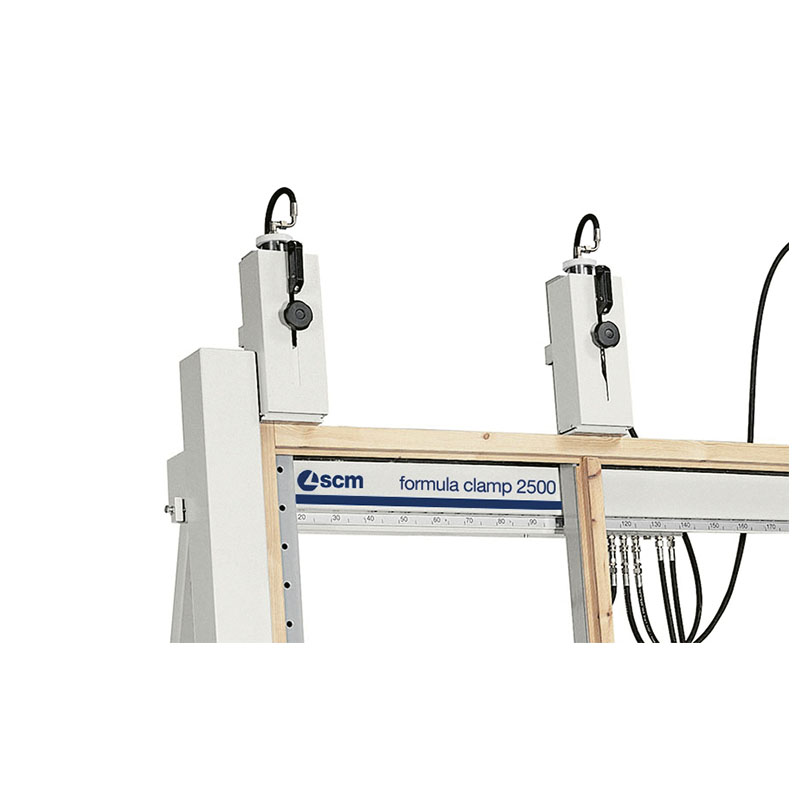

    The SCM Formula Clamp 2500 features a sturdy frame with practical positioning and adjustment control, ideal for gluing and assembly of many typical joinery products. Quick set cast iron material supports, simple vertical beam positioning with hydraulic clamping cylinders keep set up simple and efficient. The hydraulic cylinder pressure is controlled by individual levers while the control panel is equipped with a valve reading monometer and a locking cock to maintain cylinder pressure.

  • Specification
    • Working dimensions 2500 x 1800 mm
    • Stroke of vertical hydraulic cylinders 150 mm
    • Thrust of each vertical hydraulic cylinder 1270 kg
    • Stroke of horizontal hydraulic cylinders 120 mm
    • Thrust of each horizontal hydraulic cylinder 770 kg
    • Motor 0.75 kW (1 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
