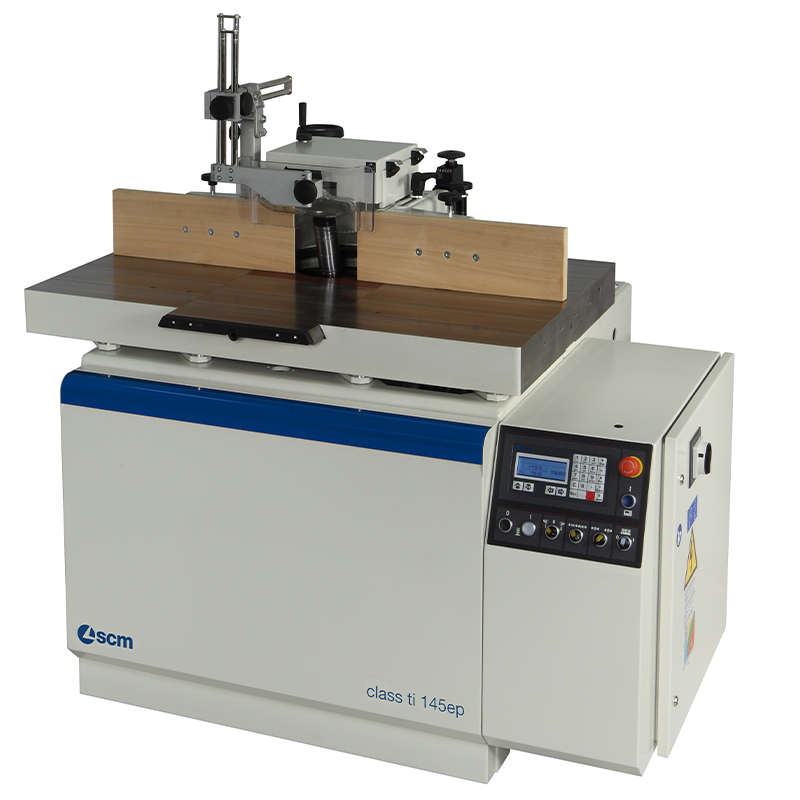

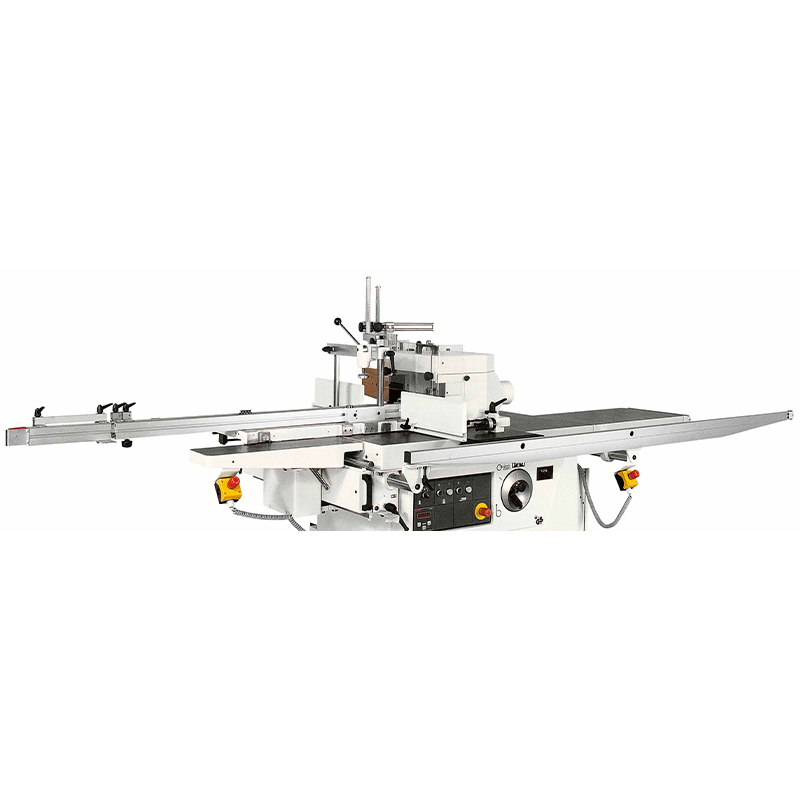

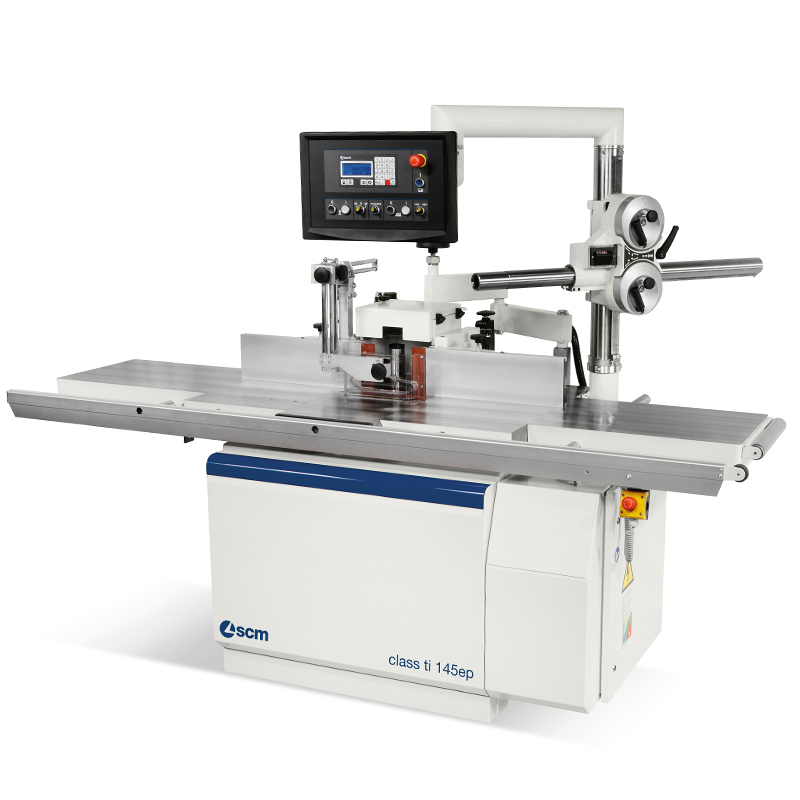

SCM Class TI 145EP

Spindle Moulder

Full details of SCM Class TI 145EP

Configure your machine

- +

more information

  • Features
    • Tilting spindle

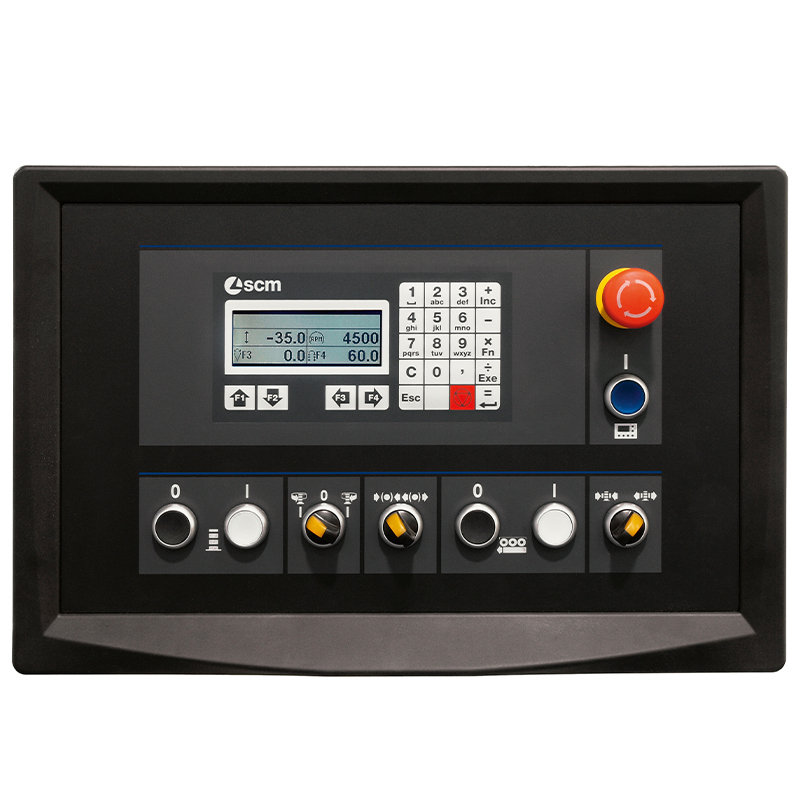

    • “READY" powered adjustment
    • Electronic digital readout for shaft height and tilt angle
    • Reverse spindle rotation
    • Five spindle speeds
    • Spindle speed readout by LEDs
    • Cast iron table and fence assembly with continuous linear adjustment
    • Automatic star-delta start
  • Description

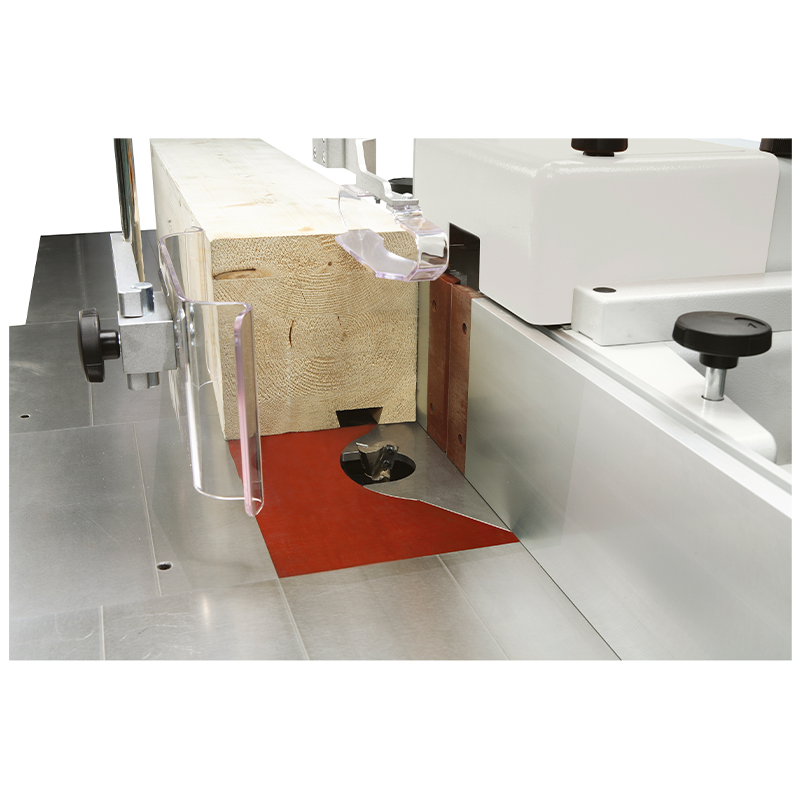

    Topping the Class range of spindle moulders from SCM is the TI 145EP featuring “Ready” powered electronic control. Programmable management of the spindle adjustment (tilt and height) allows the operator to recall up to 300 working positions. Included as standard is the “FAST” section table, replacing traditional table rings, making set up between jobs even quicker.

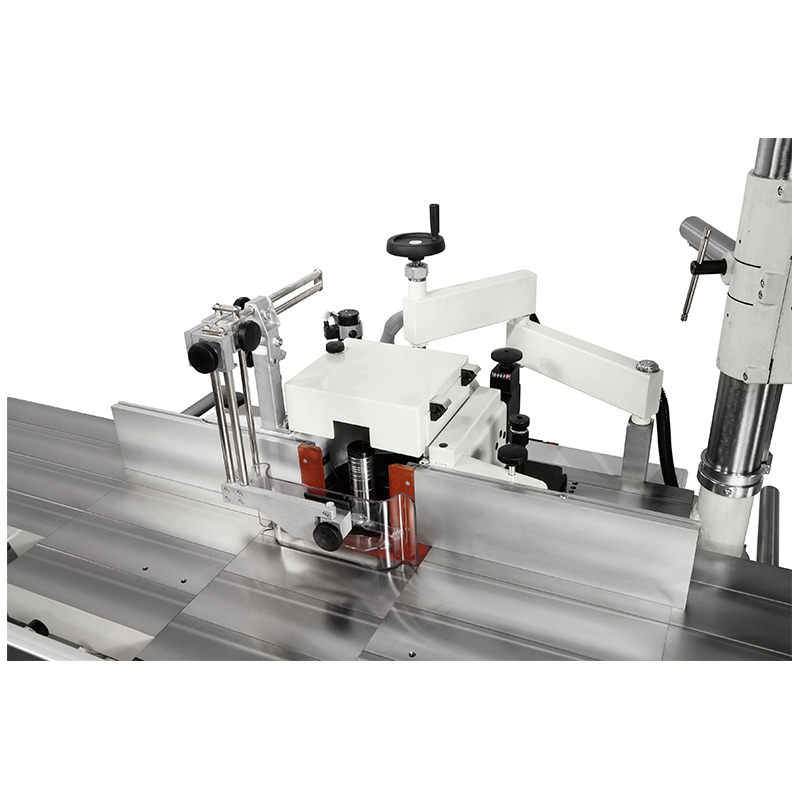

    The Class TI 145EP features an MK5 interchangeable spindle with rapid “T-SET” locking as standard. Also included is a mechanically adjusted fence as standard with continuous linear adjustment by handwheels accessible from the front of the machine including;

    • adjustment of entire fence in respect of tool
    • adjustment of entry fence for thick removal
    • mechanical readout for the adjustment
    • wooden tables and connecting plate
    • 250 mm max. tool diameter
  • Specification
    • Tool diameter lowered under table 300 x 43 mm
    • Spindle shaft height 140 mm
    • Spindle diameter 30 mm
    • Spindle tilt +45°/ - 45°
    • Spindle speeds 3000/ 4500/ 6000/ 7000/ 10000 rpm
    • Worktable dimension 1200 x 780 mm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
