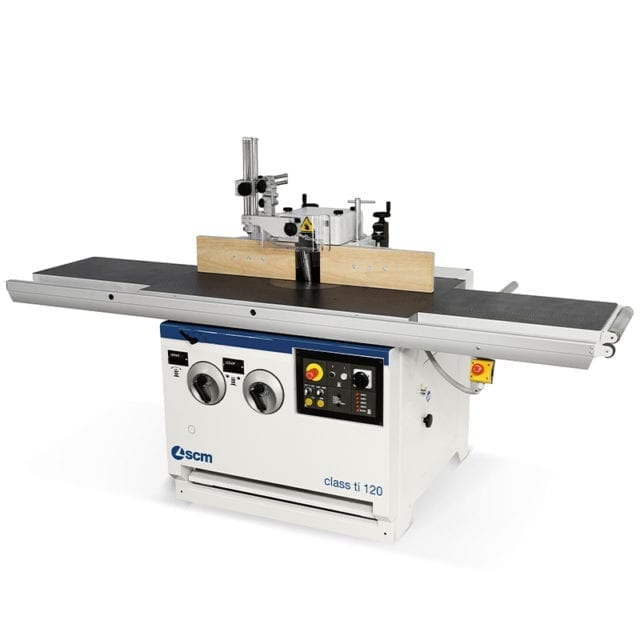

SCM Class TI 120

Spindle Moudler

Full details of SCM Class TI 120

Configure your machine

- +

more information

  • Features

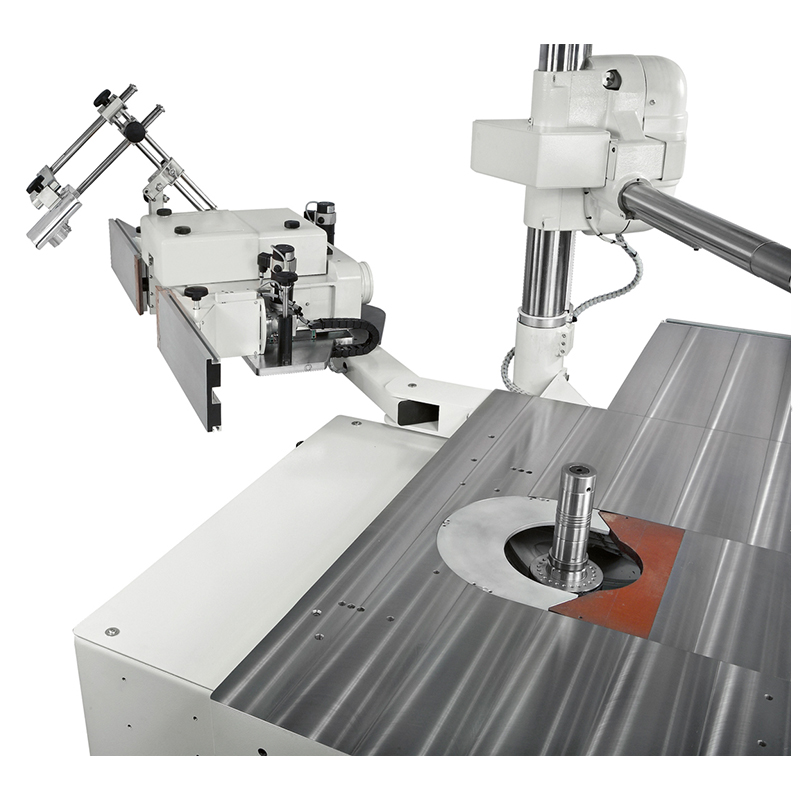

    • Tilting spindle
    • Manual rise, fall and tilt adjustment
    • Mechanical digital readout for shaft height and tilt angle
    • Reverse spindle rotation
    • Five spindle speeds
    • Spindle speed readout by LEDs

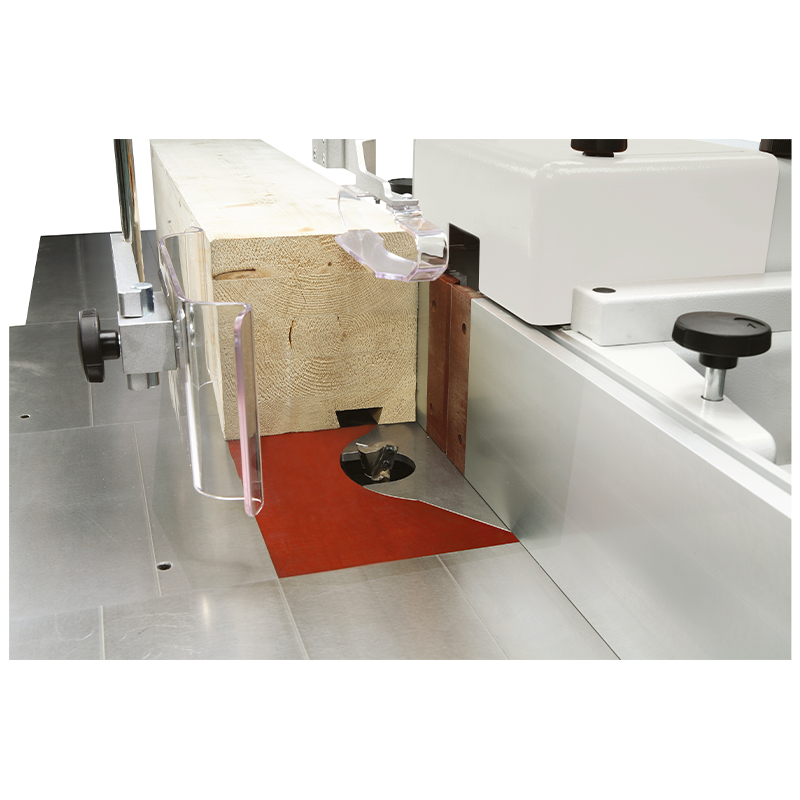

    • Cast iron table and fence assembly with continuous linear adjustment
    • Automatic star-delta start
  • Description

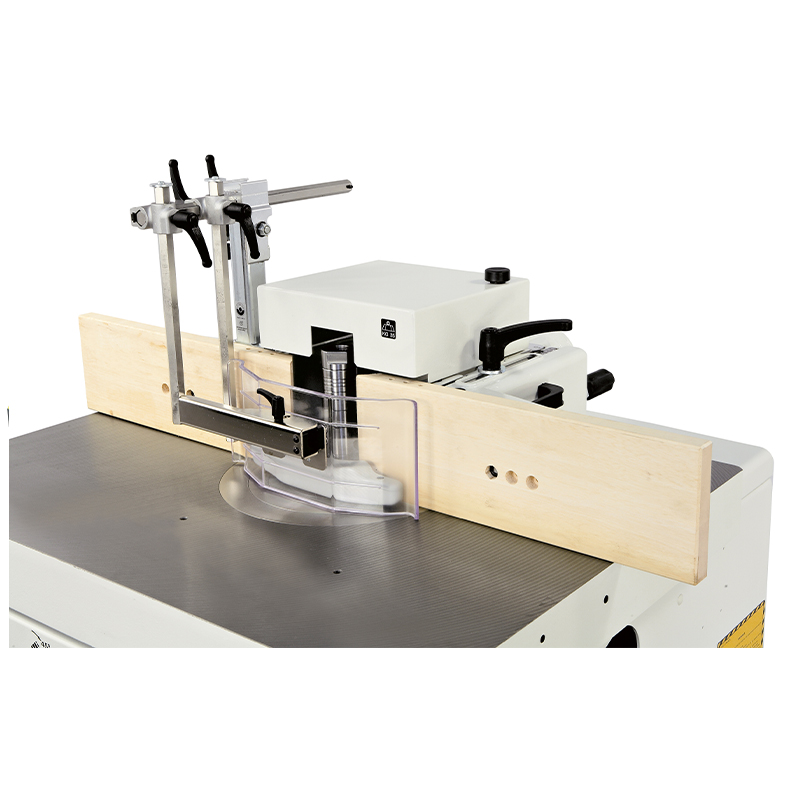

    If you are looking for a simple yet robust manually operated tilting spindle moulder then look no further than the SCM Class TI 120. Spindle setting is made using the ergonomically positioned twin hand wheels each with its own mechanical digital readout for setting the shaft height and angle. The adjustable fence has wooden tables as standard complete with extraction hood (max. tool diameter 250 mm).

    Optional “TL” tenoning attachments and “LL” proofing extensions are also available to tailor the machine to your production requirements.

  • Specification
    • Tool diameter lowered under table 320 x 60 mm
    • Spindle shaft height 140 mm
    • Spindle diameter 30 mm
    • Spindle tilt +45°/ - 45°
    • Spindle speeds 3000/ 4500/ 6000/ 7000/ 10000 rpm
    • Worktable dimension 1200 x 810 mm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 5 kW (6.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
