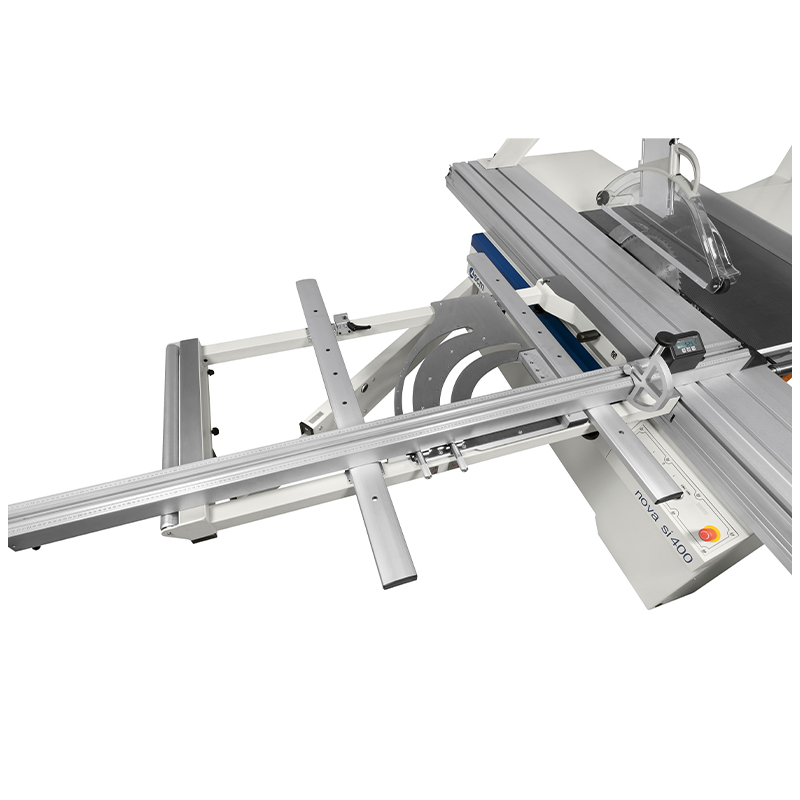

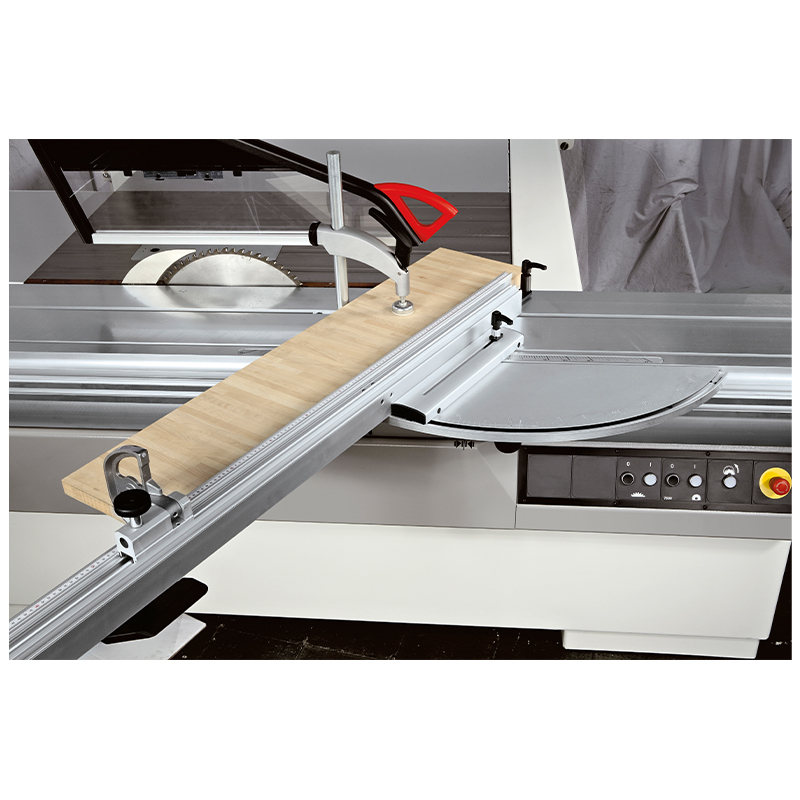

SCM Class SI 400EP

Sliding Table Panel Saw

Full details of SCM Class SI 400EP

Configure your machine

- +

more information

  • Features
    • Powered rise/ fall/ tilt adjustment
    • “READY” electronic control
    • Scoring saw unit
    • 10 year guarantee on carriage sliding system
    • Dedicated rip fence complete with metric scale cast iron fence support, micrometric adjustment
    • Optional electronic digital readout to rip fence and crosscut fence stops
    • Option for powered programmable rip fence movement with or without eye-level control panel
  • Description

    “READY” electronic control is at the heart of the SCM Class SI 400EP panel saw giving the operator programmable adjustment of the rise, fall and tilt adjustments. Once set the “READY” system allows each parameter to be stored as a program for easy recall of repeat jobs.

    As standard the machine is fitted with an independent scoring saw unit powered by a 1.3 kW motor, with external set up and stops for quick repositioning of the blade. The main saw motor is 7 kW, perfect for panel processing and solid timber dimensioning.

    Powered rip fence movement is available with the “READY 3” option, which includes handy start/ stop buttons on the sliding table.

    Topping the range of operator controls is the “EASY 2 UP PLUS” option; eye-level 7” colour touch screen control panel, powered rip fence movement. Add the optional 2 axis scoring unit option for complete programmable adjustment of all machine functions – all you need to do is push the panel through.

  • Specification
    • Blade diameter, max. 400 mm
    • Cutting depth, max. 140 mm
    • Squaring stroke, max. 3200 mm
    • Rip fence capacity 1270 mm
    • Blade tilt 0 - 45°
    • Rip fence adjustment Manual/ powered
    • Extraction outlet(s) 1 x 120, 1 x 100 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
