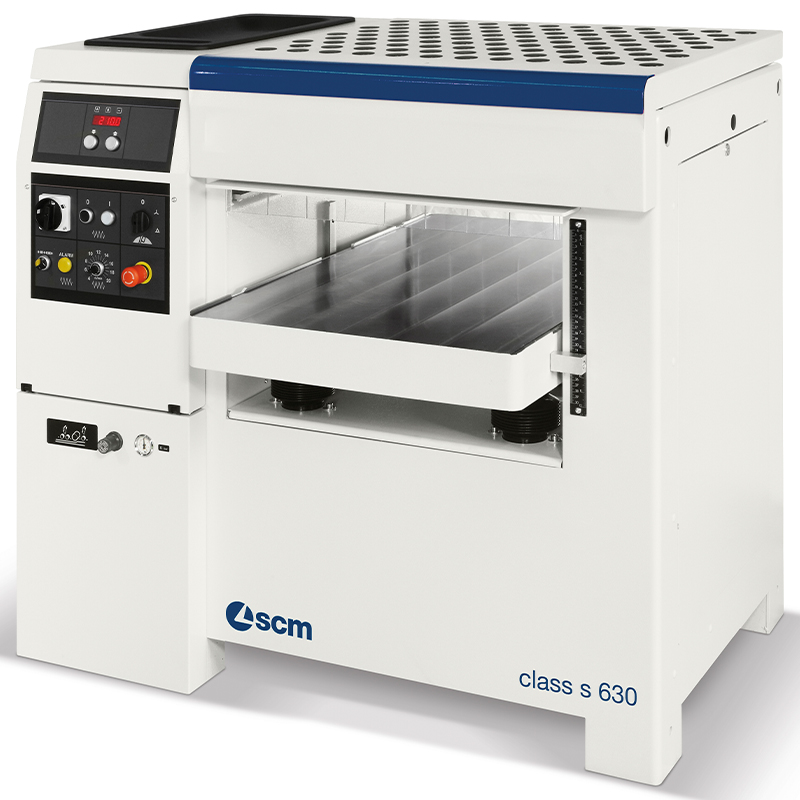

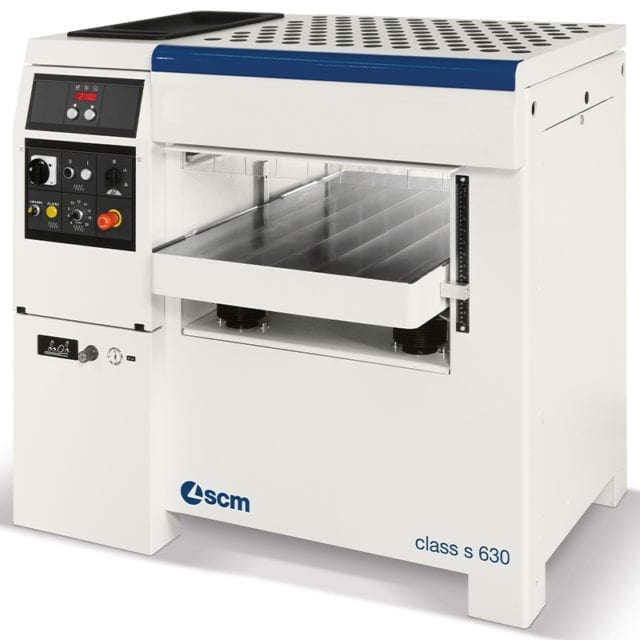

SCM Class S 630

Thicknesser

Full details of SCM Class S 630

Configure your machine

- +

more information

  • Features
    • Infinitely variable feed speed
    • Two speed powered table adjustment
    • Electronic digital readouts
    • Micrometric adjustment
    • Choice of HSS, TERSA or XYLENT cutter blocks
  • Description

    Wide capacity heavy duty thicknessing demands can be easily met with the SCM Class S 630. The wide 630 mm capacity is supported by a cast iron thicknessing table with two speed powered movement. Precise adjustment is achieved with the electronic digital readout and micrometric adjustment.

    For ultimate control the Class S 630 thicknesser features infinitely variable feed speed between 4 and 20 m/min. Two rubber covered outfeed rollers ensure planed timber is passed through unharmed.

    For more heavy duty applications consider the optional idle table rollers, increased motor power, pneumatic pressure adjustment and XYLENT cutter block.

  • Specification
    • Surfacing width capacity 630 mm
    • Thicknessing capacity 3.5 - 300 mm
    • Working length, min. 260 mm
    • Thicknessing table length 1000 mm
    • Cutterblock diameter 120 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Feed speed(s) 4 - 20 m/min
    • Extraction outlet(s) 1 x 150 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
