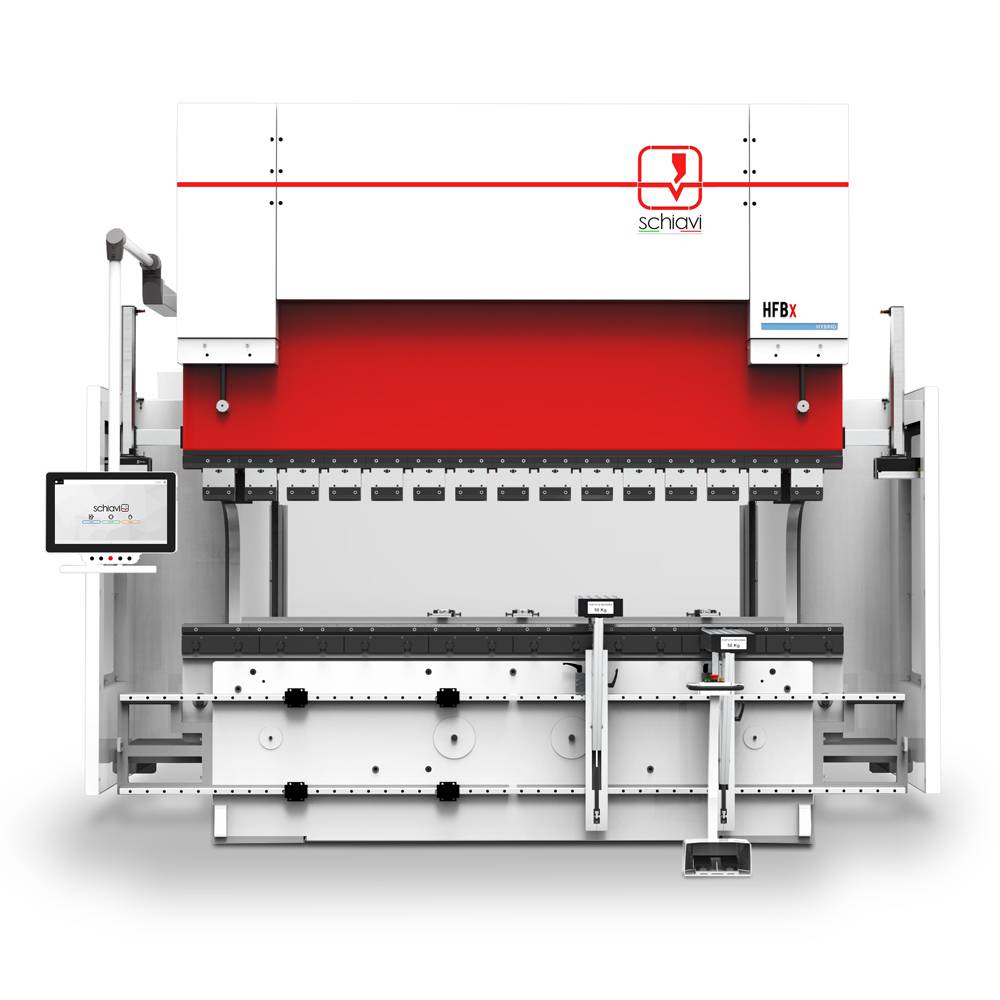

Schiavi HFBX Hybrid

Product Information

• Features
  • Bending force up to 2200 kN, stroke up to 500 mm
  • Wide daylight opening for deep parts and tooling clearance
  • Patented table compensation for flawless bends
  • Up to 10 programmable axes for full control
  • Automation-ready with robotic integration options
  • Ideal for automated and complex component fabrication
• Description

  The Schiavi HFBX Series delivers a perfect balance of power, precision, and flexibility, making it the ideal solution for manufacturers seeking automated performance and reliable output in medium-to-high volume production.

  With bending forces from 1300 kN to 2200 kN and generous daylight and stroke dimensions, the HFBX is engineered to handle deep box components, complex profiles, and thick materials with ease. Its design features a composite lower table with automatic deformation compensation, ensuring perfect parallelism and consistently accurate results — even under high loads.

  Thanks to high-speed approach (up to 250 mm/s) and large daylight openings (up to 1000 mm optional), the HFBX is built for productivity without compromising on detail. It’s also designed with automation in mind, offering seamless integration with robotic systems, sheet handling devices, and Schiavi’s proprietary Task software platform.

• Specification
  • Bending force 1300 to 2200 kN
  • Table length 3140 to 4280 mm
  • Throat depth 420 to 520 mm
  • Max. stroke 500 mm
  • Max. daylight between tables 800 mm
  • No. of intermediates 15 to 21
  • Approach speed Up to 240 mm/s
  • Power 13.5 to 24 kW
• Literature
  • Schiavi Press Brake Brochure (2025) Download
  • Schiavi Press Brake Tooling Brochure (2025) Download
