Salvador SuperUp

Semi-Automatic Crosscut Saw

Full details of Salvador SuperUp

Configure your machine

Choose a table with flat top or with galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Choose a table with flat top or with galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Minimum distance between first stop and blade 70 mm, minimum distance between two stops 60 mm

Minimum distance between first stop and blade 70 mm, minimum distance between two stops 60 mm

- +

more information

  • Features
    • 'Up-stroke' saw movement
    • Upper controls for pneumatic regulation of saw stroke speed
    • Optional retracting front saw guard for ergonomic working
    • Two handed safe operation
    • Heavy duty construction
    • Compact footprint
    • High powered saw unit for clean crosscutting
    • Pneumatic pressure beam
    • Choice of infeed/ outfeed table lengths
    • Manual and pneumatic stop options
    • Includes TCT sawblade
  • Description

    New for 2021, the all-new SuperUp semi-automatic crosscut replaces the previous generation of Salvador Classic saws. The working principle of the machine remains the same with safe two-handed operator control, but the overall design is now stronger with improved accessibility for maintenance and blade changing.

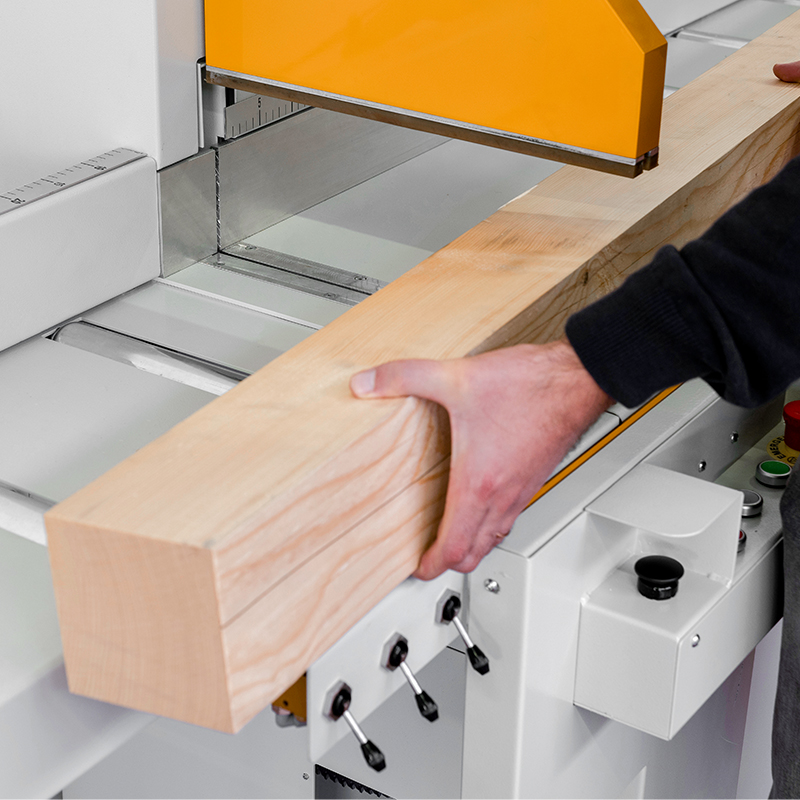

    The new SuperUp model now offers an optional automatic retracting front protection guard, allowing operators to front load the machine across the saw-line without having to manoeuvre the entire length of the workpiece onto the infeed table. This allows the machine to be specified with shorter infeed/ outfeed tables for accommodation is smaller workshops without compromising capacity.

    Pneumatic controls for regulation of the saw stroke are now conveniently located above the machine bed making adjustment for varying material types/ thicknesses simple. The added strength of the machine enables sawing capacities to be increased with blades sizes of 500 and 550 mm available. For even more capacity take a look at the Salvador SuperUp 600 with 600mm diameter sawblade.

    Infeed and outfeed tables can be specified in any length with a choice of manual and pneumatically operated flip down stops. If you looking for added productivity the SuperPush 150 provides a fully programmable optimising stop system.

  • Specification

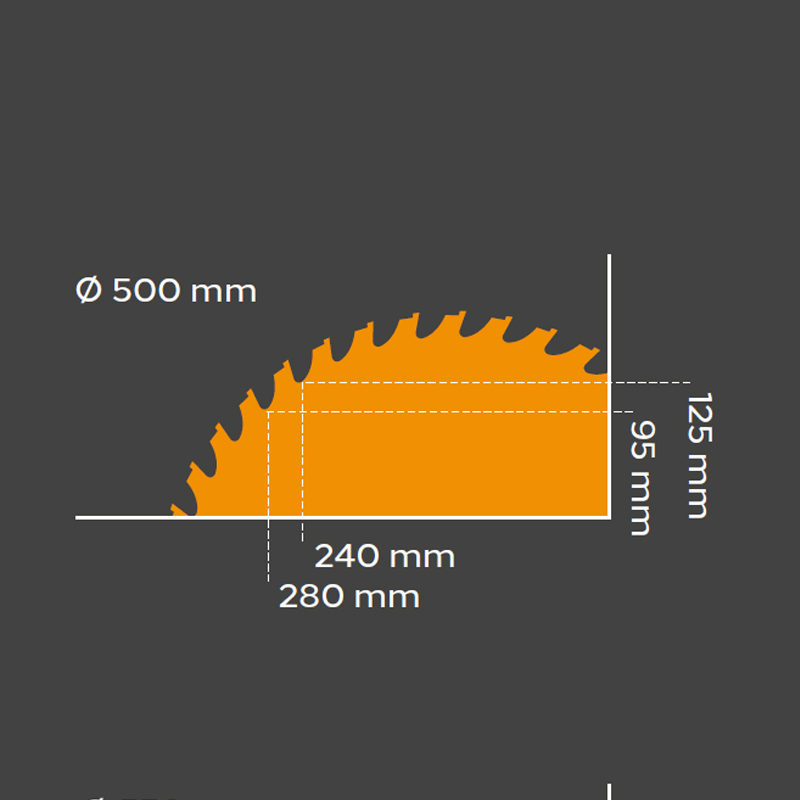

    • Blade diameter, max. 500/ 550 mm
    • Cutting depth, max. 125/ 150 mm
    • Cutting width, max. 280/ 310 mm
    • Blade speed 2800 rpm
    • Extraction outlet(s) 1 x 120 mm, 1 x 100 mm
    • Compressed air 6 - 8 bar
    • Working height 900 mm (+/- 20 mm)
    • Motor Varies on model
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
