Salvador SuperStop

Product Information

• Features
  • Compatible with any crosscut saw
  • Programmable stop/pusher modes
  • 7-inch touchscreen control
  • USB port for cutting list imports
  • Optional automatic label printer
  • Reinforced steel structure
  • Aluminium plate, ball bearings
  • Brushless torque motor
  • Robust belt transmission
  • Adjustable speed (30 m/min)
  • Ergonomic start button
  • Vibration-resistant electrical box
  • Lengths: 3100mm, 4100mm, 5100mm, 6100mm
• Description

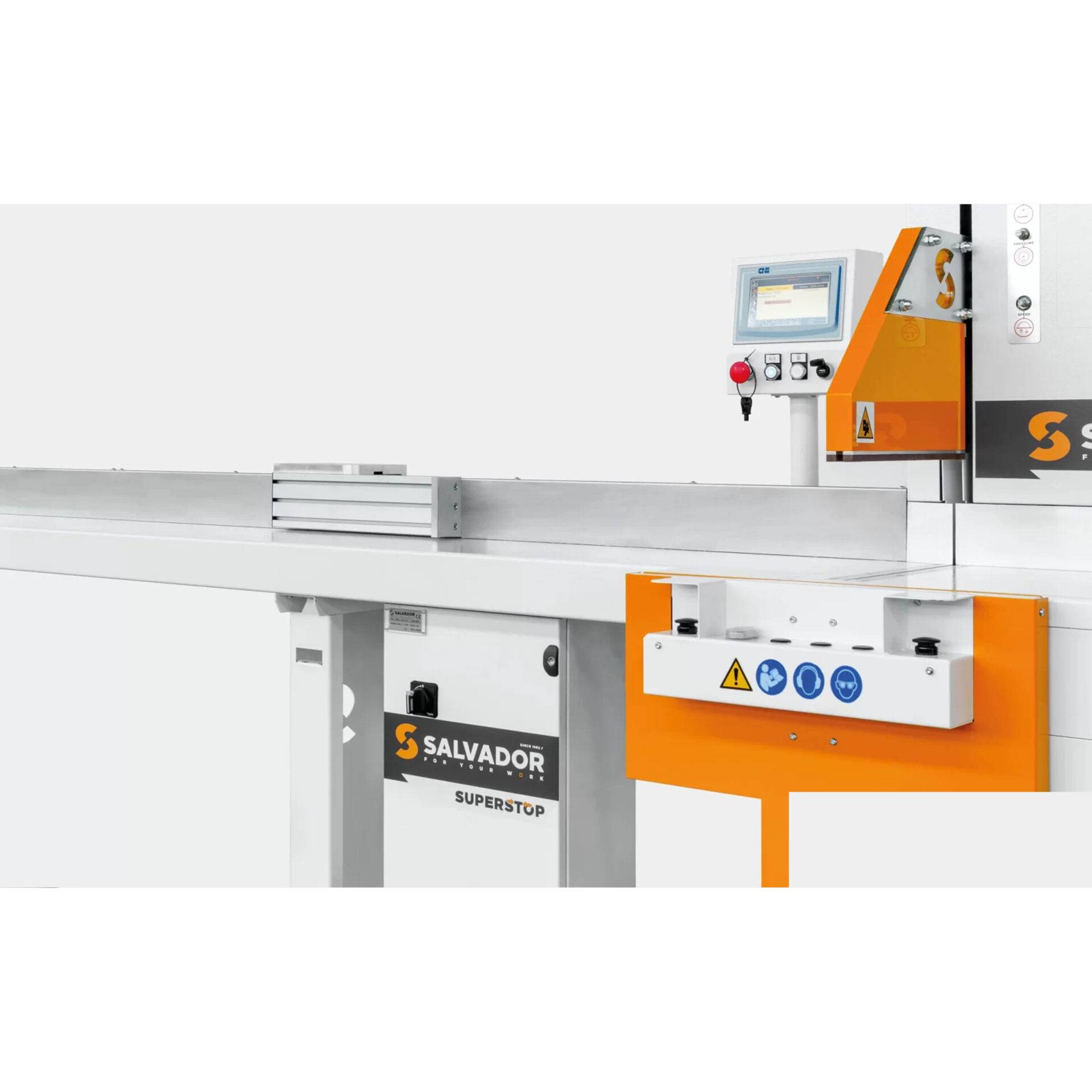

  The Salvador SuperStop is a versatile, programmable automatic stop system designed to significantly enhance productivity and accuracy in crosscutting operations. Compatible with the Salvador SuperUp semi-automatic range of crosscut saws and easily adaptable as a standalone solution for traditional radial arm crosscut saws, the SuperStop delivers precision, flexibility, and ease of use.

  Key Features:

  • Flexible Modes: Operates seamlessly in both stop and pusher modes. In stop mode, quickly and accurately position material for manual cutting. In pusher mode, automatically advance material through programmed cutting sequences, optimising workflow and accuracy.

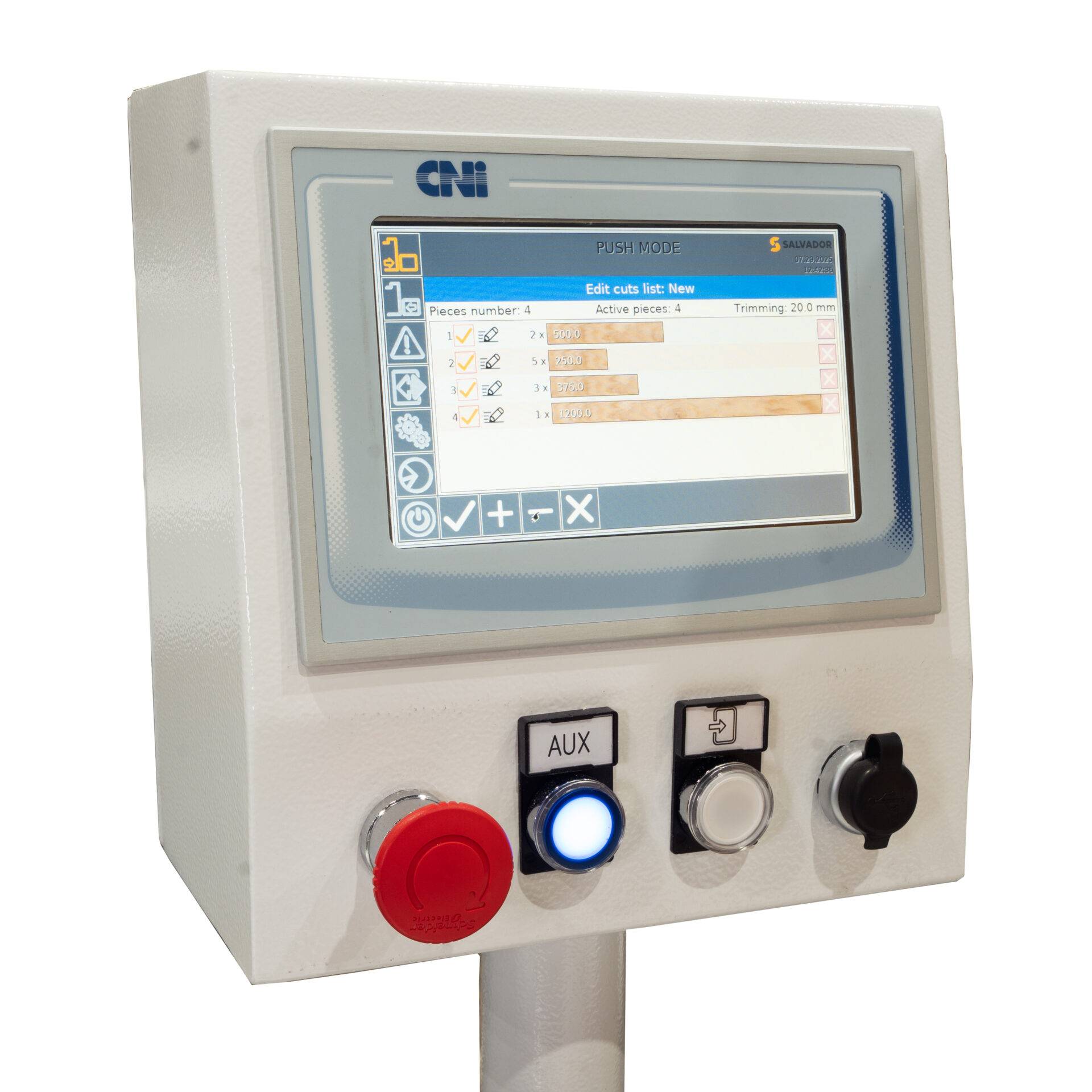

  • Advanced Technology: Equipped with a user-friendly 7-inch colour touchscreen control panel, operators can effortlessly manage cutting lists, recall dimensions, and monitor progress. The integrated USB port enables easy importing of cutting lists, even from CAD software such as Cabinet Vision, while an optional printer can automate labelling of finished parts.

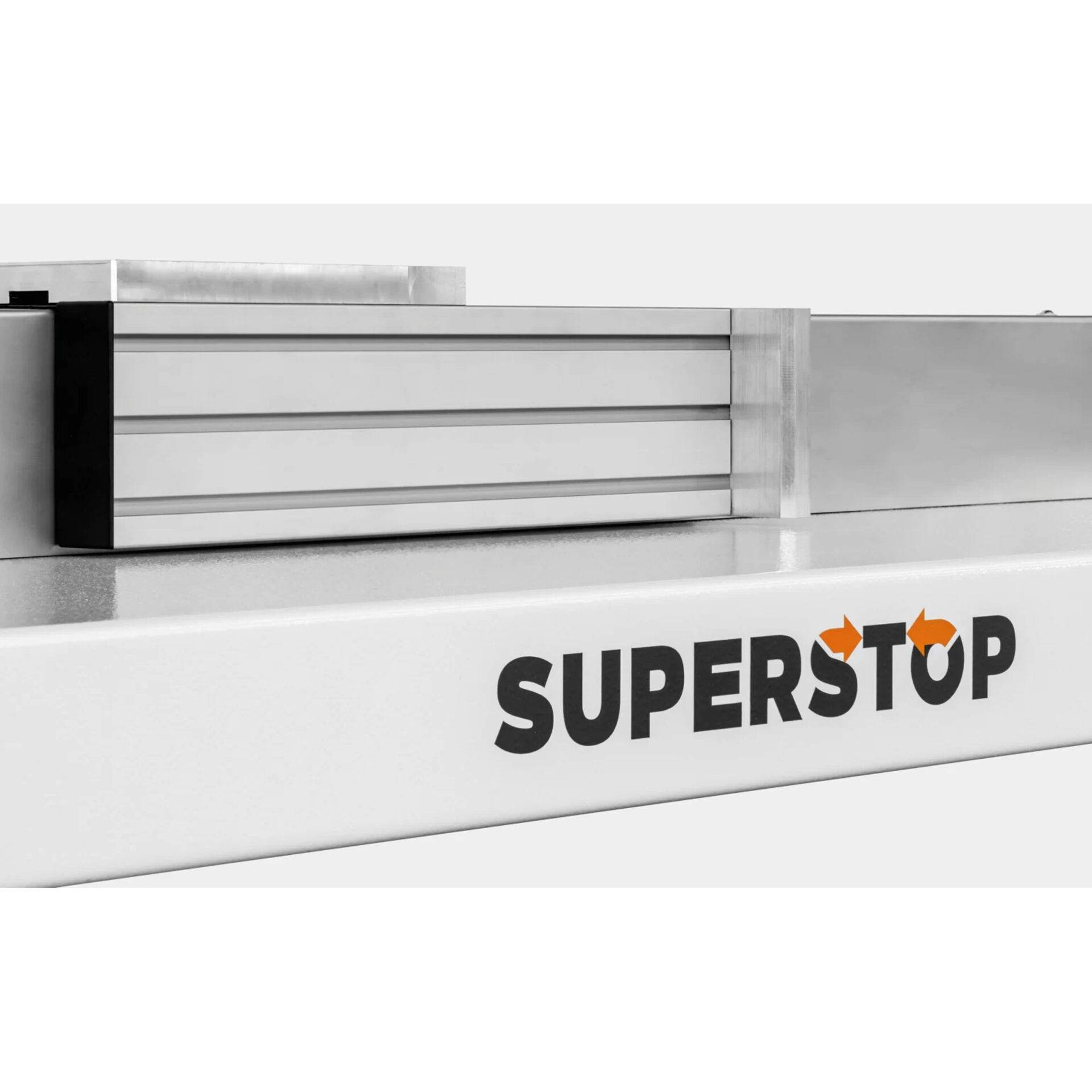

  • Robust Construction: Built with a reinforced painted steel structure and anchored securely to the floor for stability, the SuperStop includes a durable aluminium positioning plate and carriage running on maintenance-free, recirculating ball bearings with tempered guides.
  • Reliable Performance: Powered by a high-efficiency brushless constant torque motor and driven by a reinforced toothed belt transmission system, the SuperStop ensures consistent accuracy and long-lasting performance in demanding production environments.
  • Ease of Integration: Designed for quick integration into existing operations, featuring adjustable speed controls up to 30 m/min, ergonomic cycle start button placement, and a well-ventilated, vibration-resistant electrical box separated from the mechanical components for reliability and ease of maintenance.

  Available in four models to accommodate maximum material lengths of 3100mm, 4100mm, 5100mm, and 6100mm, the Salvador SuperStop is the ideal upgrade to streamline your cutting operations, reduce waste, and increase overall efficiency.

• Specification
  • Pusher speed 30 m/min
  • Material capacity 3100/ 4100/ 5100/ 6100 mm
  • Min. cutting length (stop mode) 40 mm
  • Min. cutting length (pusher mode) 40 mm (last piece only)
  • Table width 300 mm
  • Table height 900 mm
  • Power 1 phase
