Salvador SuperAngle 600

Automatic Crosscut Saw

Full details of Salvador SuperAngle 600

Configure your machine

- +

more information

  • Features
    • Straight and angle cutting
    • Drilling option available
    • Optimisation and defecting as standard
    • Efficient and accurate production
    • Automatic material measurement
    • Intelligent clamping
    • High speed pusher
    • Intuitive graphical operator interface
    • Remote machine monitoring and assistance
  • Description

    The Salvador SuperAngle 600 is a programmable crosscut for straight and angle cutting featuring optimisation software and defecting facility as standard. Compared to traditional crosscutting methods a Salvador SuperPush can increase yield by 15% or more, reduce labour by over 50%, reduce operator skill levels and increase productivity while providing a 100% safe working operation.

    Control

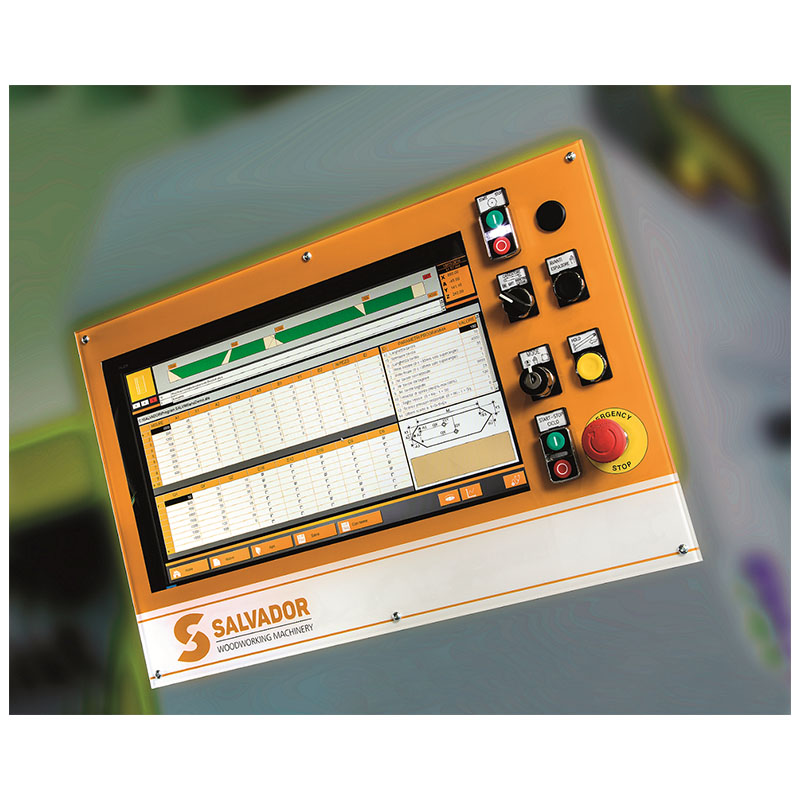

    The Salvador operator interface runs on a Windows PC operating system with keyboard and mouse interface. The 19” eye level screen is easy to understand with graphical representation of the machine functions, cutting lists and infeed material currently being processed.

    This simple and intuitive operator interface allows the machine to operate in one of four modes; full cutting list optimisation with or without defecting, fixed cutting, sequential fixed cutting and cut to mark

    Cutting lists can be manually entered directly at the machine, or from an office based PC using a simple Excel spreadsheet macro uploaded using a USB drive or standard network connection.

    The powerful optimisation software can manage multiple cutting lists as once, including 5 quality grades with priority allocation and full control over all cutting parameters such as waste percentage, trim cuts etc.

    A high performance Numerical Control system manages the material scanning, cutting parameters and finished work piece selection to maximise throughput efficiency.

    Salvador’s new software generates statistical information and manufacturing costs, reporting on the overall productivity of the machine, separate cutting lists, individual operators or different types of material aswell as real time machine diagnostics.

    The main control box for the machine is mounted independently to eliminate vibrations from the machine.

    Infeed Loading and Pusher

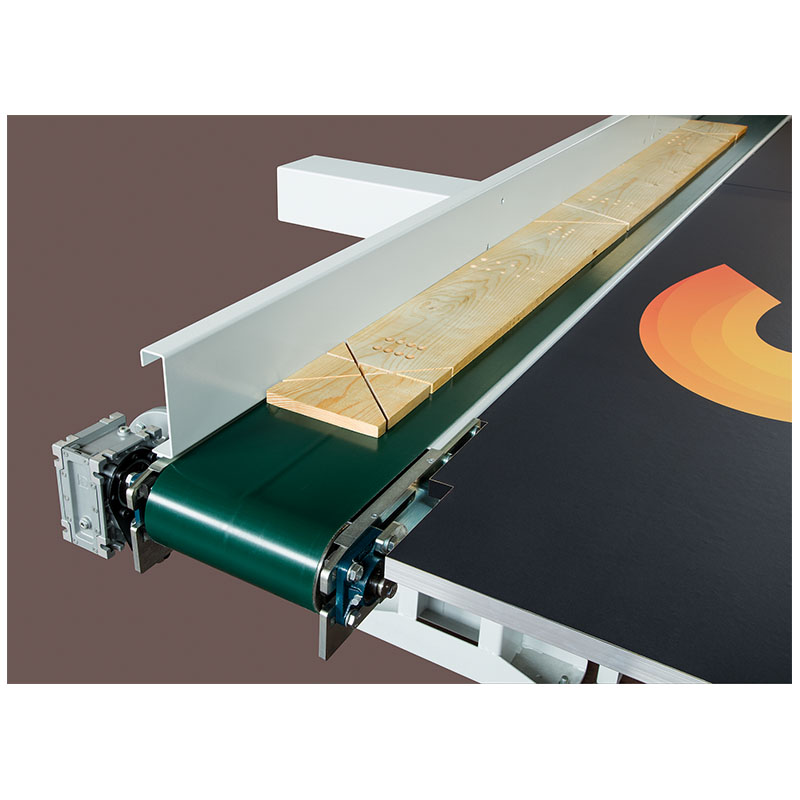

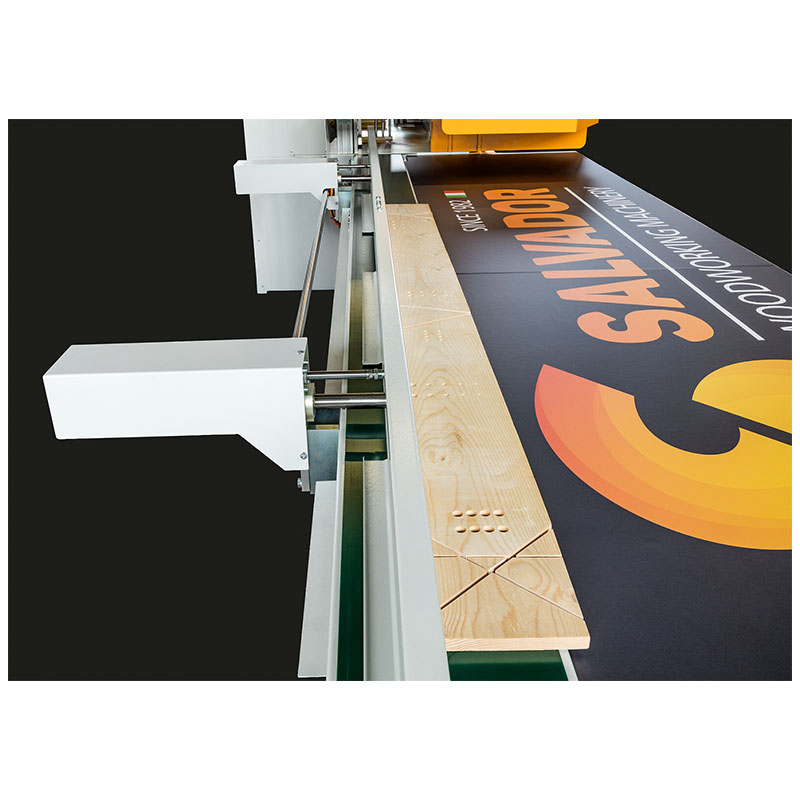

    The heavy duty infeed table is available in a range of capacities. As material is loaded the pusher arm scans the work piece reading its overall length and looking for any luminescent defecting marks. The optical scanning system is fixed and does not require any adjustment for varying timber thickness.

    The pusher speed can be regulated within each cutting list reaching a maximum speed of 60 m/min as standard or 120 m/min as an option.

    The pusher assembly runs on twin external rectified guides requiring minimal maintenance. A high powered brushless servo motor connected to a steel core toothed belt drives the pusher arm with an accuracy of +/- 1mm or +/- 0.1mm as an option.

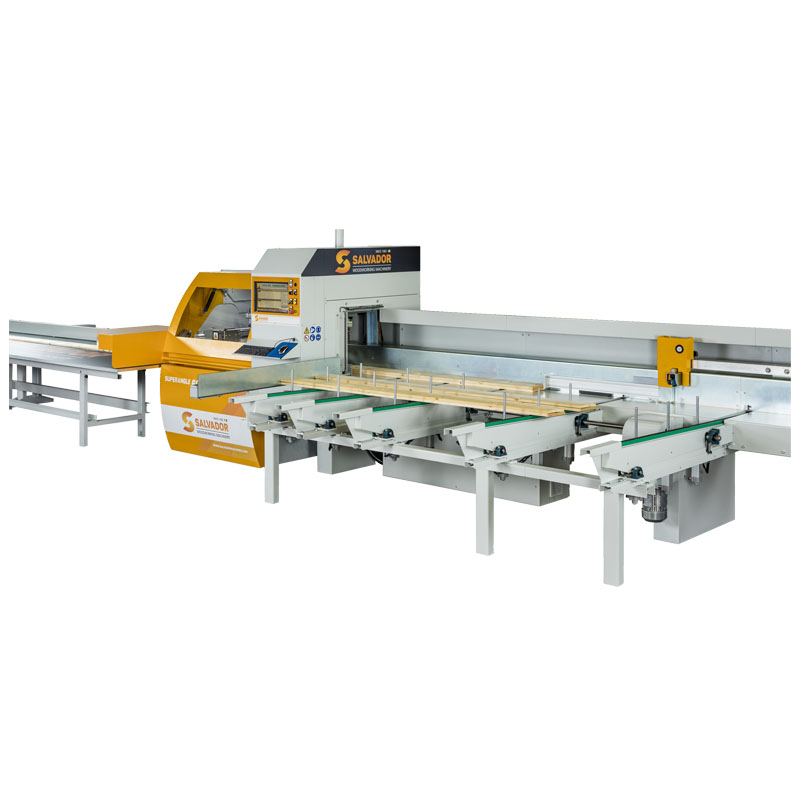

    To further increase efficiency an automatic chain infeed system is available for continued, uninterrupted feeding of single pieces or stacked timber.

    Drilling

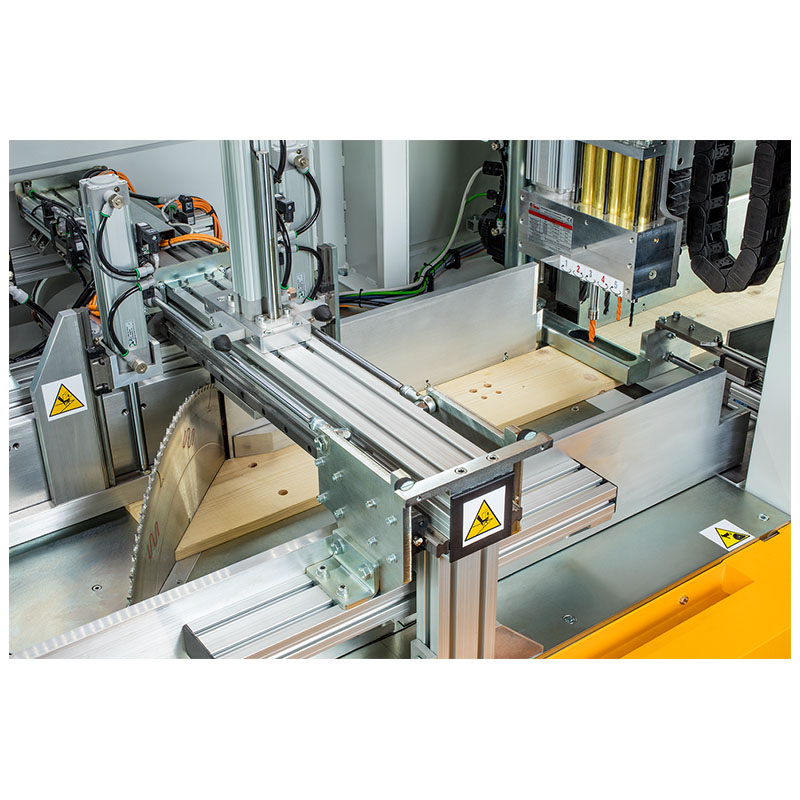

    Now available with a drilling head that can perform boring and countersinking operations in combination with straight and angled crosscutting

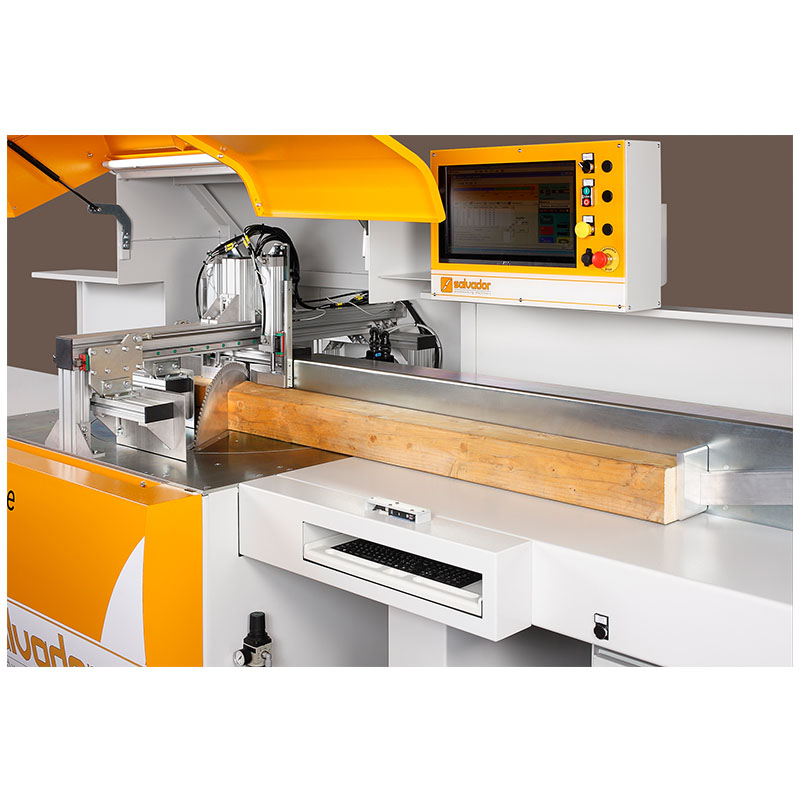

    Saw Unit

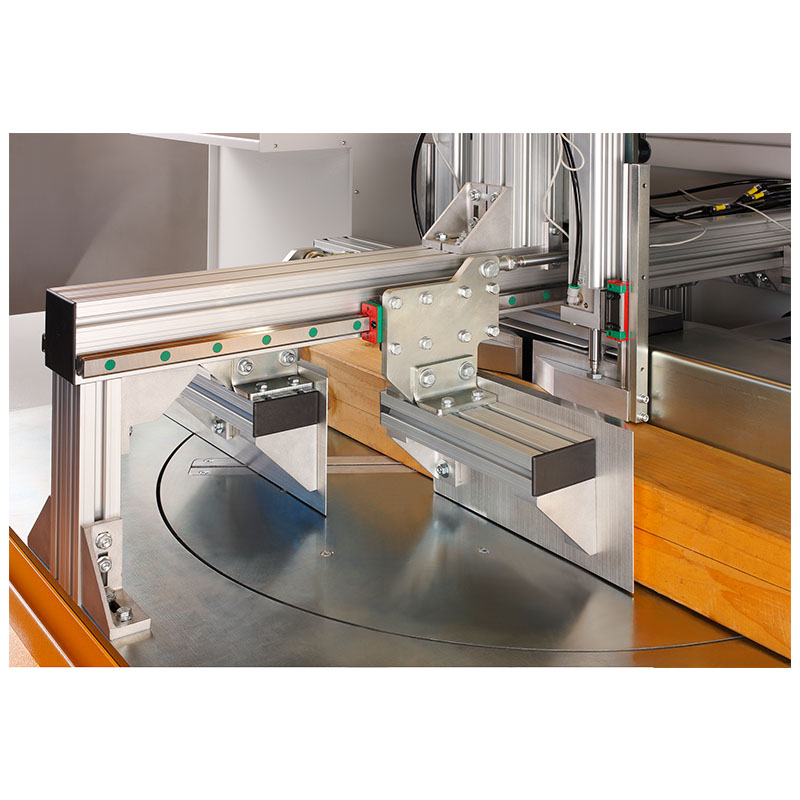

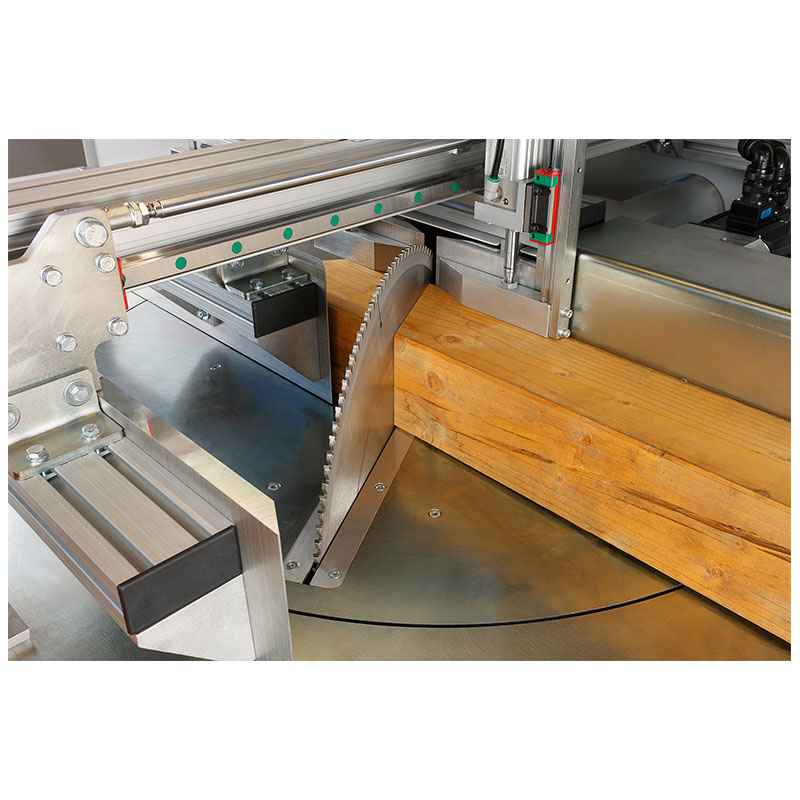

    The saw cycle can be regulated from 0.1 to 2 seconds depending on the thickness and type of material being cut. Four independent electro-pneumatic clamps secure the work piece from above and from the side depending on the angle being cut. The rotating table quickly adjusts between +/- 70° to an accuracy of +/- 1°.

    Outfeed Table

    The standard 3000mm outfeed table and fence can be replaced with optional outfeed automation for increased efficiency including automatic length selectors for sorting finished pieces, waste trap door for offcut removal and extended collection area with tilt return ejector.

    Label Printing

    Printing options include simple adhesive label creation at the outfeed station, or inkjet printing directly onto the finished work piece.

  • Specification
    • Blade diameter, max. 600 mm
    • Cutting angle range (+/-) 70°
    • Cutting capacity at 0° 380 x 100 to 310 x 160 mm
    • Cutting capacity at 45° 260 x 100 to 220 x 160 mm
    • Cutting capacity at 70° 120 x 100 to 100 x 160 mm
    • Cutting capacity, min. 15 x 40 mm
    • Eye-level control EvoDrive
    • Working length capacity, max. Varies with model
    • Working length capacity, min. 1000 mm
    • Working speed, max. 60 m/min
    • Adjustable cutting time 0.1 - 2 sec
    • Extraction outlet(s) 1 x 120 mm, 1 x 160 mm
    • Compressed air 6 - 8 bar
    • Motor Varies with model
    • Power 3 phase
