Phillipson DS16

Disc Sander

To get a quote or for further information please contact us on:

Email us
  • Features

    • Manufactured in the UK

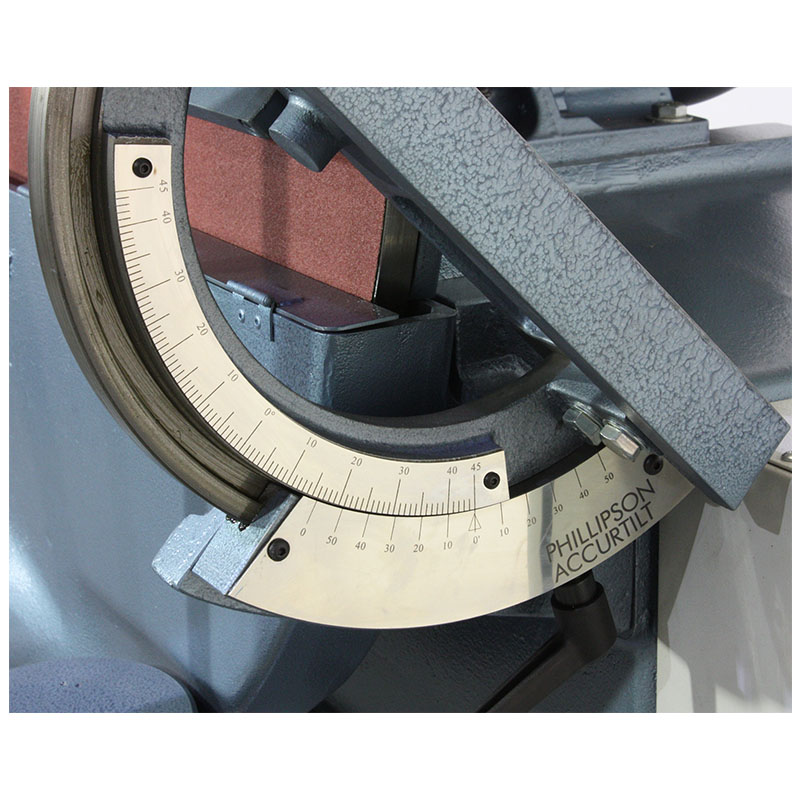

    • Accurtilt vernier measurement to table positin and zero lock
    • Extreme accuracy
    • Quadrant guard
    • No-volt release and overload protection
    • Foot operated stop
  • Description

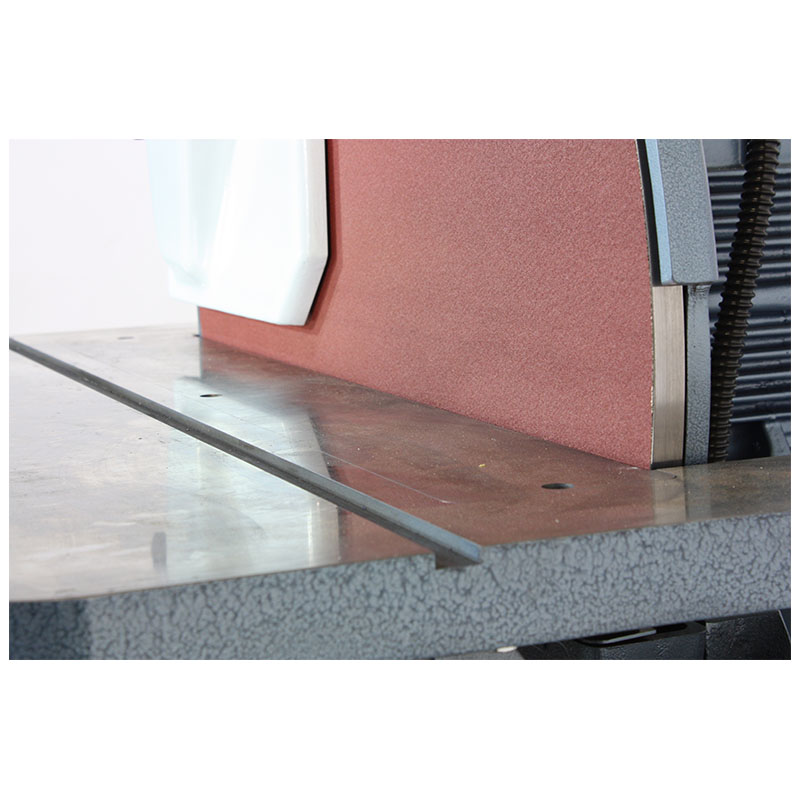

    For fast and accurate sanding of flat and convex surfaces, featuring a swivelling cast aluminium disc guard with two aerodynamically designed extraction outlets which significantly reduce dust emissions. The heavy duty 24″ diameter disc is machined from heat treated aluminium to a tolerance of 0.08mm to eliminate vibration and disc run out. The large worktable tilts both ways by screw and handwheel fine adjustment and maintains a constant gap to the disc throughout its inclination. The worktable also wraps around the disc enabling sanding into square corners.

  • Specification

    • Disc diameter 405 mm
    • Accuracy (run out tolerance) 0.08 mm
    • Speed of disc 1500 rpm
    • Table dimensions (with extensions) 840 x 300 mm
    • Table tilt +/- 45ยบ
    • Distance of table to top of disc 225 mm
    • Extraction outlet diamter 2 x 75 mm
    • Nett weight 160 kg
    • Overall dimensions 560 mm (L) x 650 mm (W) x 1200 mm (H)
    • Motor 2.2 kW
    • Power 3 phase
  • Literature

  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
