Phillipson CBS1

Contour Belt Sander

Full details of Phillipson CBS1

Configure your machine

Sanding belts

- +

more information

  • Features
    • Manufactured in the UK

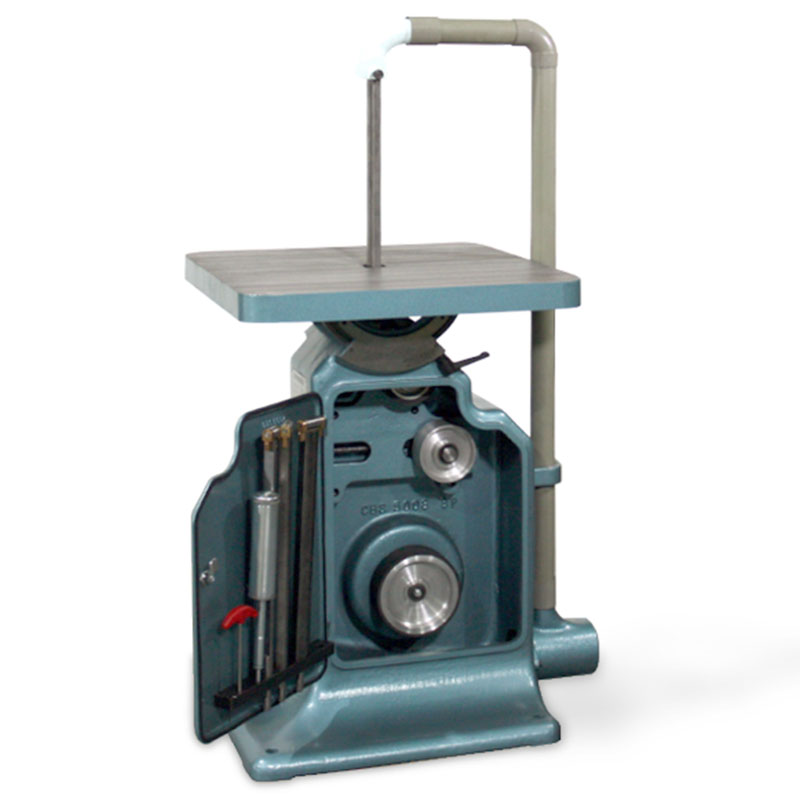

    • Supplied with 4 contour bars (15, 30, 40, 50 mm)
    • Grooved table for added control
    • Spring loaded belt tensioner
    • Accurtilt vernier measurement to table position and zero lock
    • Extreme accuracy
    • Suitable for a range of work sizes
    • No-volt release and overload protection
    • Foot operated stop
  • Description

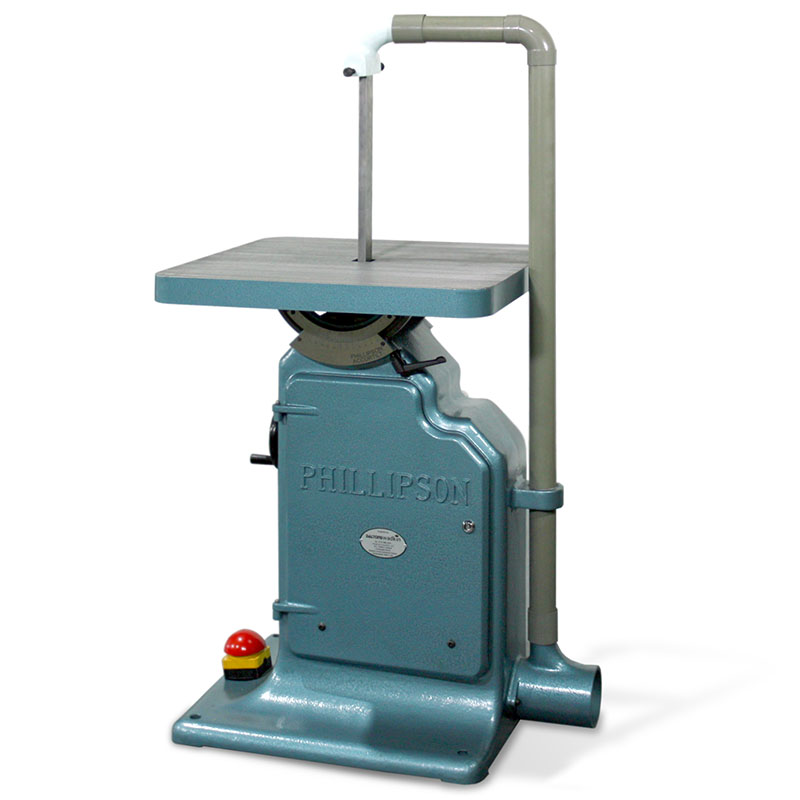

    The CBS1 contour belt sander offers quick and accurate sanding of almost any contour. Abrasive belts travel at selected speeds over rigidly supported metal bars to facilitate sanding of the workpiece. For full versitality the Phillipson CBS1 is supplied with 4 contour bars (15, 30, 40 & 50mm wide). These contours bars are dual sided with both flat and rounded radius profiles. The large work table is infinitely adjustable and inclines 45 degrees both ways with a spring lock at 0 degrees.

  • Specification
    • Sanding height, max. 400 mm
    • Belt speed 15 & 30 m/sec
    • Belt length 2710 mm
    • Table size 700 x 700 mm

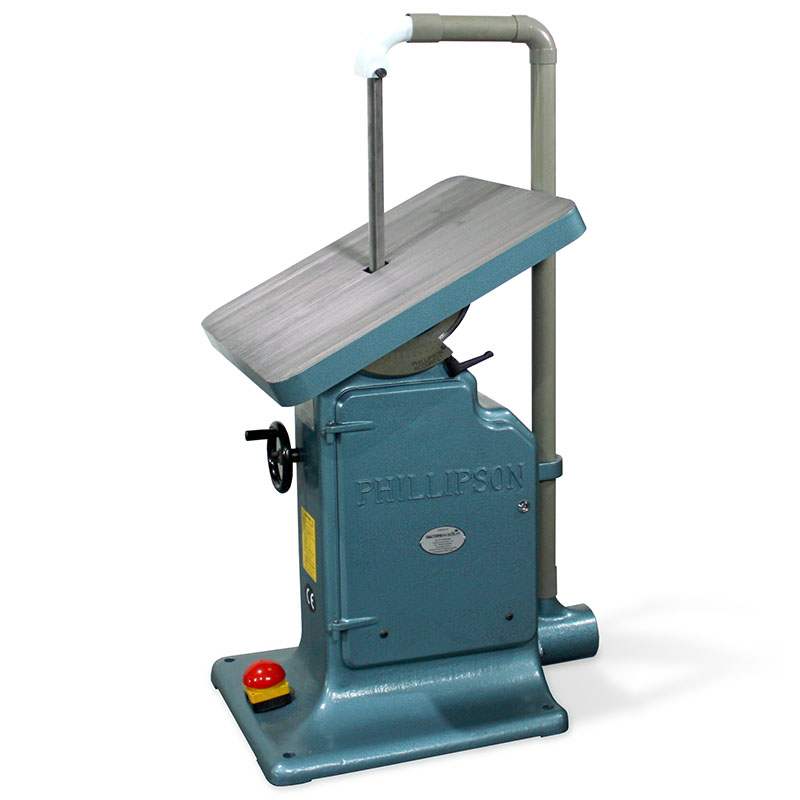

    • Table tilt (+/-) 45°
    • Table height 1000 mm
    • Extraction outlet(s) 1 x 125 mm
    • Motor 1.3 kW
    • Power 3 phase
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
