iVision EXTRUSION 160

Dust Unit

Full details of iVision EXTRUSION 160

Configure your machine

- +

more information

  • Features
    • M class polyester bag filter (stops 99.9% of the extracted particles)
    • Auto start/ stop
    • Antistatic kit
    • High flow centrifugal fans
    • Non-marking swivel wheels with parking brake
    • Detachable container with wheels
    • Container capacity 160 litres
    • External exhaust with silencer
    • Pneumatic filter shaker
    • Use and maintenance manual
    • CE certification
  • Description

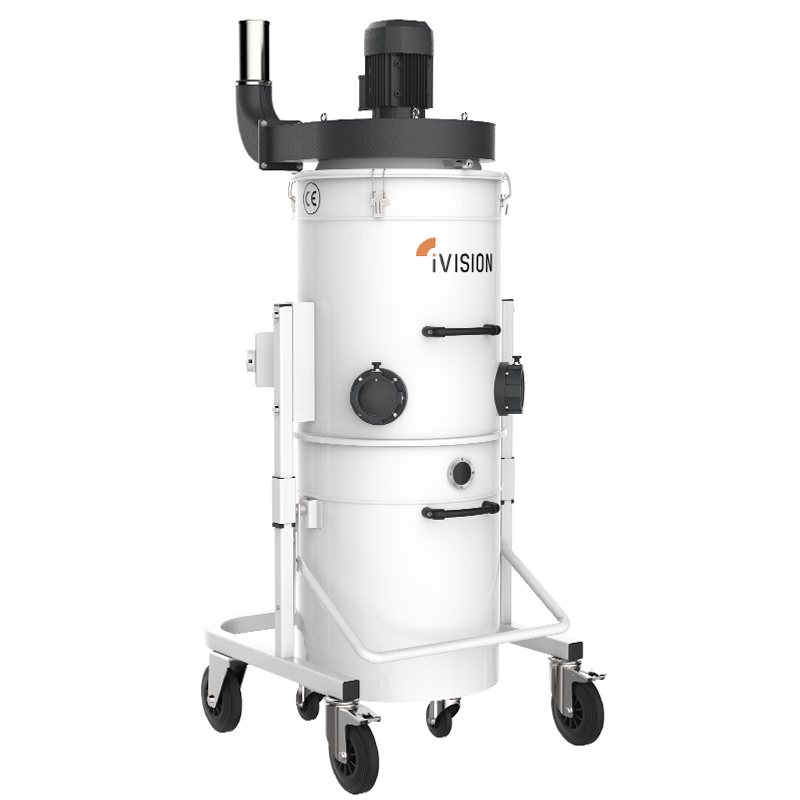

    The iVision EXTRUSION 160 is a versatile extraction unit designed to provide exceptional performance when collecting waste from high production environments. Equipped with anti-static filters, the EXTRUSION 160 can be paired with a range of machine types processing a multitude of materials including wood, aluminium and plastic.

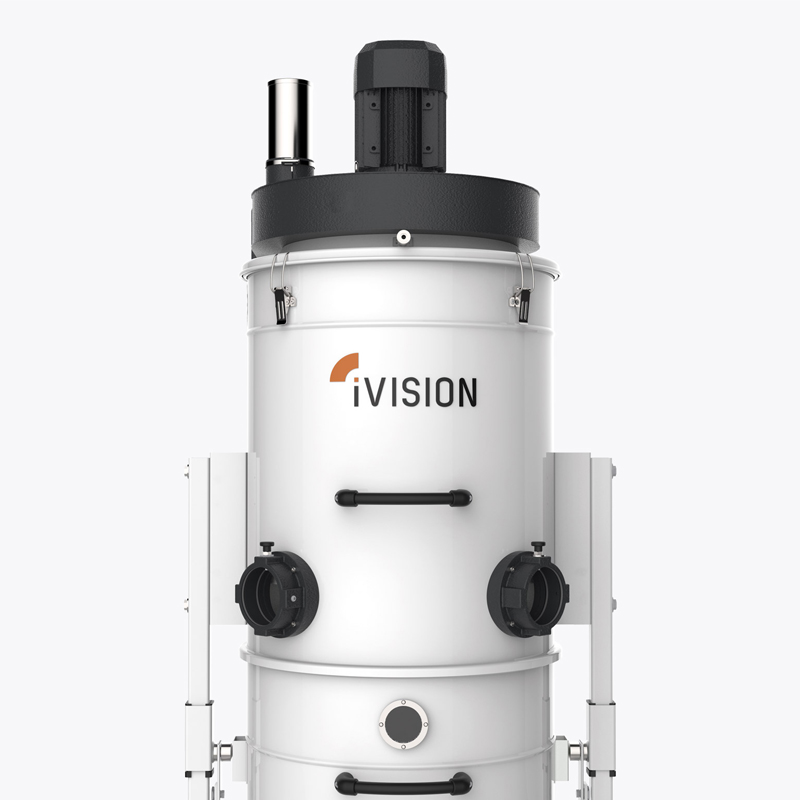

    The unit features two separate inlets developing 30 mbar of negative pressure with a flow rate of 2500 m3/hour. The 160 litre steel collection container is set on castors for easy removal.

    Automatic start/ stop control is included to allow the iVision to turn on and off in conjunction with the machine.

    The antistatic kit, also included as standard, helps maintain efficient extraction when working with plastics.

  • Specification
    • Max airflow rate 2500 m3/ hour
    • Max negative pressure 30 mbar
    • Inlet diameter 160 mm, reduced to 120mm
    • Number of inlets 2
    • Collection capacity 160 litres
    • Overall dimensions 840 mm (W) x 910 mm (L) x 2030 mm (H)
    • Motor 3 kW
    • Power 3 phase
