Altendorf WA6

Sliding Table Panel Saw

Full details of Altendorf WA6

Configure your machine

Sliding table *

Extraction hood *

Mitre fence

Assembly *

- +

more information

  • Features
    • Manual rise/ fall/ tilt
    • Scoring saw unit
    • Compact, space saving design
    • Crosscut mitre fence included as standard
    • Choice of sliding table lengths
  • Description

    The WA6 is the smallest, most compact model in the Altendorf range of sliding table panel saws and ideal for customers looking for a cost effective machine with minimal impact on workshop space. Although small, the Altendorf WA6 is equipped with many features as standard for impressive cutting performance on solid wood, panels, composite materials and non-ferrous metals.

    Table and fences

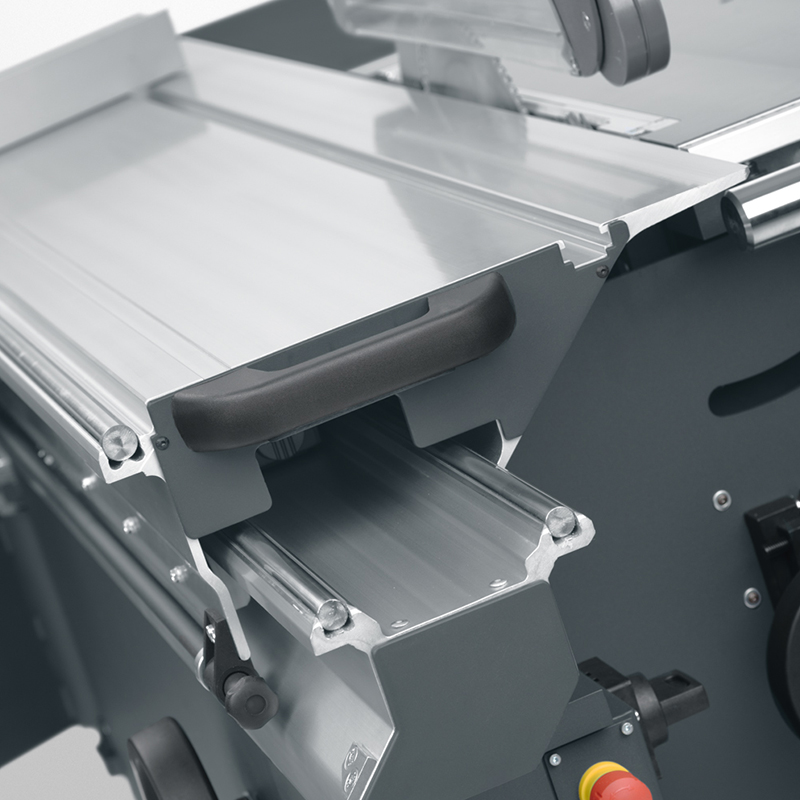

    The aluminium sliding table is built around a multi-chamber structure for maximum rigidity, and glides on the proven Altendorf double roller carriage with steel bar guidance system.  The machine can be configured with choice of sliding table lengths including 1600, 2000 and 2600mm to suit customers individual requirements.

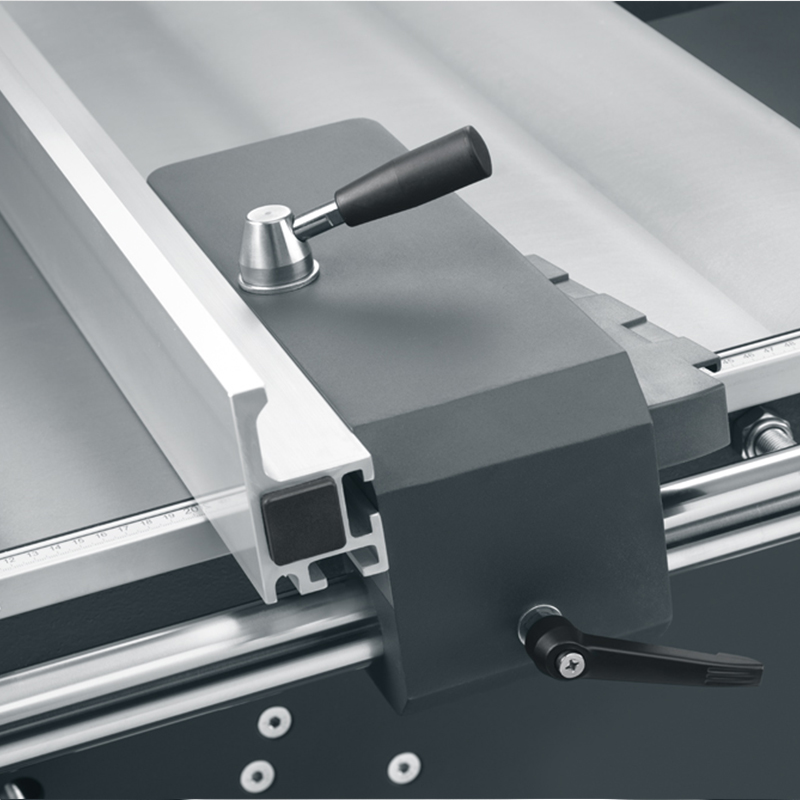

    As standard the WA6 includes a 1000mm rip fence capacity with smooth precise movement, and crosscut mitre fence with adjustment from 0 – 49° and two flip over stops extending up to 2600mm.

    Saw unit

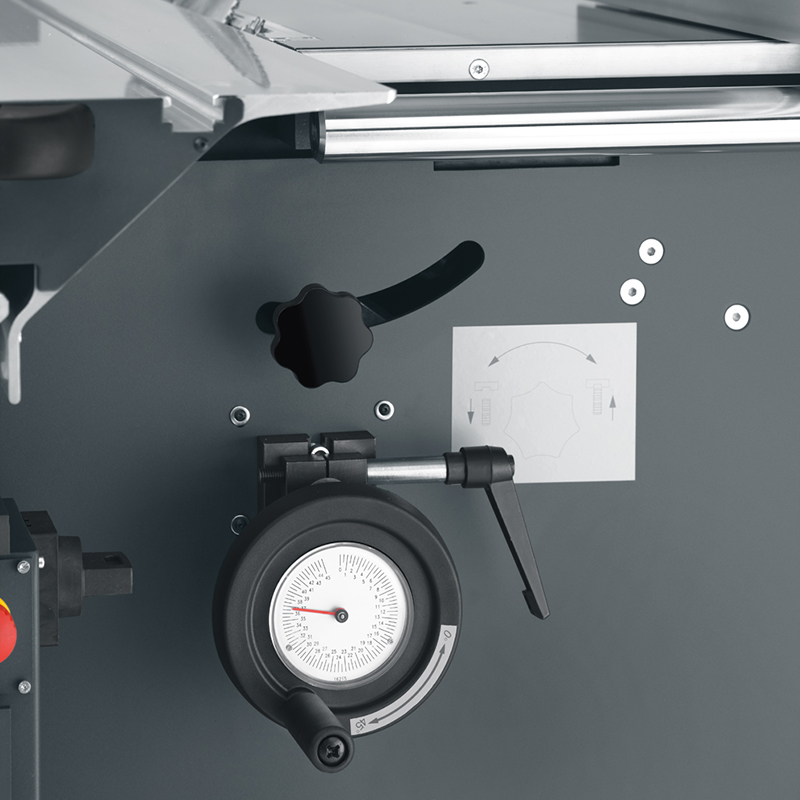

    The main saw unit features a 315mm diameter blade powered by a 4kW (5.5 HP) motor running at 4200 rpm. Rise, fall and tilt adjustments are manually controlled from ergonomically poisoned hand wheels. The tilt angle can be accurately set using the built in scale. An independent scoring saw unit is also included running on a separate 0.37 kW (0.5 HP) motor.

    Optional equipment

    As the Altendorf WA6 is already supplied with many features as standard the range of optional equipment is limited to a selection of labour saving devices as follows;

    Sliding table lengths – 1600mm (with useable cutting length of 1500mm), 2000mm (with useable cutting length of 1900mm) and 2600mm (with useable cutting length of 2500mm)

    RAPIDO scoring system – this quick set scoring saw can be adjusted to match the main blade without the need to remove it from the machine. Compared to working with traditional shims the RAPDIO saves up to 10 mins taking about 3 minutes to set.

    DUPLEX double-sided mitre fence – a separate high precision mitre fence that can be quickly mounted to the WA6 sliding table with angle adjustment from 0 to 90°. When set at 45° mitre cuts can be made on both sides of the work piece without having to adjust the fence. Length compensation allows for precise measurements to be made from the saw line to the flip over stops.

    Overhead crown guard – replacing the standard riving knife mounted guard, this option provides a full sized, adjustable overhead crown guard with integrated dust extraction port, similar to that found on the Altendorf WA80 and F45 models.

    Contact us for latest pricing, expert advice or to book a demonstration on the Altendorf WA 6 sliding table panel saw

    Book a demonstration
  • Specification
    • Blade diameter, max. 315 mm
    • Cutting depth, max. 100 mm
    • Sliding table length 1600/ 2600/ 3000 mm
    • Rip fence capacity 1000 mm
    • Blade tilt 0 - 45°
    • Blade speed 4200 rpm
    • Height adjustment Manual with hand wheel
    • Tilt adjustment Manual with hand wheel
    • Rip fence adjustment Manual
    • Crosscut-mitre fence capacity 2600 mm
    • Extraction outlet(s) Top 49 mm, bottom 89 mm
    • Machine weight 450 kg
    • Table height 910 mm
    • Motor, main 4 kW (5.5 HP)
    • Motor, scoring unit 0.37 kW (0.5 HP)
    • Power 3 phase
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
