Kimla Fiber Lasers

Take advantage of our high efficiency award-winning fiber laser technology to transform your sheet metal processing.

MAKE AN ENQUIRY

Benefits of a Kimla Fiber Laser

As standard Kimla Fiber Lasers are equipped with a host of features for dynamic performance and reliable production.

tick

High speed linear drives to each axis

Linear drives to all three axes result in frictionless movement, no wearable parts, high operating speeds and increased acceleration while maintaining the accuracy.

tick

Cutting speeds up to 5000 mm/ sec

The combination of Kimla’s linear drive technology, monolithic frame design and unique control system enables operating speeds up to 5000 mm/sec.

tick

Monolithic precision machined frame

Kimla are able to produce machines with a working area up to 12m long, formed from a single precision machined frame which requires no special foundation for installation.

tick

Dynamic Vector Analysis (DVA) control system

Kimla have developed their own control system that removes restrictions on data processing imposed by traditional third party controllers allowing full exploitation of fiber technology.

tick

Anti-collision system

Fast becoming a standard requirement in the industry, Kimla continues to lead the field with the fastest responding anticollision system available. See the video below.

tick

Local support in the UK and Ireland

Daltons Wadkin are sole distributors for Kimla in the UK and Ireland. With over 120 years of engineering pedigree, they continue to prioritise customer support above all else.

What makes a Kimla?

More information or book a demonstration

Enquire online or call us directly on 0115 986 5201

Make an enquiry

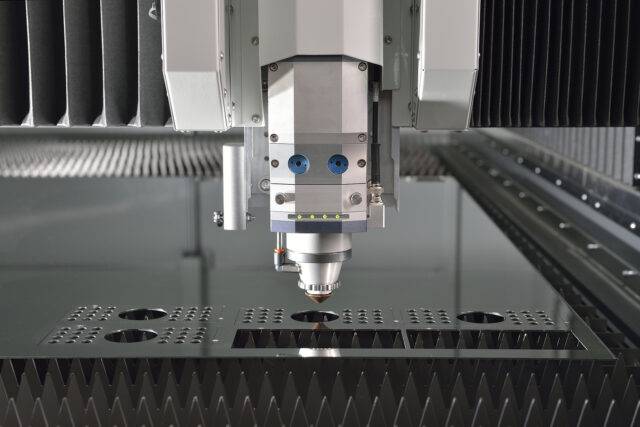

KImla fiber laser cutting head

Linear drives

High powered electro magnets allow the machine to accelerate at 60 m/sec/ sec up to a top speed of 5000 mm/sec.

Kimla manufacture their own high power density drives in house. Using a magnetic contactless drive system, linear drives have no wearable parts and deliver inexhaustible power. To maximise efficiency, the drives recirculate energy between decelerating axis and accelerating axis. While other fiber laser manufacturers equip linear drives to a single axis for marketing purposes, Kimla fit them to all standard.

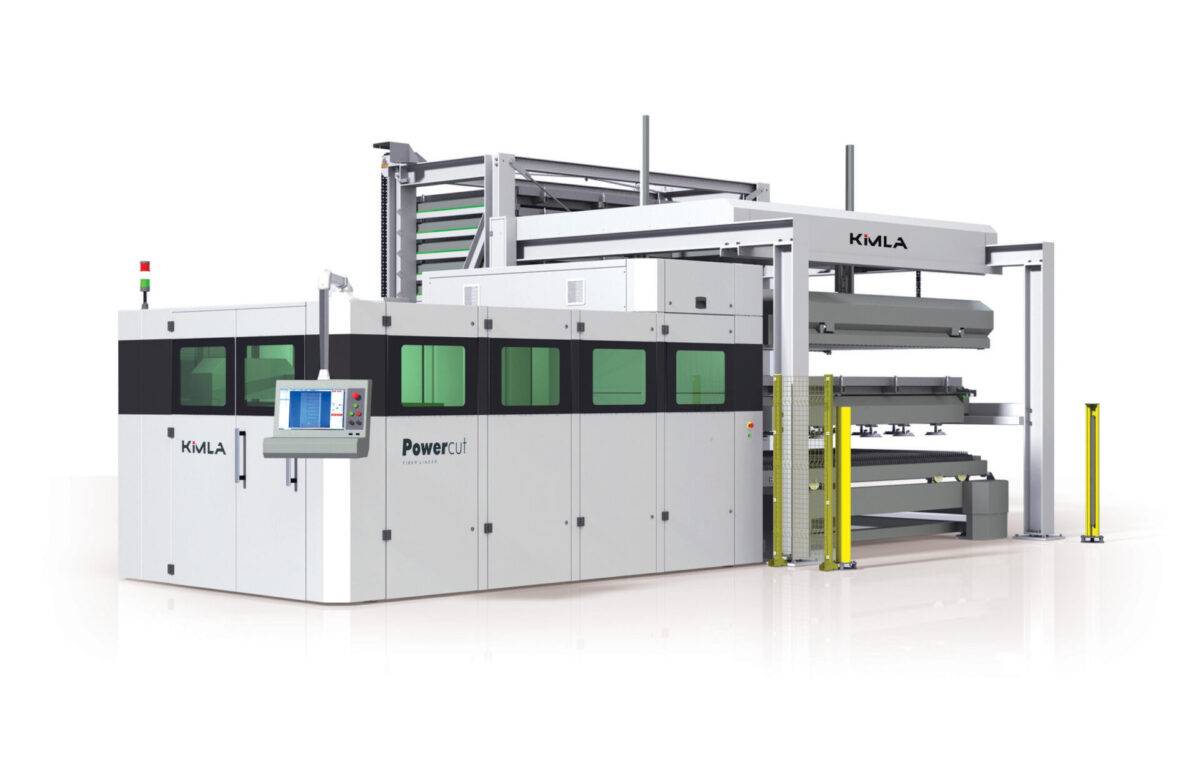

Kimla PowerCut

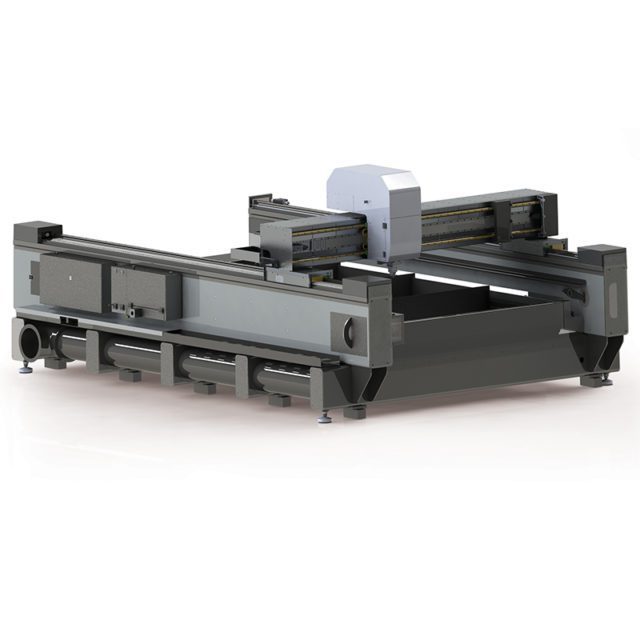

Frame design

When operating at such high speeds, stability is key to producing consistently accurate parts.

Rather than taking the traditional modular approach to frame assembly, Kimla produce their frames in a single piece. Significant investment in machine tool technology allows them to produce monolithic frames up to 3m x 12m, each precision machined to the highest possible tolerance in one operation. This approach produces the most rigid and accurate frame possible, which requires no special foundations for installation.

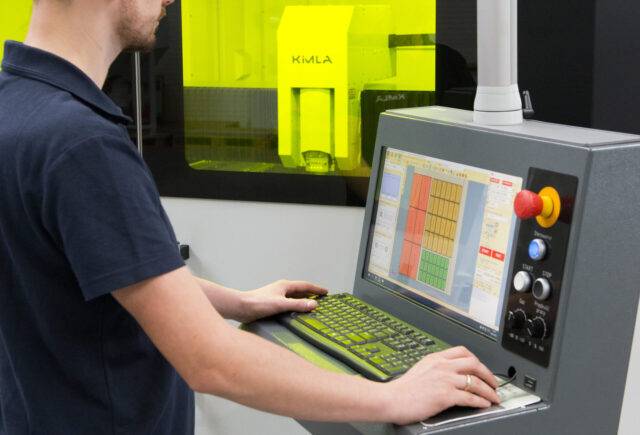

Kimla CNC control

Dynamic Vector Analysis (DVA)

Power and speed is nothing without control.

At the heart of every Kimla CNC is their unique control system. Developed over the past three decades, the integrated CAD/ CAM/ NESTING functionality is not bound by the restraints of off the shelf controllers. DVA processes up to 20,000 lines of g-code per second for smooth regulation of the feed speed resulting in more accurate machining at higher speeds. In addition, cutting simulations and processing times are 100% accurate for confident pricing of complex jobs.

Industry leading anti-collision as standard

More information or book a demonstration

Enquire online or call us directly on 0115 986 5201

Make an enquiry

Model comparison

FeatureFineCutFlashCutPowerCutExtremeCut
Laser powerup to 2 kWup to 4 kWup to 8 kWup to 12 kW
Working width1000 mm1500 – 2000 mm1500 – 2000 mm1500 – 3000 mm
Working length2000 mm3000 – 4000 mm3000 – 10000 mm3000 – 12000 mm
Operating speedup to 150 m/minup to 180 m/minup to 230 m/minup to 230 m/min
Accelerationup to 20 m/s/sup to 30 m/s/sup to 60 m/s/sup to 60 m/s/s
Repeatability of positioning0.001 mm0.001 mm0.001 mm0.001 mm
Linear drives
Automatic pallet changer
Adjustable focal distance of head Option
Automatic height adjstment
ERP system connection Option
Material edge detection
Tube machining OptionOptionOption
Automatic nozzle change OptionOptionOption
Warranty24 months24 months24 months24 months
