Wadkin C700

Bandsaw

To get a quote or for further information please contact us on:

Email us
  • Features

    • Manufactured in the UK
    • Heavy duty cast supported rip fence
    • Heavy cast bandwheels
    • Telescopic top guard for blade protection
    • Blade tension indicator
    • Overload motor protection
    • Safety microswitches on door
    • Emergency push button
    • Braked motor
  • Description

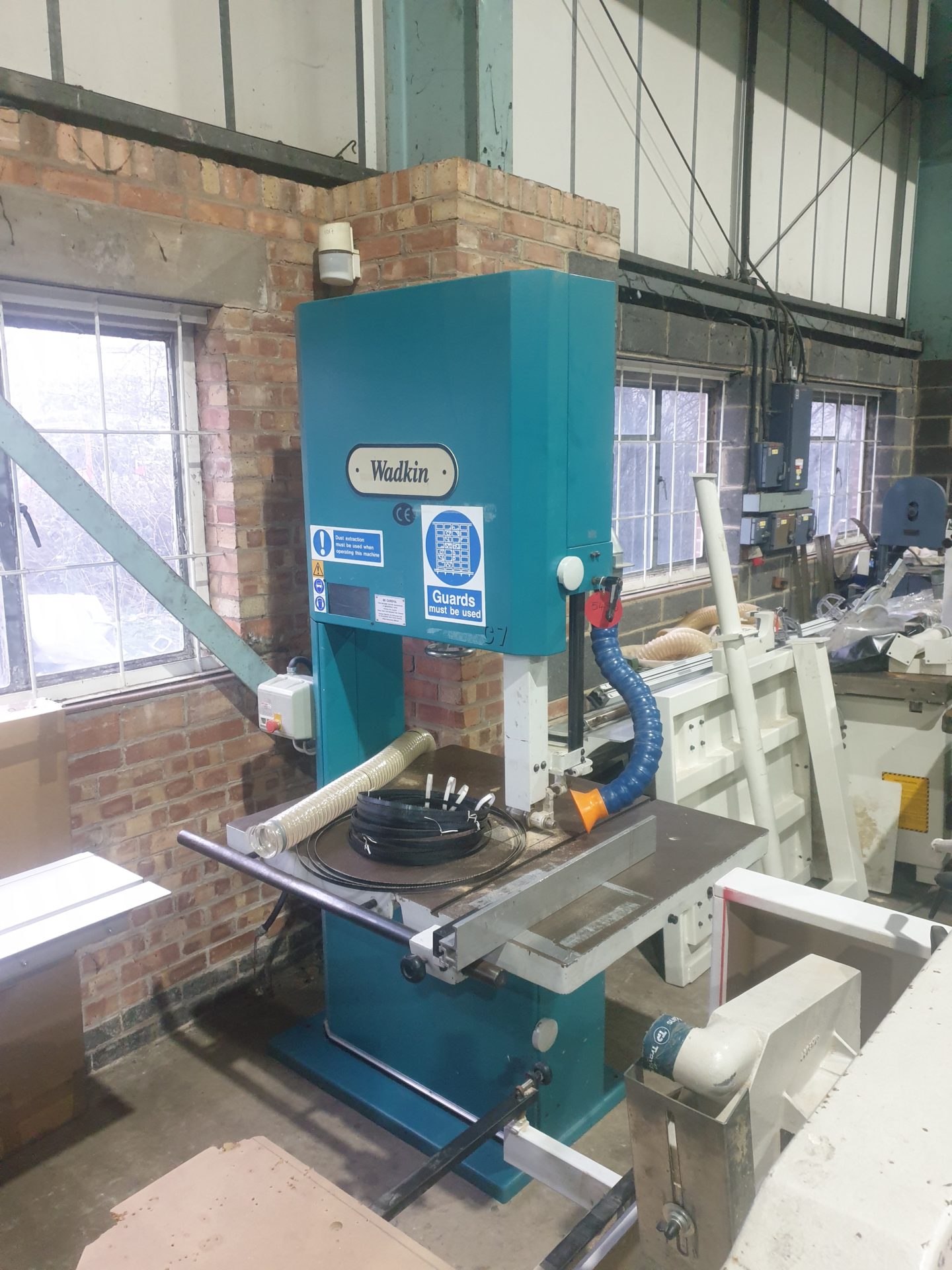

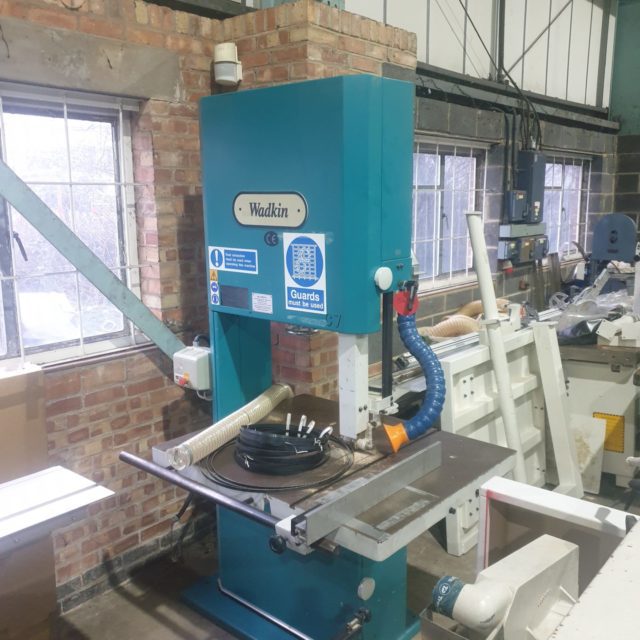

    The Wadkin C700 Bandsaw main frame is a welded steel fabrication for stability with a precision ground large cast iron table for improved support of sheet material. Solid disc wheels, 700mm diameter, have sealed for life bearings to minimise maintenance and a telescopic blade guard, interlocked access doors and heavy duty braked motors improve safety. Precision top and bottom bearing guides give accurate blade control and a saw tension indicator reduces the risk of blade breakages.

  • Specification

    • Pulley wheel diameter 700 mm
    • Blade length minimum - maximum 4953 - 5080 mm
    • Blade speed 25 m/sec
    • Blade width minimum - maximum 6 - 25 mm
    • Throat capacity 680 mm
    • Height under guides 485 mm
    • Table size 765 x 1000 mm
    • Table tilt 0 - 20°
    • Dust extraction outlet diameter 1 x 100 mm
    • Nett weight 485 kg
    • Overall dimensions 1340 mm (L) x 770 mm (W) x 2300 mm (H)
    • Motor 4 kW
    • Power 3 phase
  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
