Sedgwick TE350

Tenoner

Full details of Sedgwick TE350

Configure your machine

- +

more information

  • Features
    • Manufactured in the UK
    • Top and bottom tenoning heads
    • Vertical spindle
    • Mechanical digital readouts to head positions
    • Swivel fence movement
    • Manual clamping
    • Manual table movement
  • Description

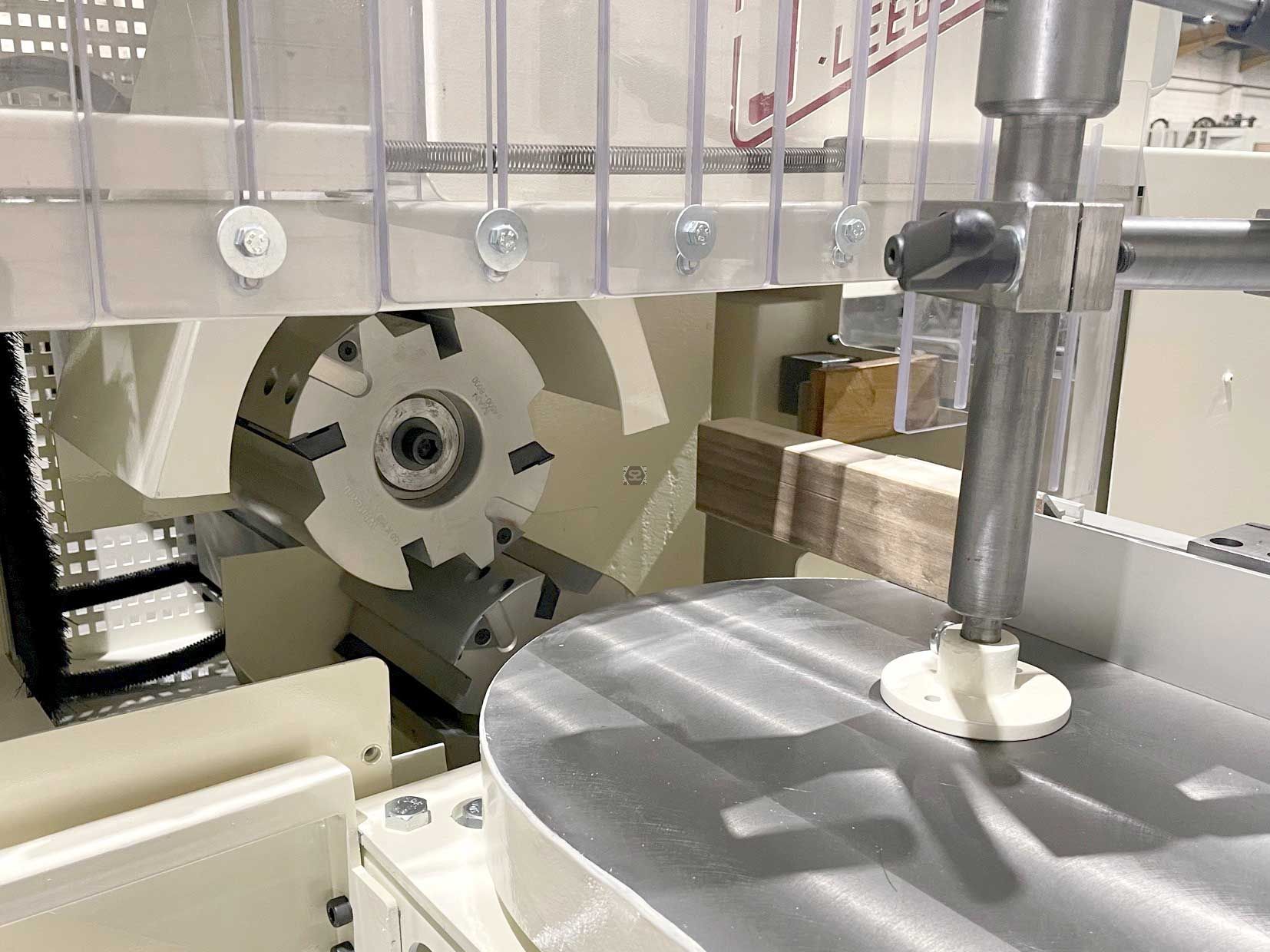

    A quick and simple machine to set up with accurate operation. Work is positioned on the rolling table against an end stop and fence. The tenon width is set by raising or lowering the top motor and its position on the timber by moving both tenon heads up or down. Each head has its own independent motor. Stepped tenons, splayed tenons, scribed tenons and double tenons are all possible on this versatile machine. Built to withstand continuous production, the Sedgwick tenoner is invaluable to any workshop.

  • Specification
    • Tenoning heads 3

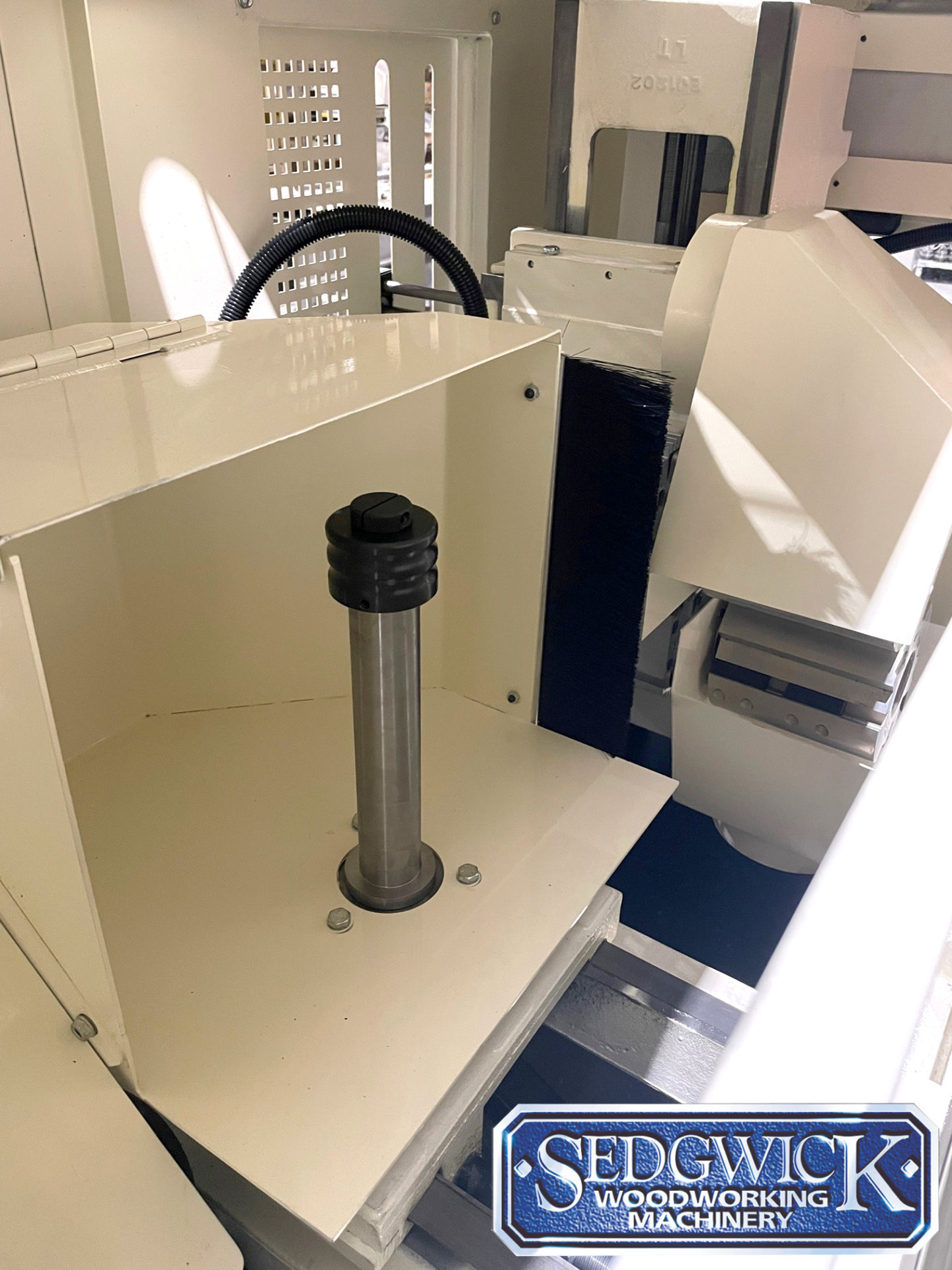

    • Vertical spindle 1
    • Timber capacity 300 x 300mm
    • Table size 765 340 (765 x 300 useful)
    • Table working height 890mm
    • Table quadrant adjustment +/- 0-60 degrees
    • Cutterblocks 150 x 150 x 30mm
    • Vertical adjustment of bottom cutterblock -2mm / +77mm
    • Vertical adjustment of top cutterblock +4mm / +150mm
    • Horizontal adjustment of top cutterblock -50mm/+20mm
    • Shaft diameter 40 mm
    • Effective length of shaft 205mm
    • Vertical movement of spindle 140 mm
    • Horizontal movement of spindle 150mm
    • Maximum tooling diameter 350mm
    • Spindle speed 4000rpm
    • Dust extraction outlets 2 x 150mm
    • Motors 2 x 2.2 kW & 1 x 5.5kW
    • Power 3 phase
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
