SCM Nova TF 100

Spindle Moulder

Full details of SCM Nova TF 100

Configure your machine

- +

more information

  • Features
    • Fixed spindle
    • Manual rise and fall
    • Mechanical readout for shaft position
    • Reverse spindle rotation
    • Four spindle speeds
    • Spindle speed readout by LEDs

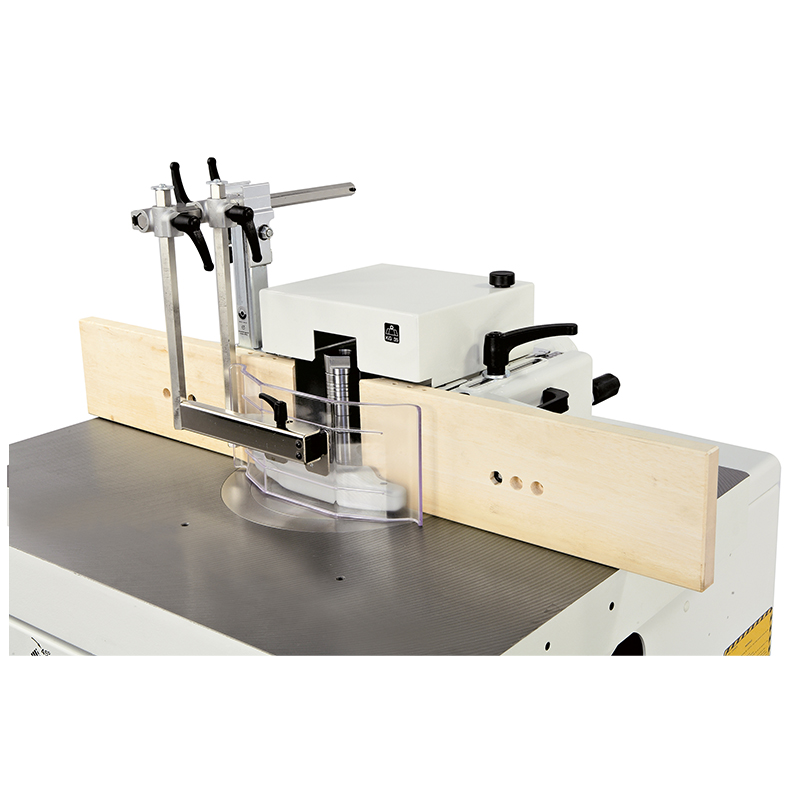

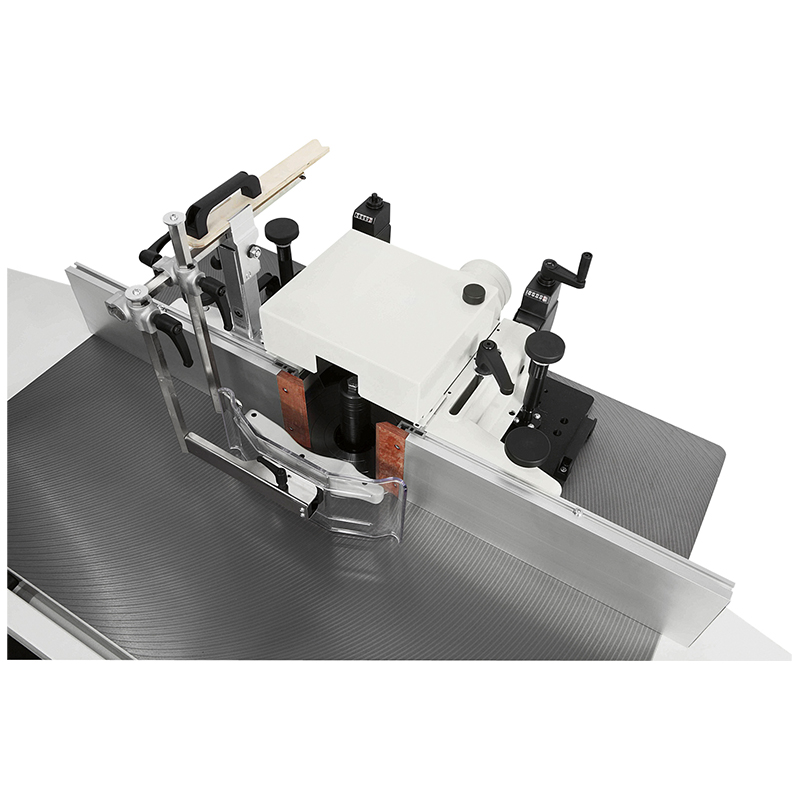

    • Cast iron table and fence assembly
  • Description

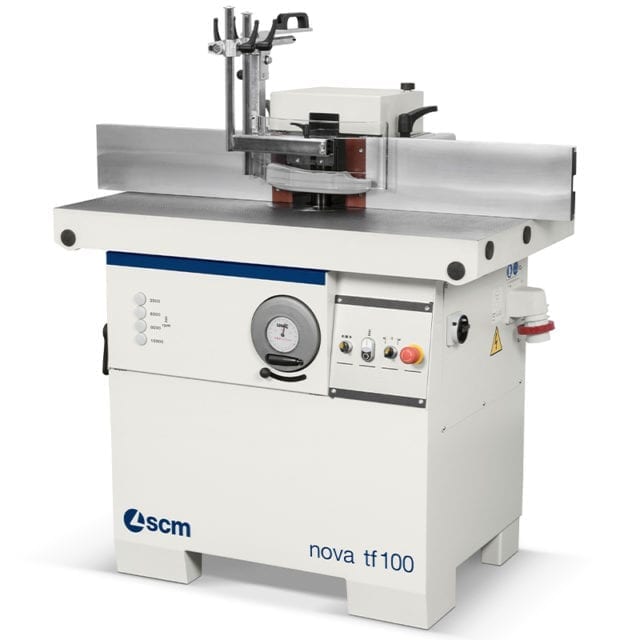

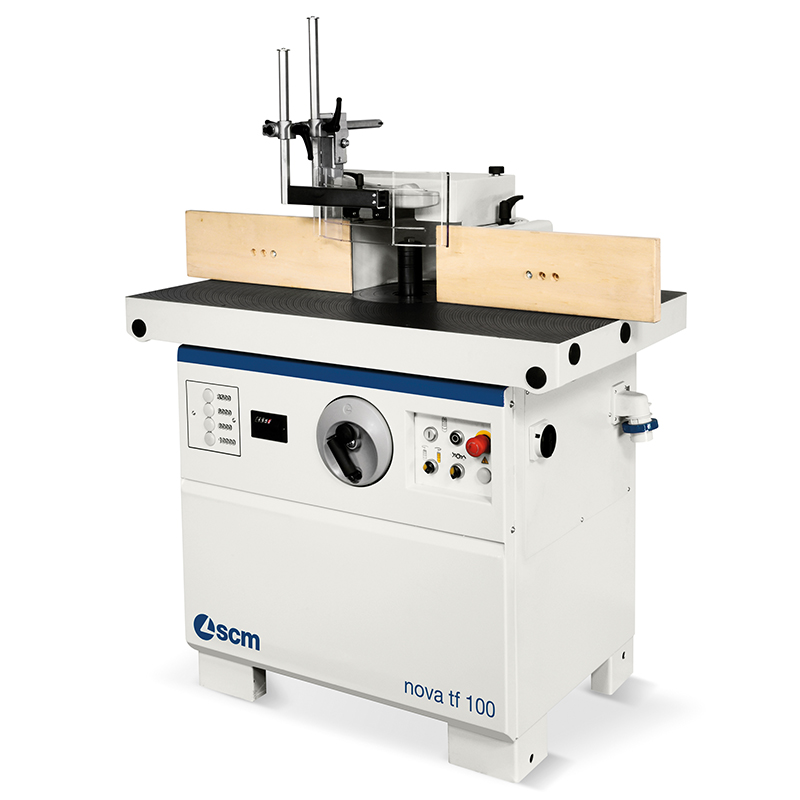

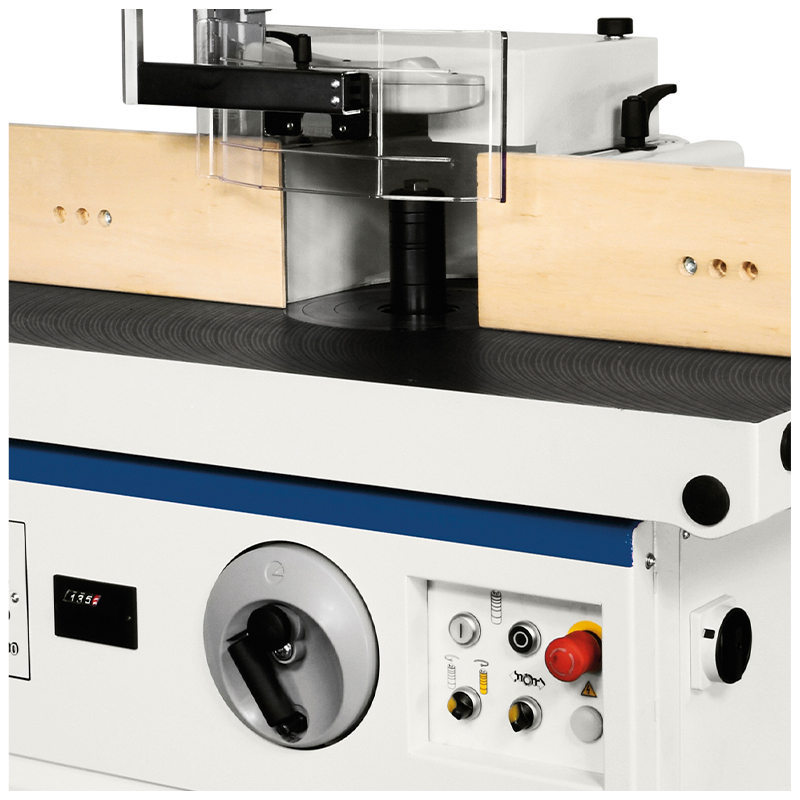

    The SCM Nova TF 100 is a fixed shaft spindle moulder (non-tilting) built for precision and reliability. Operation is quick and simple with a manual handwheel for adjusting the spindle height with mechanical digital readout. The Nova TF 100 can be run at four spindle speeds to suit a full range of work and tooling; 3500/ 6000/ 8000/ 10000 rpm. A convenient speed indicator lamp shows the operator the current speed selected.

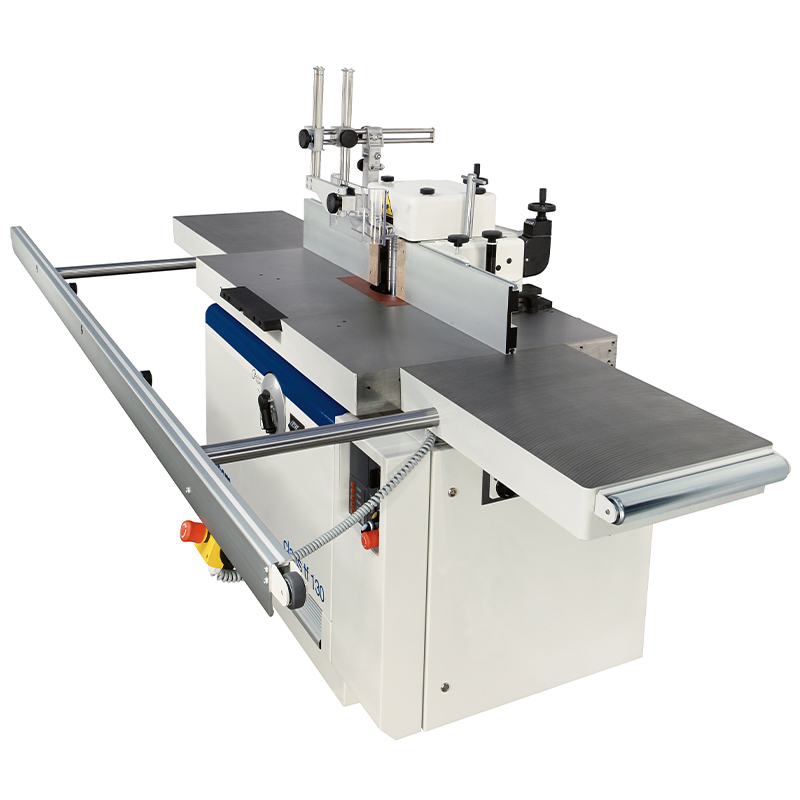

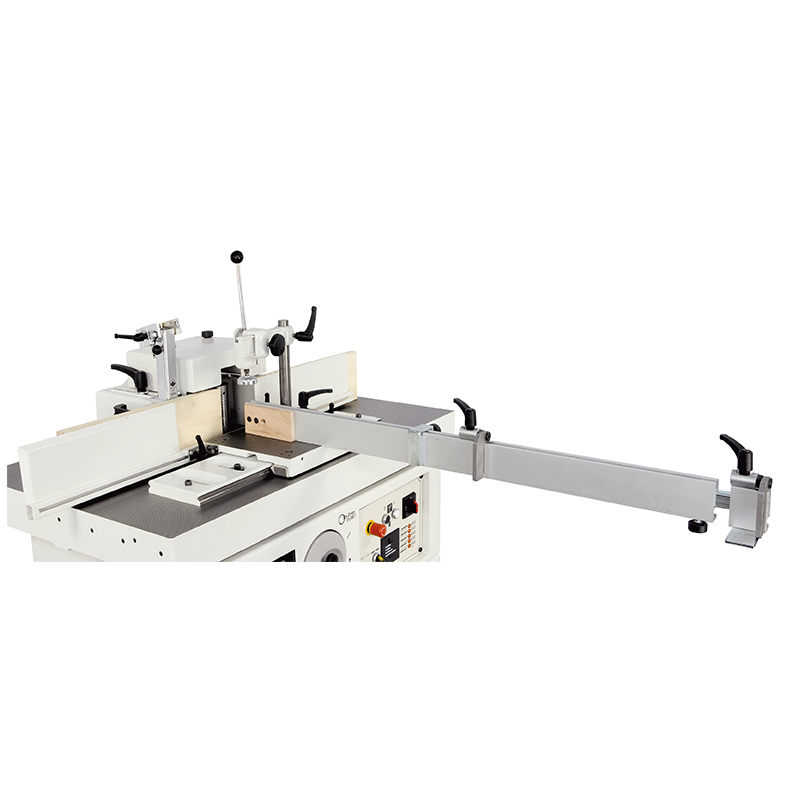

    Add extra workpiece support, select the optional “LL” version with 2 profiling extension tables and front extension rail to give an overall table length of 2500 mm. For small tenoning operations the SCM Nova TF 100 can be specified with a table mounted sliding carriage and telescopic swivelling fence and flip over stops.

  • Specification
    • Tool diameter lowered under table 240 x 80 mm
    • Spindle shaft height 125 mm
    • Spindle diameter 30 mm
    • Spindle tilt -
    • Spindle speeds 3500/ 6000/ 8000/ 10000 rpm
    • Worktable dimension 1080 x 655 mm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 5 kW (7 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
