SCM Nova SI 40

Product Information

• Features
  • Compact footprint, 2600 mm sliding table
  • Deep cutting up to 136 mm
  • Independent scoring saw unit
  • Overhead blade protection
  • 10 years guarantee for the carriage sliding system
  • Cast iron saw unit, dove tail slideways
  • SCM Thundercut App included
• Description

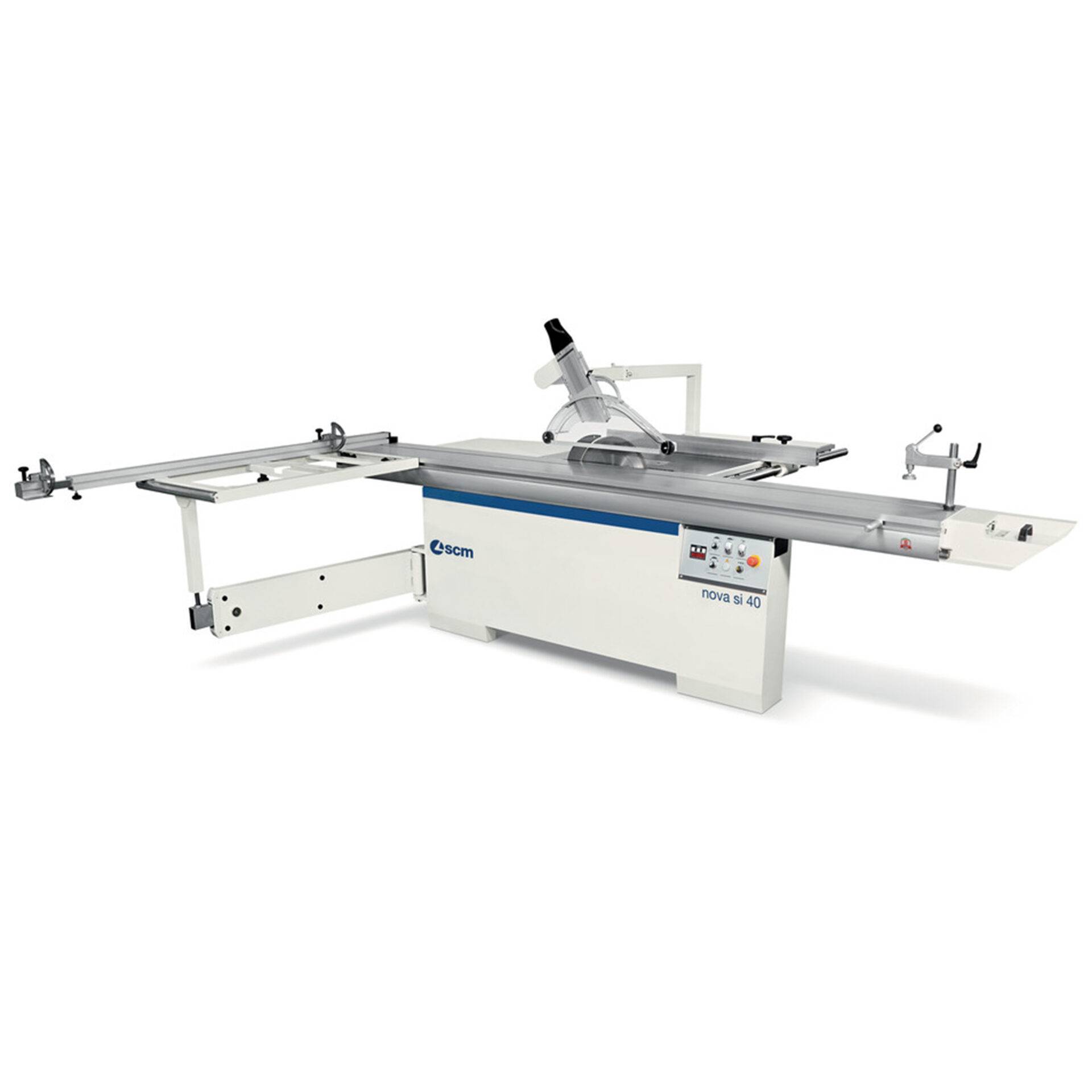

  The compact SCM Nova SI40 Sliding Table Panel Saw is a high-performance machine designed for woodworking professionals seeking precision and reliability. Its robust cast iron saw unit accommodates a maximum blade diameter of 400 mm, even with the scoring blade mounted, facilitating effortless cutting of veneer panels and thick solid wood materials.

  Key Features:

  • Exceptional Cutting Capacity: The saw unit allows a maximum blade projection from the table of 138 mm at 90° and 98 mm at 45°, enabling deep and accurate cuts.

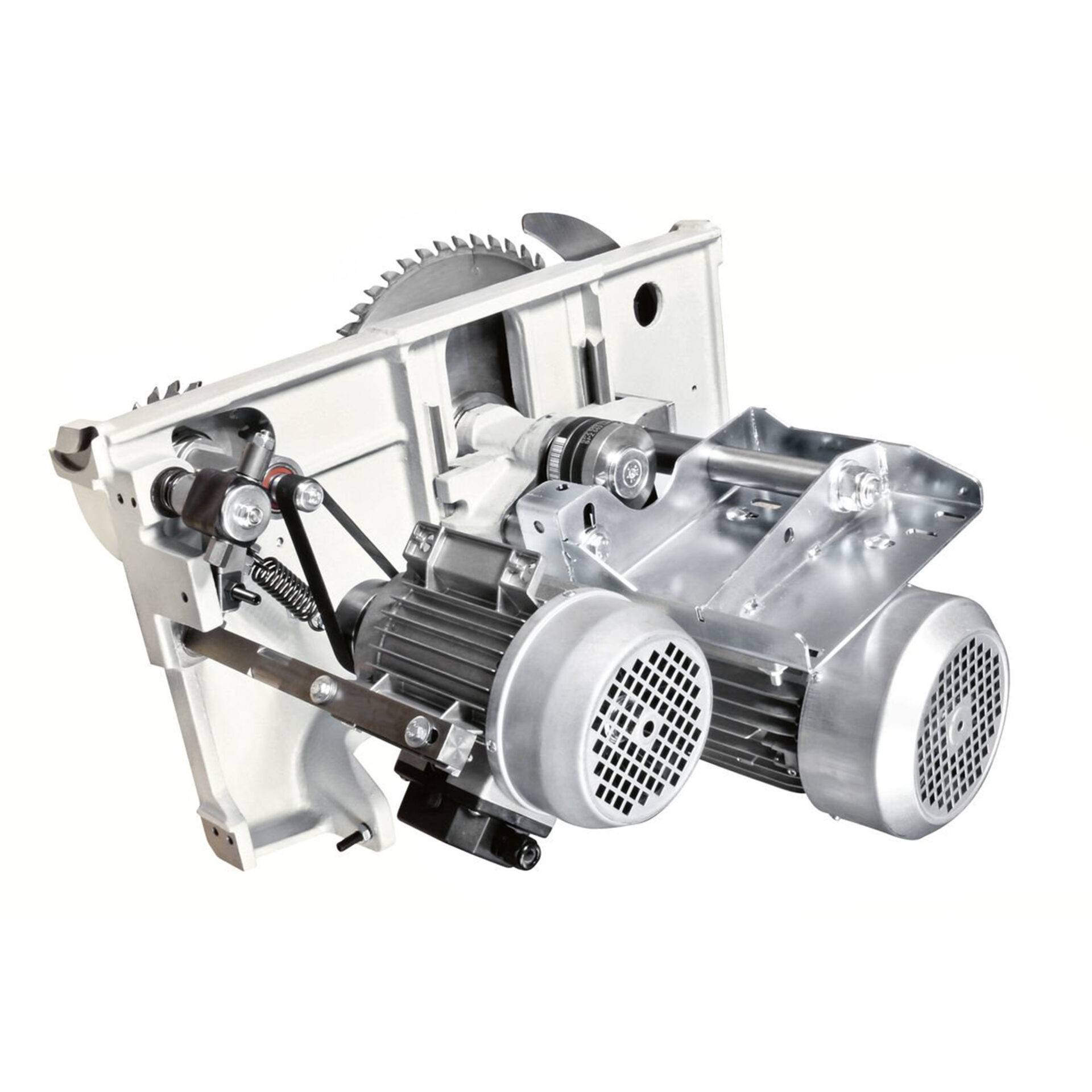

  • Independent Scoring Blade Motor: The main saw blade utilizes 100% of the motor power, thanks to the standard independent motor for the scoring blade, ensuring clean and precise cuts without compromising performance.

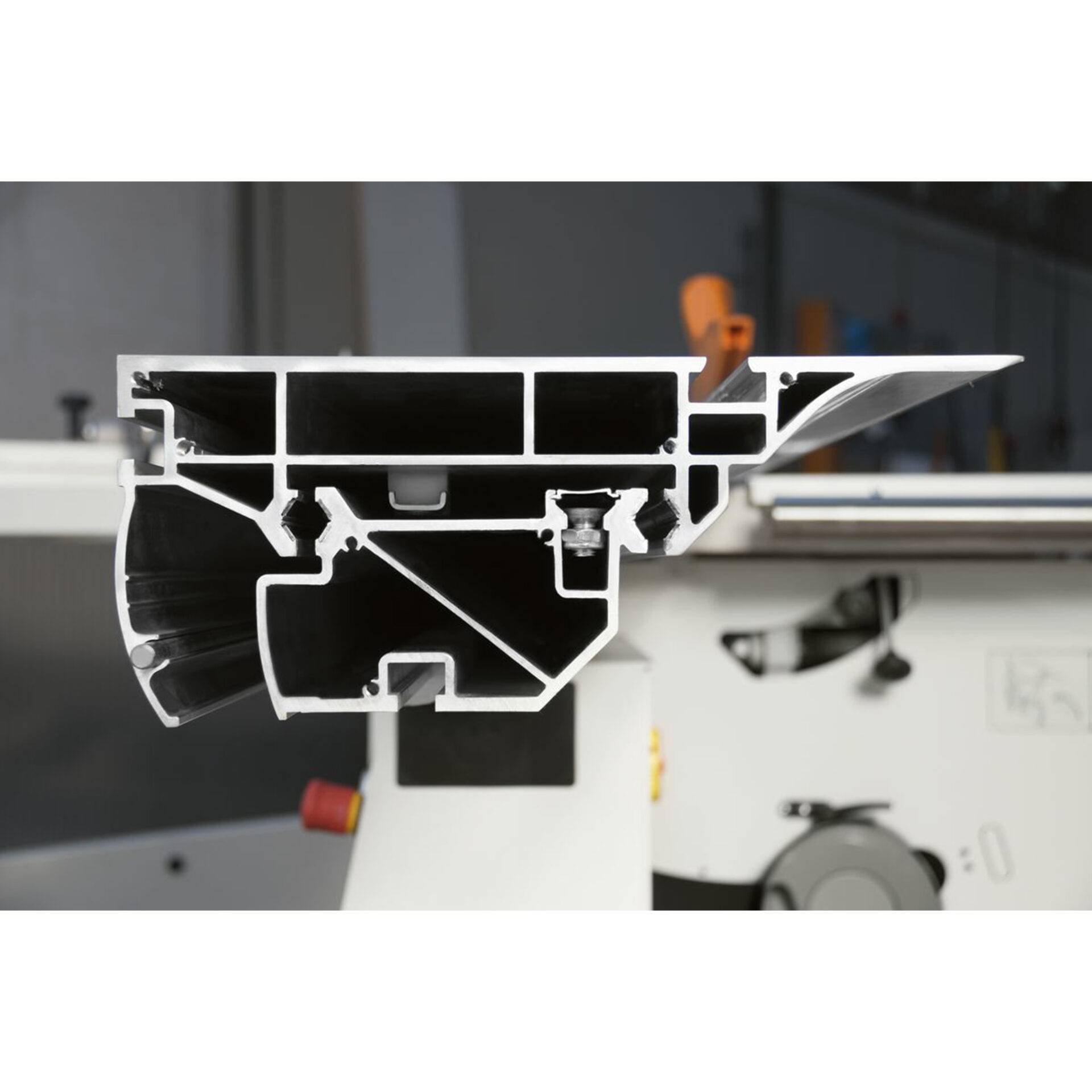

  • Durable Sliding Table: The 360 mm wide sliding table offers optimal support for larger workpieces. Its exceptional precision and smoothness are achieved through an exclusive aluminium riveting procedure securing the guides, eliminating the need for glue that could affect sliding.
  • User-Friendly Squaring Features: The large squaring frame, equipped with an idle roller at the end, simplifies panel loading. Additionally, the telescopic squaring fence with an inclined metric scale and two reversible stops allows for squaring panels measuring up to 3200 x 3200 mm and performing mitre cuts at up to 45° on both sides of the frame.

  Investing in the SCM Nova SI40 Sliding Table Panel Saw equips your workshop with a machine that delivers exceptional performance, durability, and versatility, meeting the high standards required in today’s woodworking industry.

• Specification
  • Blade diameter, max. 400 mm
  • Cutting depth, max. 136 mm
  • Main blade speed 4000 rpm
  • Squaring stroke, max. 2600 x 3200 mm
  • Rip fence capacity 1270 mm
  • Blade tilt 0 - 45°
  • Rip fence adjustment Manual
  • Extraction outlet(s) 1 x 120, 1 x 80 mm
  • Motor, main blade 5 kW (6.6 HP)
  • Motor, scoring blade 0.55 kW (0.75 HP)
  • Power 3 phase
