SCM Nova FS 520

Planer Thicknesser

Full details of SCM Nova FS 520

Configure your machine

Preconfigured versions *

Cutterblock *

Additional options

Motor *

- +

more information

  • Features
    • Manual or powered table positioning
    • Four feed speeds
    • Numerical readout for table position
    • Simultaneous lifting and locking surfacing tables
    • 1st front roller in helicoidal steel
    • Rubber-coated outfeed roller
    • Choice of HSS, TERSA or XYLENT cutterblocks
    • Optional powered table movement with digital readout
  • Description

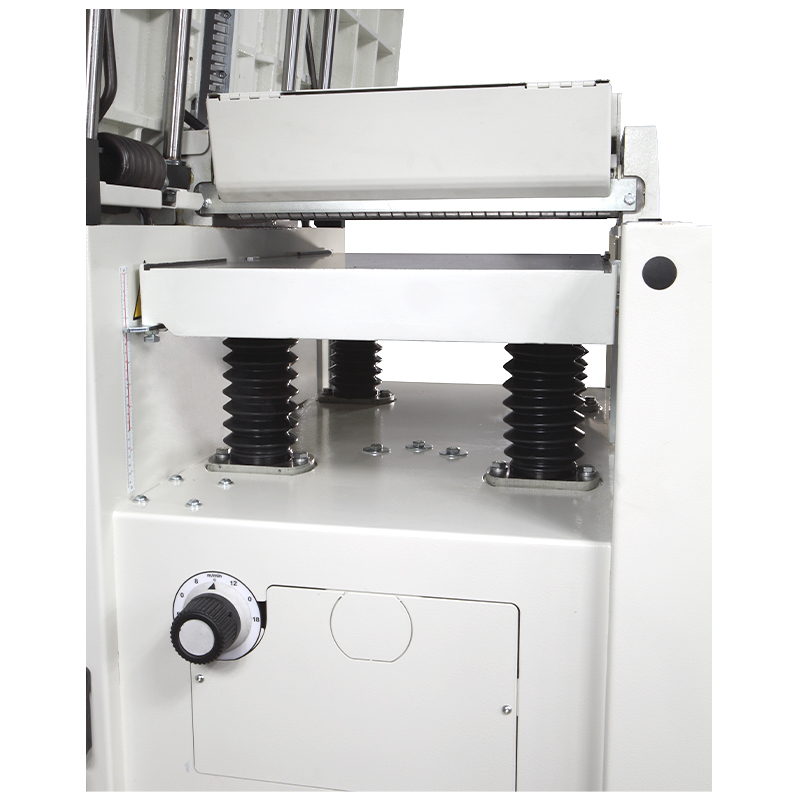

    The SCM Nova FS 520 planer thicknesser offers 20” wide surfacing capacity with optional powered rise and fall to the thicknessing table. Switching between surfacing and thicknessing is simple thanks to the simultaneous raising of the work tables. Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability, and ergonomics.

    The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

  • Specification
    • Surfacing width capacity 520 mm
    • Thicknessing depth, min. - max. 3 - 240 mm
    • Surfacing table length, overall 2250 mm
    • Cutterblock diameter 120 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Feed speed(s) 5/ 8 / 12/ 18 m/min
    • Fence tilt 0 - 45°
    • Extraction outlet(s) 1 x 120 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
