SCM Minimax TW 55ES

Spindle Moulder Tilting

To get a quote or for further information please contact us on:

Email us
  • Features

    • 4 speed heavy duty machine
    • Tilting spindle
    • Sliding table
  • Description

    The right spindle moulder for demanding craftsmen and carpenters, thanks to its customisation and flexibility.

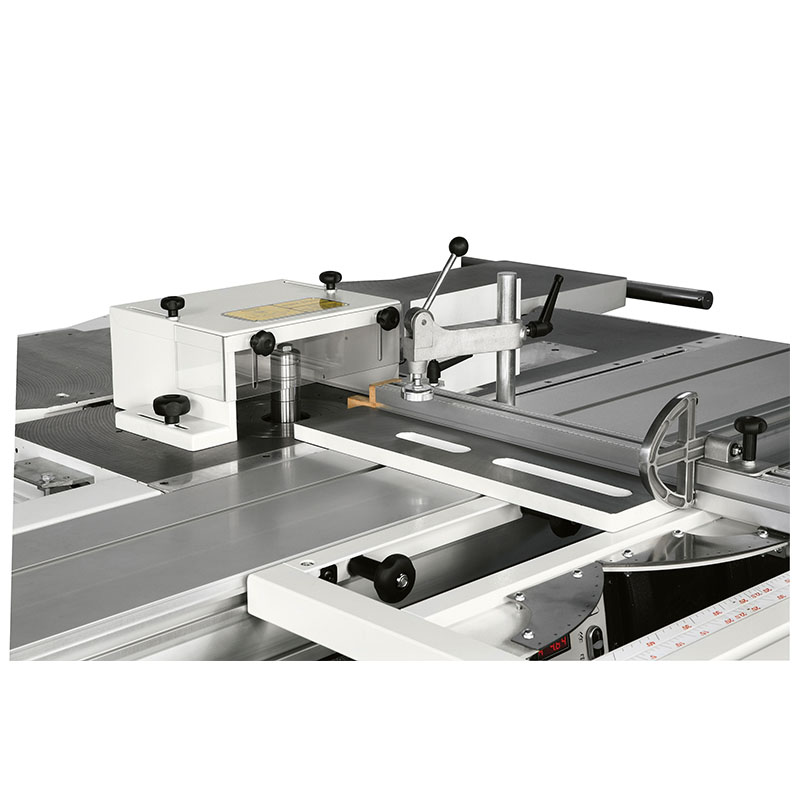

    The minimax tw 55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws. The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.

    Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds and available in fixed or tilting version. Best support in all machining, thanks to the 330 mm width sliding table.

    As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and re-positioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm. Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminium riveting.

  • Specification

    • Surfacing tables total length 125 mm
    • Spindle moulder speed (a 50 Hz) 3500/6000/8000/10,000 rpm
    • Max. tool diameter when profiling 210 x 240 mm
    • Max. tool diameter lowered under the table at 90┬░ 240 mm
    • Max. tool diameter when tenoning 320 mm
    • Three-phase motors starting from 5 (6) kW
  • Disclaimer

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
