SCM Minimax T 20

more information

• Features
  • Straight or tilted edge trimming
  • Anti-scratch work surface
  • Quick set up
  • Pair of multifunction diamond cutters R=2mm
  • High rigidity and stability steel monoblock base
• Description

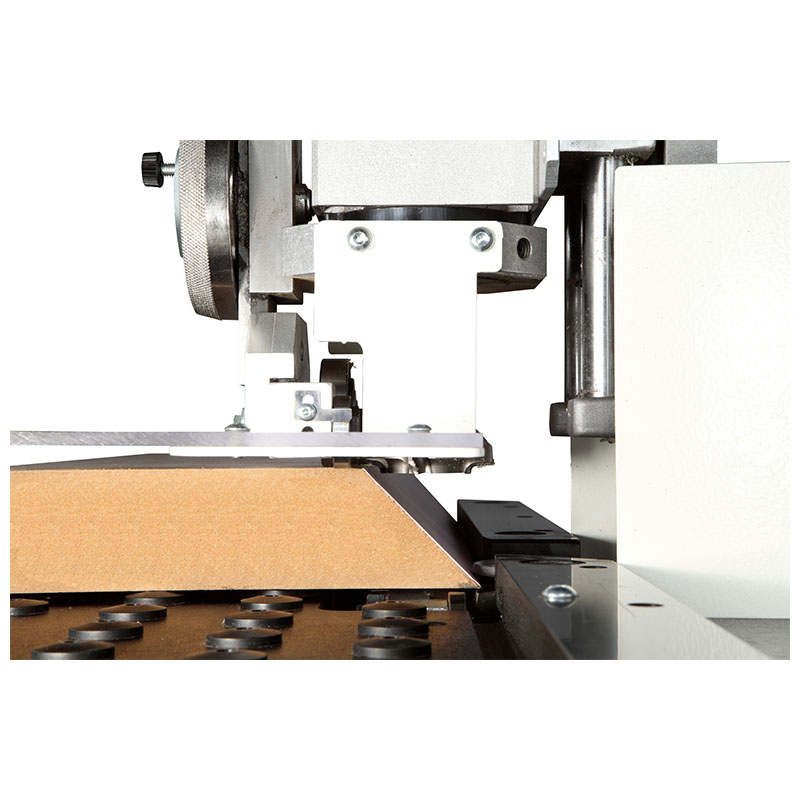

  The SCM Minimax T 20 is a manually fed trimming machine for finishing manually applied edges or for use in conjunction with the SCM Minimax E 10 shaped edgebander. The machine is capable of working with straight 90 degree panel edges or angles panel edges up to 45 degrees.

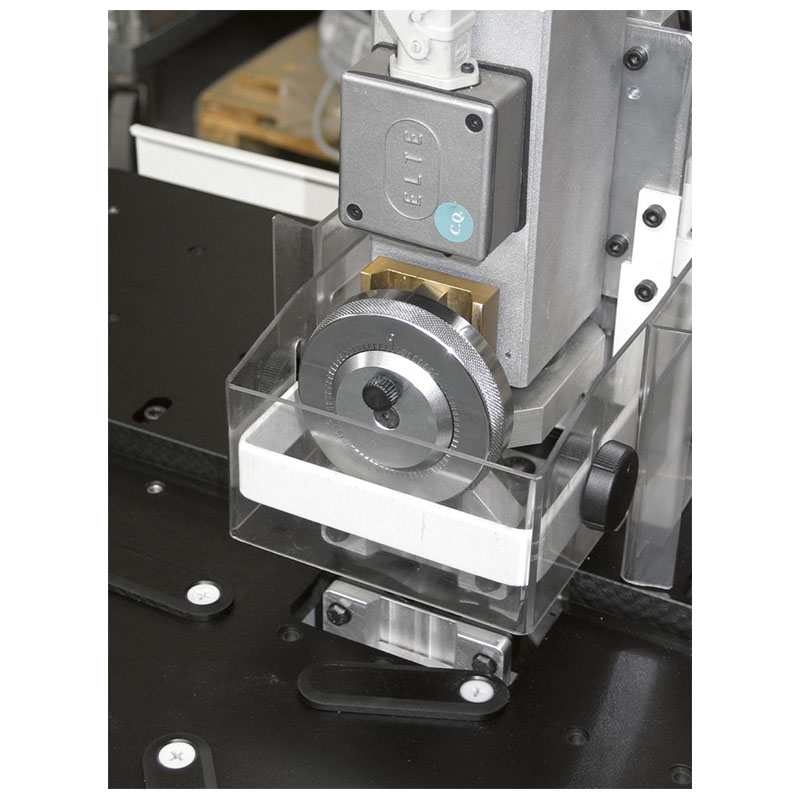

  The trimming adjustment is carried out in few seconds and without errors by means of the SCM exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool. Interchangeable copying devices for a rapid and precise set up during machining changeover, eliminate horizontal adjustment.

  Trimming group: complete with:

  • two 0,55 kW motors with support carriages running on ground guides
  • manual device for moving the two motors apart vertically in order to facilitate the insertion of curved panels
  • horizontal adjustment of the upper motor to enable the trimming of panel with chamfered edge
  • vertical adjustment of the upper motor to enable adjustment to mach panel thickness
  • 200 Hz inverter, complete with electronic brake
  • integrated exhaust outlets to ensure a clean work table at all times without hampering the machining



  Copying devices: complete with:

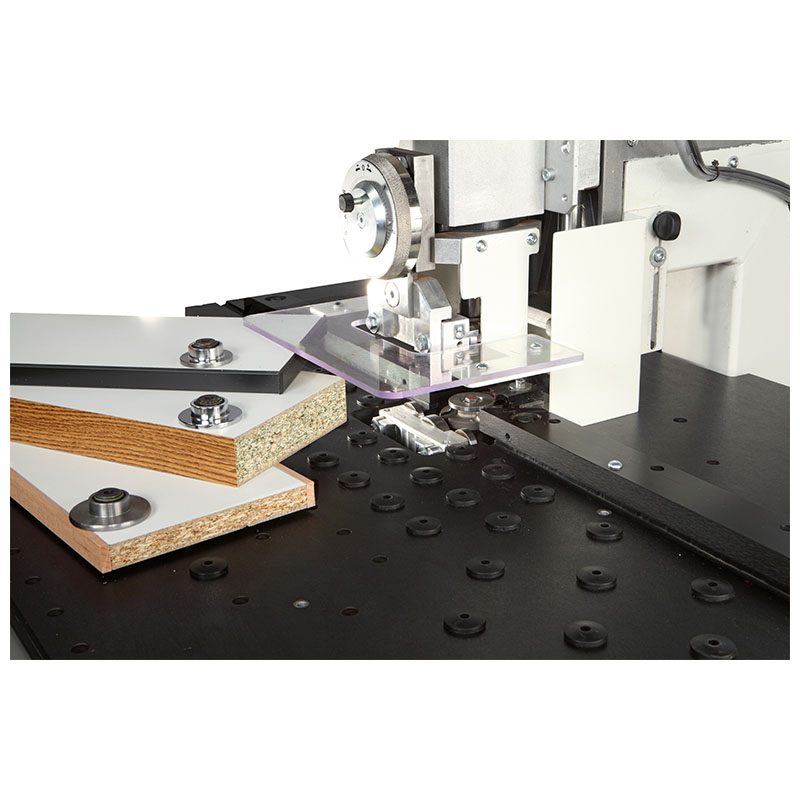

  • vertical scratch copiers kit to ensure optimum machine operation. Two pair of copiers: one with three bearings for straight panels, and the other one with single large dimensions bearing for curved and shaped panels
  • simple and immediate positioning of tools with reference to the cutting point, by means of pivoting rings with decimal indication (Scm
  • front interc hangeable rotating copying devices kit with hardened, ground chromed contact surfaces. 5 different copiers are supplied as
  • standard for an easy and rapid machine set up. (R2 or R3 or chamfered or straight or tilted edge).
  • SCM exclusive system
• Specification
  • Edging thickness, max. 4 mm
  • Panel thickness, min. - max. 14 - 80 mm
  • Panel length, min. 200 mm
  • Panel width, min. 100 mm
  • Internal radius with 0.4 mm edge, min. 25 mm
  • Variable cutters speed 9000 - 15000 rpm
  • Compressed air 6.5 - 8 bar
  • Power 3 phase
