SCM Minimax ST 1G

Product Information

• Features
  • Saw & spindle
  • 1200 mm table stroke
  • Rise, fall, tilt adjustment
  • Manual controls
  • Crosscut mitre fence
  • One length stop
  • Cast iron rip fence support
  • Adjustable spindle fence
• Description

  A combination saw and spindle moulder in machine. The SCM Minimax ST 1G offers the ultimate solution in compact machining.

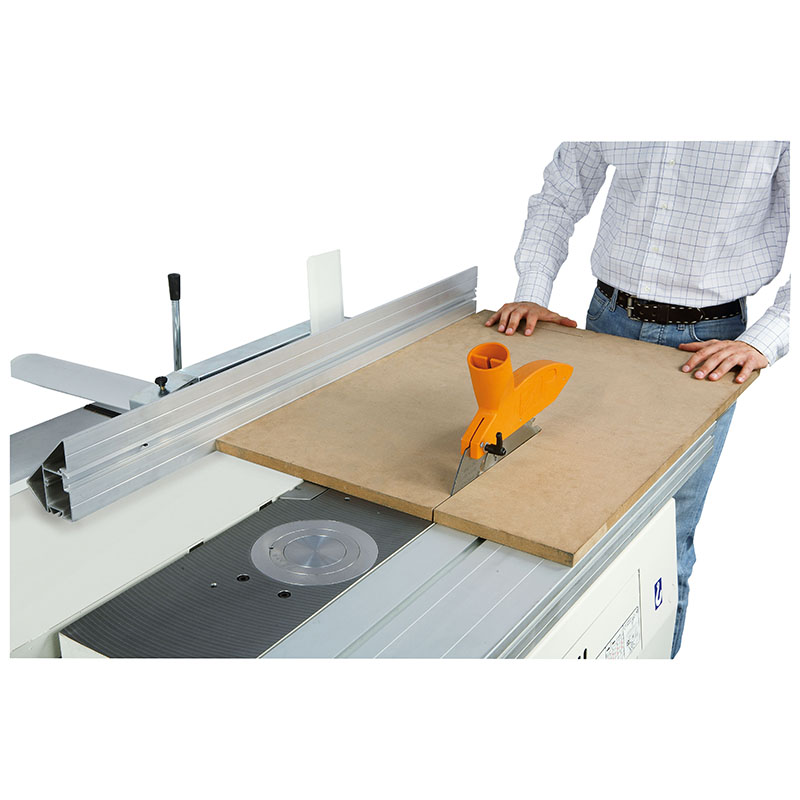

  Circular Saw

  The anodized aluminium sliding table with a 1200 mm stroke, slides next to the blade, thus ensuring better cutting precision. The squaring frame features an eccentric clamp and crosscut mitre fence with one length stop.

  Rip fence adjustment is smooth and precise with micrometric adjustment and cam-locking system. The main fence support is cast iron for high rigidity.

  With a 250 mm blade capacity and a maximum blade projection from table at 90° of 80 mm, the saw unit can be raised and tilted using convenient hand-wheels.

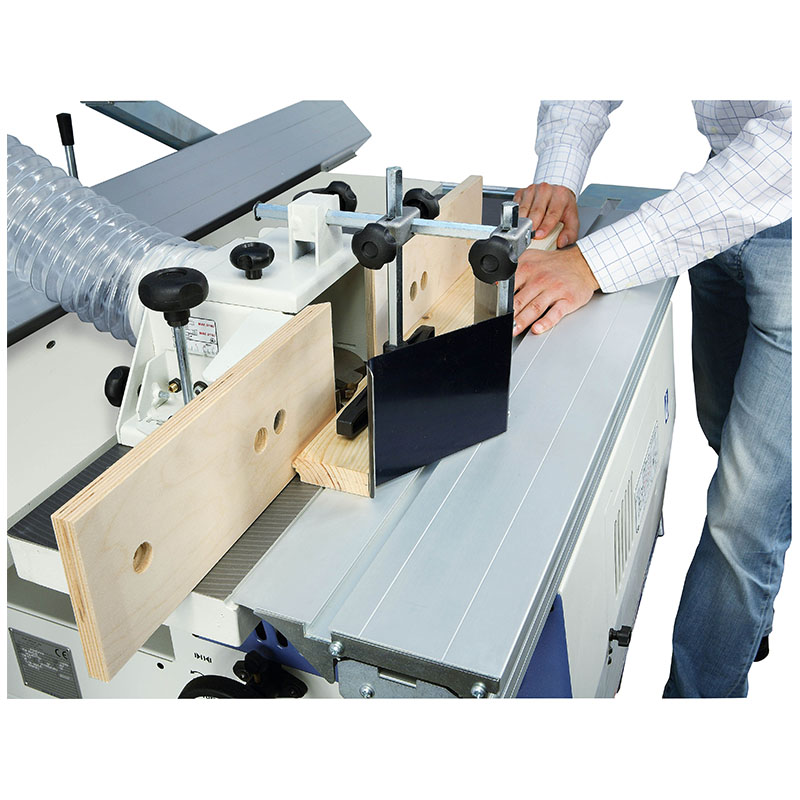

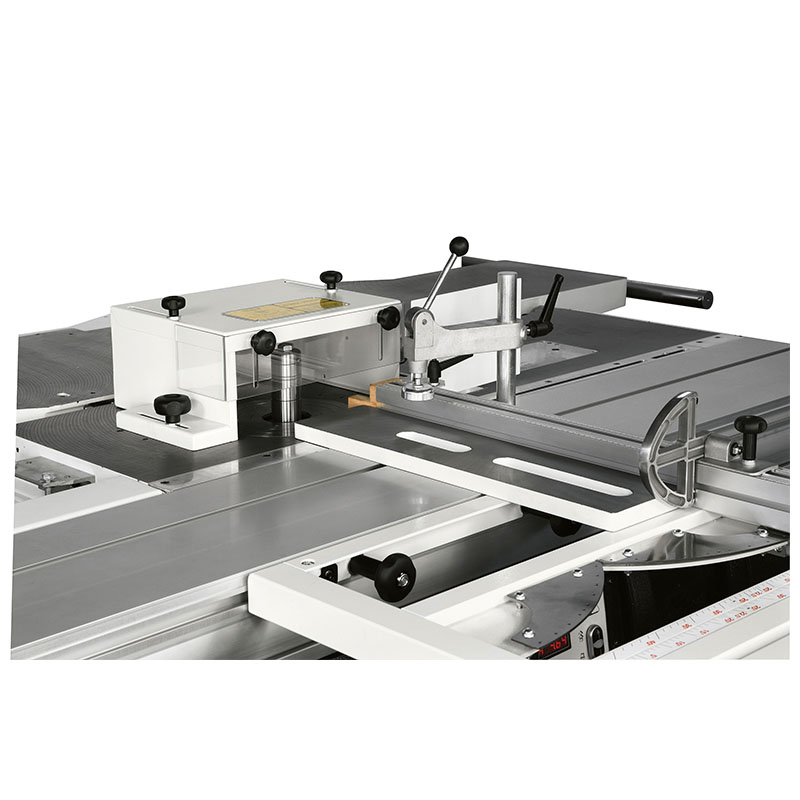

  Spindle moulder

  Manual rise and fall spindle adjustment. Adjustable spindle moulder fence with micrometric adjustment, vertical and horizontal pressures.

• Specification
  • Blade diameter, max. 250 mm
  • Cutting depth, max. 75 mm
  • Blade tilt 0 - 45°
  • Cast iron table size 1024 x 224 mm
  • Squaring stroke, max. 1200 mm
  • Rip fence capacity 700 mm
  • Rip fence adjustment Manual
  • Tool diameter, max. 160 mm
  • Tool diameter lowered under table, max. 145 mm
  • Useful spindle length, max. 75 mm
  • Spindle diameter 30 mm
  • Spindle speeds 5000/ 7000 rpm
  • Extraction outlet(s) 2 x 120 mm
  • Motor 2 x 1.8 kW (2.5 HP)
  • Power 3 phase
