SCM Minimax SI X

Sliding Table Panel Saw

Full details of SCM Minimax SI X

Configure your machine

Sliding table *

Controls

Rip fence *

Crosscut fence

Mitre fence *

- +

more information

  • Features
    • Powered two way saw tilting
    • Scoring saw unit

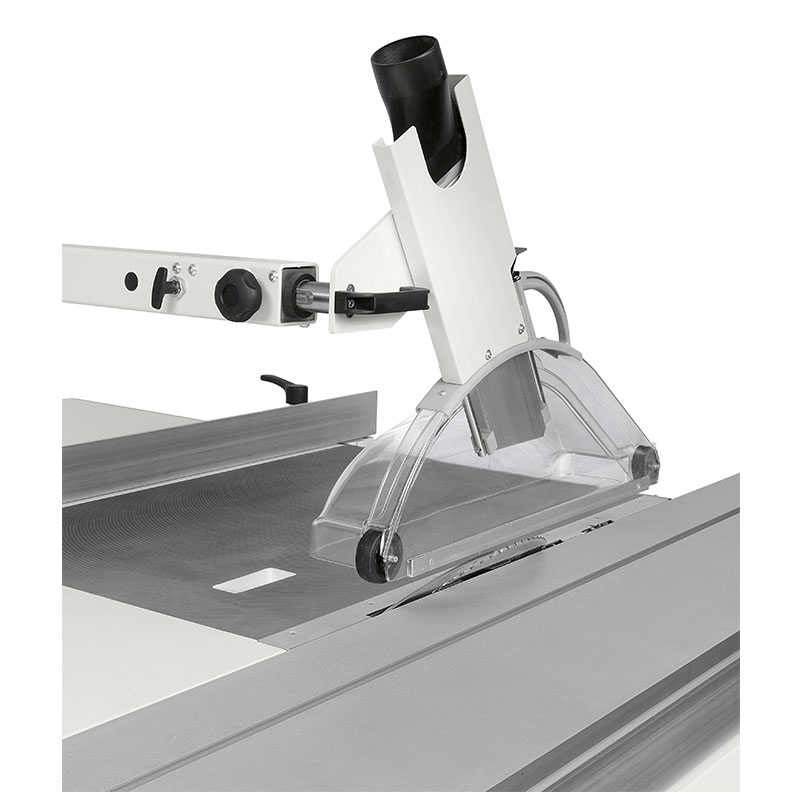

    • Overhead blade guard
    • Cast iron saw unit, with lifting system by means of cylindrical bars and tilting on high rigidity sliding side trunnions

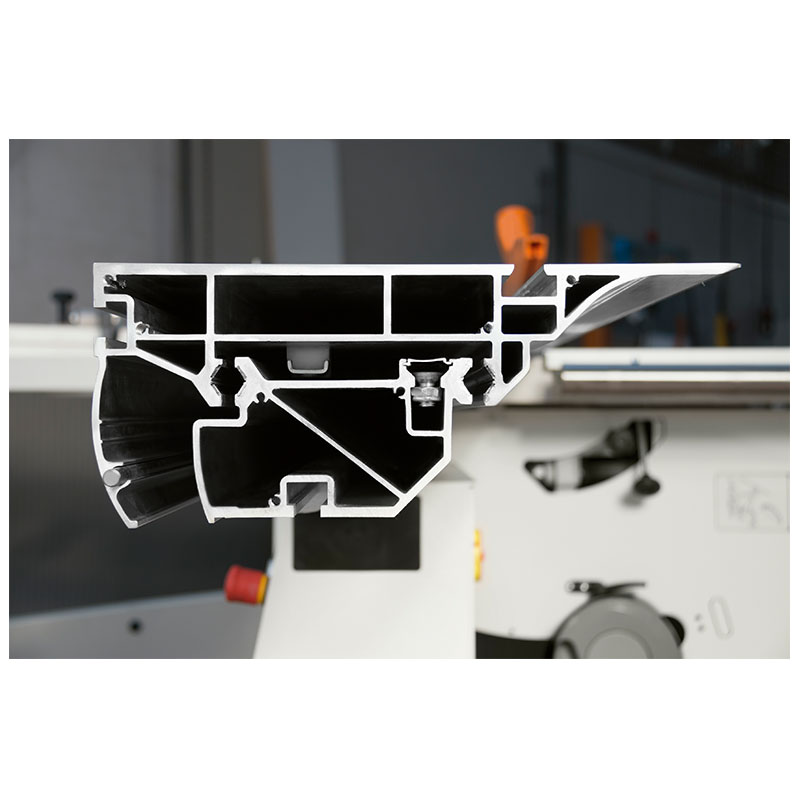

    • Anodized aluminium alloy carriage (dimensions 360 x 2600 mm) sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system

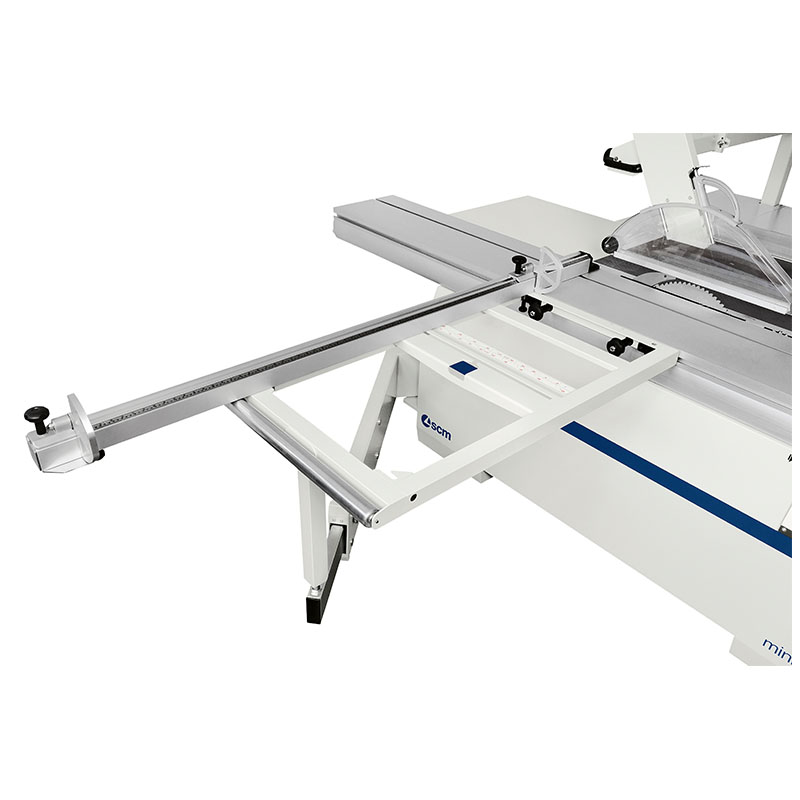

    • Squaring frame complete with telescopic fence, 2 crosscut flip over stops, eccentric clamp, swinging arm support, idle roller
    • Dedicated saw parallel fence complete with "high rigidity" cast iron fence support, micrometric adjustment and cam locking system rectified steel round sliding bar , 45 mm diameter

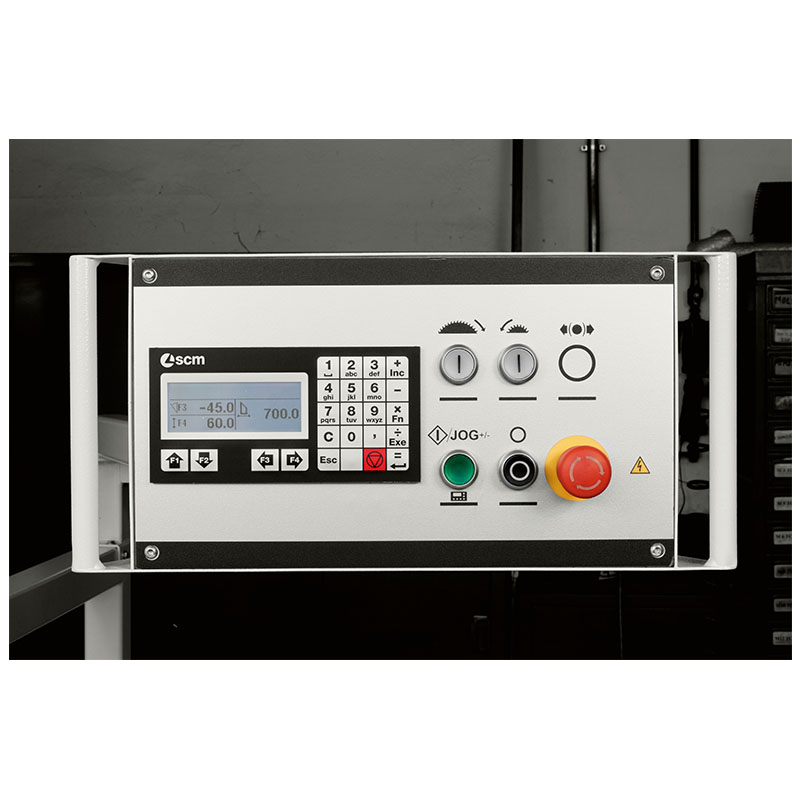

    • “READY” electronic 2 axis control, powered rise/ fall/ tilt adjustment, tool data with automatic height adjustment when tilting, 99 program memory
  • Description

    Panel saw with ±46° double tilting. With powered and programmed saw blade movement available as standard. It allows simultaneous use of a 400 mm saw blade and 160 mm scoring blade both for 90° cutting and ±46° tilted cutting, guaranteeing the maximum cutting height on veneered panels and solid wood.

    New saw unit with a stiff cast-iron structure which can accommodate a blade of 400 mm diameter with scoring blade mounted. It ensures a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at  ±46°. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminium riveting.

    Automatic positioning of the parallel fence, from “Ready” control (3 axes). Programmed or manual fence movement with a hold-down drive for the maximum versatility. In addition the Ready 3 UP version has the control on the mobile control panel.

  • Specification
    • Blade diameter, max. 400 mm
    • Cutting depth, max. 136 mm
    • Squaring stroke, max. 2600/ 3200 mm
    • Rip fence capacity 1270 mm
    • Blade tilt (+/-) 46°
    • Cast iron table size 1000 x 685 mm
    • Rip fence adjustment Manual
    • Extraction outlet(s) 1 x 120, 1 x 80 mm
    • Motor, main 5 kW (6.6 HP)
    • Motor, scoring 0.9 kW (1.2 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
