SCM Minimax S 41ES

Thickness Planer

Features
  • 775 mm long table
  • Manual height adjustment
  • Digital readout to table position
Description

The SCM Minimax S 41ES is a dedicated standalone thicknesser designed for demanding craftsmen. Manual table adjustments is accompanied by a digital readout for precision setting, while the helicoid...

Full description and features

Configure your machine

- +

Product Information

  • Features
    • 775 mm long table
    • Manual height adjustment
    • Digital readout to table position
    • Cast iron table
    • Choice of HSS, TERSA or XYLENT cutterblocks
  • Description

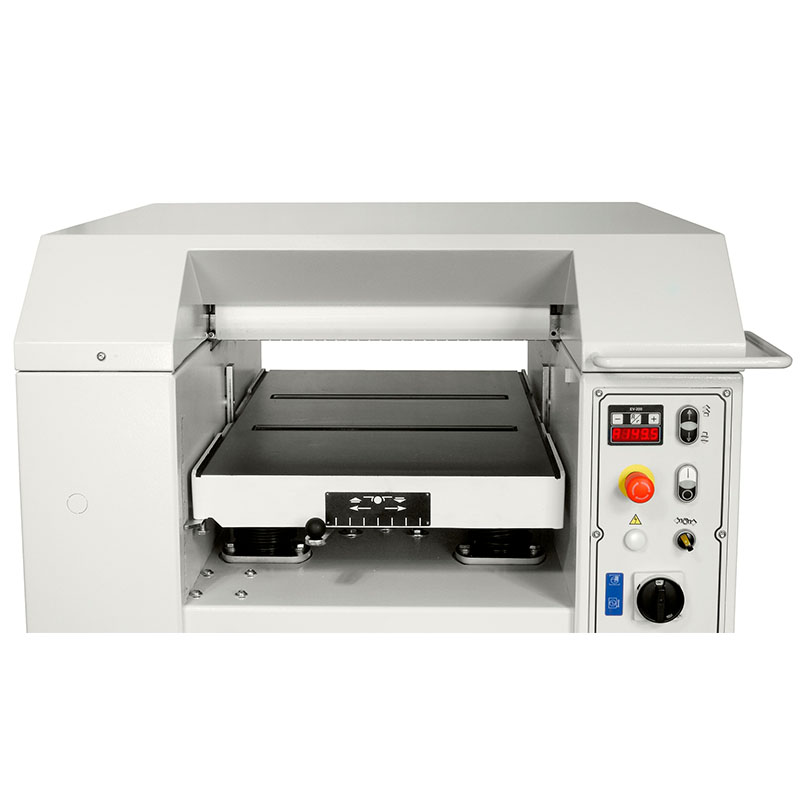

    The SCM Minimax S 41ES is a dedicated standalone thicknesser designed for demanding craftsmen. Manual table adjustments is accompanied by a digital readout for precision setting, while the helicoidal thicknesser infeed roller and sandblasted steel outfeed roller provide positive workpiece feeding.

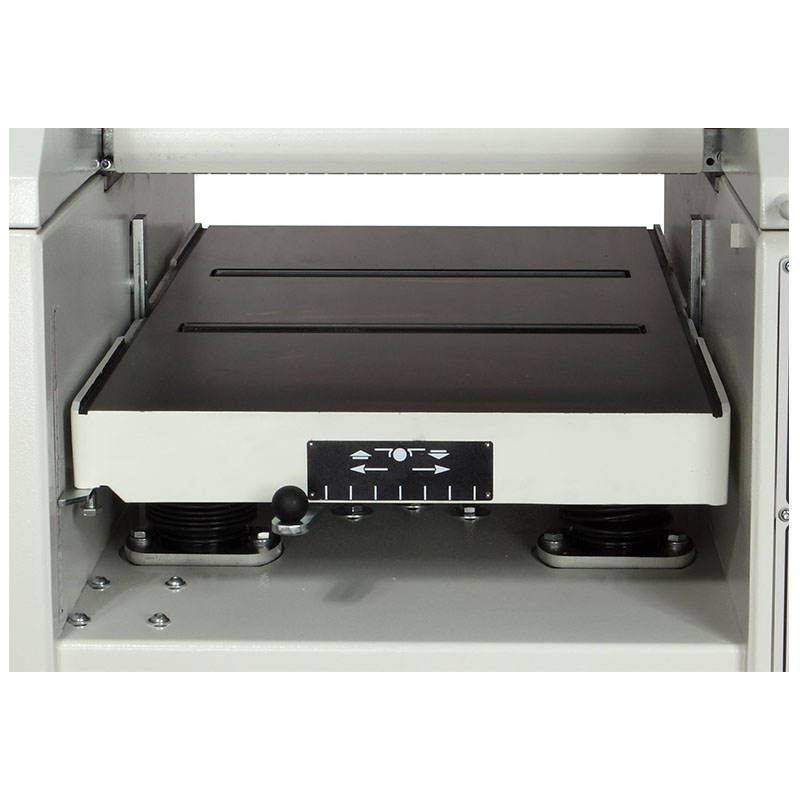

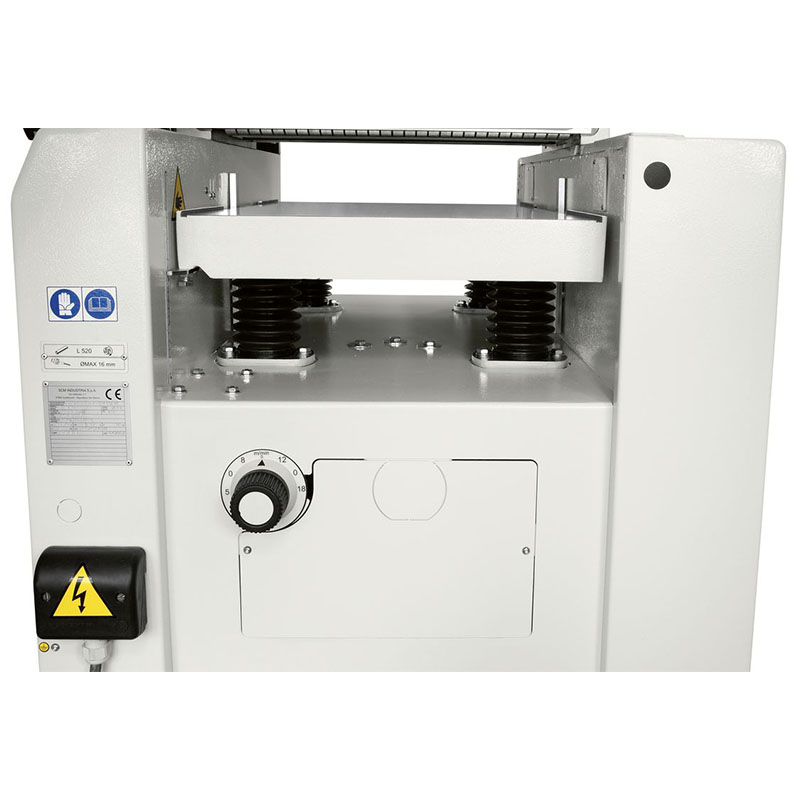

    The machine can be configured with optional powered table movement for quick setting. The pressure of the thicknesser feed roller to be adjusted according to the type of wood being machined. For maximum long lasting stability the cast iron thicknessing table is supported on 4 spindles with trapezoidal threads.

    The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

    A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

    For ultimate performance the optional “Xylent” spiralknife cutterblock with 3 series of knives is designed to give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

  • Specification
    • Surfacing width capacity 410 mm
    • Thicknessing capacity 3 - 240 mm
    • Working length, min. 180 mm
    • Thicknessing table length 775 mm
    • Cutterblock diameter 95 mm
    • Cutterblock type High Speed Steel (HSS)
    • Number of knives 4
    • Feed speed(s) 6 & 12 m/min
    • Extraction outlet(s) 1 x 120 mm
    • Motor 5 kW (6.6 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
