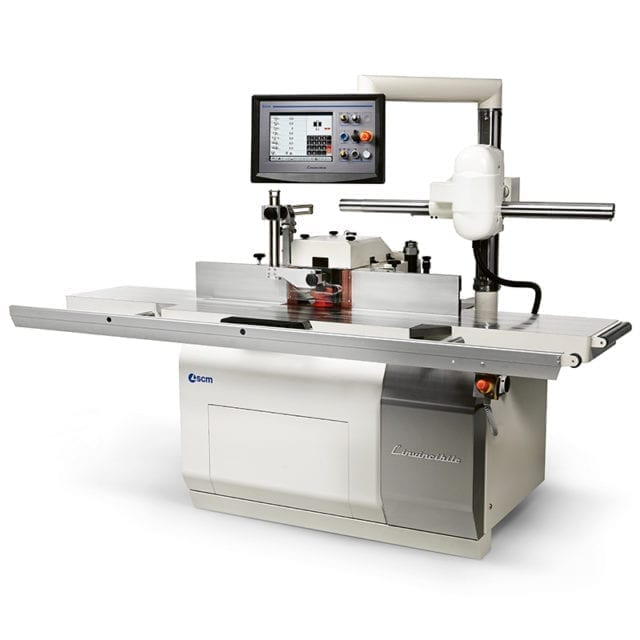

SCM L’invinsible TI 5

Spindle Moulder

Full details of SCM L’invinsible TI 5

Configure your machine

- +

more information

  • Features
    • Tilting spindle
    • Inverter speed control
    • “Easy Touch 7” eye-level control
    • Powered programmable spindle adjustment
    • MK5 interchangeable spindle
    • “Flex” powered spindle moulder fence
    • “Fast” section table adjustment
    • Aluminium fences
    • Reverse spindle rotation
  • Description

    The SCM L’invincible TI 5 spindle moulder builds on the features of the TF 5 but includes forward and backwards tilting spindle. Also includes is a 7.5 kW inverter driven motor allowing the operator to set any speed between 900 and 12000 rpm.

    Setting the spindle speed, height and tilt inclination, fence position is all done via the eye-level “Easy Touch 7” touch screen control. A total of 1000 individual set ups can be programmed and recalled for quick setting and guaranteed repeatability. The powerful tool management system allows for up to 500 cutter profiles to be stored with images, description and ID number to further aid tool room management.

    As with all L’invincible models, you can expect a host of standard features with the SCM TI 5 including “FLEX” spindle moulder fence with auto setting, MK5 interchangeable spindle, aluminium fences etc.

  • Specification
    • Tool diameter lowered under table 300 x 80 mm
    • Spindle shaft height 140 mm
    • Spindle diameter 30 mm
    • Spindle tilt +45°/ - 45°
    • Spindle speeds 900 – 12000 rpm
    • Worktable dimension 1200 x 780 mm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
