SCM L’invincible SI 5

Product Information

• Features
  • Powered rise/ fall/ tilt adjustment
  • Powered rip fence
  • “eye-S 15” touch screen control
  • Start/ stop controls on sliding table
  • Scoring saw unit with powered adjustment
  • 10 year guarantee on carriage sliding system
  • Optional electronic digital readout to crosscut fence stops
• Description

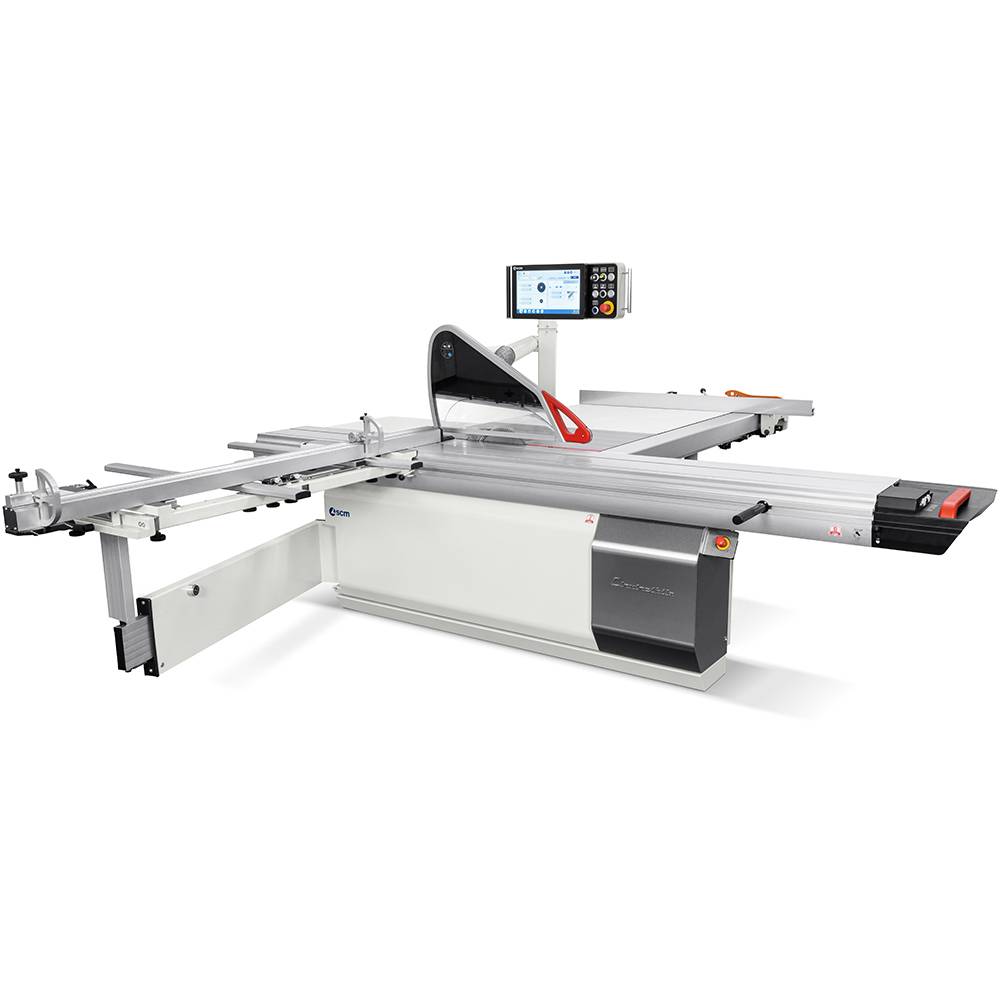

  SCM, the worlds largest woodworking machine manufacturer, has honed its panel sawing technology over the past 70 years – the result is impressive both in terms of design and performance. The elegant lines of the SCM L’invincible Si 5 with brushed steel body and large colour touchscreen control exude an air of sophisticated precision, but the aesthetic is just the start.

  Operators will welcome the wealth of features that facilitate work with speed and accuracy. Start stop controls on the sliding table, powered rise, fall and tilt adjustment, powered CNC rip fence movement, independent scoring saw unit with separate powered 2 axis vertical and horizontal adjustment. At the sharp end, performance is delivered with a 550 mm diameter blade capacity giving a massive cutting depth of 200 mm with optional motor powers up to 11 Kw.

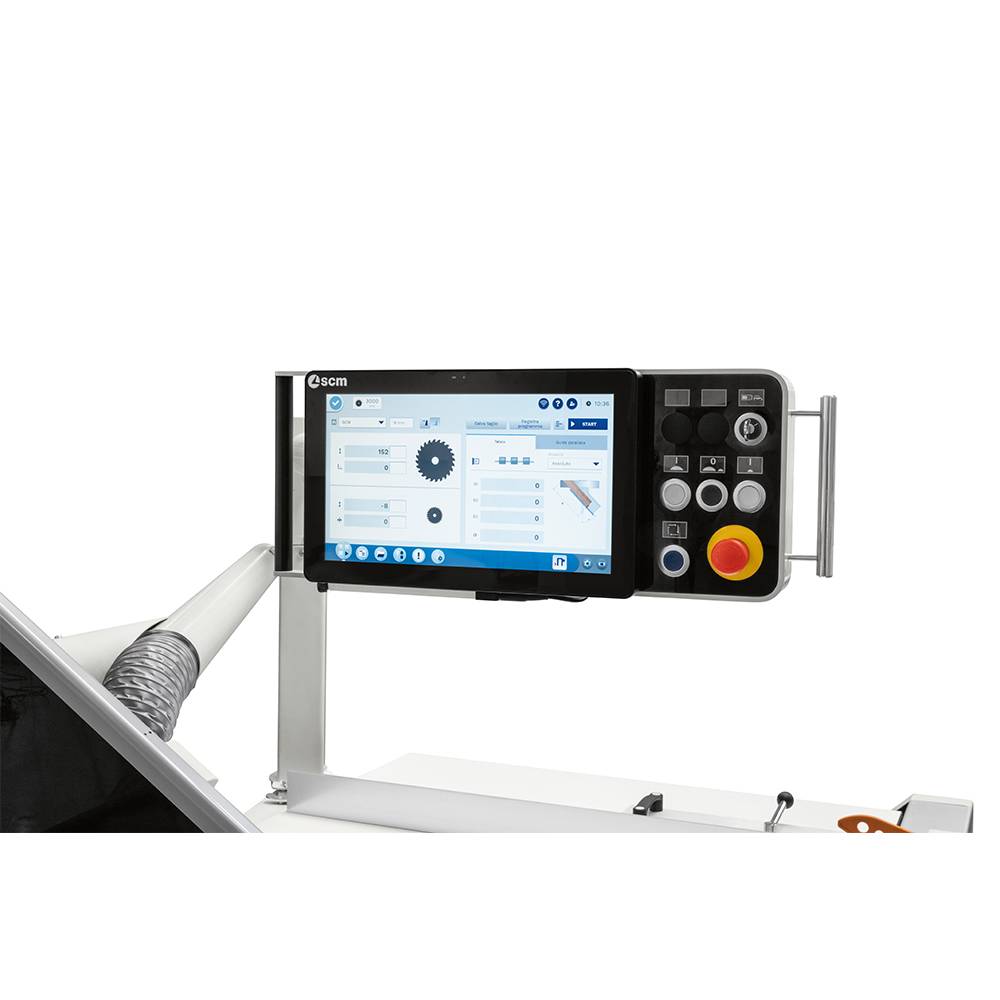

  All powered functions are accessed and programmable through the all-new Eye-S control. This intuitive and vibrant 15” touch screen gives direct control of all moving axis on the machine giving the operator the ability to quickly set, save and recall up to 1000 specific programs. The onboard cutting assistant will also help operators calculate complex angles and cut sequences. Tool life can also be monitored to ensure cutting performance and edge finish is always optimal.

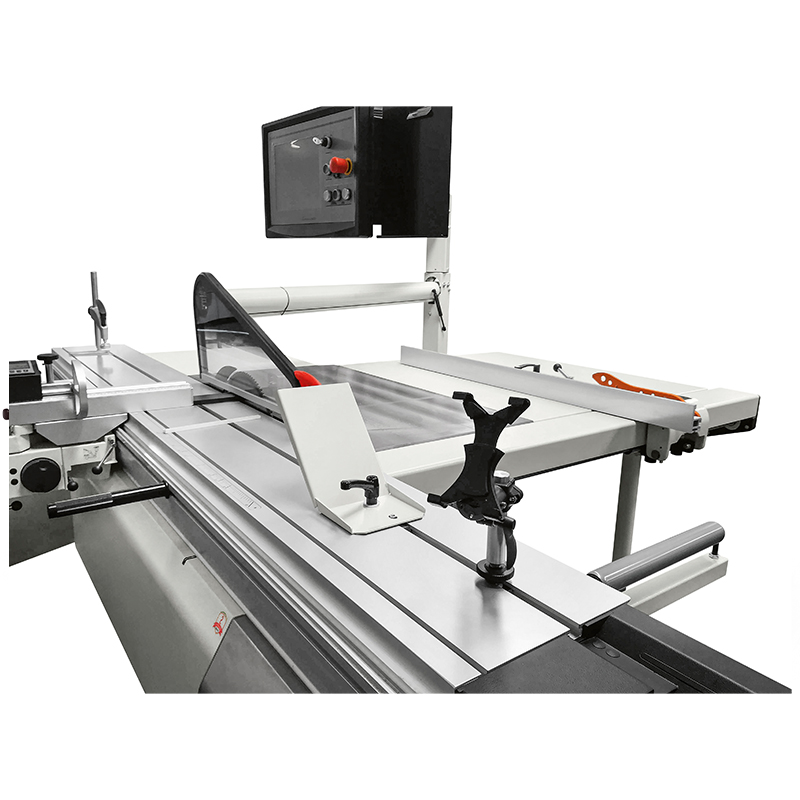

  In terms of working capacity, the sliding table is available in three lengths 2200, 3200 and 3800mm. Constructed from aluminium alloy the carriage runs on high precision arch ground hardened guides – a system pioneered by SCM and guaranteed for 10 years.

• Specification
  • Blade diameter, max. 550 mm
  • Cutting depth, max. 200 mm
  • Squaring stroke, max. 3200 mm
  • Rip fence capacity 1500 mm
  • Blade tilt 0 - 45°
  • Rip fence adjustment Powered
  • Extraction outlet(s) 1 x 120x 1 x 100 mm
  • Motor 7 kW (9.5 HP)
  • Power 3 phase
• Literature
  • L'invincible range Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
