SCM L’invinsible SI 3

Sliding Table Panel Saw

Full details of SCM L’invinsible SI 3

Configure your machine

- +

more information

  • Features
    • Powered rise/ fall/ tilt adjustment
    • Powered rip fence

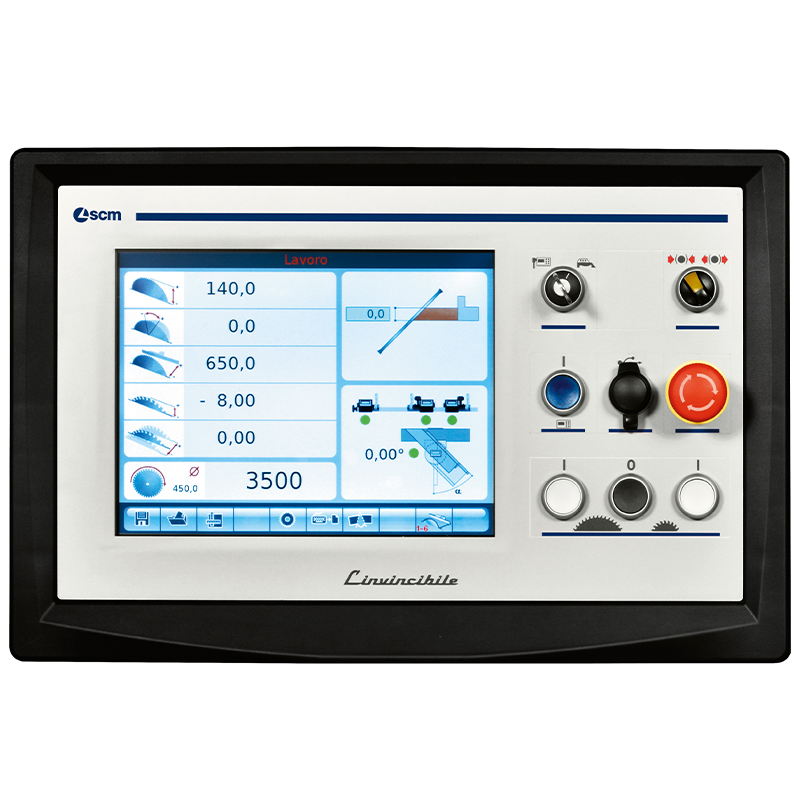

    • “EASY TOUCH 7” touch screen control
    • Start/ stop controls on sliding table

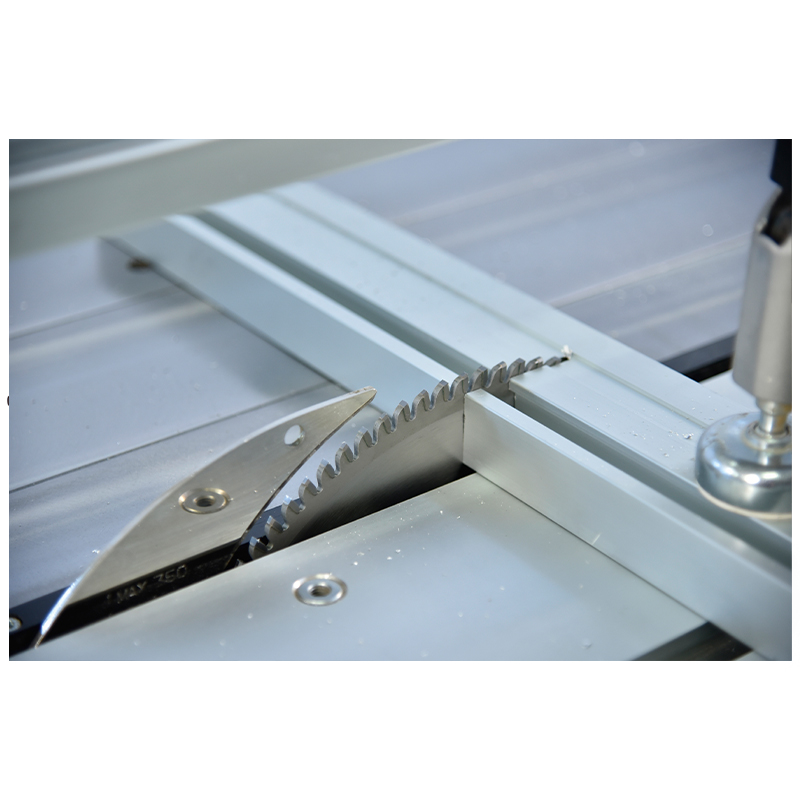

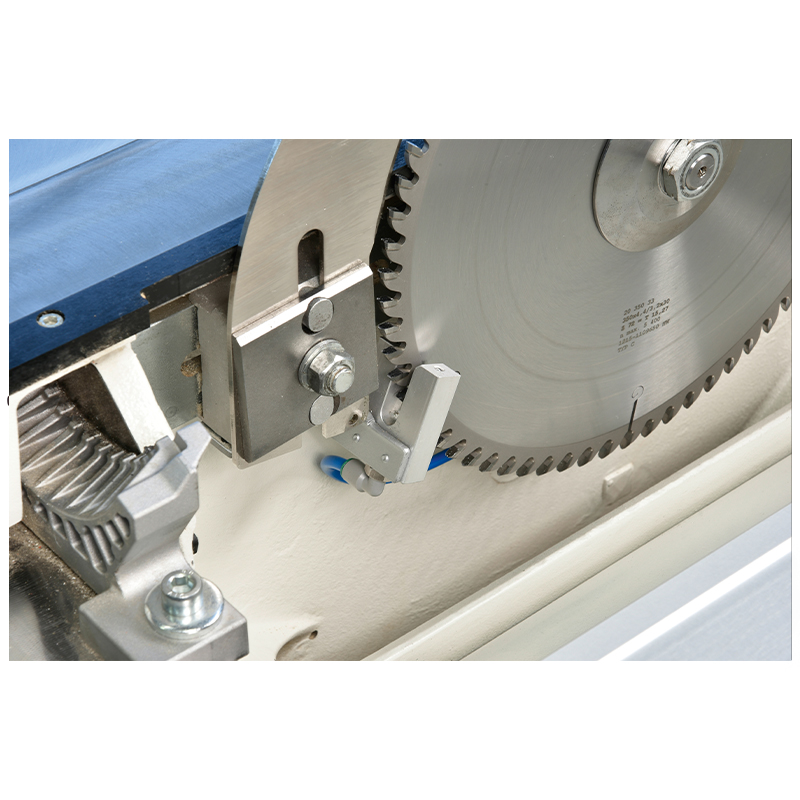

    • Scoring saw unit with powered adjustment

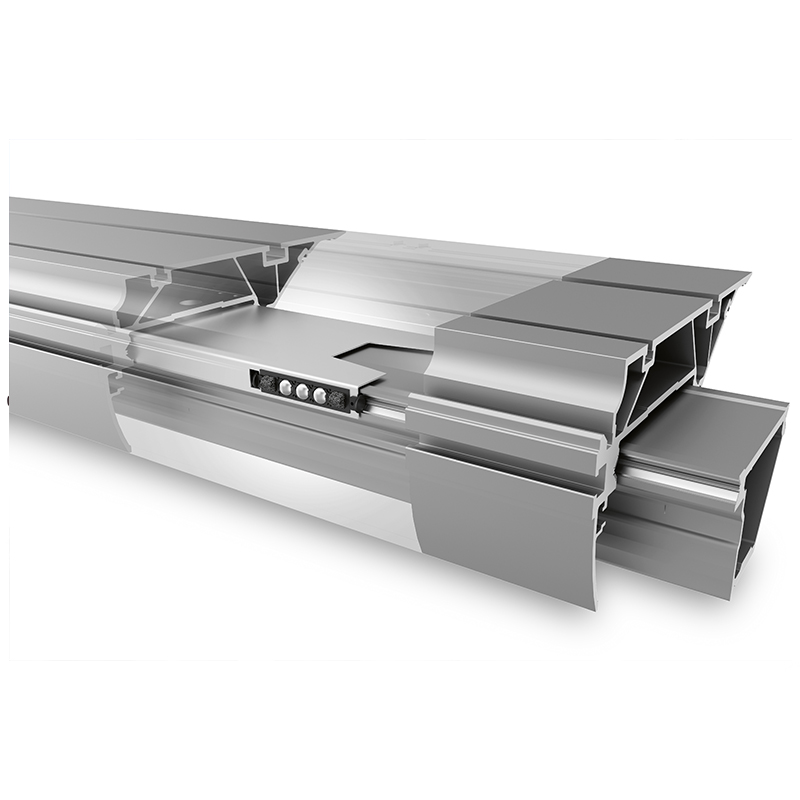

    • 10 year guarantee on carriage sliding system
    • Optional electronic digital readout to crosscut fence stops
  • Description

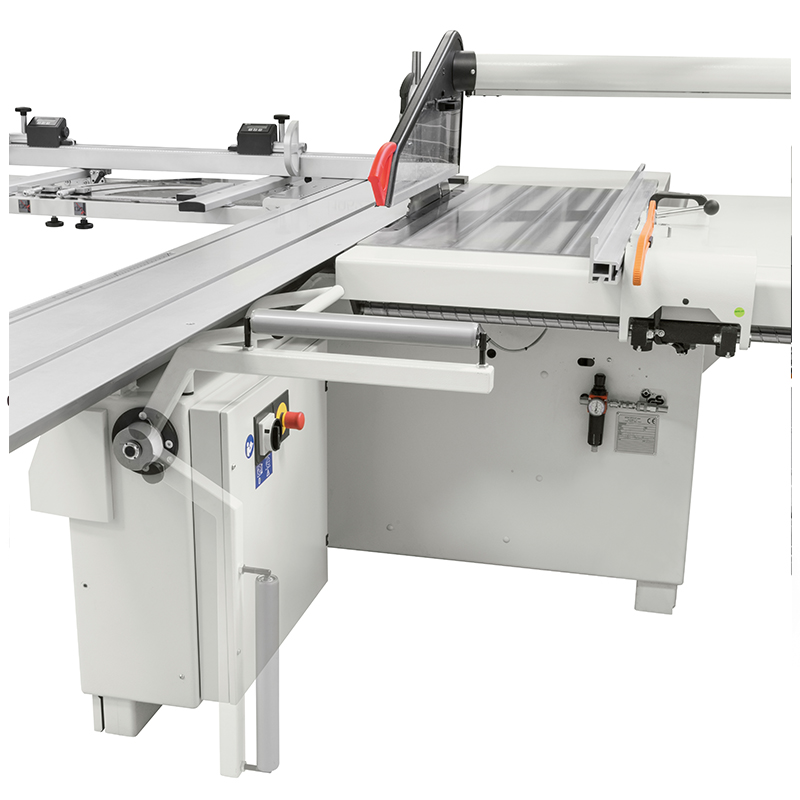

    The absolute pinnacle of sliding table saw technology, from the world’s largest woodworking machine manufacturer, the L’invincible SI 3 dimension saw from SCM is a no compromise precision workhorse designed to satisfy the most demanding workshop schedules.

    As standard the SCM l’invincible SI 3 features powered rip fence movement, powered rise, fall and tilt of the blade all programmable through the overhead “EASY TOUCH 7” touch screen control. An independent scoring saw unit is also standard complete with electronic adjustment for the horizontal and vertical movement of the blade – in addition the scoring blade automatically retracts when not in use.

    Other operator friendly additions include start/ stop controls on the sliding table, “Quick Lock” fence on the squaring frame, assistance function on the control for setting stops correctly when blade is tilted and of course the SCM aluminium sliding table with 10 year warranty – all standard.

  • Specification
    • Blade diameter, max. 400 mm
    • Cutting depth, max. 120 mm
    • Squaring stroke, max. 3200 mm
    • Rip fence capacity 1500 mm
    • Blade tilt 0 - 45°
    • Rip fence adjustment Powered
    • Extraction outlet(s) 1 x 120, 1 x 100 mm
    • Motor 7 kW (9.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
